Monitor Result
Refer to CHECKING MONITOR STATUS
The test value and test limit information are described in the following table. This information is included under Monitor Result in the emission-related DTC sections:
- MID (Monitor Identification Data) is assigned to each emission-related component.
- TID (Test Identification Data) is assigned to each test value
- Scaling is used to calculate the test value indicated on generic OBD II scan tools
EVAP - Key-off Type
MONITOR RESULTMID TID Scaling Unit Description $3D $C9 Multiply by 0 001 kPa Test value for small leak (P0456)
Refer to pressure D(1)$3D $CA Multiply by 0 001 kPa Test value for gross leak (P0455)
Refer to pressure E(1)$3D $CB Multiply by 0 001 kPa Test value for leak detection pump stuck OFF (P2401)
Refer to pressure A(1)$3D $CD Multiply by 0 001 kPa Test value for leak detection pump stuck ON (P2402)
Refer to pressure A(1)$3D $CE Multiply by 0 001 kPa Test value for vent valve stuck OFF (vent) (P2420)
Refer to pressure C(1)$3D $CF Multiply by 0 001 kPa Test value for vent valve stuck ON (P2419)
Refer to pressure A(1)$3D $D0 Multiply by 0 001 kPa Test value for reference orifice low flow (P043E)
Refer to pressure B(1)$3D $D1 Multiply by 0 001 kPa Test value for reference orifice high flow (P043F)
Refer to pressure A(1)$3D $D4 Multiply by 0 001 kPa Test value for purge VSV stuck closed (P0441)
Refer to pressure F(1)$3D $D5 Multiply by 0 001 kPa Test value for purge VSV stuck open (P0441)
Refer to pressure E(1)$3D $D7 Multiply by 0 001 kPa Test value for purge flow insufficient (P0441)

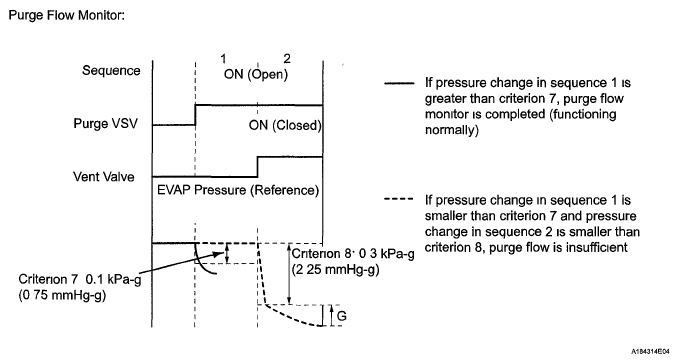

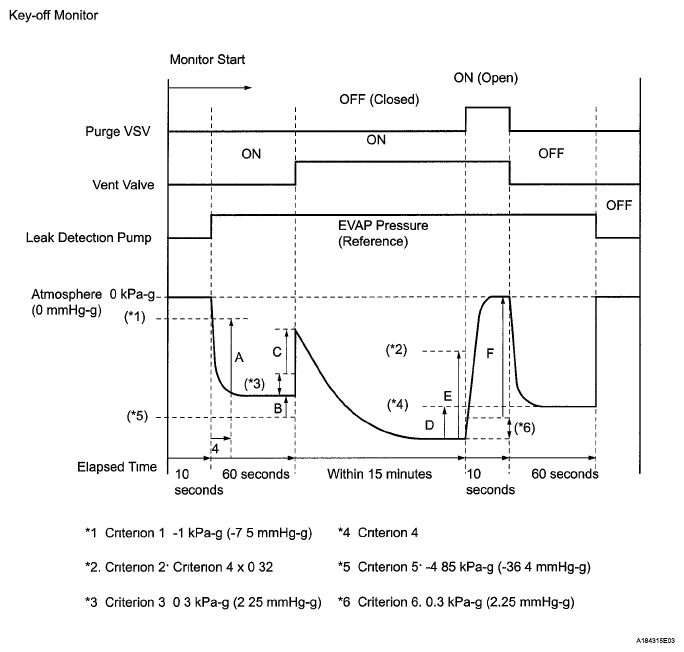

Refer to pressure G(1)(1) Pressures A to G are indicated in the diagram below Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
