Ignition Coil And Spark Plug: Installation

INSTALL SPARK PLUG
1. Using a 16 mm plug wrench, ins all the 8 spark plugs.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Fig 1: Removing Spark Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL IGNITION COIL ASSEMBLY
1. Install the 8 ignition coils with the 8 bolts.
  NOTE: Do not damage the ignition coils when installing them.

  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
2. Connect the 8 ignition coil connectors

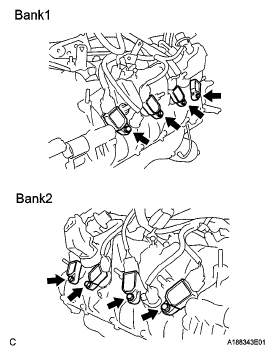

  Fig 2: Locating Ignition Coils Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WIRE HARNESS CLAMP BRACKET
1. Install the wire harness clamp bracket with the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
2. Install the wire harness clamp to the clamp bracket.

  Fig 3: Locating Wire Harness Clamp Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the No 7 engine room relay block with the 2 bolts and nut
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Fig 4: Locating Wire Harness Clamp Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BATTERY TRAY
1. Install the battery tray with the 3 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSTALL POWER STEERING ECU ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 BATTERY TRAY SUPPORT
INSTALL BATTERY
1. Install the battery
2. Install the battery insulator

  Fig 5: Identifying Battery Tray And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the battery clamp with a nut.
  Torque: 2.9 N*m (30 kgf*cm, 26 in.*lbf)
4. Connect the cable to the positive (+) battery terminal.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
5. Connect the 2 clamps.
INSTALL AIR CLEANER CAP SUB ASSEMBLY (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
1. Connect the cable to the negative (-) battery terminal.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
