Knock Sensor: Components

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 2)
G05751973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

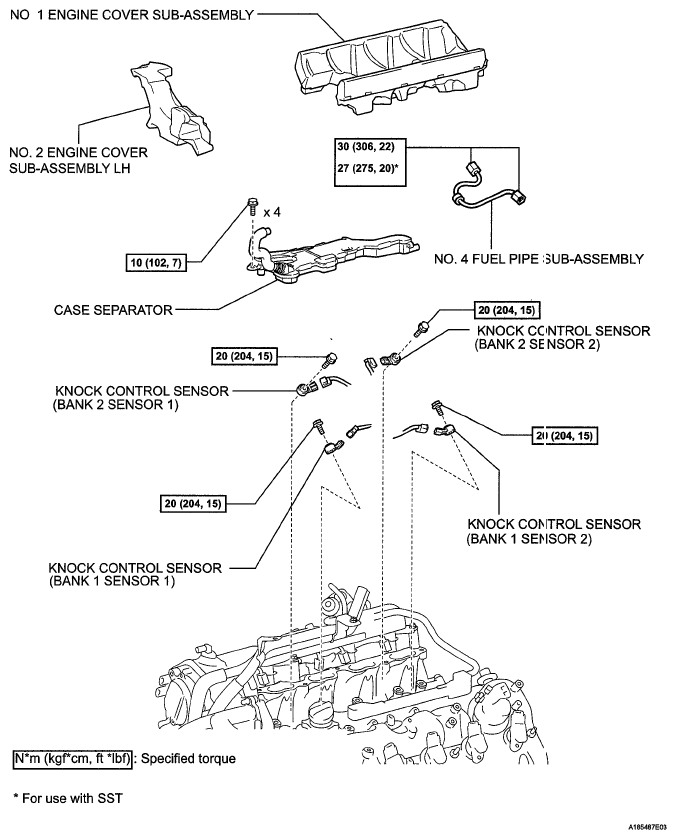

Fig 2: Lnock Sensor Replacement Components With Torque Specifications (2 Of 2)
G05751974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
