Mass Air Flow Meter: Inspection

INSPECT MASS AIR FLOW METER

Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass airflow meter shown in the illustration
OK: There is no foreign material.

If the result is not as specified, replace the mass air flow meter.

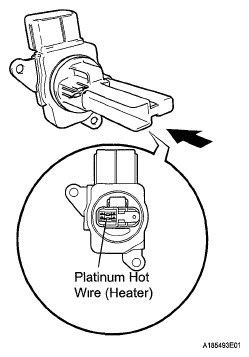

Fig 1: Identifying Platinum Hot Wire (Heater) Of Mass Airflow Meter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance between the terminals

Specified Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Condition
1 (THA) - 2 (E2)	-20°C (-4°F)	13.6 to 18.4 kΩ
	20°C (68°F)	2.21 to 2 69 kΩ.
	60°C (140°F)	0.49 to 0.67 kΩ

If the result is not as specified, replace the mass air flow meter

Fig 2: Identifying Mass Air Flow Meter Connector Terminal

G05751924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
