VC Output Circuit: Wiring Diagram

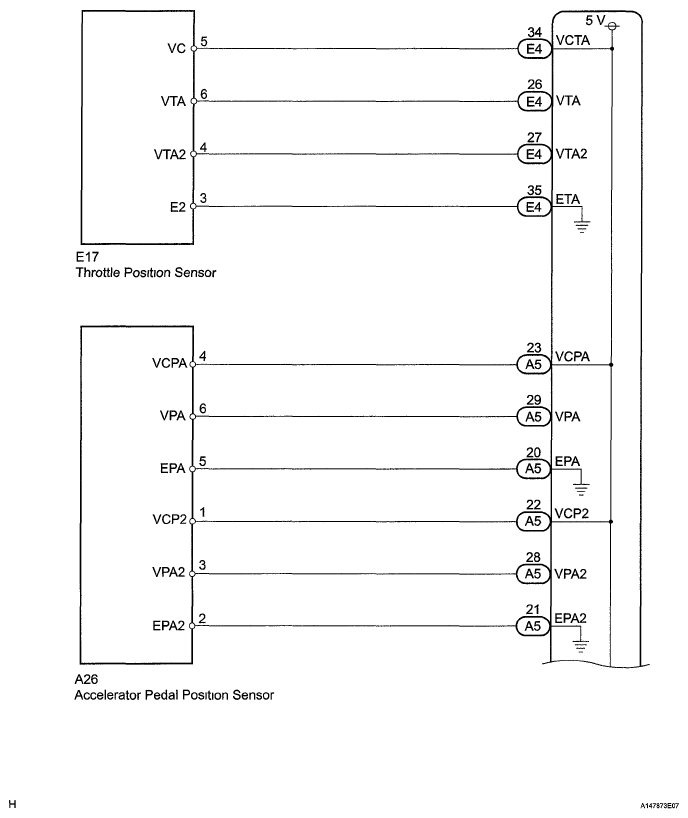

Fig 1: VC Output - Wiring Diagram (1 Of 3)
G05751804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

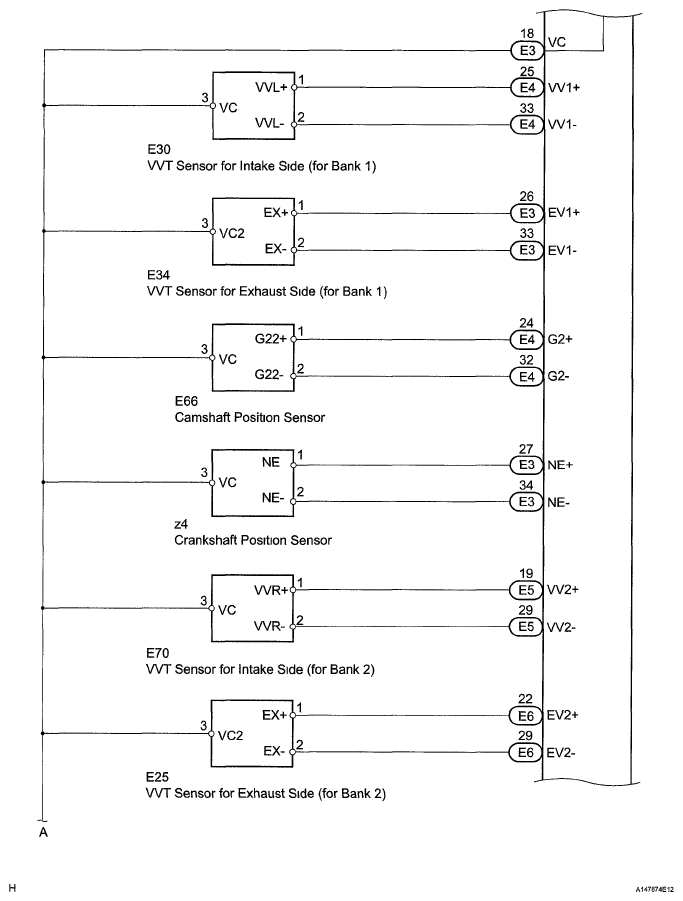

Fig 2: VC Output - Wiring Diagram (2 Of 3)
G05751805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

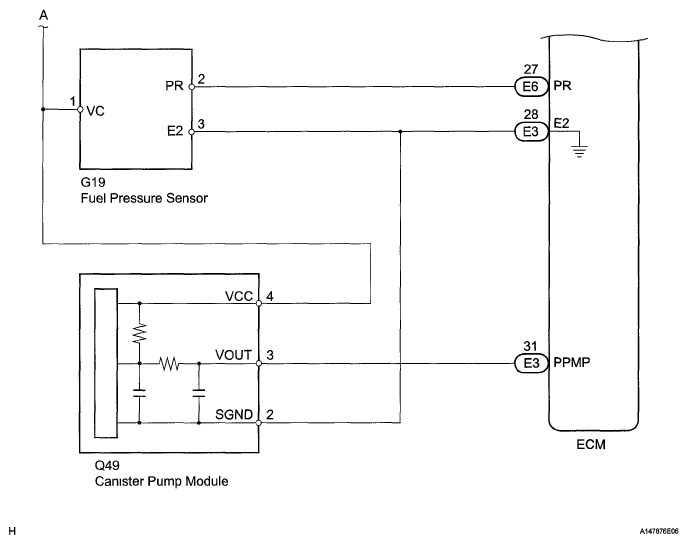

Fig 3: VC Output - Wiring Diagram (3 Of 3)
G05751806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
