FUEL PRESSURE PULSATION DAMPER (for Direct Injection): Components

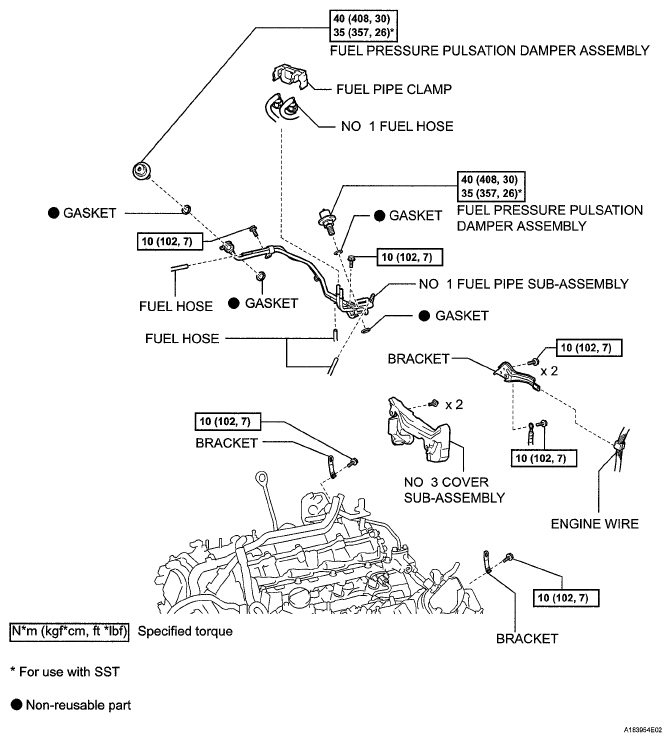

Fig 1: Fuel Pressure Pulsation Damper Replacement Components - For Direct Injection (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Pressure Pulsation Damper Replacement Components - For Direct Injection (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
