Fuel Relief Valve: Components

Fig 1: Fuel Pressure Pulsation Damper Replacement Components - For Direct Injection (1 Of 2) With Torque Specifications
G05751973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

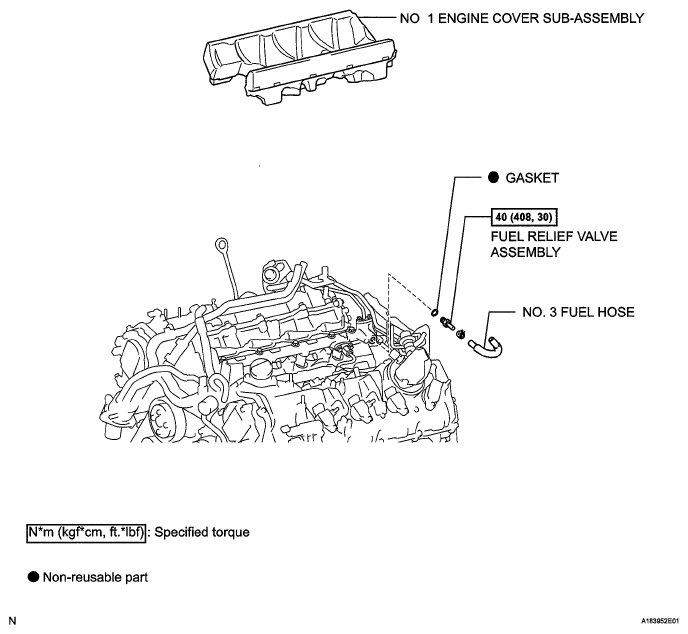

Fig 2: Fuel Relief Valve Replacement Components With Torque Specifications (2 Of 2)
G05750040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
