Fuel Tank: Components

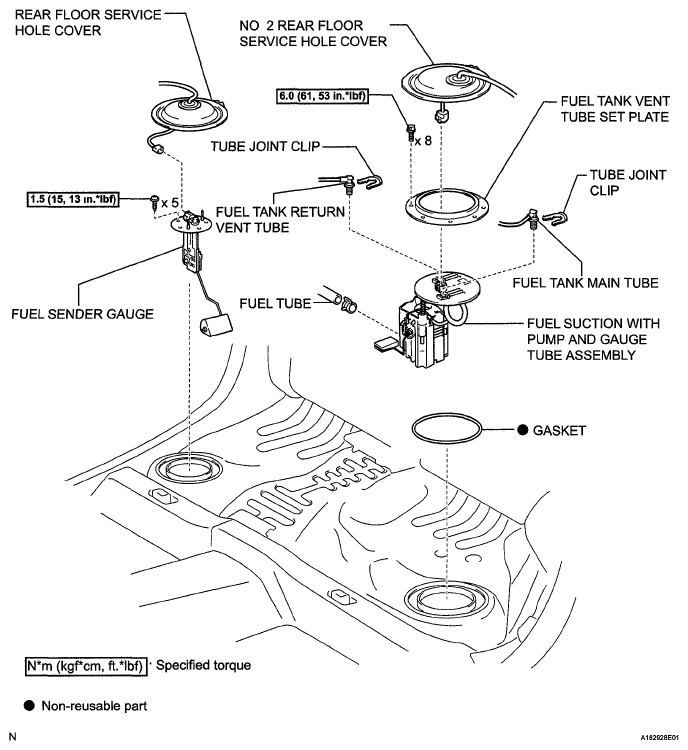

Fig 1: Identifying Fuel Tank Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

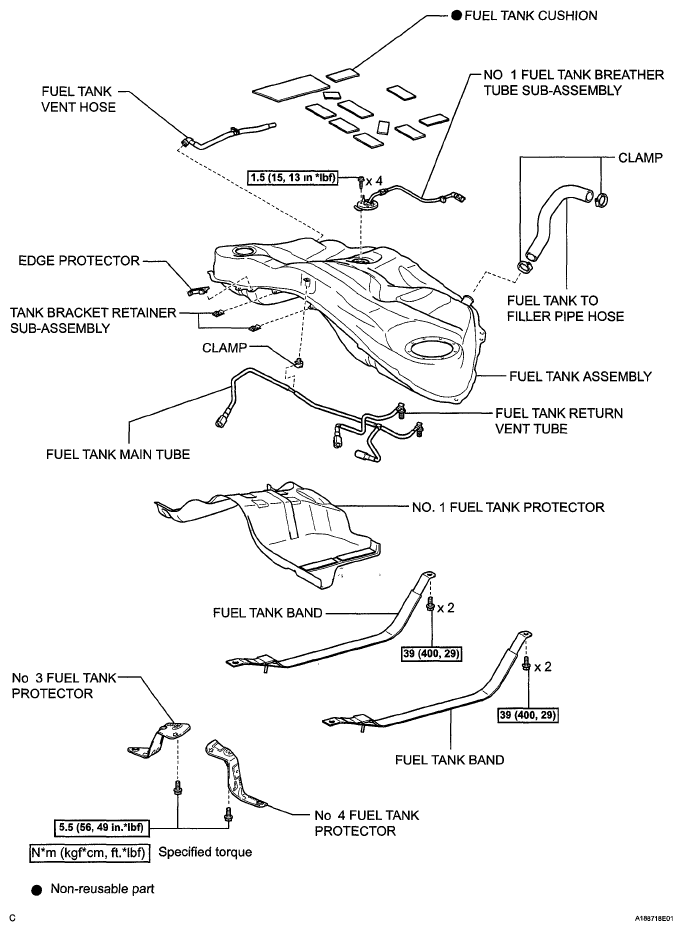

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

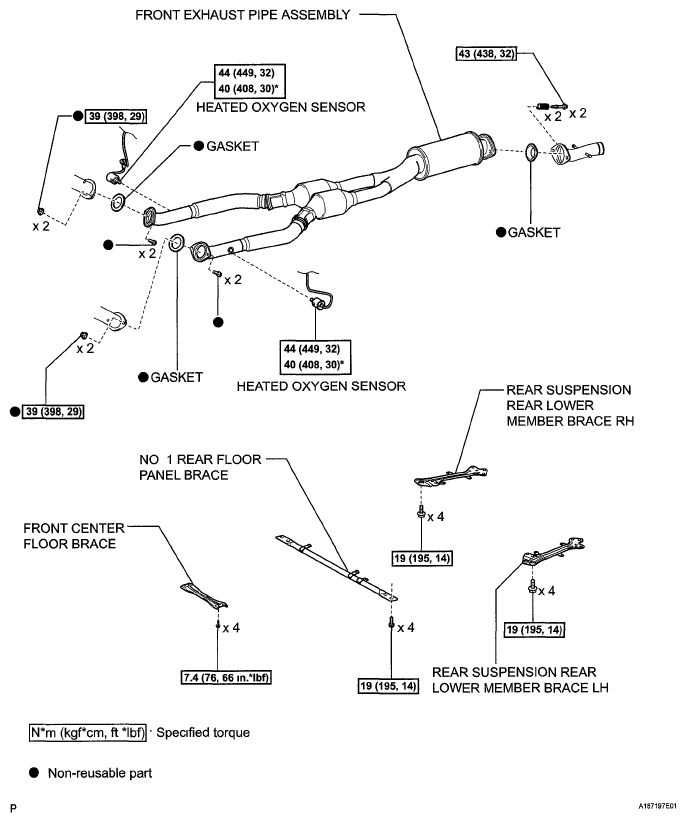

Fig 3: Identifying Fuel Tank Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

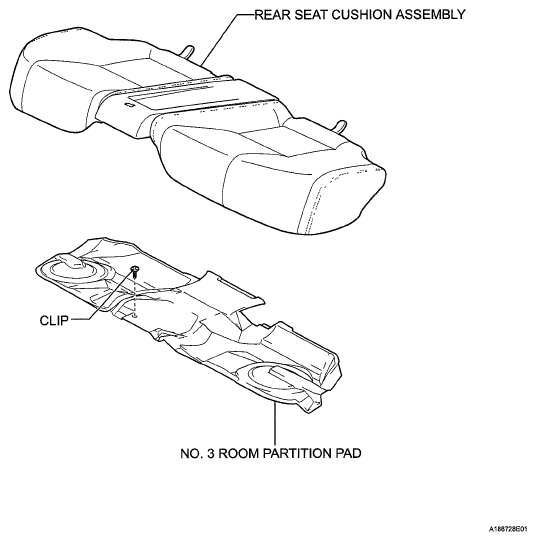

Fig 4: Identifying Fuel Tank Replacement Components With Torque Specifications (4 Of 6)

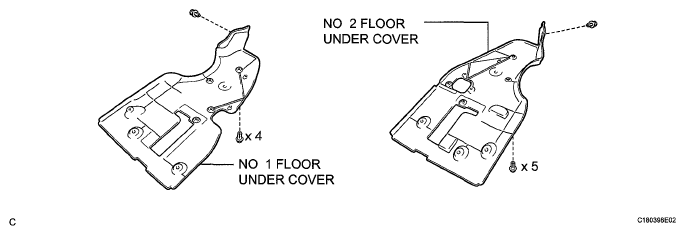

Fig 5: Identifying Fuel Tank Replacement Components With Torque Specifications (5 Of 6)

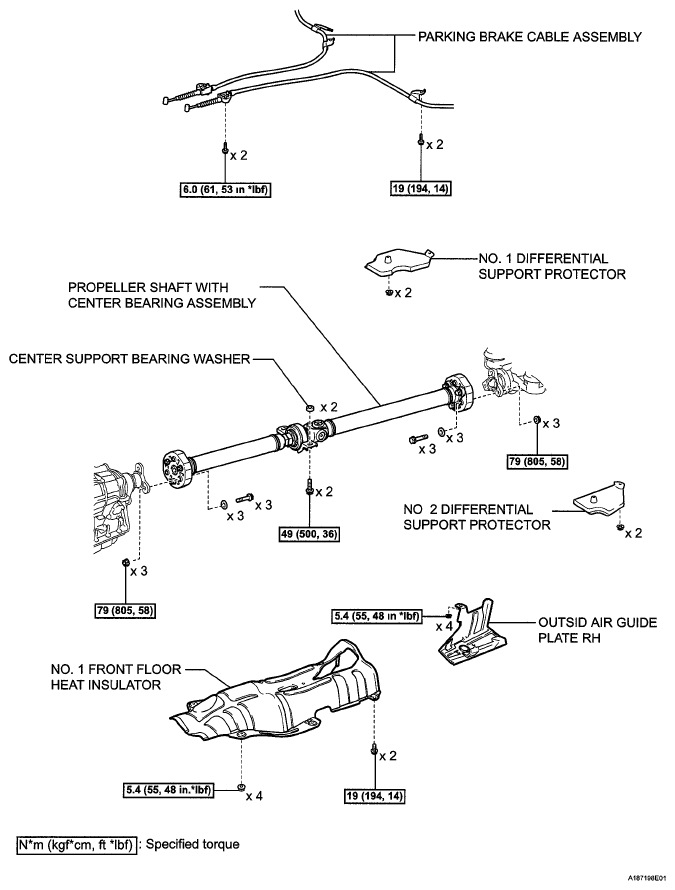

Fig 6: Fuel Tank Replacement Components With Torque Specifications (6 Of 6)
