Fuel Tank: Installation

1. Install the No 1 fuel tank protector to the fuel tank assembly

Fig 1: Identifying Fuel Tank Protector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install 11 new fuel tank cushions as shown in the illustration.

Fig 2: Identifying Fuel Tank Cushions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the fuel tank vent hose with the clip.

Fig 3: Locating Fuel Tank Vent Hose Clip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the fuel tank to filler pipe hose to the fuel tank assembly with the clamp

Fig 4: Locating Fuel Tank To Filler Pipe Hose Clamp Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 tank bracket retainer sub-assemblies.
   Fig 5: Locating Tank Bracket Retainer Sub-Assemblies

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the edge protector with the 2 clamps.
   Fig 6: Identifying Edge Protector Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install a fuel tank main tube and fuel tank return vent tube with the clamp.
Fig 7: Identifying Fuel Tank Main Tube And Fuel Tank Return Vent Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new gasket to the No 1 fuel tank breather tube sub-assembly.
2. Install the No. 1 fuel tank breather tube sub-assembly with the 4 bolts.

   Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

   Fig 8: Locating Fuel Tank Breather Tube Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Set the fuel tank assembly onto an engine lifter
2. Raise the engine lifter so that the No 1 fuel tank breather tube sub-assembly can be connected Connect the hose.
   NOTE: Slowly raise the lifter so as to not drop the fuel tank assembly.
   Fig 9: Locating Fuel Tank Breather Tube

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the fuel tank assembly with the fuel tank bands and 4 bolts

   Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

   Fig 10: Locating Fuel Tank Bands Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the fuel tank vent hose with the clamp.

1. Connect the fuel tank to filler pipe hose with the clamp
   Fig 11: Locating Fuel Tank To Filler Pipe Hose Clamp Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the fuel tank main tube (RH side).

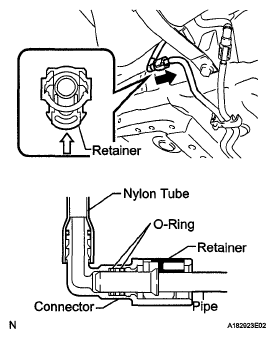

   1. Push in the fuel tube connector to the pipe and push up the retainer to engage the claws
      NOTE:

      • Check for damage or foreign matter on the connected part.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
      Fig 12: Locating Fuel Tank Main Tube (RH Side)
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel tank return vent tube.

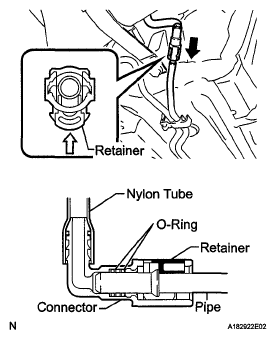

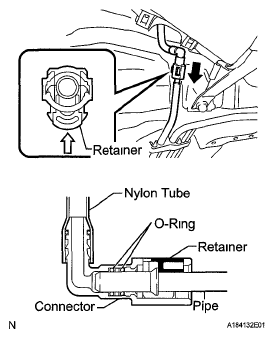

   1. Push in the fuel tube connector to the pipe and push up the retainer to engage the claws.
      NOTE:

      • Check for damage or foreign matter on the connected part.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
      Fig 13: Locating Fuel Tank Return Vent Tube
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the fuel tank main tube (LH side)

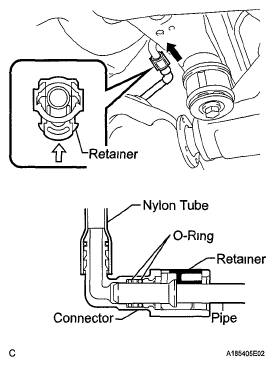

   1. Push in the fuel tube connector to the pipe and push up the retainer to engage the claws.
      NOTE:

      • Check for damage or foreign matter on the connected part.
      • After connecting, check that the fuel tube connector and the pipe are securely connected by pulling on them.
      Fig 14: Locating Fuel Tank Main Tube (LH Side)
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the bolt, loosen the grommet then install No 3 fuel tank protector

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

2. Install the bolt, loosen the grommet then install No 4 fuel tank protector.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

   Fig 15: Locating Fuel Tank Protector Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 4 clamps
4. Connect the 2 parking brake cable assemblies with the 4 bolts.

   Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf) for bolt A

   19 N*m (194 kgf*cm, 14 ft.*lbf) for bolt B

   Fig 16: Locating Parking Brake Cable Assemblies Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT

See INSTALLATION

HINT.

See INSTALLATION

HINT:

Use the same procedure as for the No 2 differential support protector

1. Install the fuel sender gauge to the fuel tank with the 5 bolts

   Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

   NOTE: Be careful not to bend the arm of the fuel sender gauge.
   Fig 17: Locating Fuel Sender Gauge Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the fuel sender gauge connector

Fig 18: Locating Fuel Sender Gauge Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the service hole cover with new butyl tape.

Fig 19: Identifying Rear Floor Service Hole Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
