Injector Driver: Components

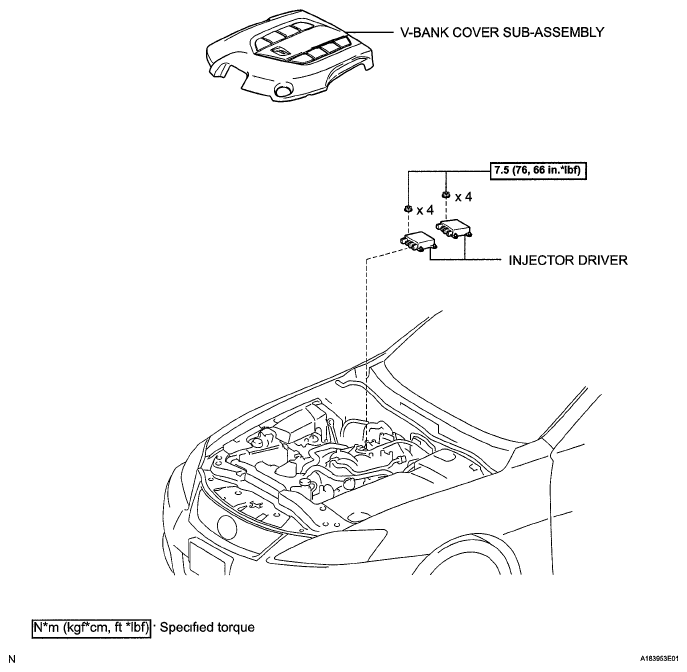

Fig 1: Injector Driver Replacement Components With Torque Specifications
G05750045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
