Inspection Procedure

NOTE: The Techstream is required to conduct the following diagnostic troubleshooting procedure.

HINT

  1. CONFIRM DTC
    1. Turn the engine switch off and wait for 10 seconds
    2. Turn the engine switch on (IG)
    3. Turn the engine switch off and wait for 10 seconds
    4. Connect the Techstream to the DLC3.
    5. Turn the engine switch on (IG) and turn the Techstream ON
    6. Enter the following menus" Powertrain / Engine / Trouble Codes.
    7. Confirm DTCs and freeze frame data

      If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

      Fig 1: DTC Chart
      G05751753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If the reference pressure difference between the first and second checks is greater than the specification, all the DTCs relating to the reference pressure (P043E, P043F, P2401, P2402 and P2419) are stored.
  2. PERFORM EVAPORATIVE SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of five steps performed automatically by the Techstream. it takes a maximum of approximately 18 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream ON.
    3. Clear DTCs (See DTC CHECK/CLEAR )
    4. Enter the following menus Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode
    5. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus. Powertrain / Engine / Trouble Codes

      HINT

      If no pending DTCs are displayed, perform the Monitor Confirmation (see "Diagnostic Help" menu ) After this confirmation, check for pending DTCs If no DTCs are displayed, the EVAP system is normal

  3. PERFORM EVAPORATIVE SYSTEM CHECK (MANUAL MODE)

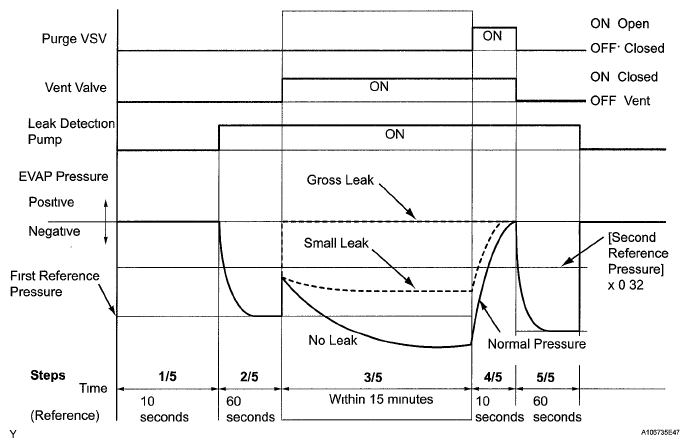

    Fig 2: EVAP Pressure Reference Graph (Manual Mode)
    G05751762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • In the Evaporative System Check (Manual Mode), perform the series of 5 Evaporative System Check steps manually using the Techstream.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream ON
    3. Clear DTCs (See DTC CHECK/CLEAR )
    4. Enter the following menus Powertrain / Engine / Utility / Evaporative System Check / Manual Mode
  4. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5)
    Fig 3: EVAP System Reference Graph (Step 1/5)
    G05386833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 1/5.

      Result

      RESULT CHART

      DTC(1) Test Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure Not yet determined A
      P0451 EVAP pressure fluctuates by +/-0.3 kPa-g (2.25 mmHg-g) or more Canister pressure sensor noise B
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedures above

    B: Go to step  30

    A: Go to next step

  5. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5 TO 2/5)
    Fig 4: EVAP System Reference Graph (Step 1/5 To 2/5)
    G05386834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in steps 1/5 and 2/5

      Result

      RESULT CHART

      DTC(1) Test Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure during step 1/5. Then decreases to reference pressure Not yet determined A
      P2402 Small difference between EVAP pressures during steps 1/5 and 2/5 Leak detection pump stuck ON B
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedures above.

      HINT

      The first reference pressure is the value determined in step 2/5

    B: Go to step  23

    A: Go to next step

  6. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5)

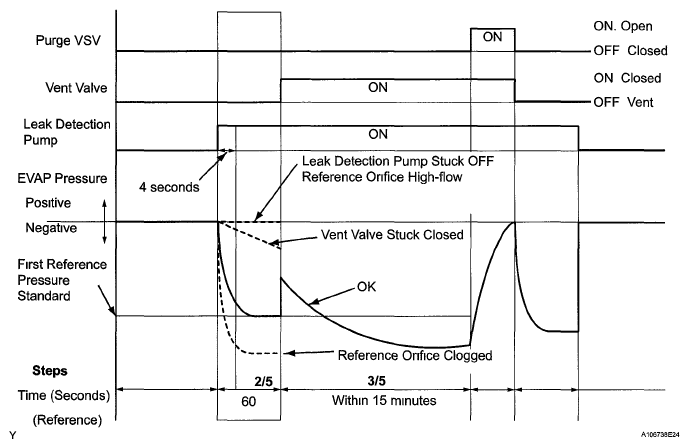

    Fig 5: EVAP System Reference Graph (Step 2/5)
    G05751765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT.

    Make a note of the pressures checked in steps (a) and (b) below.

    1. Check the EVAP pressure 4 seconds after the leak detection pump is activated*

      *: The leak detection pump begins to operate as step 1/5 finishes and step 2/5 starts.

    2. Check the EVAP pressure again when it has stabilized This pressure is the reference pressure

      Result

      RESULT CHART

      DTC(1) Test Result Suspected Trouble Area Proceed to
      - EVAP pressure in step (b) between -4 85 kPa-g and -1 057 kPa-g (-36.4 mmHg-g and -7.93 mmHg-g) Not yet determined A
      P043F and P2401 EVAP pressure in step (b) -1.057 kPa-g (-7.93 mmHg-g) or more
      • Reference orifice high-flow
      • Leak detection pump stuck OFF
      		 B
      P043E EVAP pressure in step (b) below -4 85 kPa-g (-36.4 mmHg-g) Reference orifice clogged C
      P2419 EVAP pressure in step (a) more than -1.057 kPa-g (-7.93 mmHg-g) Vent valve stuck closed D
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedures above

    B: Go to step  11

    C: Go to step  30

    D: Go to step  19

    A: Go to next step

  7. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5 TO 3/5)

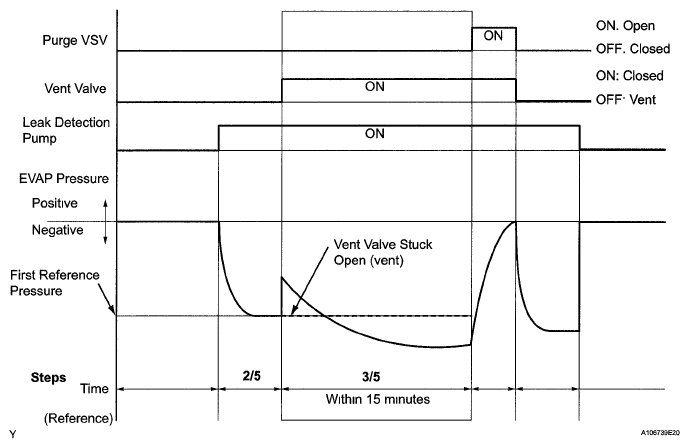

    Fig 6: EVAP System Reference Graph (Step 2/5 To 3/5)
    G05751766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure increase in step 3/5.

      Result

      RESULT CHART

      DTC(1) Test Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa-g (2 25 mmHg-g) or more within 10 seconds of proceeding from step 2/5 to step 3/5 Not yet determined A
      P2420 No variation in EVAP pressure despite proceeding from step 2/5 to step 3/5 Vent valve stuck open (vent) B
      P0451 No variation in EVAP pressure during steps 1/5 through 3/5 Canister pressure sensor malfunction fixed C
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedures above.

    B: Go to step  20

    C: Go to step  30

    A: Go to next step

  8. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)
    Fig 7: EVAP System Reference Graph (Step 3/5)
    G05386837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Wait until the EVAP pressure change is less than 0.12 kPa-g (0.75 mmHg-g) for 40 seconds.
    2. Measure the EVAP pressure and record it.

      HINT.

      A few minutes are required for the EVAP pressure to become saturated. When there is little fuel in the fuel tank, it takes up to 15 minutes

  9. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 4/5)

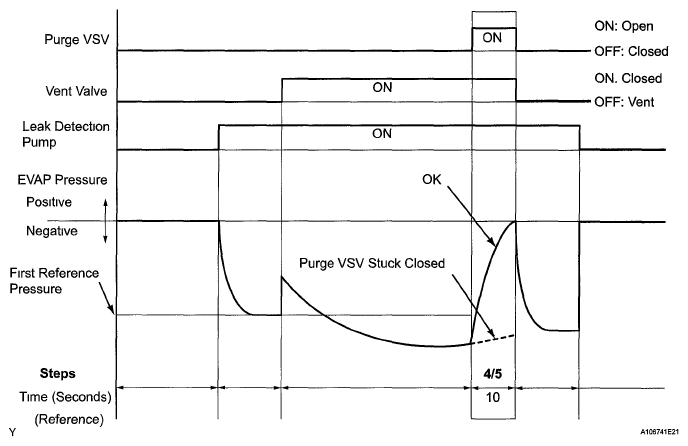

    Fig 8: EVAP System Reference Graph (Step 4/5)
    G05751768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 4/5.

      Result

      RESULT CHART

      DTC(1) Test Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Not yet determined A
      P0441 EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Problems in EVAP hose between purge VSV and intake manifold B
      P0441 Variation in EVAP pressure less than 0.3 kPa-g (2.25 mmHg-g) for 10 seconds, after proceeding from step 3/5 to step 4/5 Purge VSV stuck closed C
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedures above

    B: Go to step  15

    C: Go to step  12

    A: Go to next step

  10. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 5/5)

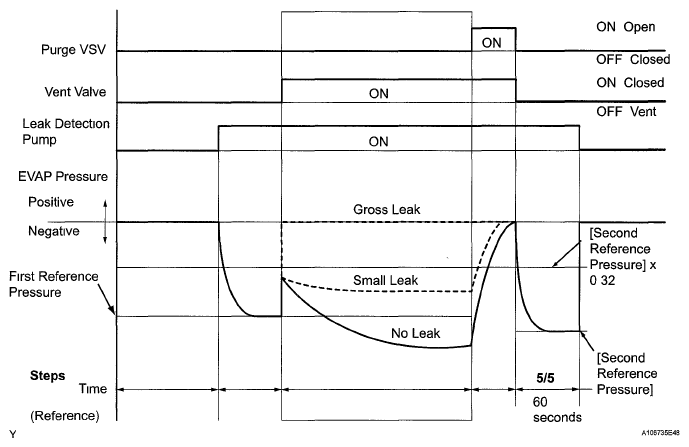

    Fig 9: EVAP System Reference Graph (Step 5/5)
    G05751769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 5/5
    2. Compare the EVAP pressure in step 3/5 and the second reference pressure (step 5/5).

      Result

      RESULT CHART

      DTC(1) Test Result Suspected Trouble Area Proceed to
      - EVAP pressure (step 3/5) lower than second reference pressure (step 5/5) Not yet determined (no leaks from EVAP system) A
      P0441 and P0455 EVAP pressure (step 3/5) higher than [second reference pressure (step 5/5) x 0.32]
      • EVAP gross leak
      • Purge VSV stuck open
      		 B
      P0456 EVAP pressure (step 3/5) higher than second reference pressure (step 5/5) EVAP small leak B
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedures above

    A: Go to step  36

    B: Go to step  12

  11. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)

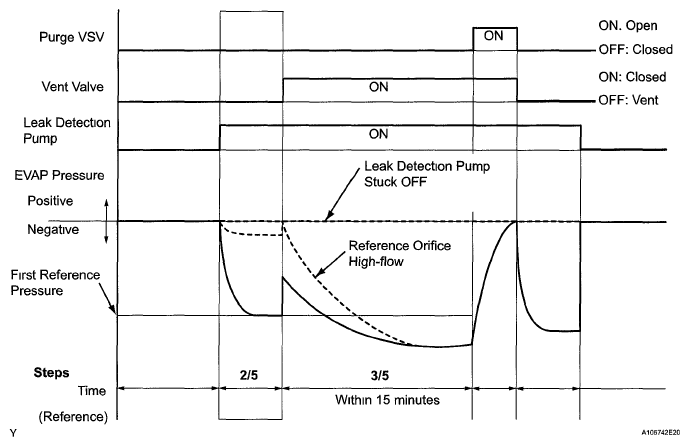

    Fig 10: EVAP System Reference Graph (Step 3/5)
    G05751770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the EVAP pressure in step 3/5

      Result

      RESULT CHART

      DTC(1) Test Result Suspected Trouble Area Proceed to
      P043F EVAP pressure less than [reference pressure] measured at 2/5 Reference orifice high-flow A
      P2401 EVAP pressure almost same as [reference pressure] measured at 2/5 Leak detection pump stuck OFF B
      (1) These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "Confirm DTC" procedures above.

      HINT.

      The first reference pressure is the value determined in step 2/5

    A: Go to step  30

    B: Go to step  23

  12. PERFORM ACTIVE TEST USING TECHSTREAM (PURGE VSV)
    1. Enter the following menus Powertrain / Engine / Active Test / Activate the VSV for EVAP Control
    2. Disconnect the hose (connected to the canister) from the purge VSV
    3. Start the engine.
    4. Using the Techstream, turn off the purge VSV (Activate the VSV for EVAP Control OFF)
    5. Use your finger to confirm that the purge VSV has no suction
    6. Using the Techstream, turn on the purge VSV (Activate the VSV for EVAP Control ON)
    7. Use your finger to confirm that the purge VSV has suction
      Fig 11: Identifying Purge VSV Hose
      G05751771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Test Result Suspected Trouble Area Proceed to
      No suction when purge VSV turned OFF, and suction applied when turned ON Purge VSV normal A
      Suction applied when purge VSV turned OFF Purge VSV stuck open B
      No suction when purge VSV turned ON
      • Purge VSV stuck closed
      • Problems with EVAP hose between purge VSV and intake air surge tank
      		 C
    8. Reconnect the hose

    B: Go to step  14

    C: Go to step  15

    A: Go to next step

  13. CHECK FUEL CAP ASSEMBLY
    1. Check that the fuel cap is correctly installed and confirm the fuel cap meets OEM specifications
    2. Confirm that the fuel cap is tightened until a few click sounds are heard

      HINT:

      If an EVAP tester is available, check the fuel cap using the Techstream.

      1. Remove the fuel cap and install it onto a fuel cap adaptor
      2. Connect an EVAP tester pump hose to the adaptor, and pressurize the cap to 3 2 to 3 7 kPa (24 to 28 mmHg) using an EVAP tester pump.
      3. Seal the adaptor and wait for 2 minutes
      4. Check the pressure If the pressure is 2 kPa (15 mmHg) or more, the fuel cap is normal

        Result

        RESULT CHART

        Test Result Suspected Trouble Area Proceed to
        Fuel cap correctly installed - A
        Fuel cap loose
        • Fuel cap improperly installed
        • Defective fuel cap
        • Fuel cap does not meet OEM specifications
        		 B
        No fuel cap - C

    A: Go to step  29

    B: Go to step  27

    C: Go to step  28

  14. INSPECT PURGE VSV
    1. Turn the engine switch off
    2. Disconnect the purge VSV connector
    3. Disconnect the hose (connected to the canister) from the purge VSV.
    4. Start the engine
    5. Use your finger to confirm that the purge VSV has no suction
      Fig 12: Locating Purge VSV Hose And Connector
      G05751772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Test Result Suspected Trouble Area Proceed to
      No suction ECM A
      Suction applied Purge VSV B
    6. Reconnect the Purge VSV connector
    7. Reconnect the hose off

    A: Go to step  35

    B: Go to step  31

  15. CHECK EVAP HOSE (PURGE VSV - INTAKE MANIFOLD)
    1. Turn the engine switch off
    2. Disconnect the hose (connected to the intake manifold) from the purge VSV.
    3. Start the engine.
    4. Use your finger to confirm that the hose has suction
      Fig 13: Locating Purge VSV Hose And Connector
      G05751773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Test Result Suspected Trouble Area Proceed to
      Suction applied EVAP hose between purge VSV and intake manifold A
      No suction
      • Intake air surge tank
      • EVAP hose between purge VSV and intake manifold
      		 B
    5. Reconnect the hose.

    B: Go to step  26

    A: Go to next step

  16. INSPECT PURGE VSV
    1. Remove the purge VSV.
    2. Apply the battery voltage to the terminals of the purge VSV
    3. Using an air gun, confirm that air flows from port A to port B.
      Fig 14: Checking Air Flows From Port A To Port B
      G05386844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Test Result Condition Suspected Trouble Area Proceed to
      Air flows Apply battery voltage to purge VSV terminals Purge VSV normal A
      No air flow Apply battery voltage to purge VSV terminals Purge VSV B

    B: Go to step  31

    A: Go to next step

  17. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF PURGE VSV)
    1. Disconnect the purge VSV connector
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below

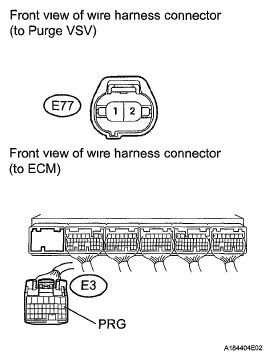

      Fig 15: Identifying Purge VSV Connector E77
      G05751775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Tester Connection Switch Condition Test Result Suspected Trouble Area Proceed to
      E77-1 - Body ground Engine switch on (IG) 11 to 14 V Normal A
      Other than result above Wire harness or connectors between purge VSV and ECM B
    4. Reconnect the purge VSV connector.

    B: Go to step  32

    A: Go to next step

  18. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)
    1. Disconnect the purge VSV connector
    2. Disconnect the ECM connector
    3. Measure the resistance according to the value(s) in the table below

      Standard Resistance (Check for Open)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E77-1 - E3-17 (PRG) Always Below 1 Ω

      Standard Resistance (Check for Short)

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E77-1 or E3-17-Body ground Always 10 kΩ or higher
    4. Reconnect the VSV connector and ECM connector
      5. Fig 16: Identifying Purge VSV Connector E77 And ECM Connector E3
      G05751776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to step  35

    NG: Go to step  32

  19. PERFORM ACTIVE TEST USING TECHSTREAM (FOR VENT VALVE)
    1. Connect the Techstream to the DLC3
    2. Turn the engine switch on (IG) and turn the Techstream ON
    3. Enter the following menus. Powertrain / Active Test / Activate the VSV for Vent Valve.
    4. Measure the voltage according to the value(s) in the table below
      Fig 17: Identifying ECM Connector E3
      G05751777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Tester Connection Condition Test Result Suspected Trouble Area Proceed to
      E3-16 (VPMP) - Body ground Vent valve ON and OFF (Active test ON and OFF) 11 to 14 V when OFF Below 3 V when ON Vent valve A
      Below 3 V when OFF and ON ECM B

    A: Go to step  22

    B: Go to step  35

  20. PERFORM ACTIVE TEST USING TECHSTREAM (FOR VENT VALVE)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and turn the Techstream ON.
    3. Enter the following menus Powertrain / Active Test / Activate the VSV for Vent Valve
    4. Measure the voltage according to the value(s) in the table below.
      Fig 18: Identifying ECM Connector E3
      G05751777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Tester Connection Condition Test Result Suspected Trouble Area Proceed to
      E3-16 (VPMP) - Body ground Vent valve ON and OFF (Active test ON and OFF) Below 3 V when OFF and ON Power source of vent valve A
      11 to 14 V when OFF Below 3 V when ON Vent valve B
      11 to 14 V when OFF and ON ECM C

    B: Go to step  22

    C: Go to step  35

    A: Go to next step

  21. INSPECT CANISTER PUMP MODULE (POWER SOURCE FOR VENT VALVE)
    1. Turn the engine switch off
    2. Disconnect the canister pump module connector.
    3. Turn the engine switch on (IG).
    4. Measure the voltage according to the value(s) in the table below

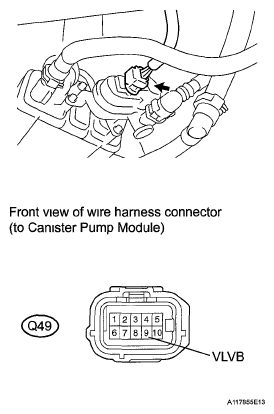

      Fig 19: Locating Canister Pump Module Connector
      G05751779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Tester Connection Switch Condition Test Result Suspected Trouble Area Proceed to
      Q49-9 (VLVB) - Body ground Engine switch on (IG) 11 to 14 V Normal A
      Below 3 V Power source wire harness of vent valve B
    5. Reconnect the canister pump module connector

    B: Go to step  32

    A: Go to next step

  22. INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)
    1. Turn the engine switch off.
    2. Disconnect the canister pump module connector
    3. Apply the battery voltage to VLVB and VGND terminals of the canister pump module
    4. Touch the canister pump module to confirm the vent valve operation
      Fig 20: Identifying Canister Pump Module Connector Terminal
      G04942960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Condition Test Result Suspected Trouble Area Proceed to
      Apply battery voltage to terminals VLVB and VGND Operating Wire harness between vent valve and ECM A
      Not operating Vent valve B
    5. Reconnect the canister pump module connector

    A: Go to step  32

    B: Go to step  30

  23. PERFORM ACTIVE TEST USING TECHSTREAM (FOR LEAK DETECTION PUMP)
    1. Connect the Techstream to the DLC3
    2. Turn the engine switch on (IG) and turn the Techstream ON
    3. Enter the following menus Powertrain / Active Test / Activate the Vacuum Pump
    4. Measure the voltage according to the value(s) in the table below.
      Fig 21: Identifying ECM Connector E3
      G05751781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Tester Connection Condition Test Result Suspected Trouble Area Proceed to
      E3-15 (MPMP) - Body ground Vacuum pump (leak detection pump) ON and OFF (Active test ON and OFF) Below 3 V when OFF 11 to 14 V when ON ECM normal A
      11 to 14 V when OFF Below 3 V when ON ECM B

    B: Go to step  35

    A: Go to next step

  24. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - ECM)
    1. Connect the Techstream to the DLC3
    2. Turn the engine switch off.
    3. Disconnect the canister pump module connector.
    4. Turn the engine switch on (IG) and turn the Techstream ON.
    5. Enter the following menus. Powertrain / Active Test / Activate the Vacuum Pump.
    6. Turn the leak detection pump (vacuum pump) ON
    7. Measure the voltage according to the value(s) in the table below.

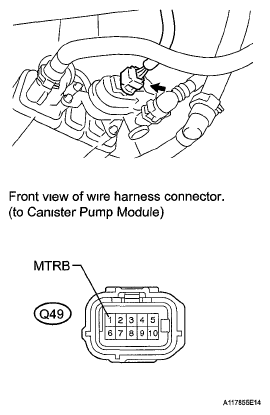

      Fig 22: Locating Canister Pump Module Connector
      G05751782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Tester Connection Condition Test Result Suspected Trouble Area Proceed to
      Q49-1 (MTRB) - Body ground Vacuum pump (leak detection pump) ON and OFF (Active test ON and OFF) 11 to 14 V Normal A
      Below 3 V Wire harness between ECM and leak detection pump B
    8. Reconnect the canister pump module connector

    B: Go to step  32

    A: Go to next step

  25. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - GROUND)
    1. Turn the engine switch off.
    2. Disconnect the canister pump module connector
    3. Measure the resistance according to the value(s) in the table below.

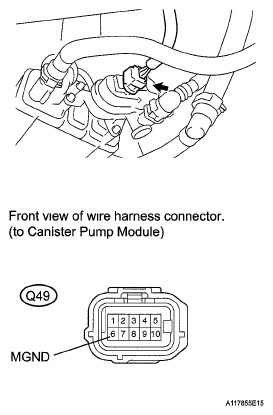

      Fig 23: Locating Canister Pump Module Connector
      G05751783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT CHART

      Tester Connection Condition Test Result Suspected Trouble Area Proceed to
      Q49-6 (MGND) - Body ground Always Below 1 Ω Leak detection pump A
      10 kΩ or more Wire harness between leak detection pump and body ground B
    4. Reconnect the canister pump module connector.

    A: Go to step  30

    B: Go to step  32

  26. INSPECT INTAKE MANIFOLD (EVAP PURGE PORT)
    1. Stop the engine
    2. Disconnect the EVAP hose from the intake air surge tank.
    3. Start the engine
    4. Use your finger to confirm that the port of the intake air surge tank has suction.

      Result

      RESULT CHART

      Test Result Suspected Trouble Area Proceed to
      Suction applied EVAP hose between intake air surge tank and purge VSV A
      No suction Intake air surge tank B
    5. Reconnect the EVAP hose.

    A: Go to step  33

    B: Go to step  34

  27. CORRECTLY REINSTALL OR REPLACE FUEL CAP ASSEMBLY

    HINT

    • When reinstalling the fuel cap, tighten it until a few click sounds are heard.
    • When replacing the fuel cap, use a fuel cap that meets OEM specifications, and install it until a few click sounds are heard

    NEXT: Go to step  37

  28. REPLACE FUEL CAP ASSEMBLY

    HINT

    When installing the fuel cap, tighten it until a few click sounds are heard.

    NEXT: Go to step  37

  29. LOCATE EVAP LEAK PART
    1. Disconnect the pressure gauge to the canister with the adapter.

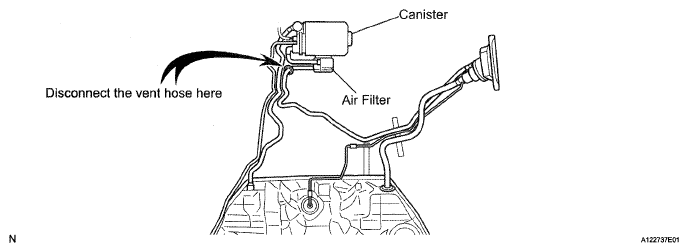

      Fig 24: Identifying Canister And Air Filter
      G05316153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the EVAP pressure tester tool to the canister with the adapter

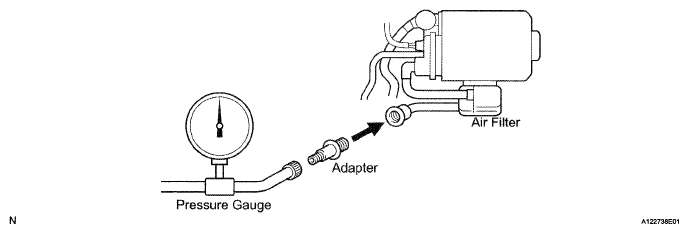

      Fig 25: Connecting EVAP Pressure Tester Tool To Canister With Adapter
      G05316154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pressurize the EVAP system to 3 2 to 3 7 kPa (24 to 28 mmHg).
    4. Apply soapy water to the piping and connecting parts of the EVAP system
    5. Look for areas where bubbles appear This indicates the leak point
    6. Repair or replace the leak point

      HINT.

      Disconnect the hose between the canister and the fuel tank from the canister. Block the canister side and conduct an inspection In this way, the fuel tank can be excluded as an area suspected of causing fuel leaks

    7. Reconnect the vent hose.

    NEXT: Go to step  37

  30. REPLACE CANISTER ASSEMBLY
    1. Replace the canister assembly (See REMOVAL )

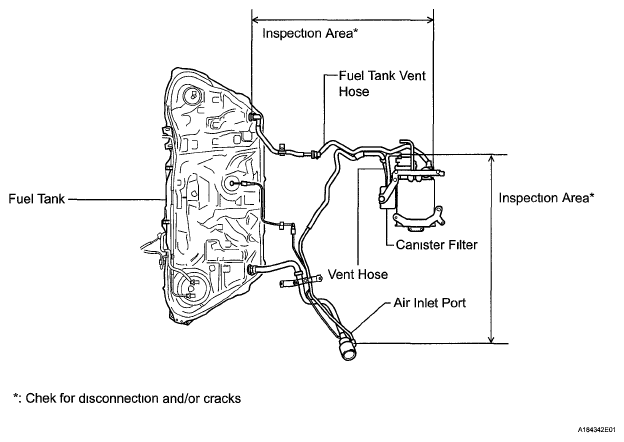

      Fig 26: Identifying Canister Assembly Fuel Tank And Canister Filter
      G05751616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: When replacing the canister, check the canister pump module interior and related pipes for water, fuel and other liquids. If liquids are present, check for disconnections and/or cracks in the following: 1) the pipe from the air inlet port to the canister pump module; 2) the canister filter; and 3) the fuel tank vent hose.

    NEXT: Go to step  37

  31. REPLACE PURGE VSV (PURGE VSV)
    1. Replace the purge VSV (See REMOVAL ).

    NEXT: Go to step  37

  32. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT: Go to step  37

  33. REPLACE EVAP HOSE (INTAKE AIR SURGE TANK - PURGE VSV)

    NEXT: Go to step  37

  34. INSPECT INTAKE MANIFOLD
    1. Check that the EVAP purge port of the intake manifold is not clogged. If necessary, replace the intake manifold

    NEXT: Go to step  37

  35. REPLACE ECM
    1. Replace the ECM (See REMOVAL  ).

    NEXT: Go to step  37

  36. REPAIR OR REPLACE PARTS AND COMPONENTS INDICATED BY OUTPUT DTCS
    1. Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.

    NEXT: Go to step  37

  37. PERFORM EVAPORATIVE SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of five steps performed automatically by the Techstream. It takes a maximum of approximately 18 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing an Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear DTCs (See DTC CHECK/CLEAR ).
    2. Enter the following menus Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode
    3. After the Evaporative System Check is completed, check for pending DTCs by entering the following menus Powertrain / Engine / Trouble Codes.

      HINT:

      If no pending DTCs are found, the repair has been successfully completed

    NEXT: COMPLETED

scientia non olet · About LEMON Manuals
