Customize Parameters

NOTE:
  • When the customer requests a change in a function, first make sure that the function can be customized.
  • Be sure to make a note of the current settings before customizing.
  • When troubleshooting a function, first make sure that the function is set to the default setting.

HINT.

The following items can be customized

  1. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Tilt and Telescopic

    CUSTOMIZE PARAMETERS (WARNING)

    Display Default Content Setting
    Autoaway/Return function ON ON/OFF of the auto away / return function ON/OFF
  2. INTUITIVE PARKING ASSIST SYSTEM

    Warning

    CUSTOMIZE PARAMETERS (SENSOR)

    Tester Display Default Content Setting
    Rear Buzzer Onset Range Wide Function to set rear buzzer activation range / Narrow or Wide Narrow 600 mm (23 62 in)
    Wide 1500 mm (59 06 in)
    Keep Sense Status Buzzer ON Function to make buzzer sound when distance between vehicle and obstacle does not change for more than 3 seconds ON/OFF
    Fr & Rr Buzzer Volume M2 Function to change volume of buzzer / L, M1, M2, M3 or H L Low volume
    M1 medium low volume
    M2 medium volume
    M3 medium high volume
    H High volume

    Sensor

    CUSTOMIZE PARAMETERS (DOOR LOCK)

    Tester Display Default Content Setting
    Non P/R Range Sensor F Function to set available sensors when shift position is not in P or R/F, Rcrn2, F or All F, Rcrn2 Corner sensors are available
    F Front sensors are available
    ALL All sensors are available
  3. POWER DOOR LOCK CONTROL SYSTEM

    Door Lock

    CUSTOMIZE PARAMETERS (WIRELESS DOOR LOCK CONTROL SYSTEM)

    Display Default Content Setting
    Unlock Key Twice ON Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once, and unlock all doors when it is turned to unlock twice For the OFF setting, turning it once unlocks all doors ON/OFF
    Auto Lock OFF Function that locks all doors when the vehicle speed reaches a certain level ON/OFF
    Auto Lock/Shift ON With the engine running and all doors closed, function that locks all doors when the shift lever is moved from P to any position other than P ON/OFF
    Auto Unlock/Shift ON Function that unlocks all doors when the shift lever is moved to P from any position other than P while the engine switch is on (IG) ON/OFF
    All Unlock/Open-Close OFF Function that unlocks the other doors when the driver side door is opened within 10 seconds after the engine switch is turned off ON/OFF
  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Wireless Door Lock Control System

    CUSTOMIZE PARAMETERS (SMART KEY/ACCESS)

    Item (Display) Default Content Setting
    Open Door Warning ON If a door is not completely closed and LOCK is pressed, this function sounds a buzzer for 10 seconds ON/OFF
    Wireless Control (Wireless door lock control function) ON This function turns the wireless door lock function on or off ON / OFF
    Panic Function ON This function operates the theft deterrent system when PANIC is pressed and held for 0 8 seconds ON / OFF
    Unlock 2 Operation (Wireless unlock operated twice) ON This function unlocks the driver side door when UNLOCK is pressed once, and unlocks all doors when pressed twice
    If set to OFF, pressing UNLOCK once unlocks all doors    		 ON/OFF
    Trunk Lid Operation (Wireless luggage compartment door open function setting) 0 8 PR This function changes operation method of transmitter to open luggage compartment door
    1 TIME Push once
    2 TIMES Push twice (within 3 seconds)
    0 8 PR Push for longer than 0 8 seconds
    OFF Does not operate    		 1 TIME / 2 TIMES / 0 8 PR / OFF
    Auto Lock Time 60 s This function controls the amount of time from unlocking doors to automatic re-locking 30 s/60 s/120 s/OFF
    Hazard Answer Back (Hazard answer-back for wireless door lock operation) ON When LOCK is pressed, all hazard warning lights flash once
    When UNLOCK is pressed, all hazard warning lights flash twice    		 ON / OFF
    Wireless Buzzer Resp (Buzzer answer-back of Wireless) ON This function makes the wireless door lock buzzer sound for answer-back when LOCK/UNLOCK is pressed ON / OFF
  5. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

    Smart Key / Access

    CUSTOMIZE PARAMETERS (SECURITY)

    Tester Display Default Content Setting
    Ignition Available Area ALL Function that switches the entry ignition detection area FRONT/ALL
    Park Wait Time 2 5s Function that sets waiting time to permit opening door after door is locked with entry lock function 0 5 s/1 5 s/2 5 s/5 s
    Trunk Open Mode ON Function to permit opening luggage compartment door ON/OFF
    Key Low Battery Warning ON Function that warns driver that key's battery power is low ON / OFF
  6. ENTRY UNLOCK MODE SWITCHING FUNCTION
    1. To change the vehicle to entry unlock mode switching function, make sure that the vehicle power is off and simultaneously press and hold the electrical key's LOCK switch and another electrical key switch for 5 seconds.

      Driver door unlock default setting

      When the switches are pressed and held for 5 seconds, the entry door unlock mode changes in the following order driver door mode, all door mode

      NOTE: After pressing and holding the switches for 5 seconds, wait 5 seconds before performing the same procedure again.
      • Driver door unlock mode

        When the driver door's touch sensor is touched, only the driver door unlocks When another touch sensor is touched, all doors unlock.

      • All door unlock mode.

        When the touch sensor is touched, all doors unlock.

    2. The certification ECU (smart key ECU assembly) receives this signal from the entry door control receiver and changes the smart access system with push-button start to the entry unlock mode
    3. The certification ECU (smart key ECU assembly) sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

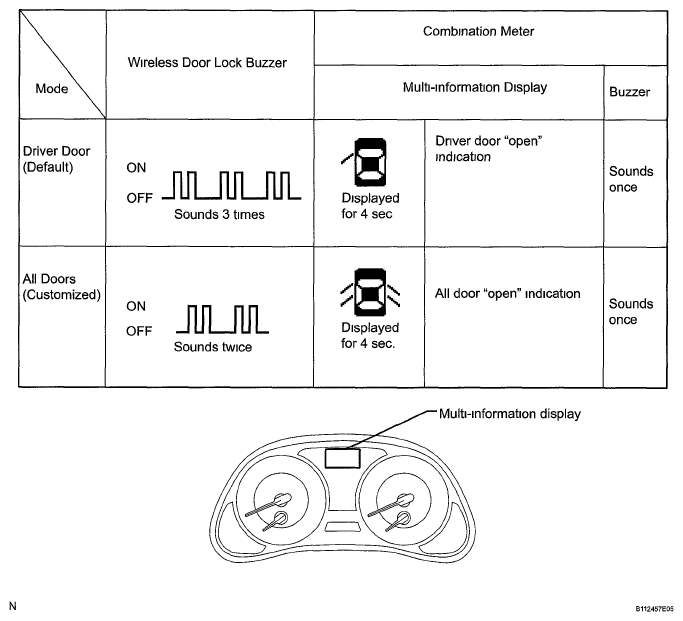

      Fig 1: Multi-Information Display Reference Chart
      G05751350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT

      The function only changes the entry unlock mode of the smart access system with push-button start. It does not switch the unlocking of the wireless door lock control

  7. ELECTRICAL KEY CANCEL

    The electrical key cancel operation disables the following functions

    • Entry Unlock/Lock
    • Entry Luggage Compartment Open
    • Electrical Key Lock-in Prevention
    • Warning
    • Memory Call
    1. The operation procedures are as follows Precondition:

      Engine switch off, driver side door closed and unlocked

      1. Unlock the driver side door once with the UNLOCK switch of the electrical key
      2. Open the driver door within 5 seconds
      3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds
      4. Close and open the driver door twice within 30 seconds

        (Driver Door. Close → Open → Close → Open)

      5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
      6. Close and open the driver door within 30 seconds

        (Driver Door Close → Open)

      7. Close the driver door within 5 seconds When electrical key cancel is activated, the wireless door lock buzzer sounds twice

        To return to the original condition, perform the procedures again When the original condition is returned, the wireless door lock buzzer sounds once

  8. THEFT DETERRENT SYSTEM

    Security

    CUSTOMIZE PARAMETERS (ILLUMINATED ENTRY)

    Display (Item) Default Content Setting
    Passive Mode OFF PASSIVE MODE is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after the key is no longer in the actuation area and the driver side door is closed, even if the doors are not locked by wireless or door key lock operation
    In PASSIVE MODE, if you do not perform following operations within 14 seconds after the door is opened during armed state, theft deterrent system will judge that condition as a theft and switch to alarm sounding state
    • Unlock any door by key or wireless operation
    • Turn the engine switch on (IG)
    		 ON / OFF
    Warning by Horn ON Function that makes vehicle horn and theft deterrent horn to be used as a warning device ON / OFF
    Entry Delay Time 14 s Function that changes entry delay time (time before warning starts) for PASSIVE MODE 0 s/14 s/30 s
  9. LIGHTING SYSTEM (LIGHTING INT)

    Illuminated Entry

    CUSTOMIZE PARAMETERS (COMBINATION METER)

    Display Default Content Setting
    I/L when ACC OFF ON Lights up the seat illumination when the engine switch is turned off ON / OFF
    Light Control ON Dims (ON setting) or turns off (OFF setting) the footwell lights under the following conditions
    Engine switch on (IG), shift lever not in P, and all doors closed    		 ON / OFF
    Illumination System ON Lights up the footwell lights when one of the following occurs the engine switch is turned on (IG), or any door is unlocked or opened ON / OFF
    Lighting Time 15 s Changes the lighting time of the seat illumination 7 5 s/15 s/30 s
    I/L ON W/Unlock ON Lights up the seat illumination when the doors are unlocked ON / OFF
    Shift Light Control AVAIL Lights up the shift illumination when the engine switch is turned on (ACC or IG) NOT AVL / AVAIL
  10. METER/GAUGE SYSTEM
    1. Combination Meter
      NOTE: Be sure to record the current value before customizing.

      HINT.

      The following items can be customized using the Techstream.

      Combination Meter

      CUSTOMIZE PARAMETERS (AIR CONDITIONER)

      Tester Display Default Content Setting
      Key Remind Volume Large Function to change the volume of the key remind warning buzzer Large, Medium, Small
      Key Remind Sound Normal Function to change the cycle of the key remind warning buzzer Fast, Normal, Slow
      Units By Region Ml/g(1)
      Km/l(2)      		 Function to change the unit of the trip information display Ml/g, Km/l
      Language(2) English Function to change the language of the display English, French
      (1) for U.S.A.
      (2) for Canada
    2. Seat Belt Warning Buzzer ON/OFF Setting The seat belt warning buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver and front passenger side seat belt buzzers.
      NOTE:
      • These buzzers should be on for safe driving. Perform the procedure only if it is necessary to disable buzzer.
      • When either the cable connected to the battery terminal or the combination meter connector is disconnected, these buzzers are set on (enabled).
      • The trip meter returns to 0 after starting this procedure, although it is not displayed.

      HINT:

      • "b-oFF" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/TRIP switch is not operated for 10 seconds or more. In this case, perform step  11 to check that the buzzer ON/OFF setting is complete If it is not complete, start from step  1 again.
      • The following item can be customized without using the Techstream.
      1. Driver and front passenger side seat belt buzzers.
        1. Turn the engine switch on (IG)
        2. Press the ODO/TRIP switch until the odometer displays "ODO".
        3. Turn the engine switch off
        4. Turn the engine switch on (IG).
        5. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more
        6. Continue holding down the ODO/TRIP switch and fasten the driver side seat belt
        7. Check that the odometer displays either "b-on" or "b-oFF"
        8. Press the ODO/TRIP switch to change the display to "b-oFF".
        9. Turn the engine switch off and unfasten the driver side seat belt
        10. Turn the engine switch on (IG)
        11. Check that no buzzer sounds at the vehicle speed is 20 km/h (12 mph) or more.
      2. Front passenger side seat belt buzzer.
        1. Turn the engine switch on (IG)
        2. Press the ODO/TRIP switch until the odometer displays "ODO"
        3. Turn the engine switch off.
        4. Turn the engine switch on (IG).
        5. Sit in the front passenger seat. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
        6. Remaining seated, continue holding down the ODO/TRIP switch and fasten the front passenger side seat belt
        7. Check that the odometer displays either "b-on" or "b-oFF"
        8. Press the ODO/TRIP switch to change the display to "b-oFF"
        9. Turn the engine switch off and unfasten the front passenger side seat belt
        10. Turn the engine switch on (IG)
        11. Check that no buzzer sounds at the vehicle speed is 20 km/h (12 mph) or more
  11. AIR CONDITIONING SYSTEM

    Air Conditioner

    CUSTOMIZE PARAMETERS (POWER WINDOW)

    Tester Display Default Content Setting
    Set Temperature Shift NORMAL Function to control with the shifted temperature against the display temperature +2 C / +1 C / NORMAL / -1 C / -2 C
    Air Inlet Mode AUTO When turning the A/C ON to make the cabin cool down quickly, This is the function to change the mode automatically to RECIRCULATION mode MANUAL/AUTO
    Compressor Mode AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF MANUAL/AUTO
    Compressor/Air Inlet DEF operation LINK Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C OFF NORMAL / LINK
    Evaporator Control AUTO Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up MANUAL / AUTO
    Emission Gas Sensor Shift NORMAL Function to change the sensitivity of the exhaust gas sensor MU MORE / MORE / LI MORE / NORMAL / LI LESS / LESS / MU LESS
    Button Press Buzzer ON Function to sound a buzzer when button is pressed OFF / ON
    Foot/DEF Auto Mode ON Function to turn the airflow from FOOT/DEF ON automatically when AUTO MODE is ON OFF / ON
    Foot/DEF Automatic Blow Up Function ON Function to change the blower level automatically when the defroster is ON OFF / ON
    Foot Air Leak ON Function to cut off the airstream felt underfoot while the vehicle is moving OFF / ON
    Ambient Temperature Shift NORMAL Function to control the shifted ambient temperature in relation to the displayed ambient temperature +3 C / +2 C / +1 C / NORMAL / -1 C / -2 C / -3 C
  12. POWER WINDOW CONTROL SYSTEM

    Power Window

    CUSTOMIZE PARAMETERS (SLIDE ROOF)

    Tester Display Default Content Setting
    Door Key Linked P/W Up ON Function that raises all power windows when, with engine switch off, key is used to hold driver door key cylinder to lock position for more than 1 5 seconds ON / OFF
    Door Key Linked P/W Down ON Function that lowers all power windows when, with engine switch off, key is used to hold driver door key cylinder to unlock position for more than 1 5 seconds ON / OFF
    P/W Down w/ Transmitter ON Function that lowers all power windows when, with engine switch off, unlock switch on transmitter is pressed and held for more than 3 0 seconds ON / OFF
  13. SLIDING ROOF SYSTEM

    Slide Roof

    CUSTOMIZE PARAMETERS (WIPER)

    Tester Display Default Content Setting
    Door Key Related Open ON Function to manually open sliding roof linked with power windows if holding driver side door key for 2 5 seconds or more to unlock position when engine switch is off ON / OFF
    Door Key Related Close ON Function to manually close sliding roof linked with power windows if holding driver side door key for 2 5 seconds or more to lock position when engine switch is off ON / OFF
    Wireless Key Related Open ON Function to manually open sliding roof linked with power windows if pressing transmitter UNLOCK switch for 3 4 seconds or more when engine switch is off ON / OFF
    Door Key Related Operation Slide Function to select tilt up or slide open of manual sliding roof operation linked with power windows Activate by holding driver side door key for 2 5 seconds or more to unlock position when engine switch is off Tilt / Slide
    Wireless Key Related Operation Slide Function to select tilt up or slide open of manual sliding roof operation linked with power windows Activate by pressing on transmitter UNLOCK switch for 3 4 seconds or more when engine switch is off Tilt / Slide
  14. WIPER AND WASHER SYSTEM

    Wiper

    CUSTOMIZE PARAMETERS (ILLUMINATED ENTRY)

    Display Default Content Setting
    Speed Mode AVAIL Function to change to the intermittent operation when the vehicle comes to a stop from driving condition with the wiper switch in the LO position NOT AVL / AVAIL
    Auto Wiper AVAIL Function to operate the wiper automatically when it is raining NOT AVL / AVAIL
    Re-wiper Control SPD MOD Function to change the time until operating the wiper to prevent dropping after having used the washer SPD MOD /3 s/ OFF
  15. LIGHTING SYSTEM (LIGHTING EXT)

    Illuminated Entry

    CUSTOMIZE PARAMETERS (LIGHT CONTROL)

    Display Default Content Setting
    Exterior Foot Light Control AVAIL Lights up the door mirror foot lights when either of the following occurs the doors are unlocked with the transmitter, or the key enters any actuation area around the doors NOT AVL / AVAIL
    Exterior Foot Light Lighting Time 15 s Changes the lighting time of the door mirror foot lights 15 s/7 5 s/30 s

    Light Control

    INITIALIZATION PROCEDURES CHART (WHEN BATTERY TERMINAL DISCONNECTED/RECONNECTED)

    Display Default Content Setting
    Light Auto OFF Delay 30 s Keeps the headlights on for a certain period of time after turning the engine switch off and closing all the doors with the headlights on OFF / 30 s / 60 s / 90 s
    Sensitivity NORMAL Adjusts the sensitivity of the automatic light control system LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
    Disp Ex OFF Sen NORMAL Changes the ambient brightness level to brighten the dimmed lights such as the indicator lights of the combination meter, A/C indicator light, and clock LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
    Disp Ex ON Sen NORMAL Changes the ambient brightness level to dim the lights such as the indicator lights of the combination meter, A/C indicator light, and clock LIGHT2 / LIGHT1 / NORMAL / DARK1 / DARK2
    DRL Function ON ON/OFF of the DRL function ON / OFF

    HINT:

    Sensitivity adjustment can hardly be confirmed Check by driving the customer's vehicle
