Terminals Of Ecu

  1. CHECK COMBINATION METER

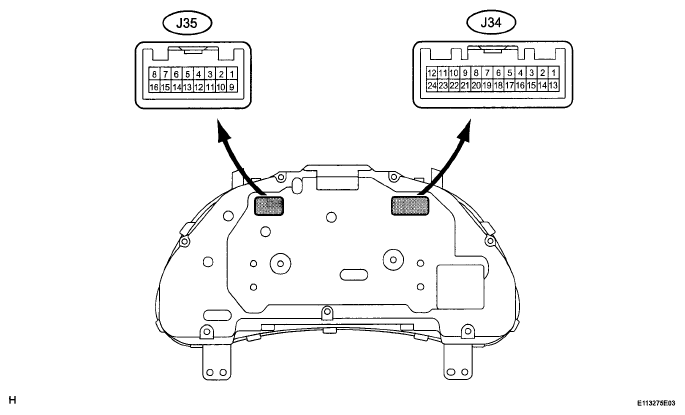

    Fig 1: Identifying Combination Meter Connector Terminals
    G05755113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below
      TERMINAL DESCRIPTION CHART

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      J35-3 (PBLT) - Body ground P - Body ground Passenger seat belt warning light signal Passenger seat is occupied, seat belt is fastened 10 kΩ or higher
      J35-3 (PBLT) - Body ground P - Body ground Passenger seat belt warning light signal Passenger seat is occupied, seat belt is unfastened Below 1 Ω

      If the result is not as specified, the meter may have a malfunction.

  2. CHECK INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o NAVIGATION SYSTEM)
    Fig 2: Identifying Integration Control And Panel Assembly Connector Terminals (W/O Navigation System)
    G05755114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.
      TERMINAL DESCRIPTION CHART

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      J54-13 (PBEW) - Body ground P - Body ground Passenger seat belt warning light signal Passenger seat is occupied, seat belt is fastened 10 kΩ or higher
      J54-13 (PBEW) - Body ground P - Body ground Passenger seat belt warning light signal Passenger seat is occupied, seat belt is unfastened Below 1 Ω

      If the result is not as specified, the panel may have a malfunction

  3. CHECK CLOCK ASSEMBLY (w/ NAVIGATION SYSTEM)
    Fig 3: Identifying Clock Assembly Connector Terminals (W/ Navigation System)
    G05755115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value (s) in the table below.
      TERMINAL DESCRIPTION CHART

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      J53-8 (PBEW) - Body ground P - Body ground Passenger seat belt warning light signal Passenger seat is occupied, seat belt is fastened 10 kΩ or higher
      J53-8 (PBEW) - Body ground P - Body ground Passenger seat belt warning light signal Passenger seat is occupied, seat belt is unfastened Below 1 Ω

      If the result is not as specified, the clock assembly may have a malfunction.

  4. CHECK CENTER AIRBAG SENSOR ASSEMBLY
    Fig 4: Identifying Center Airbag Sensor Assembly Connector Terminals
    G05320126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL SYMBOL REFERENCE

    Tester Connection Terminal Symbol Destination
    P14-12 FSP+ Occupant classification ECU
    P14-13 FSP- Occupant classification ECU
  5. CHECK OCCUPANT CLASSIFICATION ECU
    1. Measure the resistance and voltage according to the value (s) in the table below.
      Fig 5: Identifying Occupant Classification ECU Connector Terminals
      G05755117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TERMINAL DESCRIPTION CHART

      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      T16-5 (GND) - Body ground W-B - Body ground Occupant classification ECU ground line Always Below 1 Ω
      T16-6 (PS) - T16-15 (GPS) LG - W Pressure sensor signal line Engine switch on (IG) Below 1 to 5 V
      T16-7 (VPS) - T16-5 (GND) Y - W-B Pressure sensor +B line Engine switch on (IG) 4 75 to 5 25 V
      T16-8 (GBT) - T16-5 (GND) G - W-B Belt tension sensor ground line Always Below 1 V
      T16-9 (IG) - T16-5 (GND) B - W-B Occupant classification ECU +B line Engine switch on (IG) 11 to 14 V
      T16-10 (DIA) - T16-5 (GND) W - W-B Diagnosis (DLC3) Engine switch on (IG) Pulse generation
      T16-11 (FSR+) - T16-12 (FSR-) W - B Center airbag sensor communication line Engine switch on (IG) Pulse generation
      T16-12 (FSR-) - T16-5 (GND) B - W-B Center airbag sensor communication ground line Always Below 1 Ω
      T16-13 (BSW) - T16-14 (BGND) B - GR Passenger side buckle switch line Engine switch on (IG) and passenger side seat belt is unfastened 4 to 7 mA
      T16-13 (BSW) - T16-14 (BGND) B - GR Passenger side buckle switch line Engine switch on (IG) and passenger side seat belt is fastened 12 to 18 mA
      T16-14 (BGND) - T16-5 (GND) GR - W-B Passenger side buckle switch ground line Always Below 1 Ω
      T16-15 (GPS) - T16-5 (GND) W - W-B Pressure sensor ground line Always Below 1 Ω
      T16-16 (BT) - T16-5 (GND) R - W-B Belt tension sensor signal line Engine switch on (IG) Below 1 to 5 V
      T16-17 (VBT) - T16-5 (GND) P - W-B Belt tension sensor +B line Engine switch on (IG) 4 75 to 5 25 V

      If the result is not as specified, the ECU may have a malfunction
