Steering Wheel Assembly: Installation

INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering column assembly.
2. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  Fig 1: Identifying Matchmarks On Steering Intermediate Shaft Assembly And Steering Column Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY
1. Align the matchmarks on the steering sliding yoke sub-assembly and the No. 2 steering intermediate shaft assembly.
2. Temporarily install the bolt.
  HINT:

  Torque the bolt after connecting the steering sliding yoke sub-assembly to the power steering link assembly.

  Fig 2: Identifying Matchmarks On Steering Sliding Yoke And Steering Intermediate Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN ASSEMBLY
1. Install the steering column assembly with the 4 nuts.
  Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)
2. Connect the connectors and wire harness clamps to the steering column assembly.

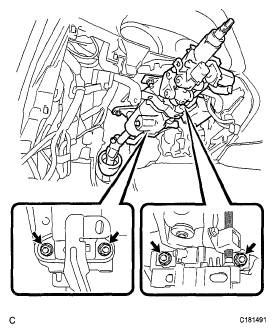

  Fig 3: Locating Steering Column Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the clamp to the steering column hole shield.
INSTALL BRAKE PEDAL RETURN SPRING (See INSTALLATION )

Fig 4: Locating Steering Column Hole Shield Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR DUCT
1. Engage the 2 claws to install the No. 1 air duct.
CONNECT STEERING SLIDING YOKE SUB-ASSEMBLY (See INSTALLATION )
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
HINT.

Refer to the instructions for Installation of the driver side knee airbag assembly (See INSTALLATION )
PLACE FRONT WHEELS FACING STRAIGHT AHEAD

Fig 5: Identifying Air Duct Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
1. Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.
2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
INSTALL TILT AND TELESCOPIC SWITCH (See REMOVAL )

Fig 6: Identifying Turn Signal Switch Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER
1. Engage the 4 clips and 2 guides to install the upper steering column cover onto the instrument panel cluster finish panel.

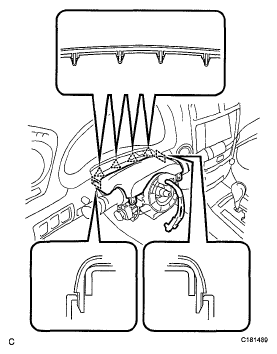

  Fig 7: Identifying Upper Steering Column Cover Clips And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw to install the upper steering column cover

  Fig 8: Identifying Upper Steering Column Cover Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 2 claws to install the lower steering column cover
  NOTE: Do not damage the tilt and telescopic switch.

  Fig 9: Identifying Lower Steering Column Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 3 screws
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
ADJUST SPIRAL CABLE (See INSTALLATION )
INSTALL STEERING WHEEL ASSEMBLY (See INSTALLATION )
INSPECT STEERING WHEEL CENTER POINT
INSTALL STEERING PAD (See INSTALLATION )
INSTALL LOWER NO. 3 STEERING WHEEL COVER (See INSTALLATION )

Fig 10: Identifying Steering Column Cover Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER NO. 2 STEERING WHEEL COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
- Reset the auto tilt away function setting to the previous condition by changing the customize parameter (See CUSTOMIZE PARAMETERS ).
INSPECT STEERING PAD (See INSTALLATION )
REGISTER ECU CODE
NOTE: When replacing the steering lock actuator assembly, perform initialization (See REGISTRATION ).
INSPECT SRS WARNING LIGHT
See DIAGNOSIS SYSTEM
