Automatic Transmission Unit: Components

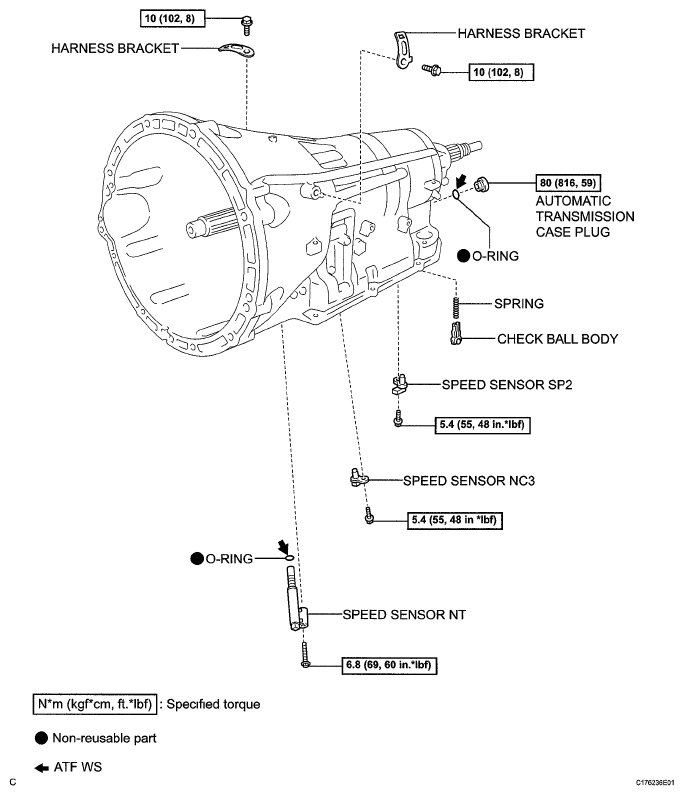

Fig 1: Automatic Transmission Unit Components (1 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

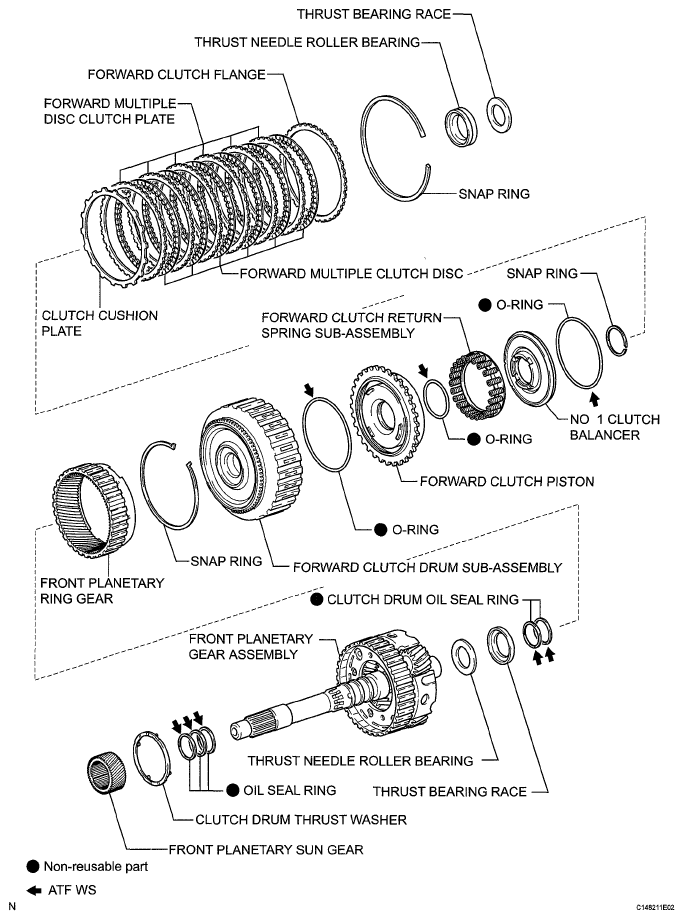

Fig 2: Automatic Transmission Unit Components (2 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

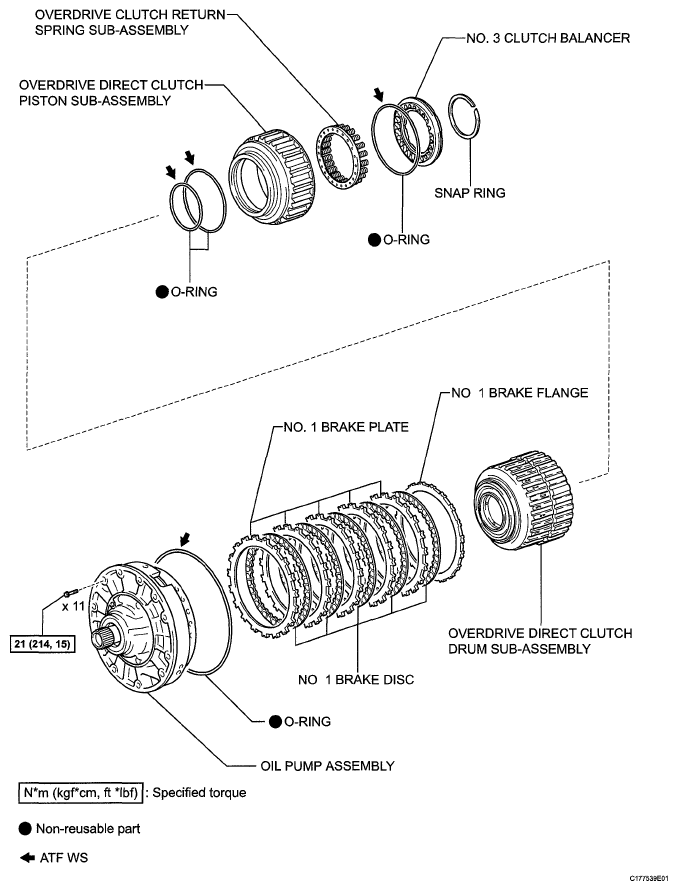

Fig 3: Automatic Transmission Unit Components (3 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

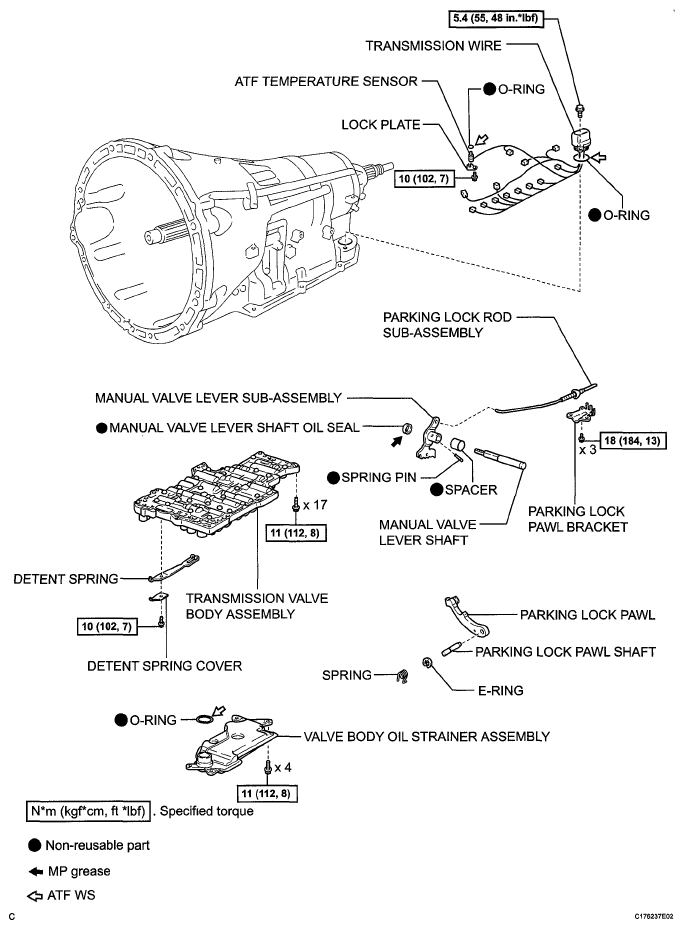

Fig 4: Identifying Automatic Transmission Unit Replacement Components (4 Of 9) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

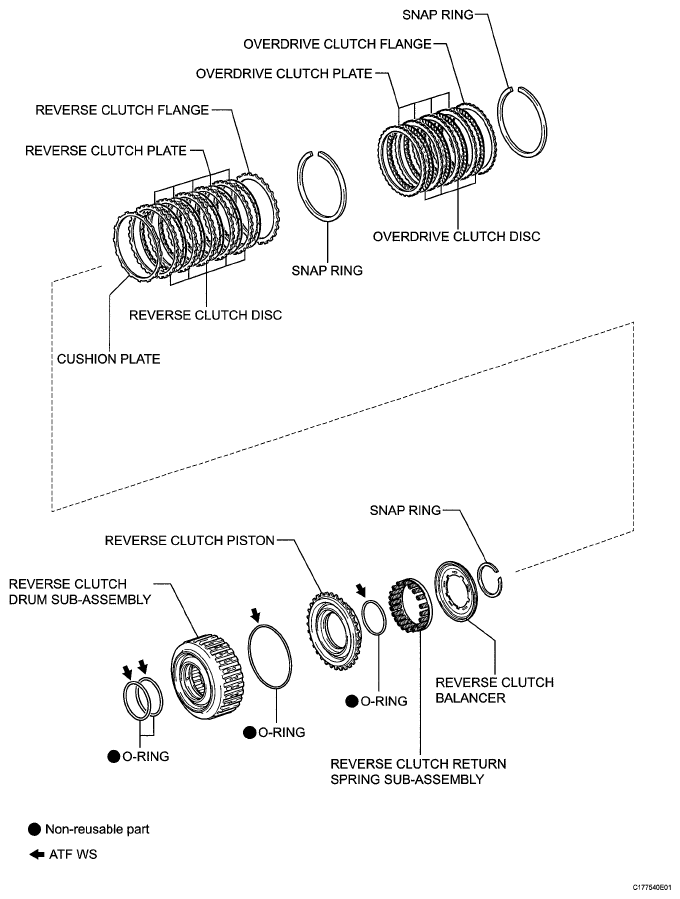

Fig 5: Identifying Automatic Transmission Unit Components (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

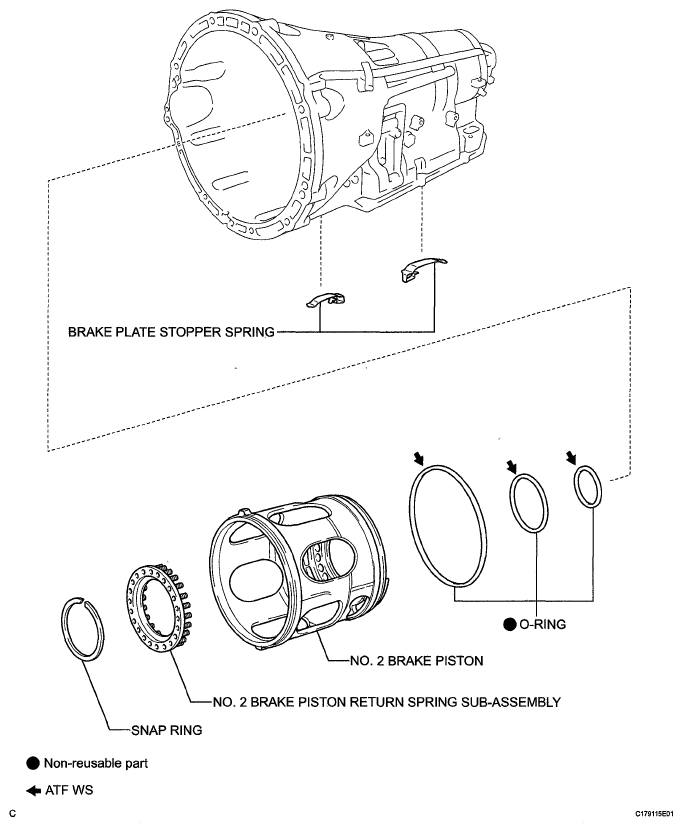

Fig 6: Identifying Automatic Transmission Unit Components (6 Of 9)

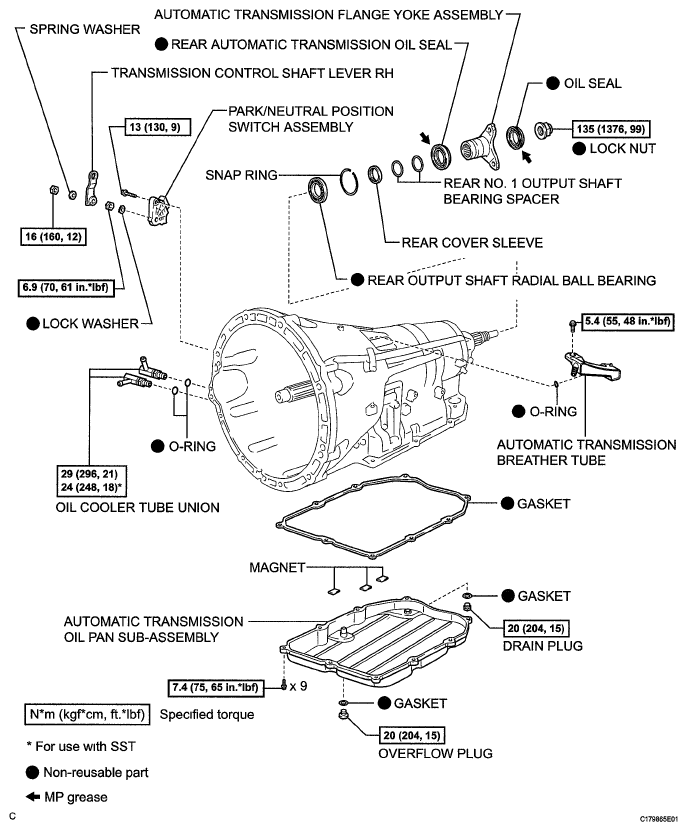

Fig 7: Identifying Automatic Transmission Unit Components (7 Of 9)

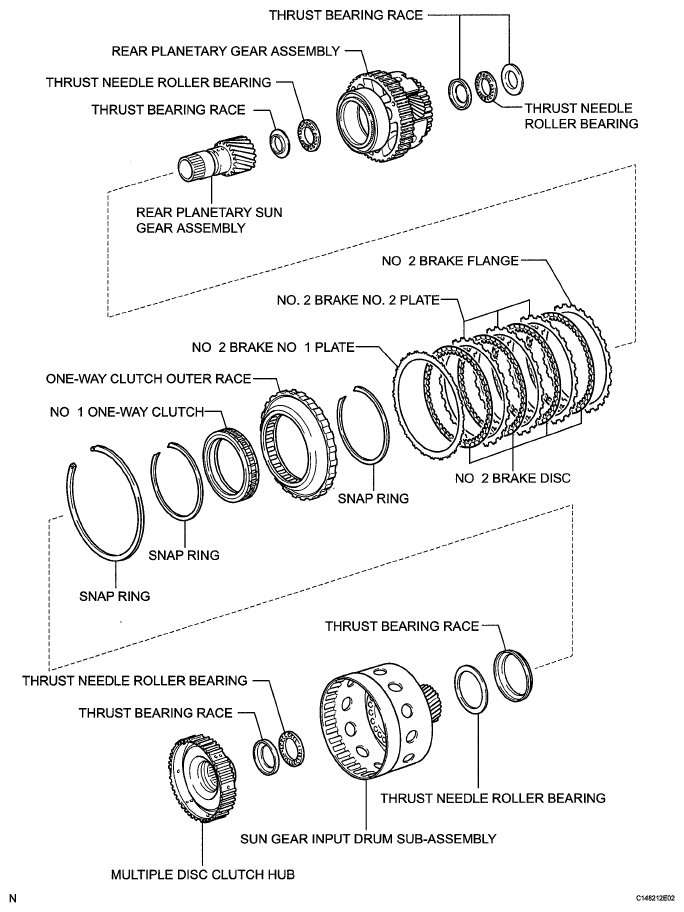

Fig 8: Identifying Automatic Transmission Unit Components (8 Of 9)

Fig 9: Identifying Automatic Transmission Unit Components (9 Of 9)
