Park / Neutral Position Switch: Components

Fig 1: Identifying Park / Neutral Position Switch Replacement Components (1 Of 4) with Torque Specifications
G05750885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

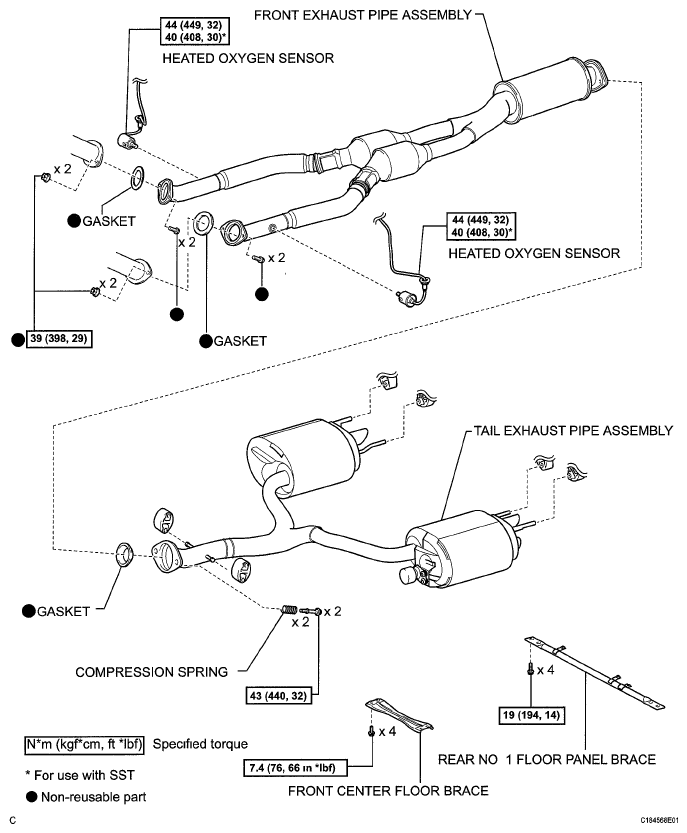

Fig 2: Identifying Park / Neutral Position Switch Replacement Components (2 Of 4) with Torque Specifications
G05750886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

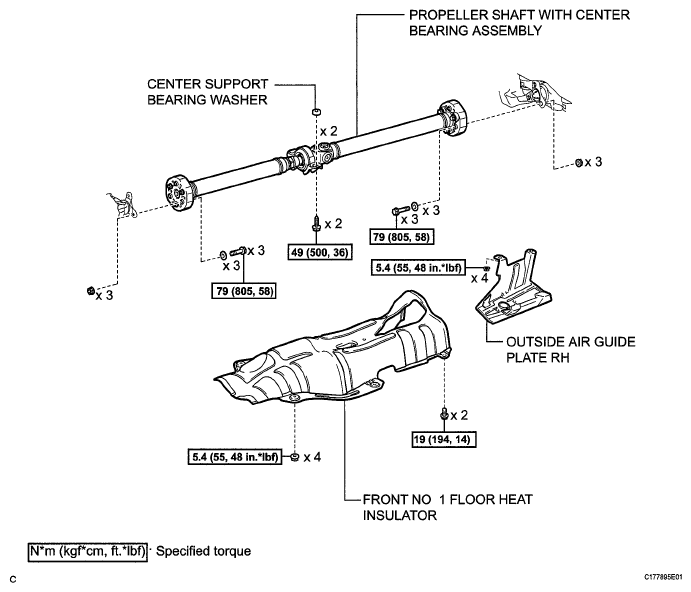

Fig 3: Identifying Park / Neutral Position Switch Replacement Components (3 Of 4) with Torque Specifications
G05749448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

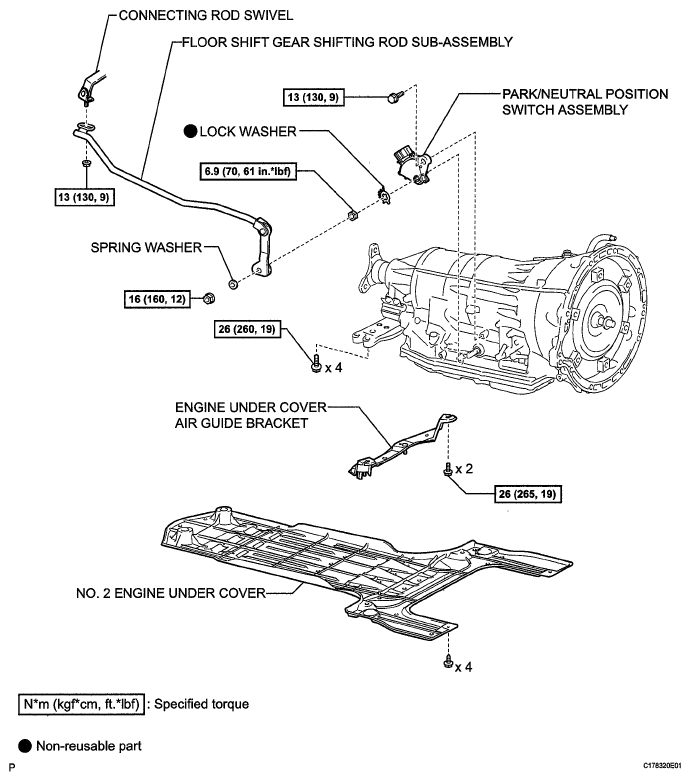

Fig 4: Park / Neutral Position Switch Replacement Components (4 Of 4) with Torque Specifications
G05750888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
