Transmission Control Switch: Components

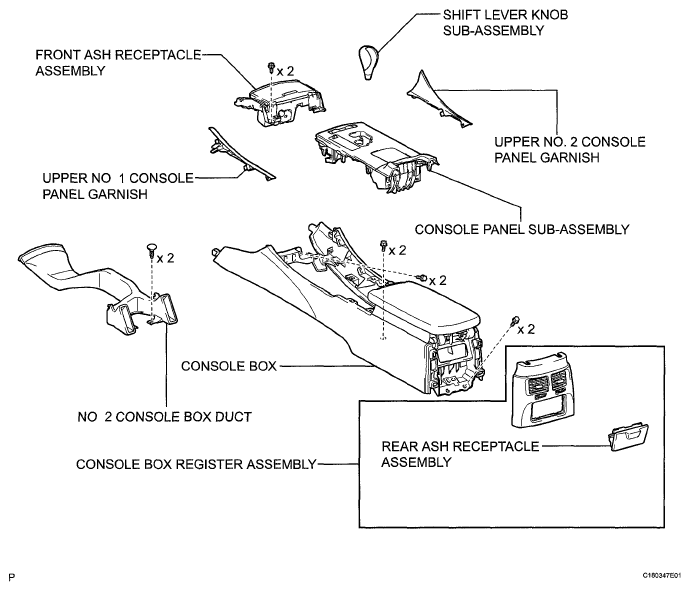

Fig 1: Identifying Transmission Control Switch Replacement Components (1 Of 4)
G05750915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Transmission Control Switch Replacement Components (2 Of 4)
G05750885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

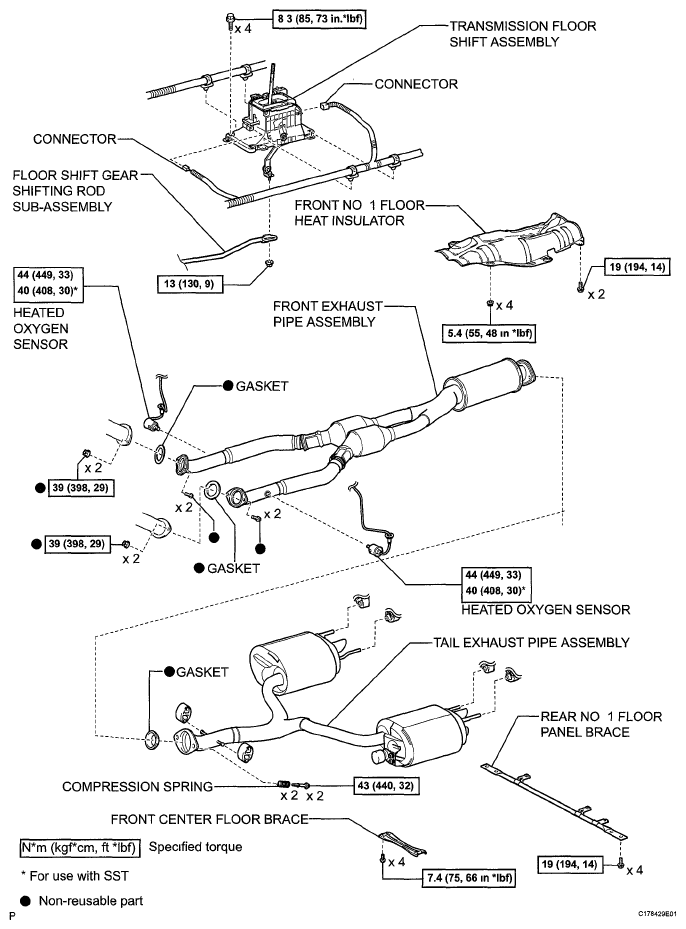

Fig 3: Transmission Control Switch Replacement Components (3 Of 4) with Torque Specifications
G05750917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

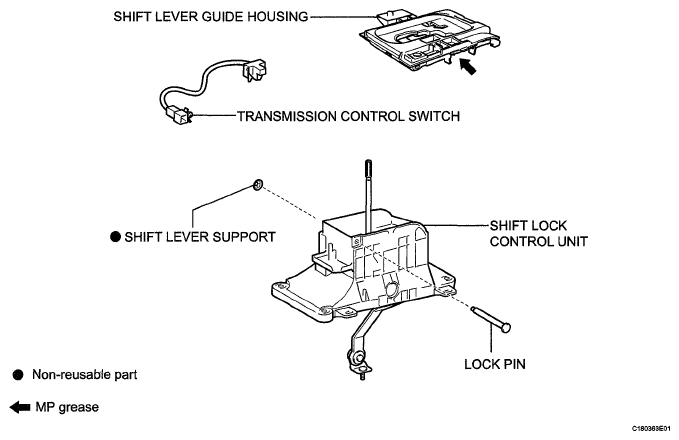

Fig 4: Identifying Transmission Control Switch Components (4 Of 4)
G05750950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
