Speed Sensor: Components

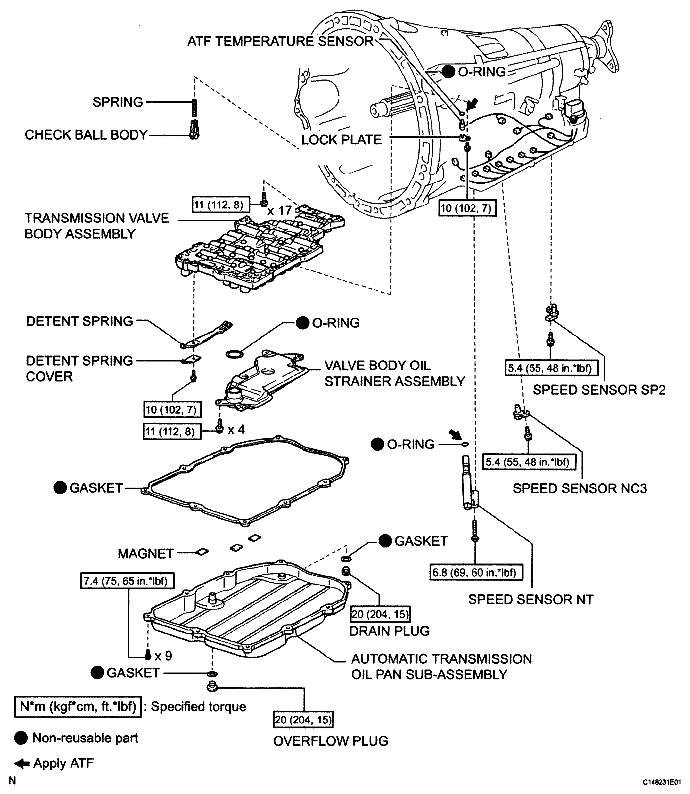

Fig 1: Speed Sensor Replacement Components With Torque Specifications
G04948405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
