Rear Window Defogger System Does Not Operate: Wiring Diagram

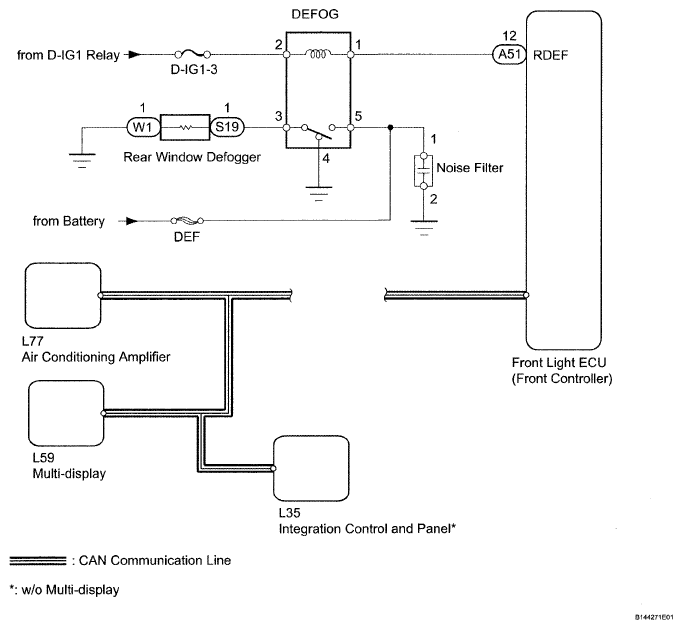

Fig 1: Identifying Rear Window Defogger System - Wiring Diagram
G04952244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
