Terminals Of Ecu

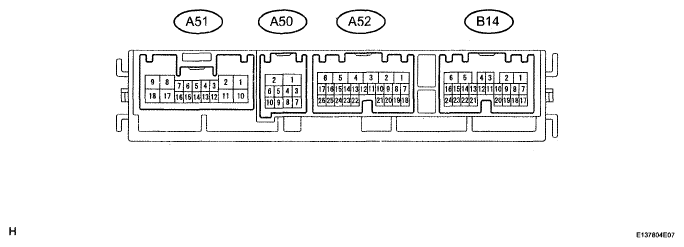

- CHECK FRONT LIGHT ECU (FRONT CONTROLLER)
- Measure the resistance and voltage according to the value(s) in the table below.CONNECTOR TERMINAL REFERENCE TABLE
Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition A52-1 (BATB) - A50-2 (E) P-W-B Power source Always 11 to 14 V A52-5 (ALTB) - A50-2 (E) L-W-B Power source Always 11 to 14 V A50-1 (FMB3) - A50-2 (E) LG - W-B Power source Always 11 to 14 V A50-2 (E) - Body ground W-B - Body ground Ground Always Below 1 Ω A51-12 (RDEF) - A50-2 (E) W - W-B Defogger relay Engine switch on (IG) Rear defogger switch ON Below 1 V Engine switch on (IG) Rear defogger switch OFF 11 to 14 V A50-5 (FMIG) - A50-2 (E) Y-W-B Power source Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V If the result is not as specified, the front light ECU (front controller) or fuse may have a malfunction.
- Measure the resistance and voltage according to the value(s) in the table below.

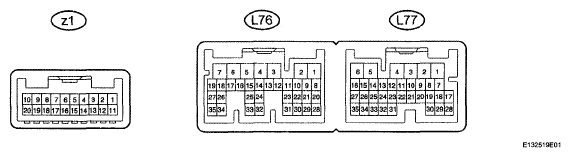

- CHECK AIR CONDITIONING AMPLIFIER
- Disconnect the L76 and L77 air conditioning amplifier connectors.
- Measure the resistance and voltage according to the value(s) in the table below.CONNECTOR TERMINAL REFERENCE TABLE
Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition L76-5 (IG+) - L76-1 (GND) V - W-B Ignition power supply Engine switch on (IG) 11 to 14 V Engine switch off Below 1 V L76-6 (+B1) - L76-1 (GND) L - W-B Battery power source Always 11 to 14 V L76-7 (+B2) - L76-1 (GND) L - W-B Battery power source Always 11 to 14 V L76-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω L76-2 (FGND) - Body ground W-B - Body ground Ground Always Below 1 Ω L77-6 (RGND) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.

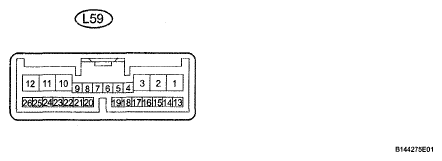

- CHECK MULTI-DISPLAY
- Disconnect the L59 multi-display connector.
- Measure the resistance and voltage according to the value(s) in the table below.CONNECTOR TERMINAL REFERENCE TABLE
Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition L59-1 (+B1) - L59-10 (GND1) R - W-B Battery power source Always 11 to 14 V L59-3 (IG) - L59-10 (GND1) V - W-B Ignition power supply Engine switch off Below 1 V Engine switch on (IG) 11 to 14 V L59-10 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

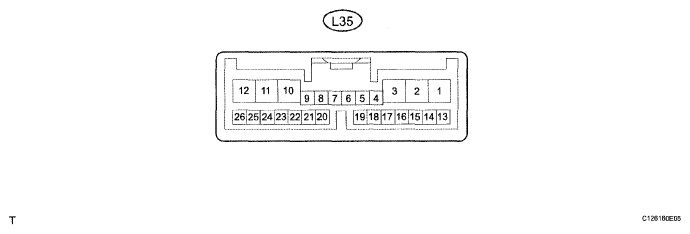

- CHECK INTEGRATION CONTROL AND PANEL (w/o Multi-display)
- Disconnect the L35 integration control and panel connector.
- Measure the resistance and voltage according to the value(s) in the table below.CONNECTOR TERMINAL REFERENCE TABLE
Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition L35-1 (+B1) - L35-10 (GND1) B - W-B Battery power source Always 11 to 14 V L35-3 (IG) - L35-10 (GND1) V - W-B Ignition power supply Engine switch off Below 1 V Engine switch on (IG) 11 to 14 V L35 -10 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
