Windshield Glass: Components

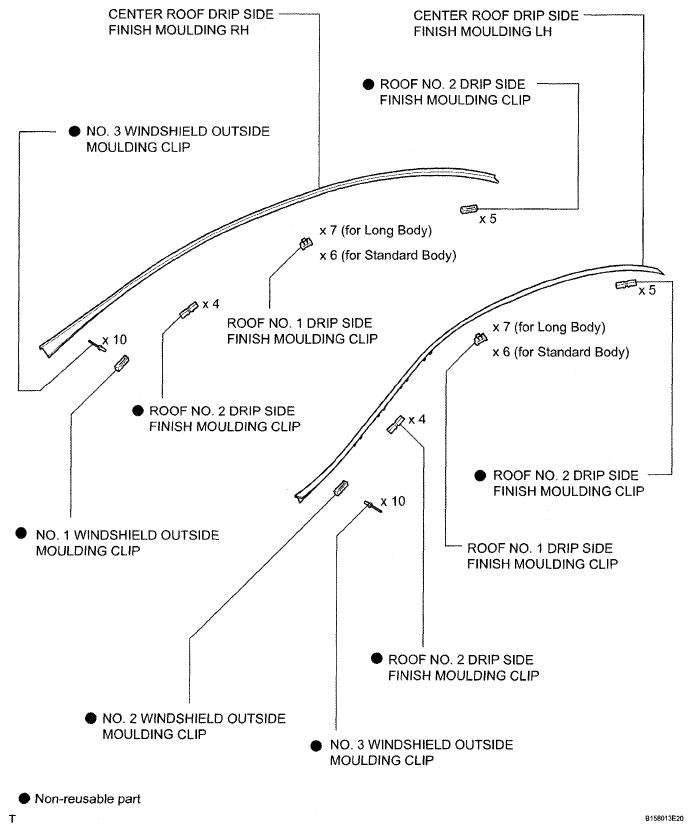

Fig 1: Identifying Windshield Glass Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

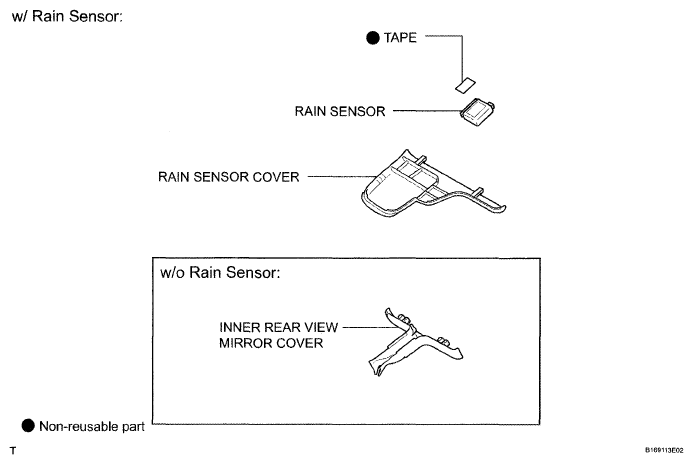

Fig 2: Identifying Windshield Glass Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

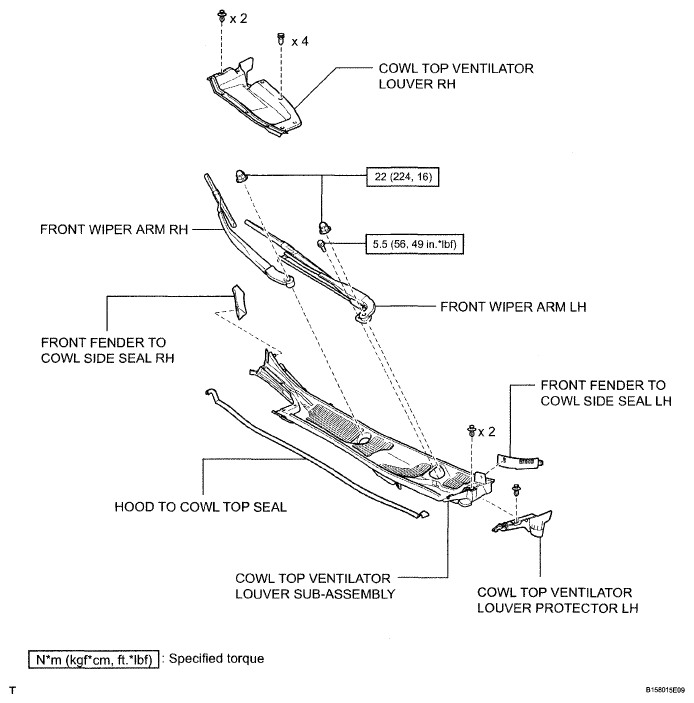

Fig 3: Identifying Windshield Glass Replacement Components (3 Of 6) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

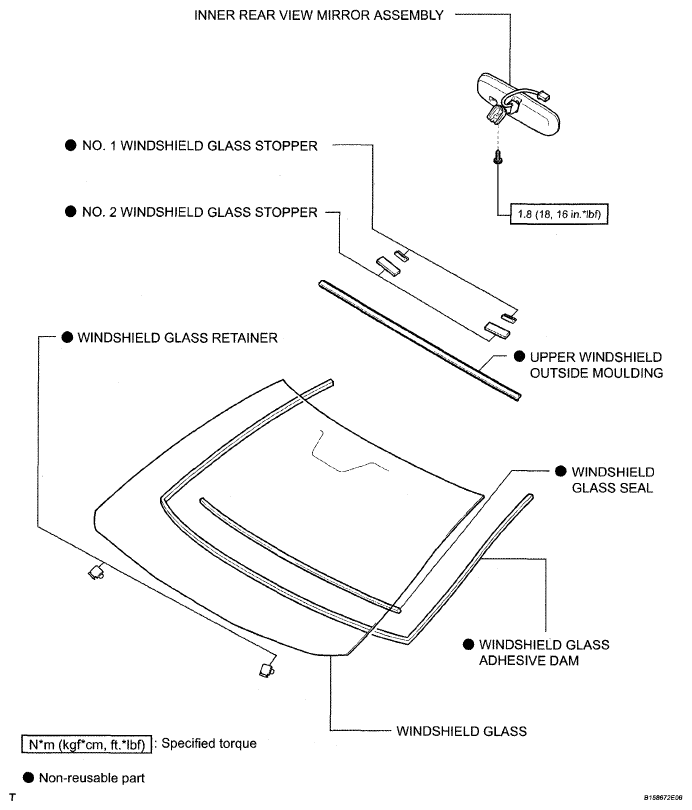

Fig 4: Identifying Windshield Glass Replacement Components (4 Of 6) With Torque Specifications

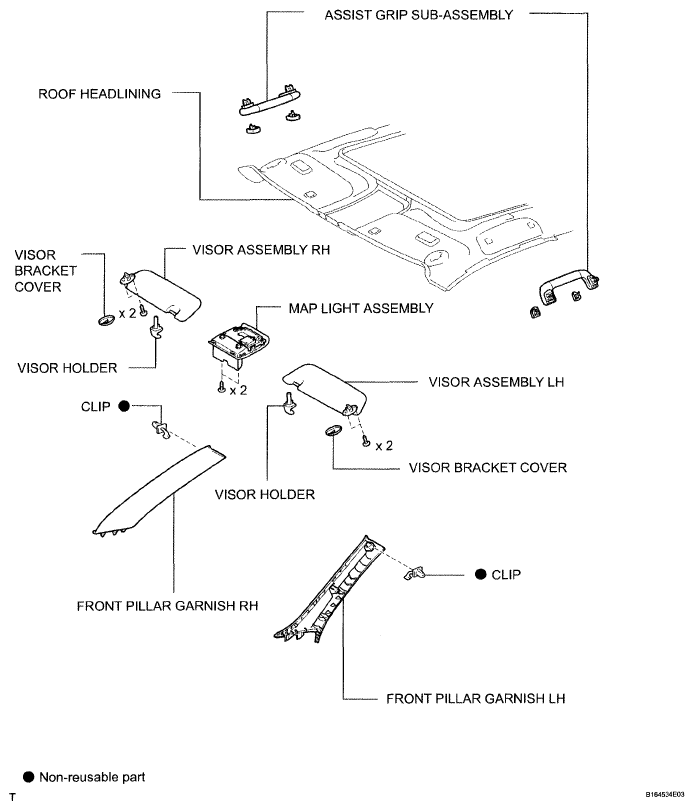

Fig 5: Identifying Windshield Glass Replacement Components (5 Of 6) With Torque Specifications

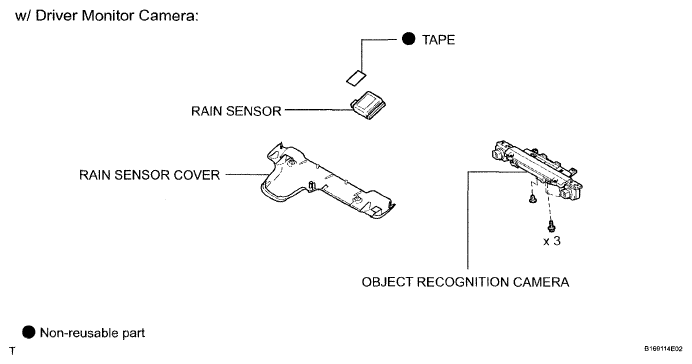

Fig 6: Identifying Windshield Glass Replacement Components (6 Of 6) With Torque Specifications
