Skid Control Ecu: Components

Fig 1: Identifying Skid Control ECU Components (1 Of 2)
G04949781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

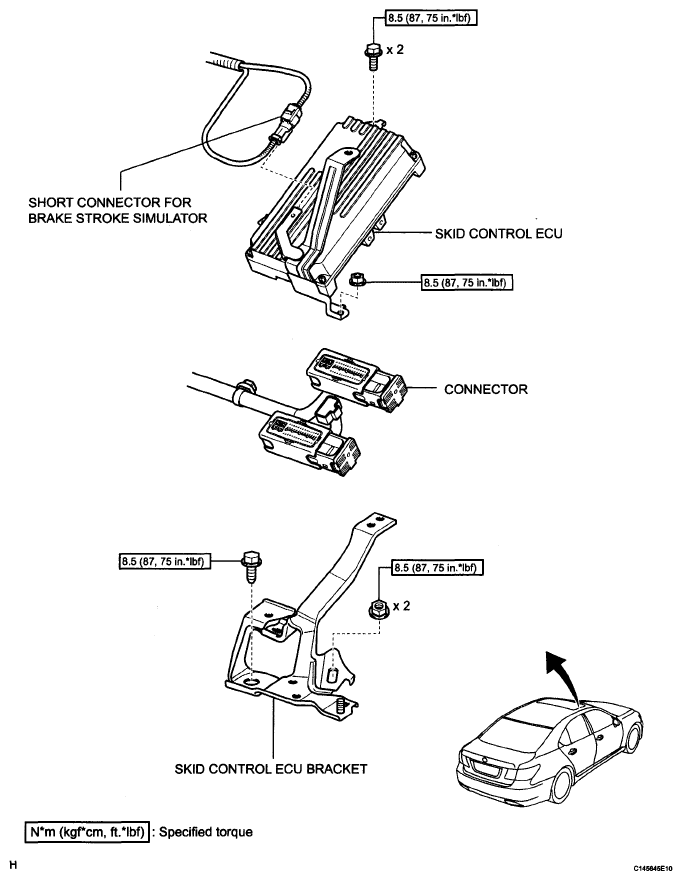

Fig 2: Skid Control ECU Replacement Components With Torque Specifications (2 Of 2)
G05855065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
