Air Conditioning: Notes

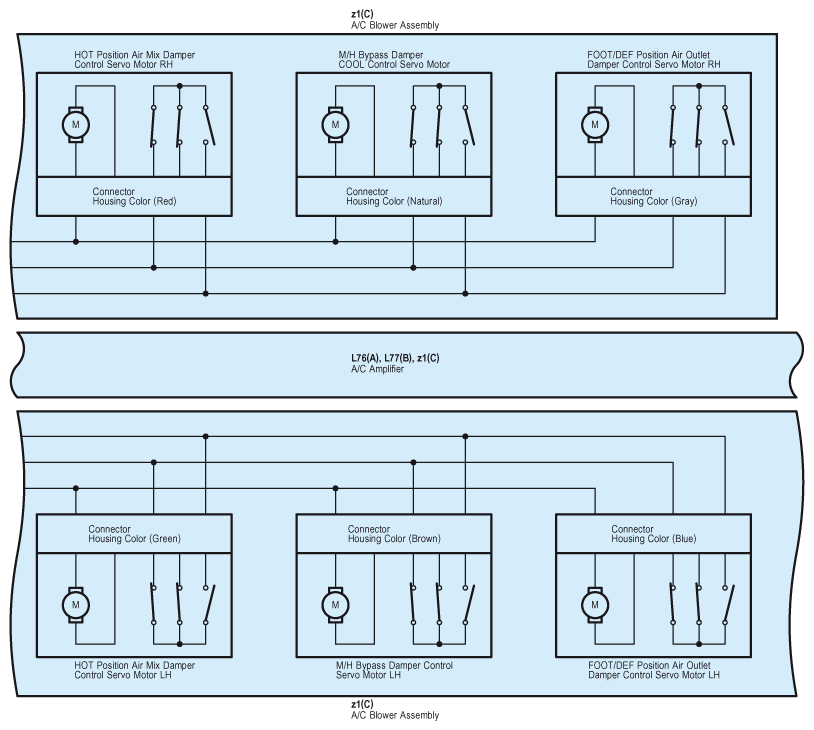

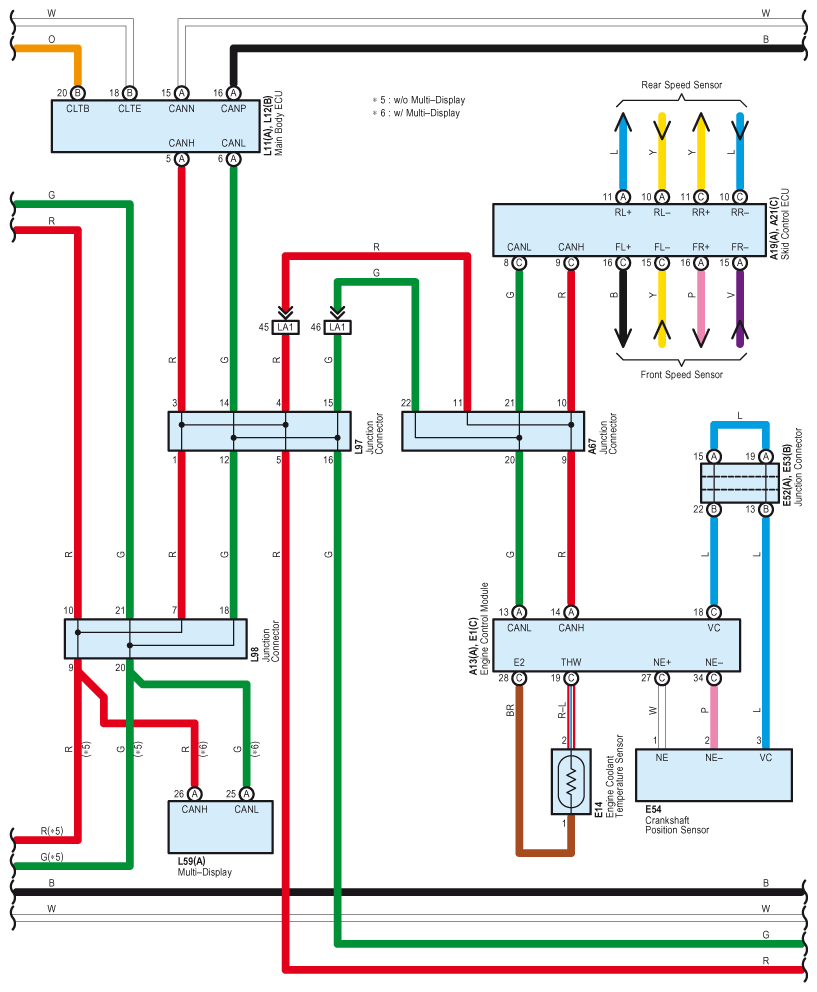

Fig 1: Air Conditioning - Circuit Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

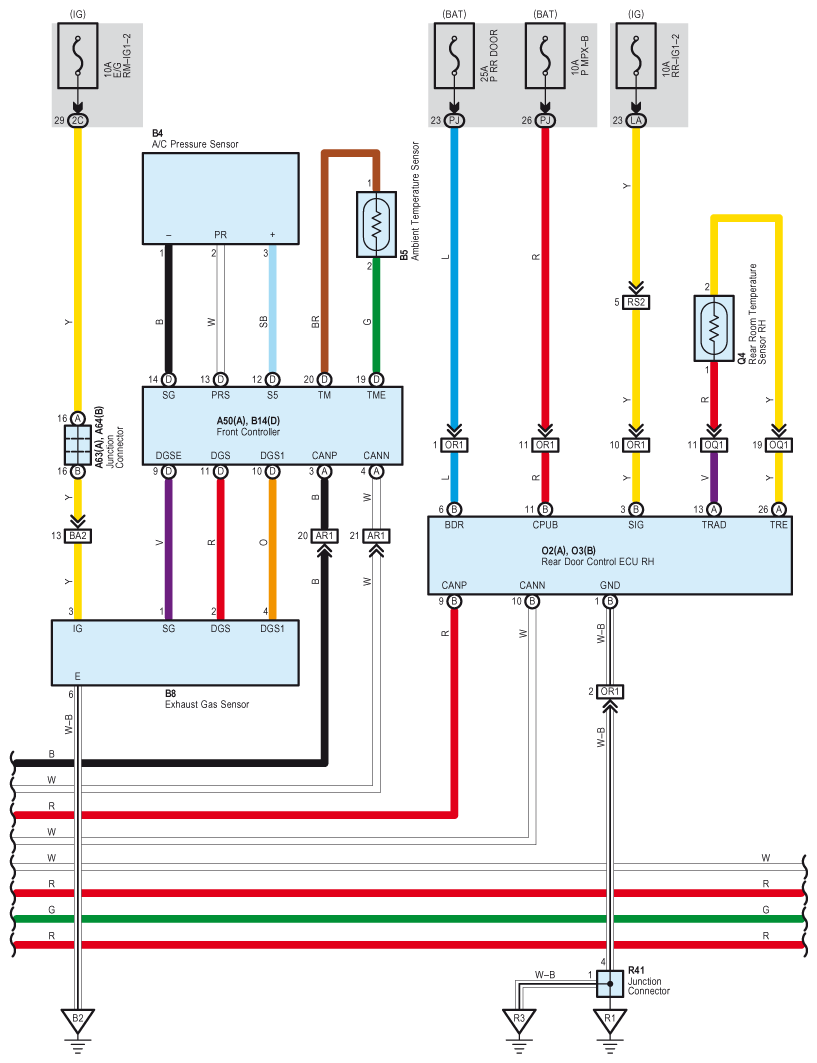

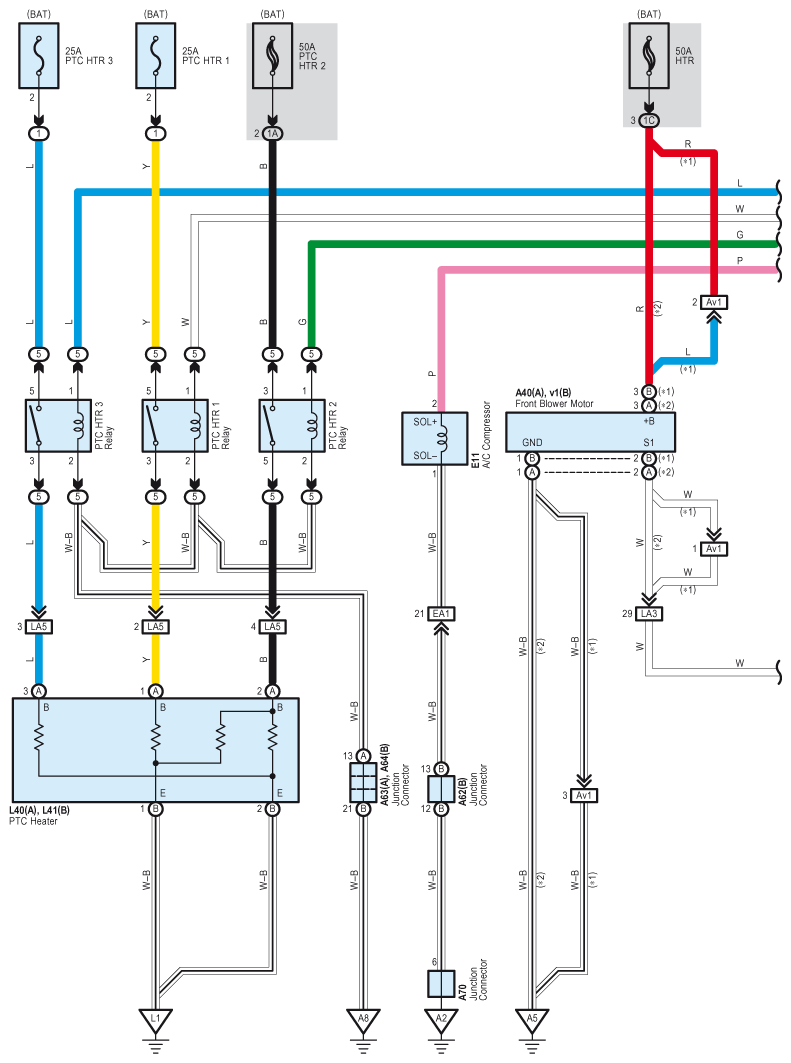

Fig 2: Air Conditioning - Circuit Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

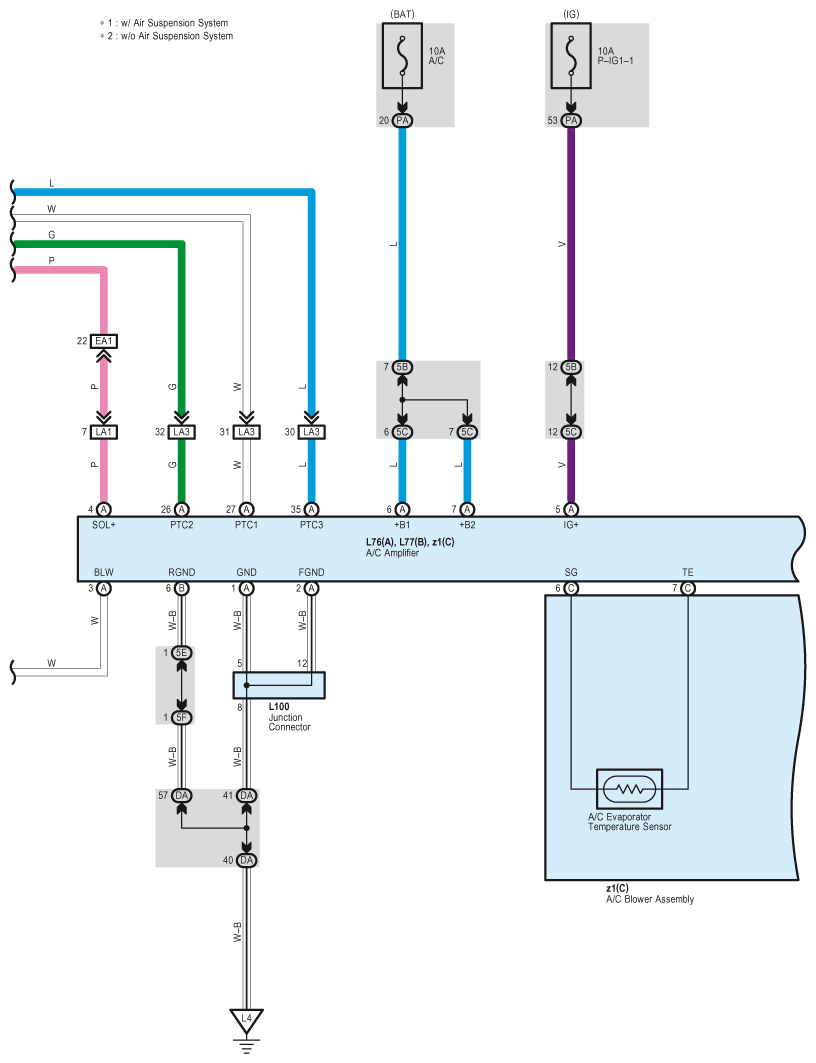

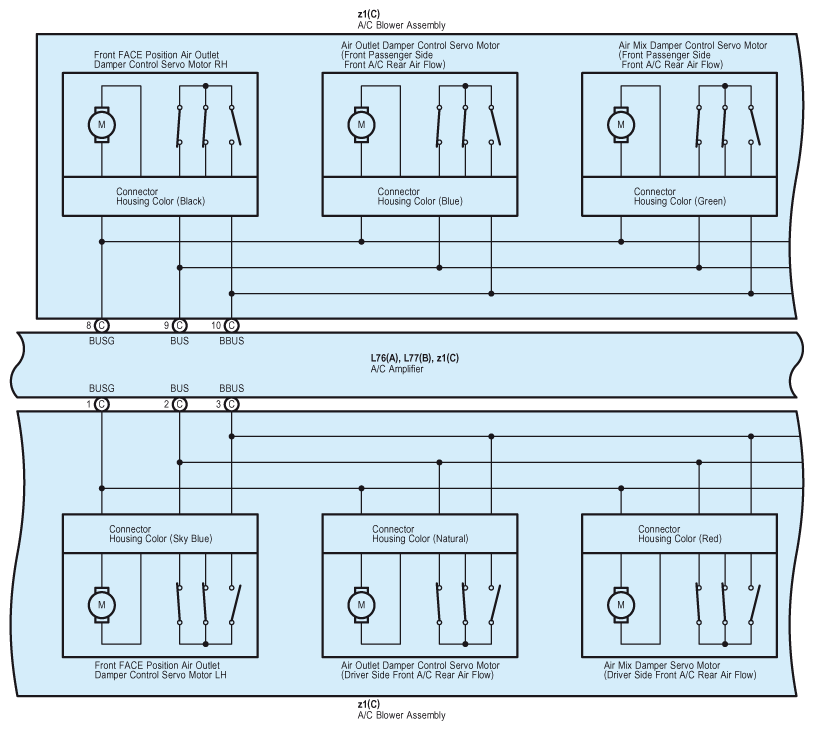

Fig 3: Air Conditioning - Circuit Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

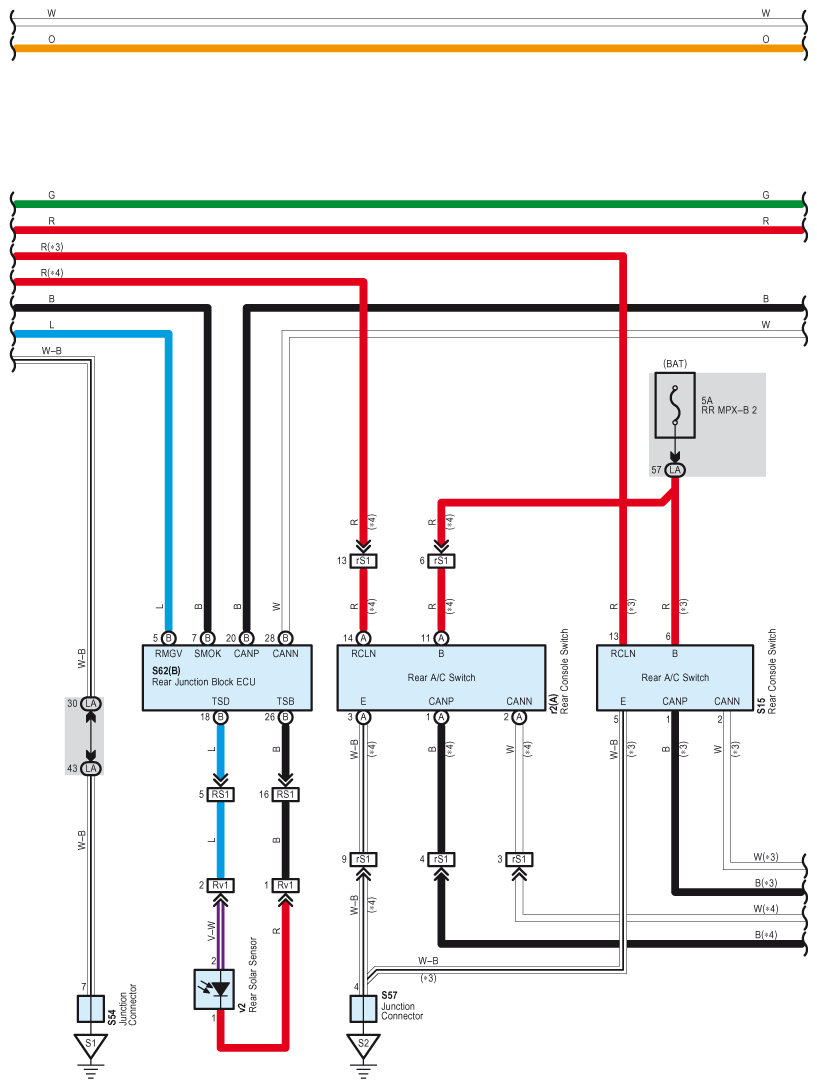

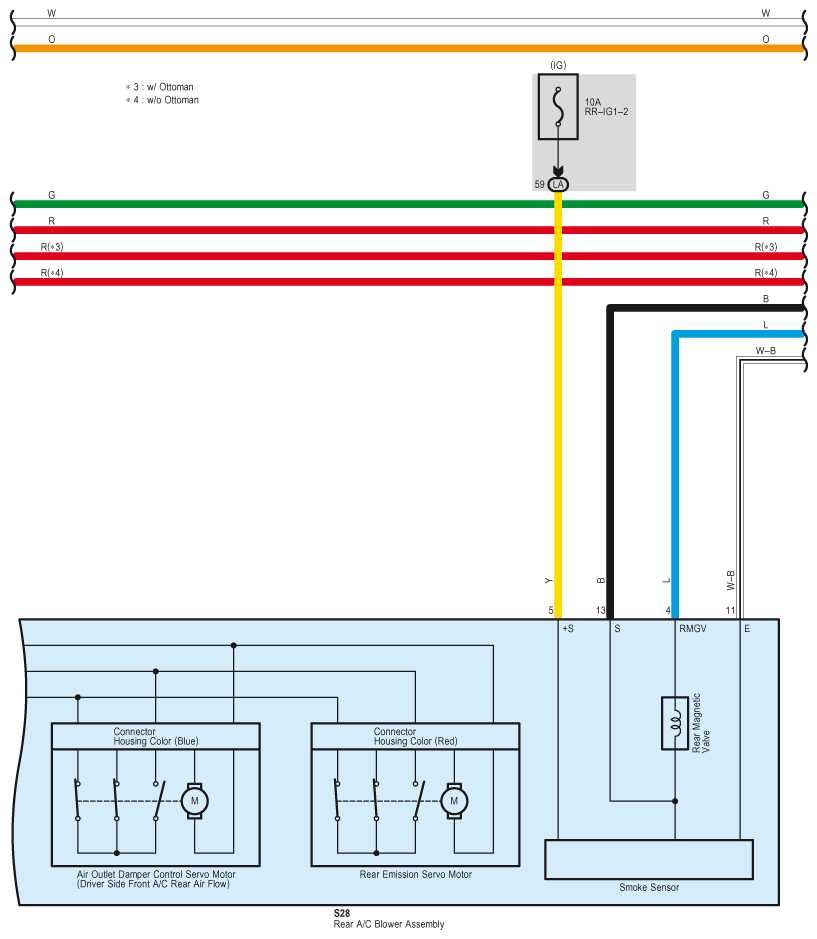

Fig 4: Air Conditioning - Circuit Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

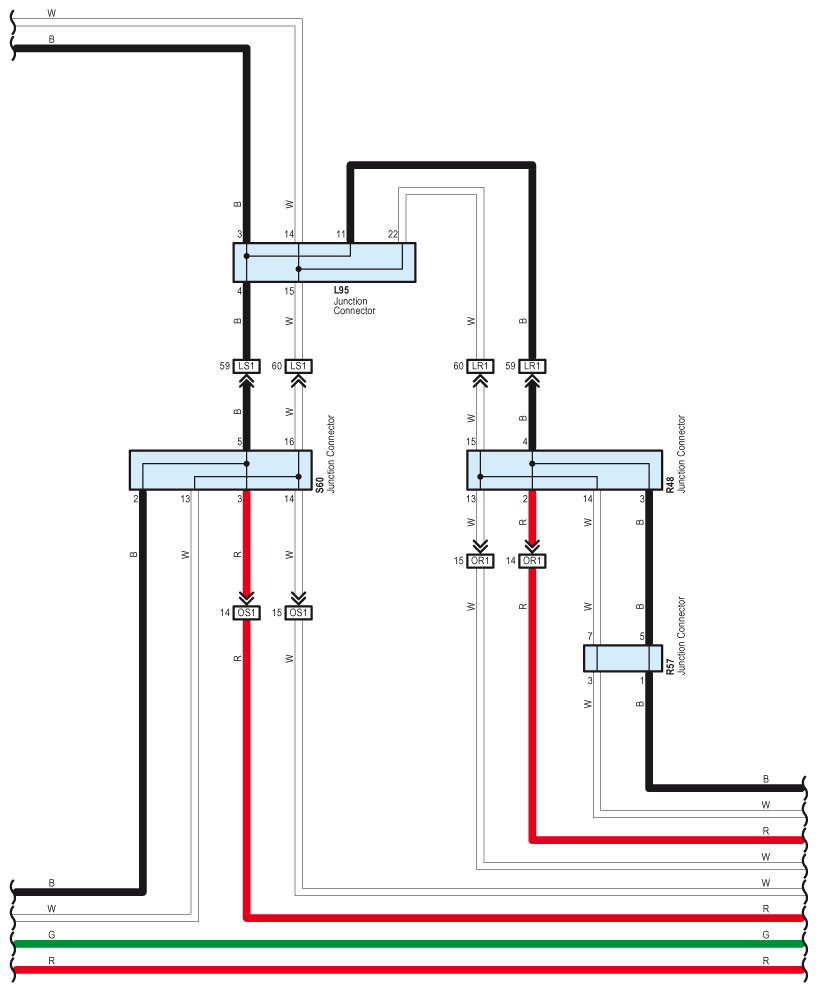

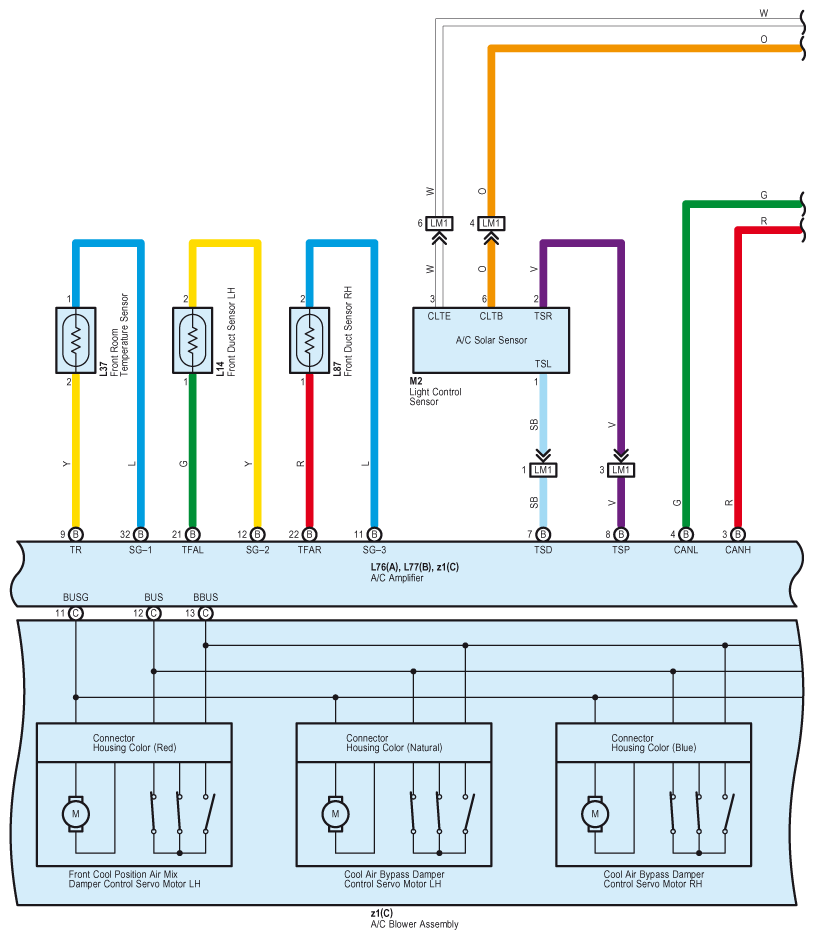

Fig 5: Air Conditioning - Circuit Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

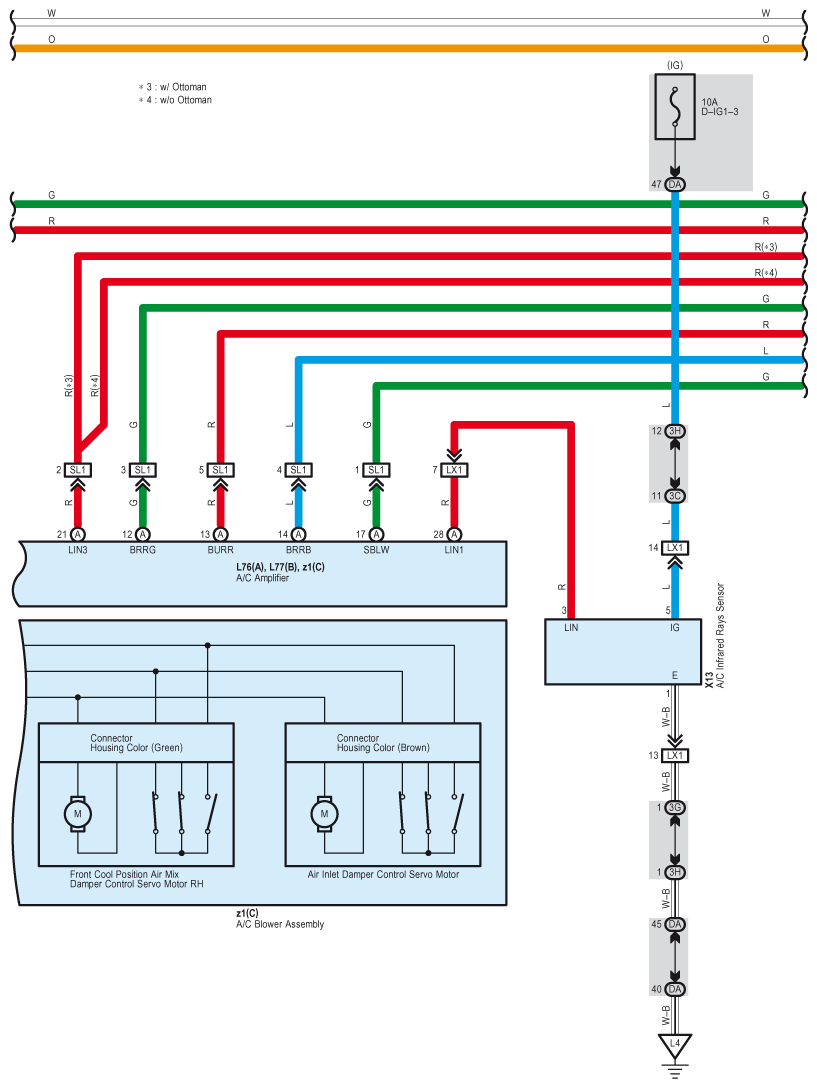

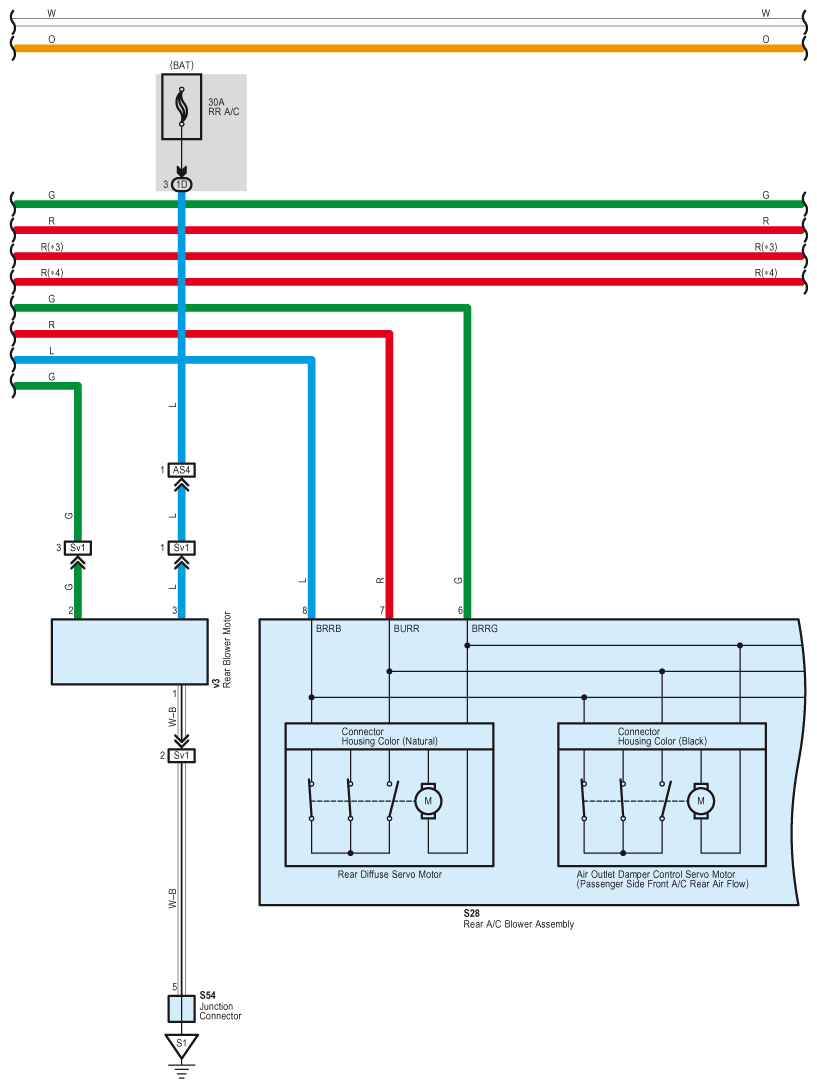

Fig 6: Air Conditioning - Circuit Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

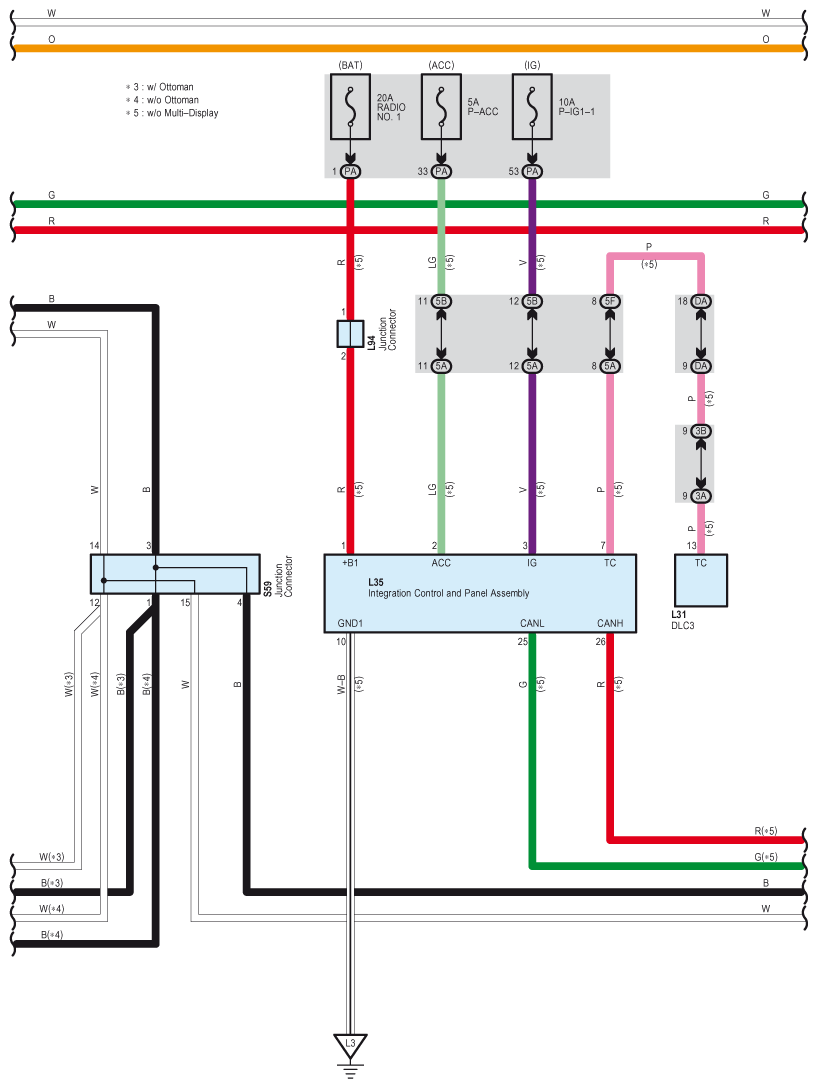

Fig 7: Air Conditioning - Circuit Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

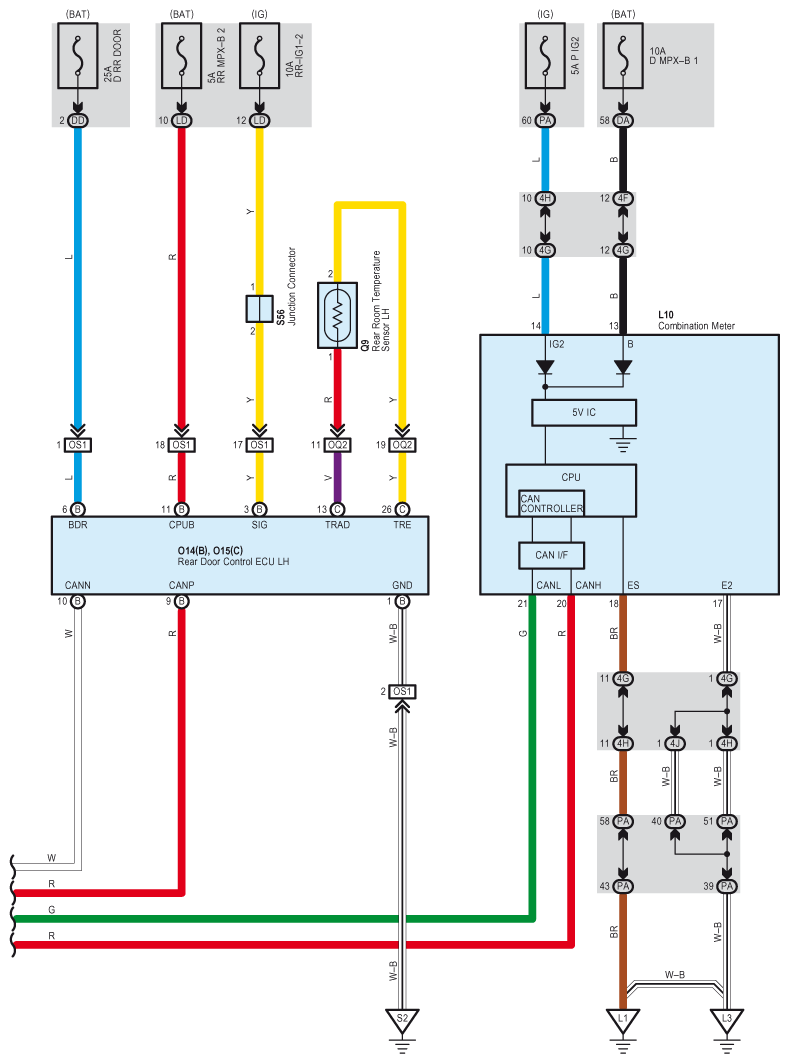

Fig 8: Air Conditioning - Circuit Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Air Conditioning - Circuit Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Air Conditioning - Circuit Diagram (10 Of 14)

Fig 11: Air Conditioning - Circuit Diagram (11 Of 14)

Fig 12: Air Conditioning - Circuit Diagram (12 Of 14)

Fig 13: Air Conditioning - Circuit Diagram (13 Of 14)

Fig 14: Air Conditioning - Circuit Diagram (14 Of 14)
