Audio System without SDARS: Notes

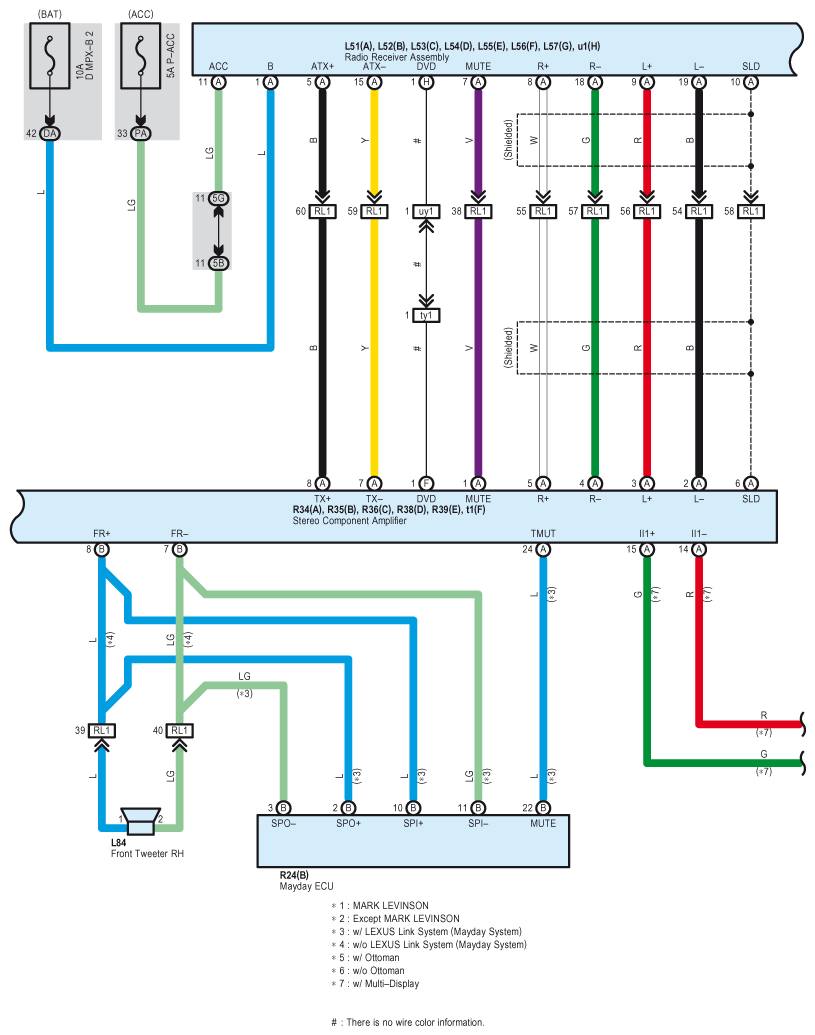

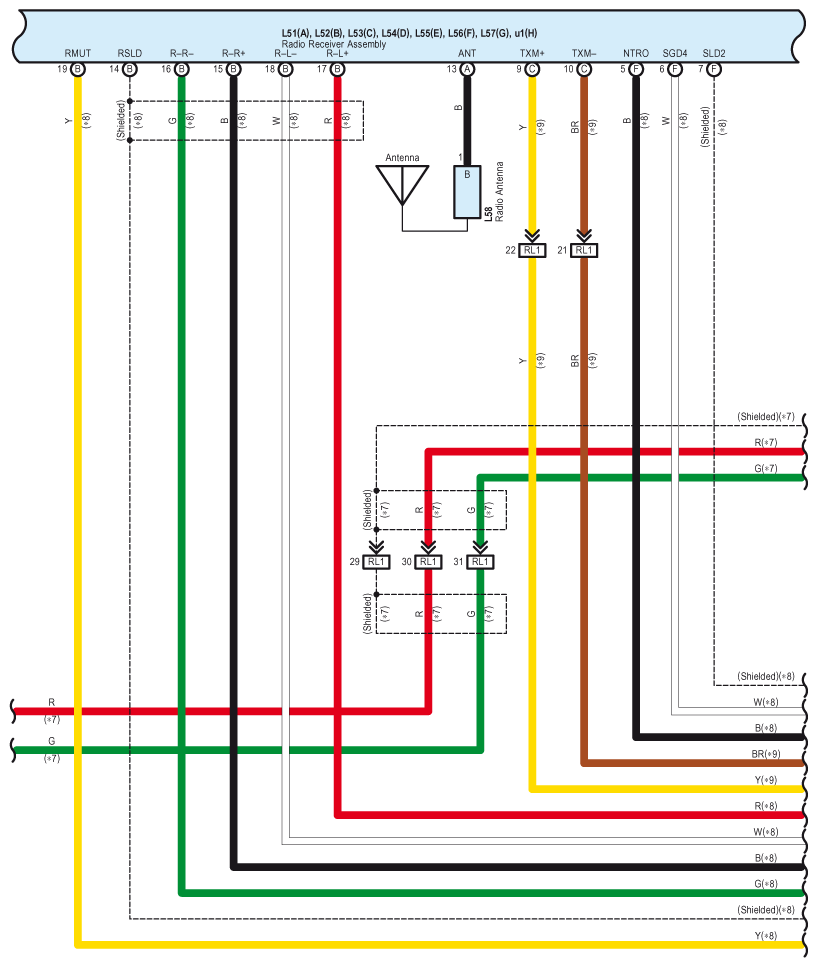

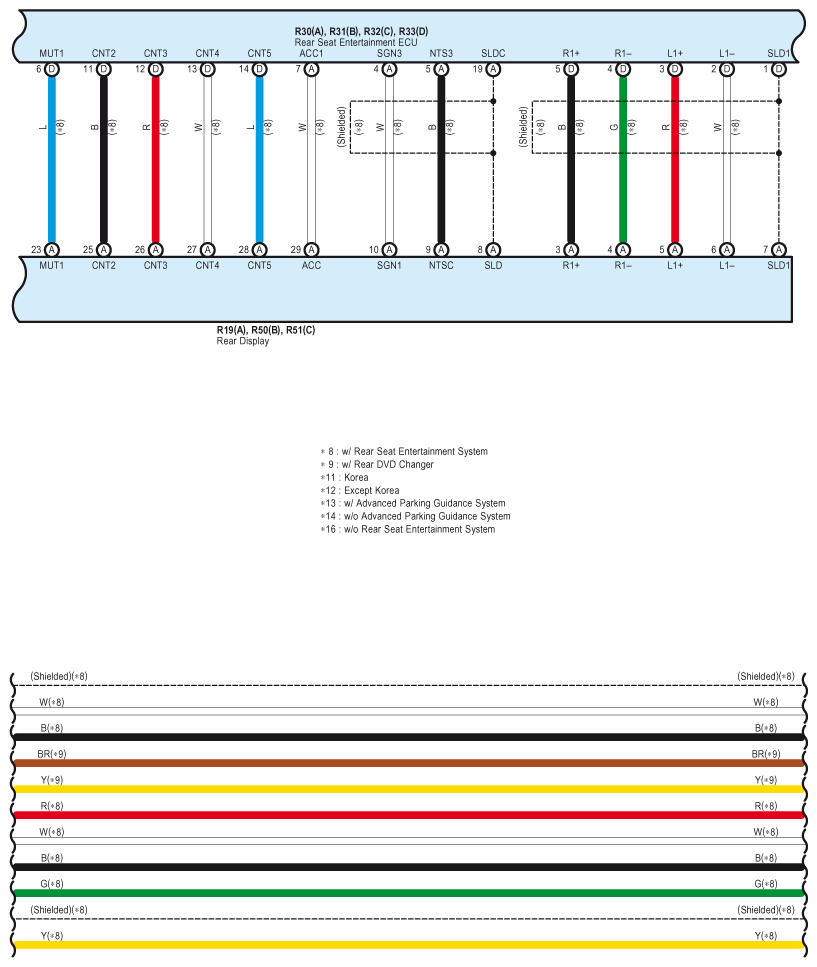

Fig 1: Audio System Without SDARS - Circuit Diagram (1 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

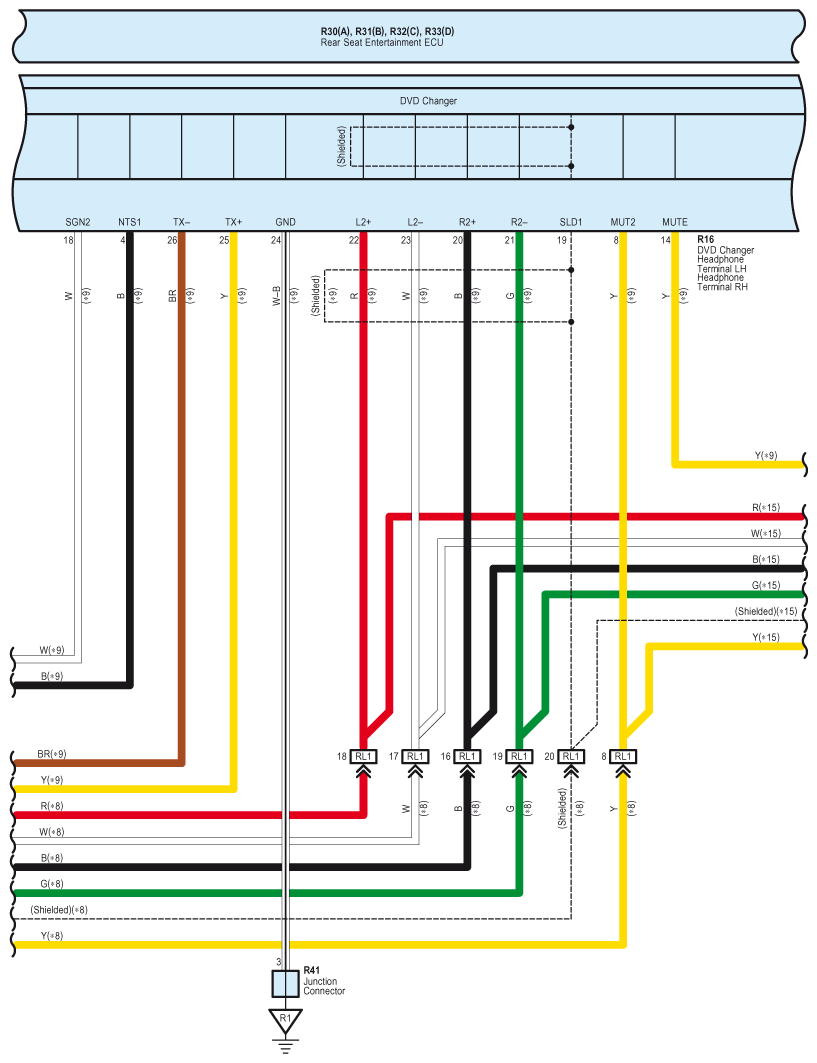

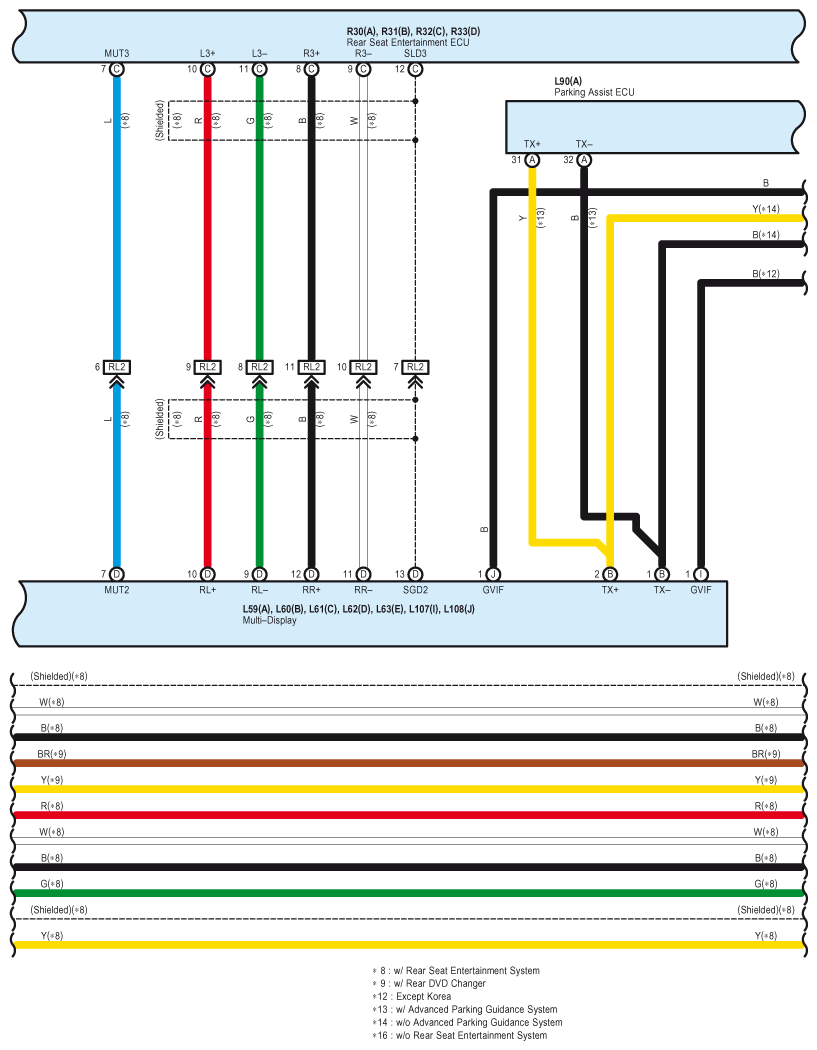

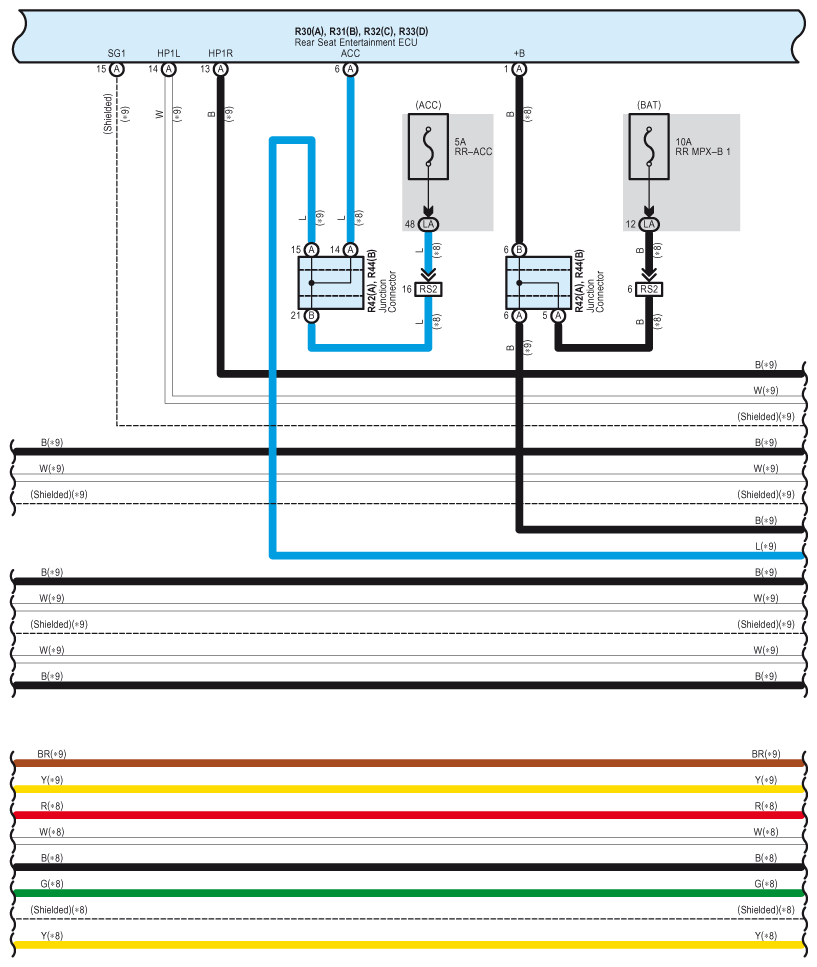

Fig 2: Audio System Without SDARS - Circuit Diagram (2 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

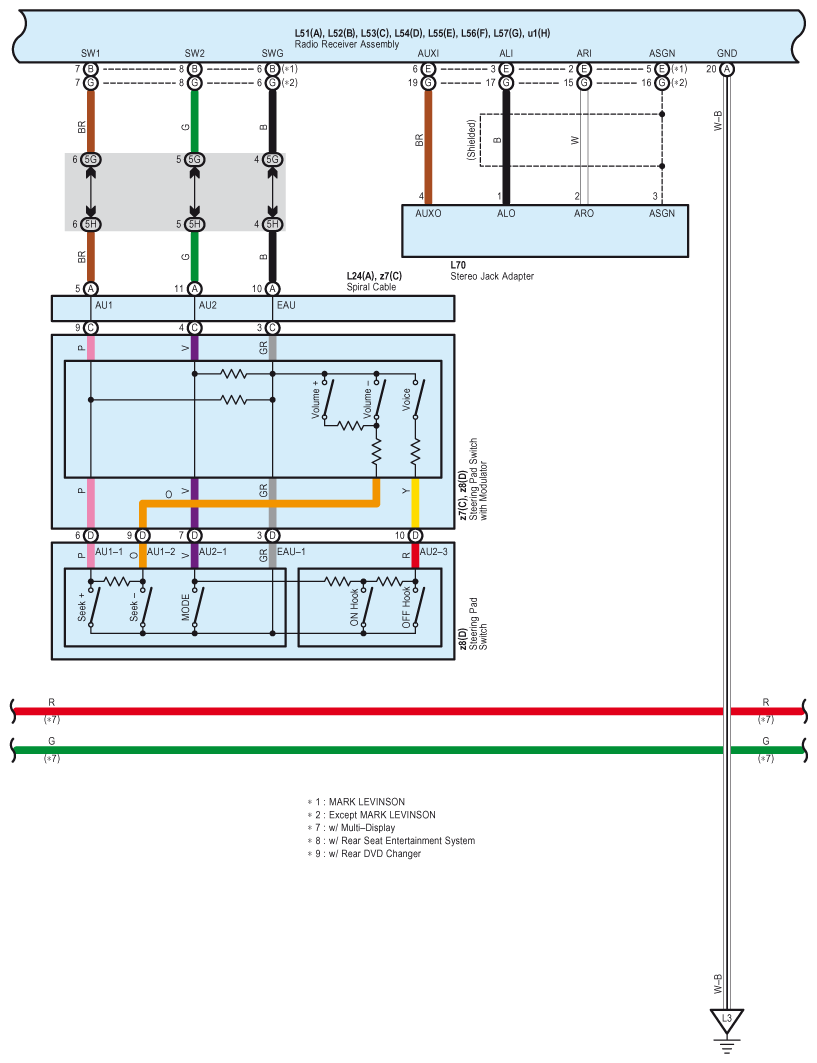

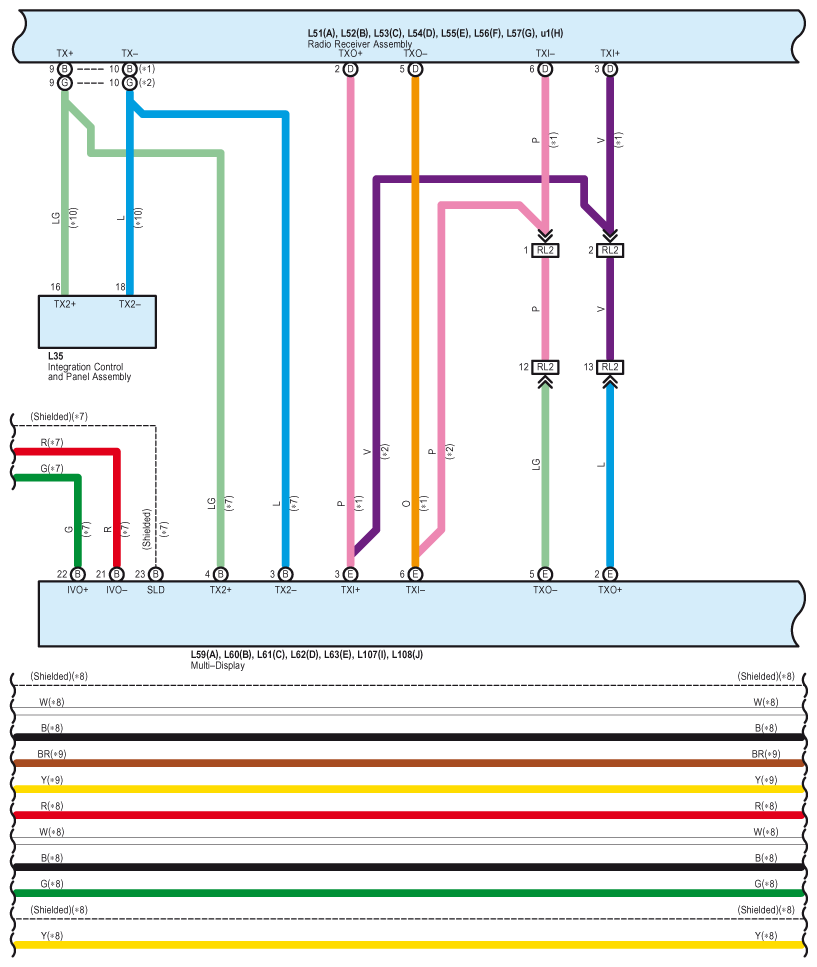

Fig 3: Audio System Without SDARS - Circuit Diagram (3 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

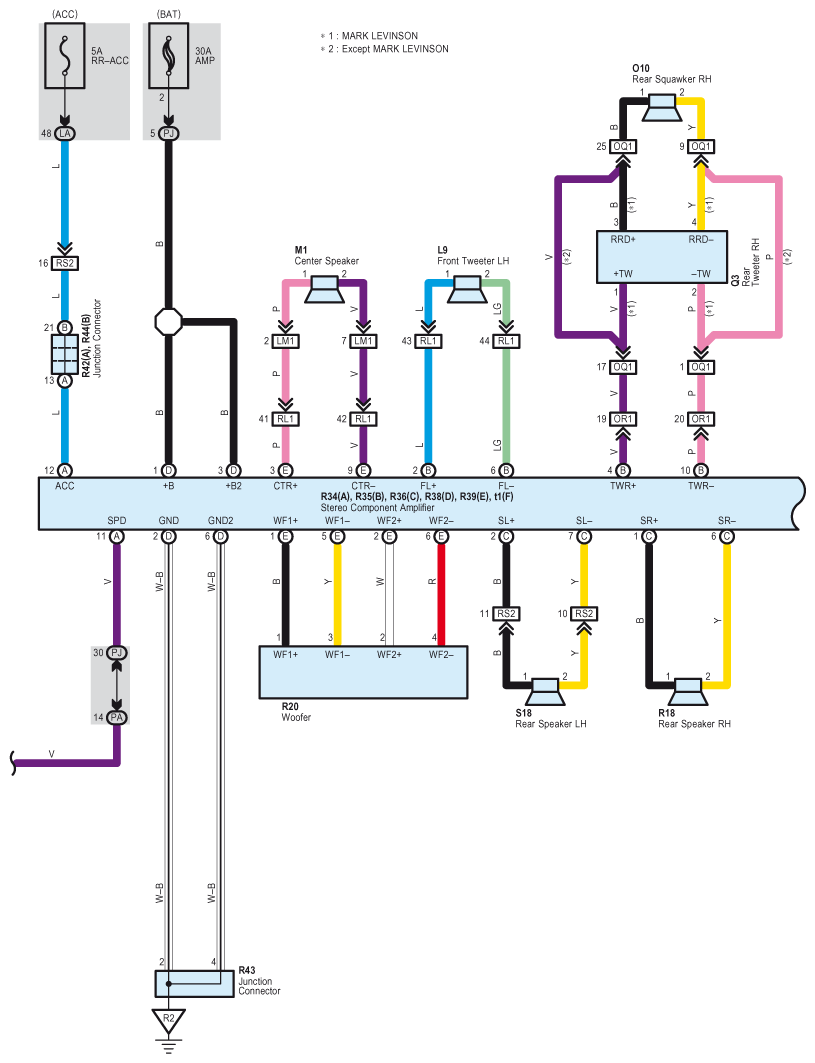

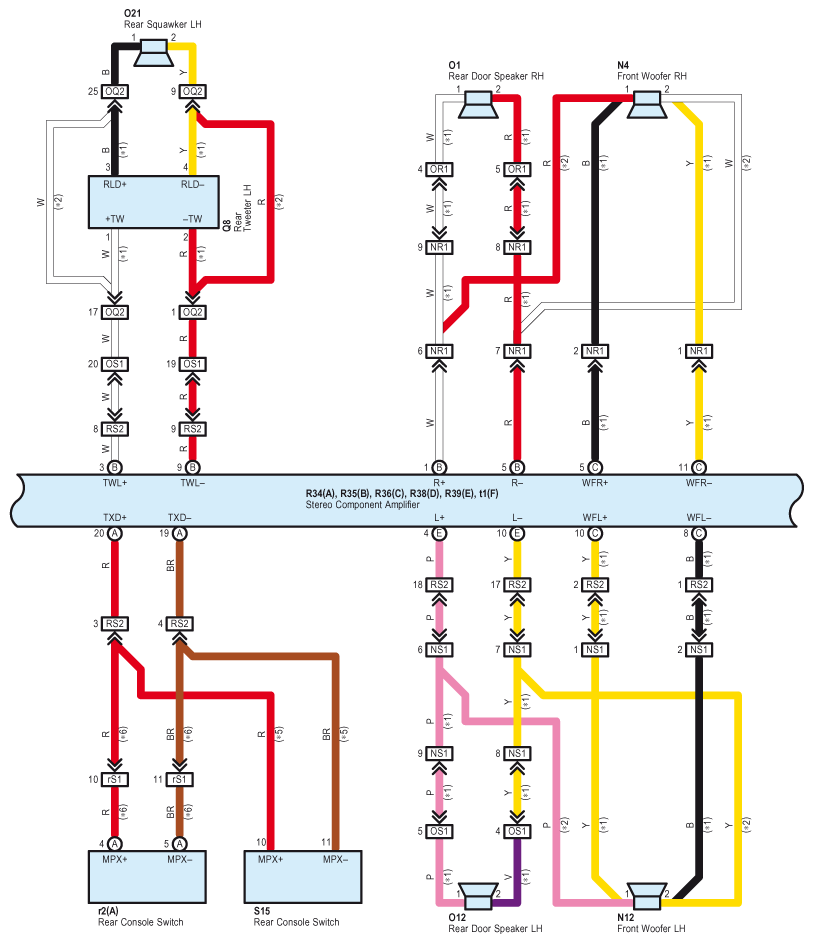

Fig 4: Audio System Without SDARS - Circuit Diagram (4 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

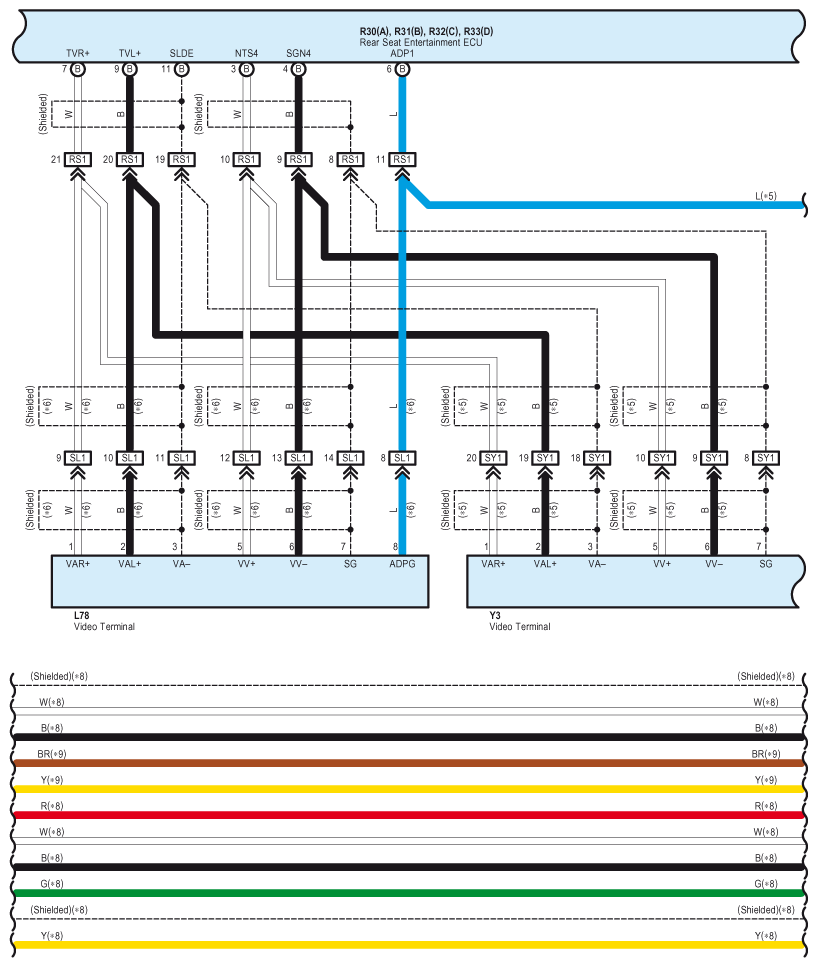

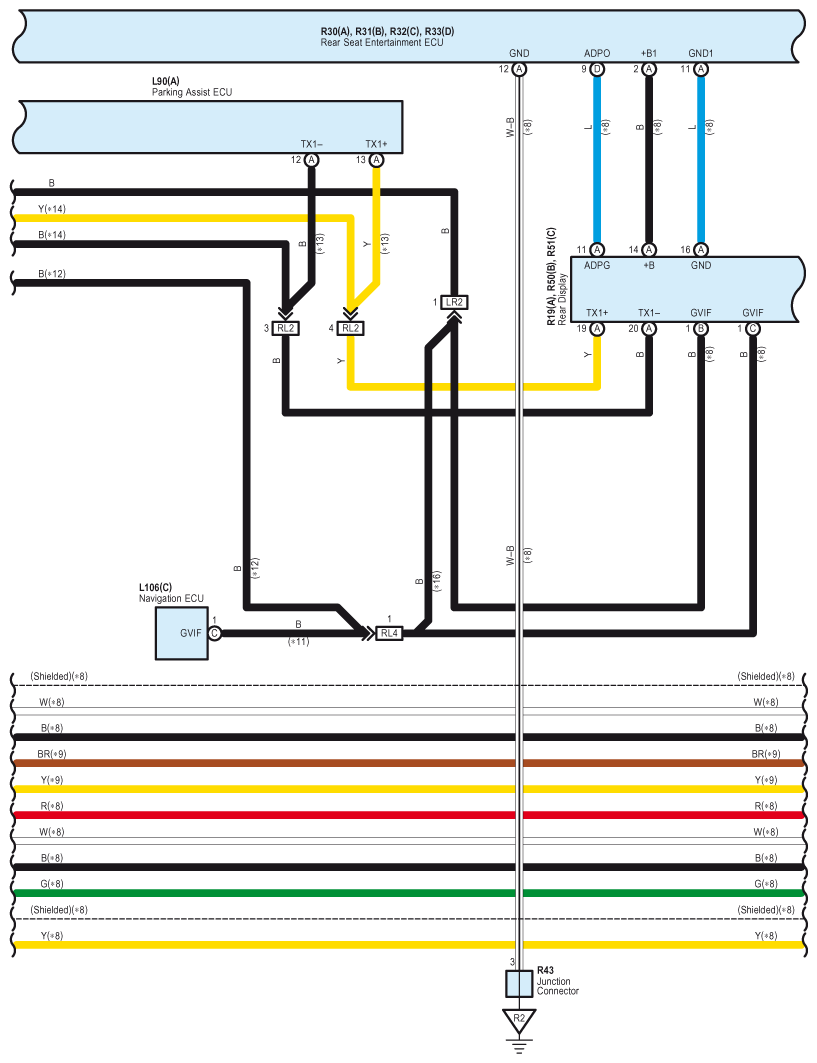

Fig 5: Audio System Without SDARS - Circuit Diagram (5 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

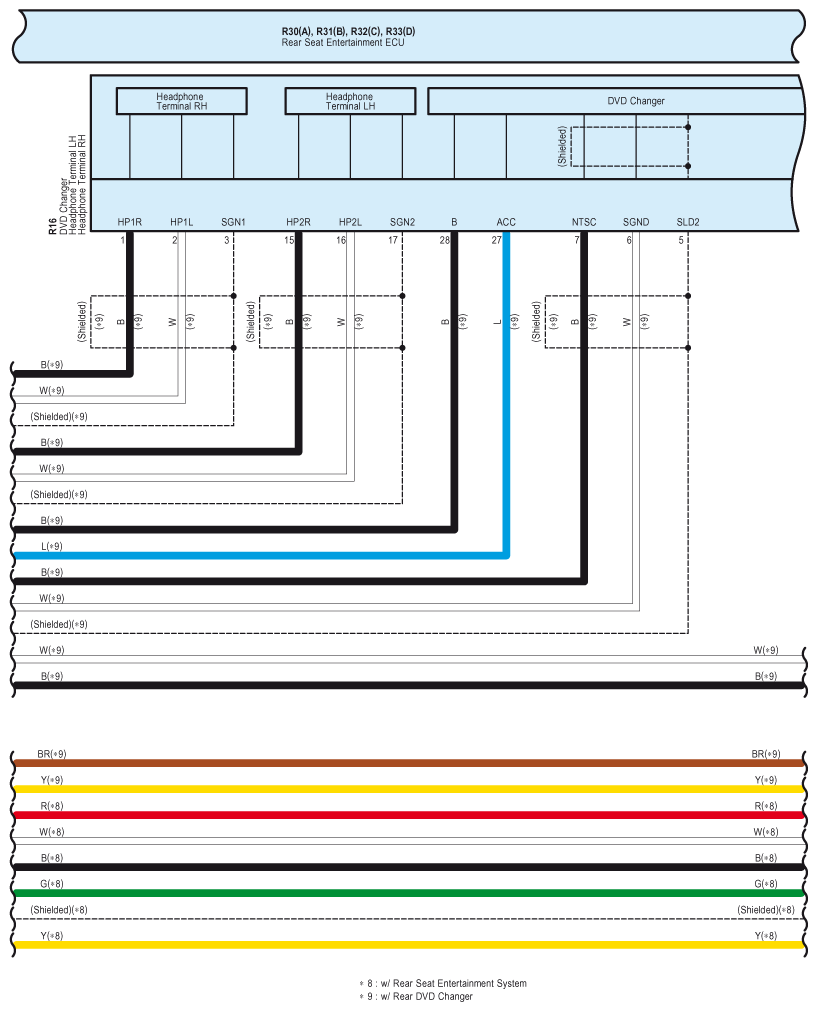

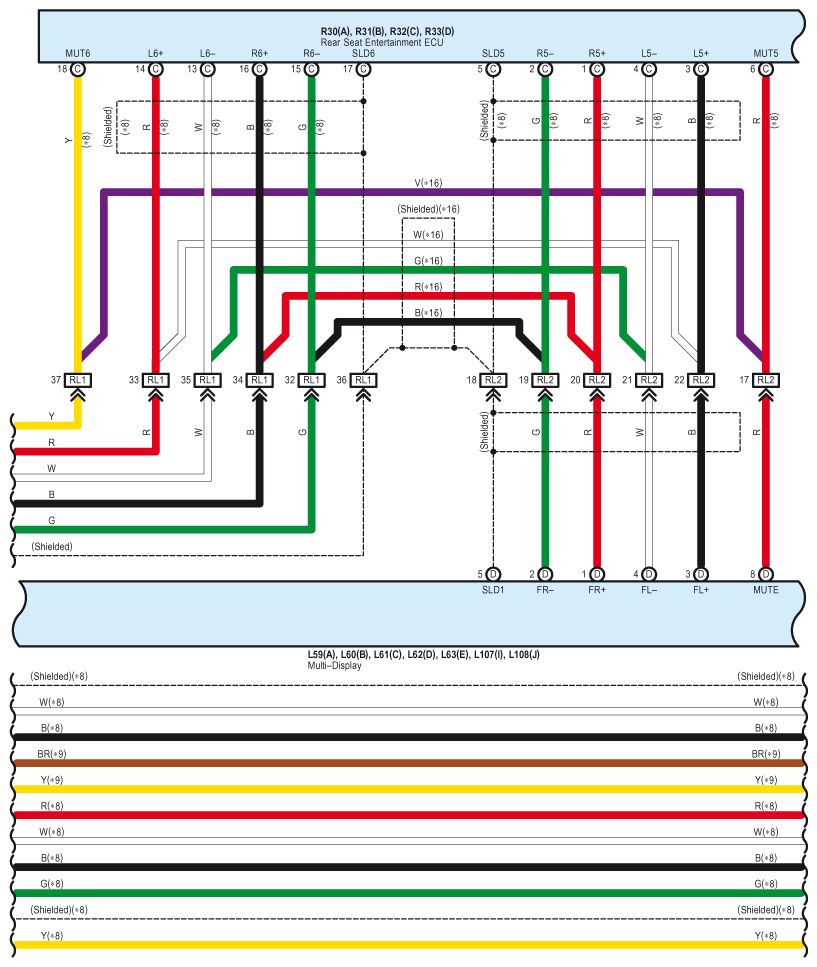

Fig 6: Audio System Without SDARS - Circuit Diagram (6 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

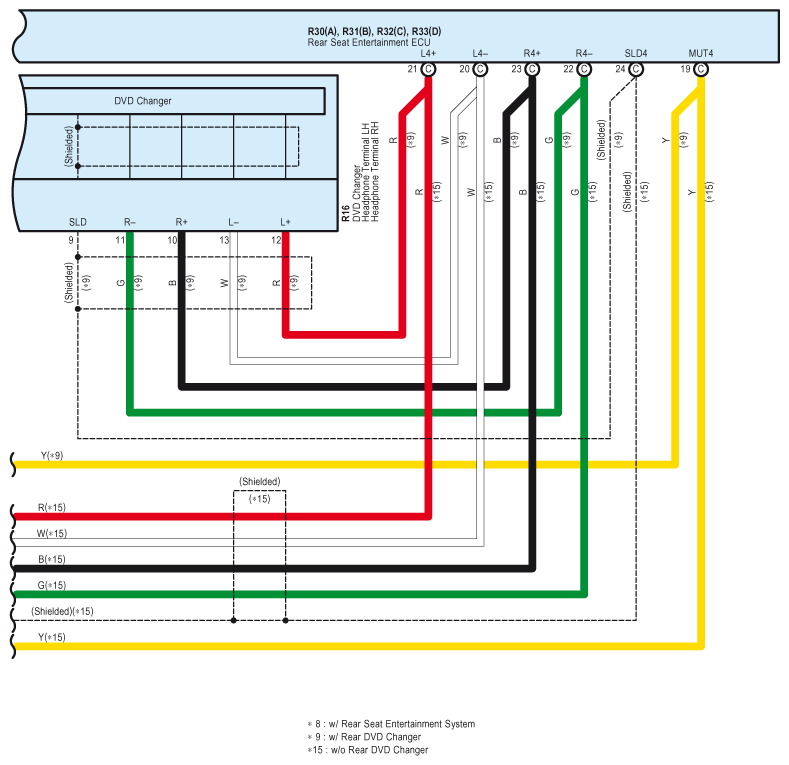

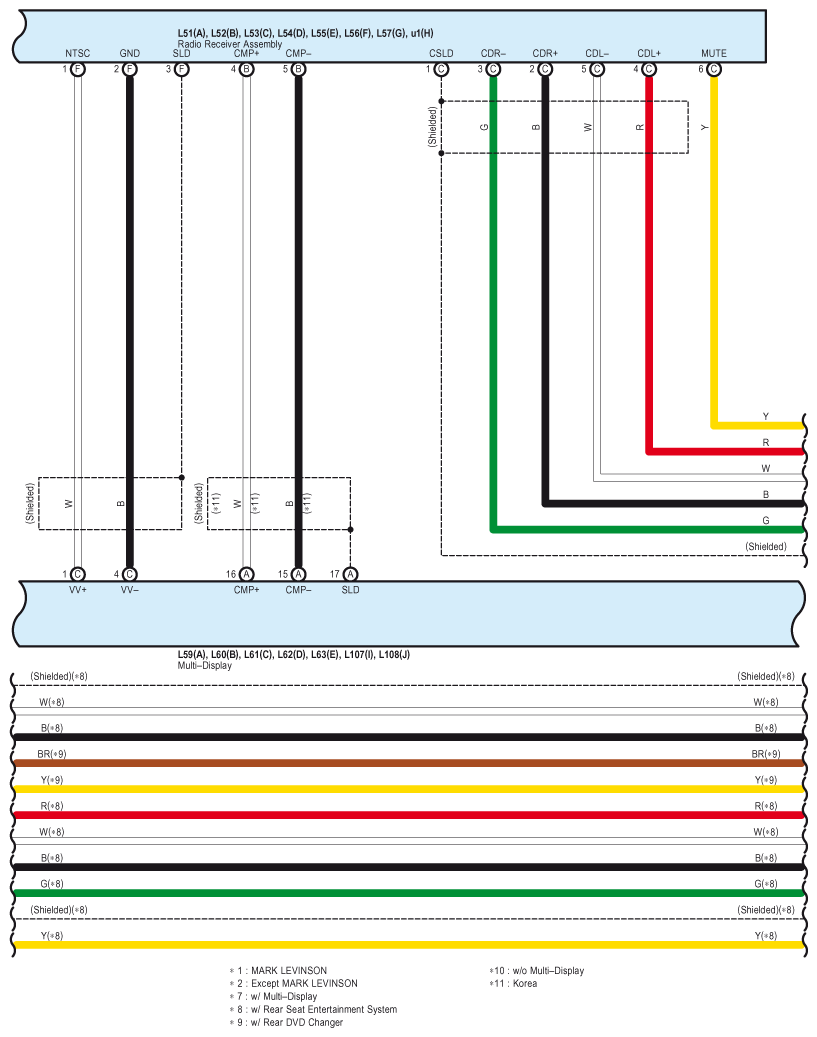

Fig 7: Audio System Without SDARS - Circuit Diagram (7 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

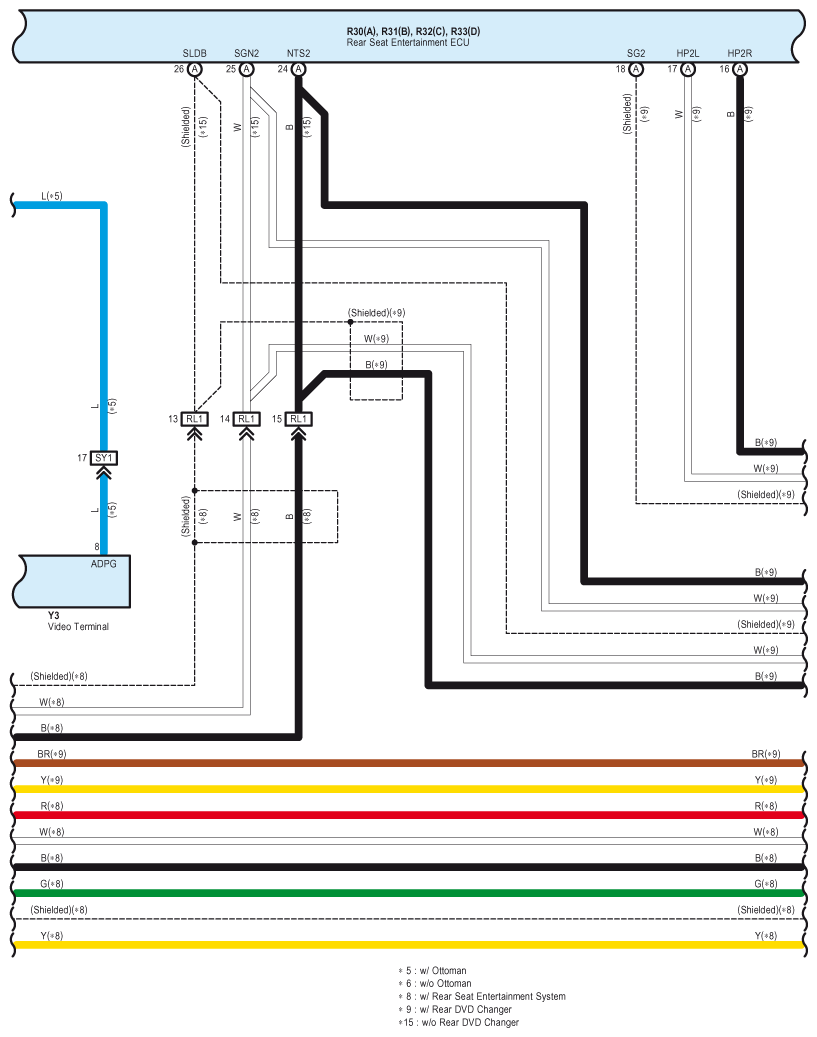

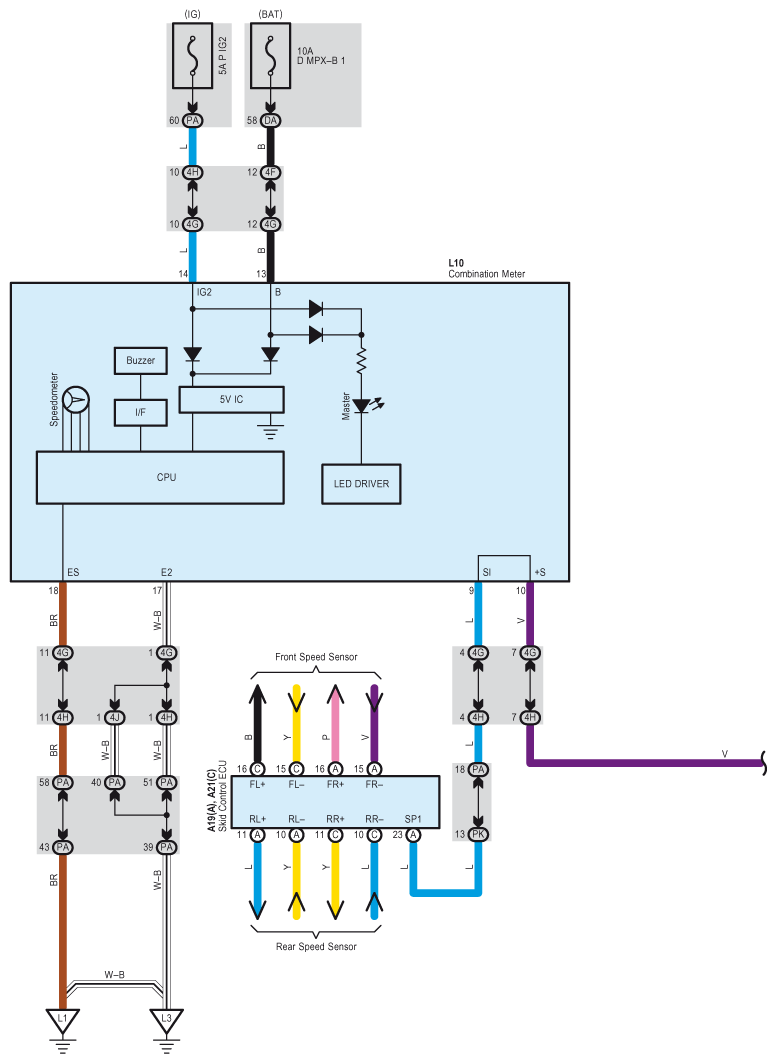

Fig 8: Audio System Without SDARS - Circuit Diagram (8 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System Without SDARS - Circuit Diagram (9 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System Without SDARS - Circuit Diagram (10 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System Without SDARS - Circuit Diagram (11 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System Without SDARS - Circuit Diagram (12 Of 18)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System Without SDARS - Circuit Diagram (13 Of 18)

Fig 14: Audio System Without SDARS - Circuit Diagram (14 Of 18)

Fig 15: Audio System Without SDARS - Circuit Diagram (15 Of 18)

Fig 16: Audio System Without SDARS - Circuit Diagram (16 Of 18)

Fig 17: Audio System Without SDARS - Circuit Diagram (17 Of 18)

Fig 18: Audio System Without SDARS - Circuit Diagram (18 Of 18)
