Dynamic Radar Cruise Control: Notes

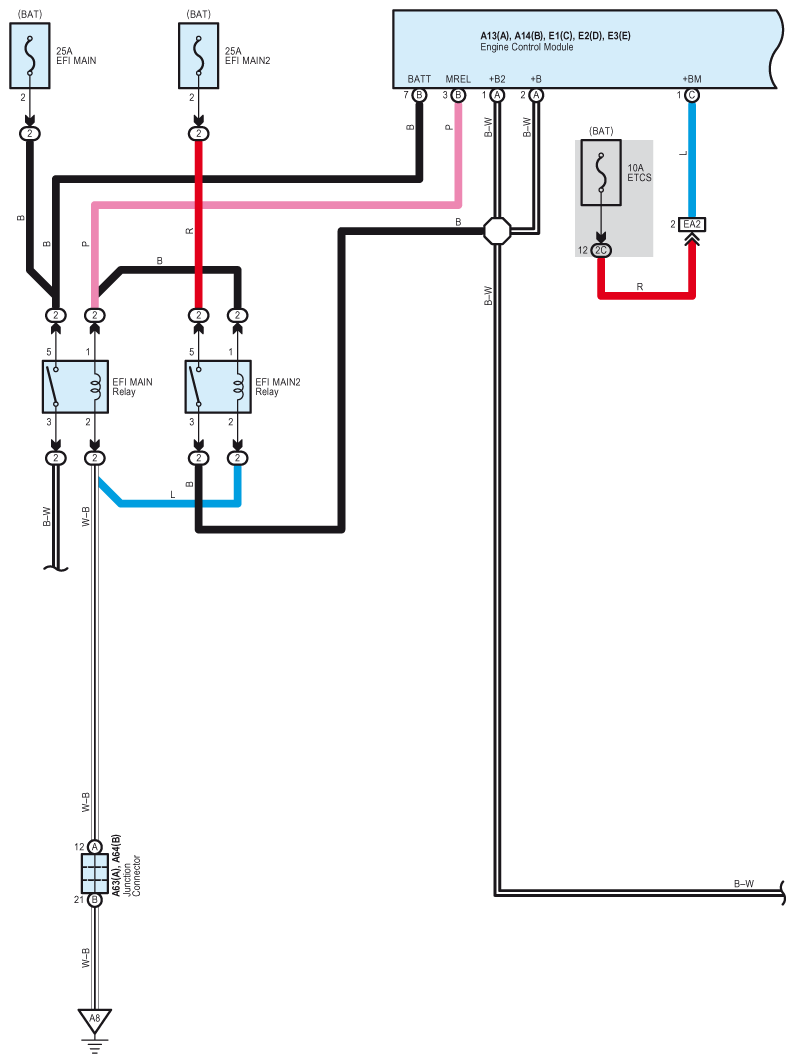

Fig 1: Dynamic Radar Cruise Control - Circuit Diagram (1 Of 20)

G07598264

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

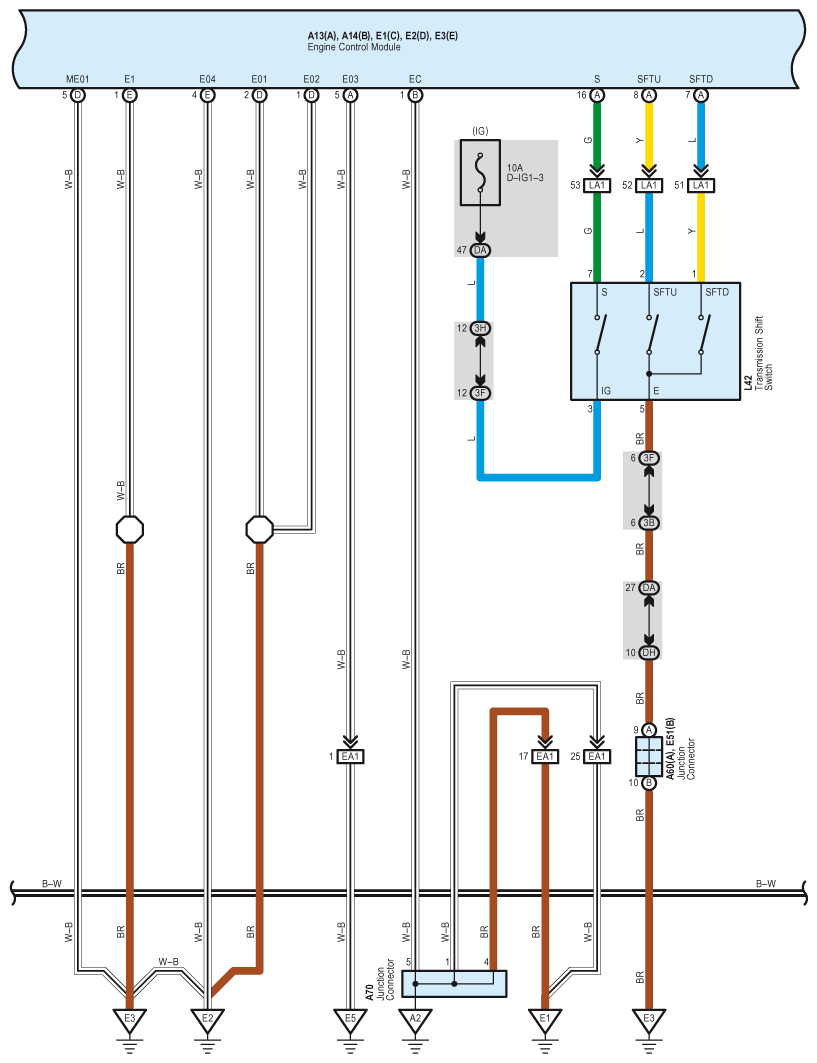

Fig 2: Dynamic Radar Cruise Control - Circuit Diagram (2 Of 20)

G07598265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

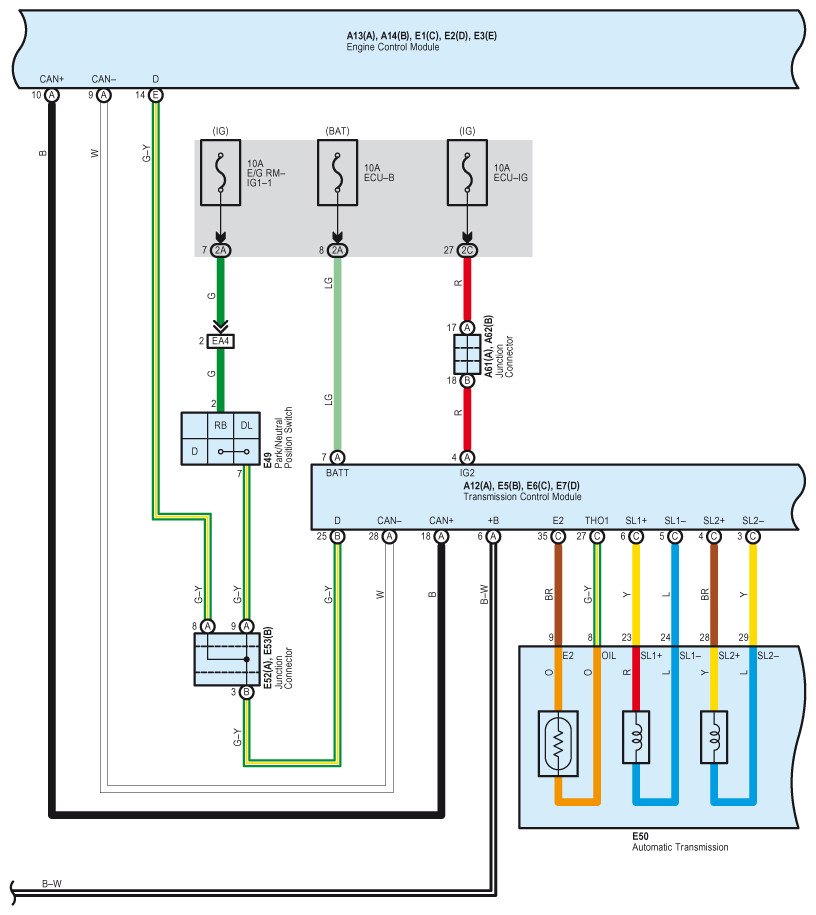

Fig 3: Dynamic Radar Cruise Control - Circuit Diagram (3 Of 20)

G07598266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

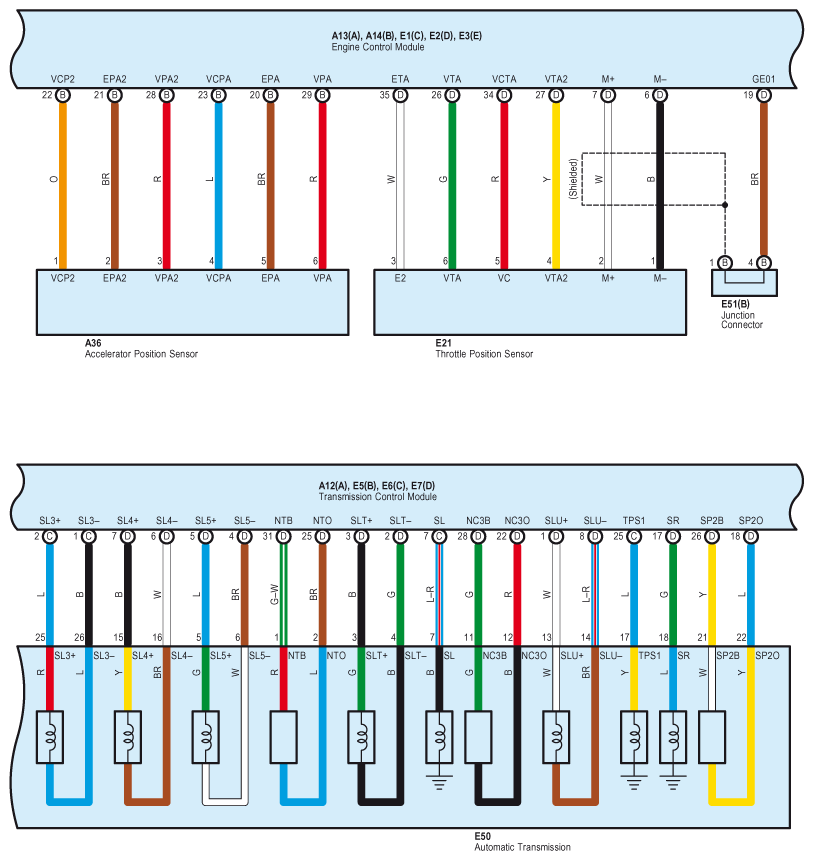

Fig 4: Dynamic Radar Cruise Control - Circuit Diagram (4 Of 20)

G07598267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

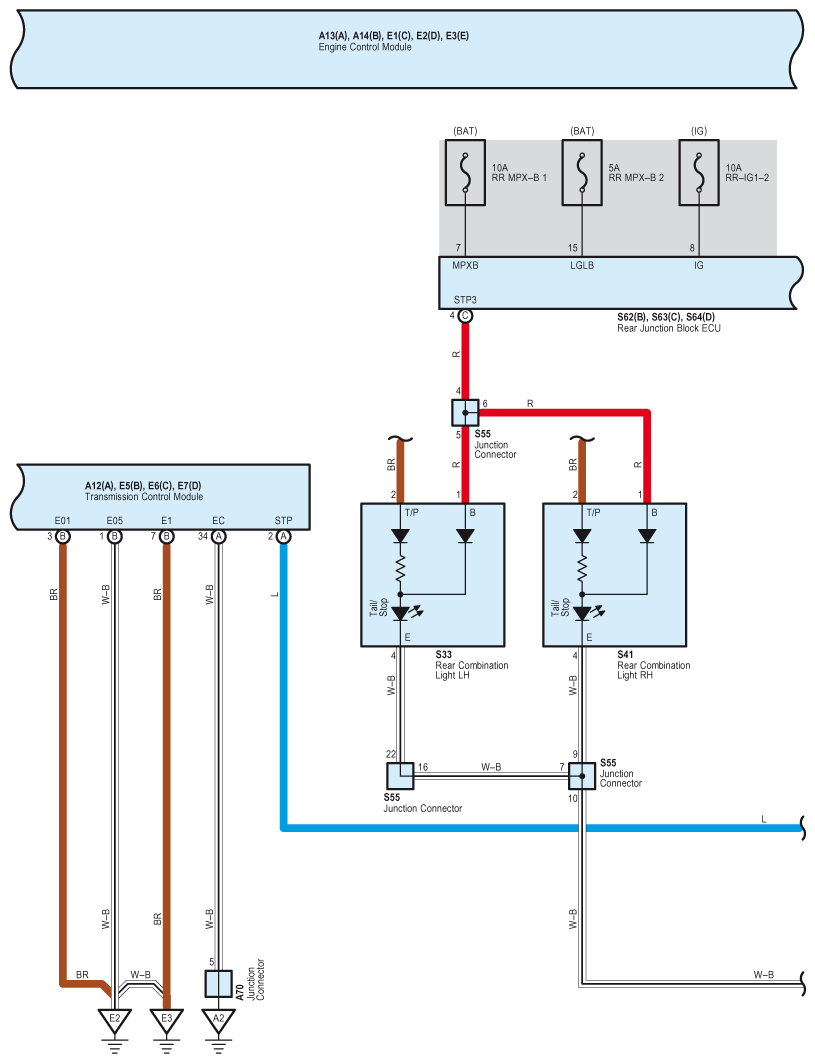

Fig 5: Dynamic Radar Cruise Control - Circuit Diagram (5 Of 20)

G07598268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

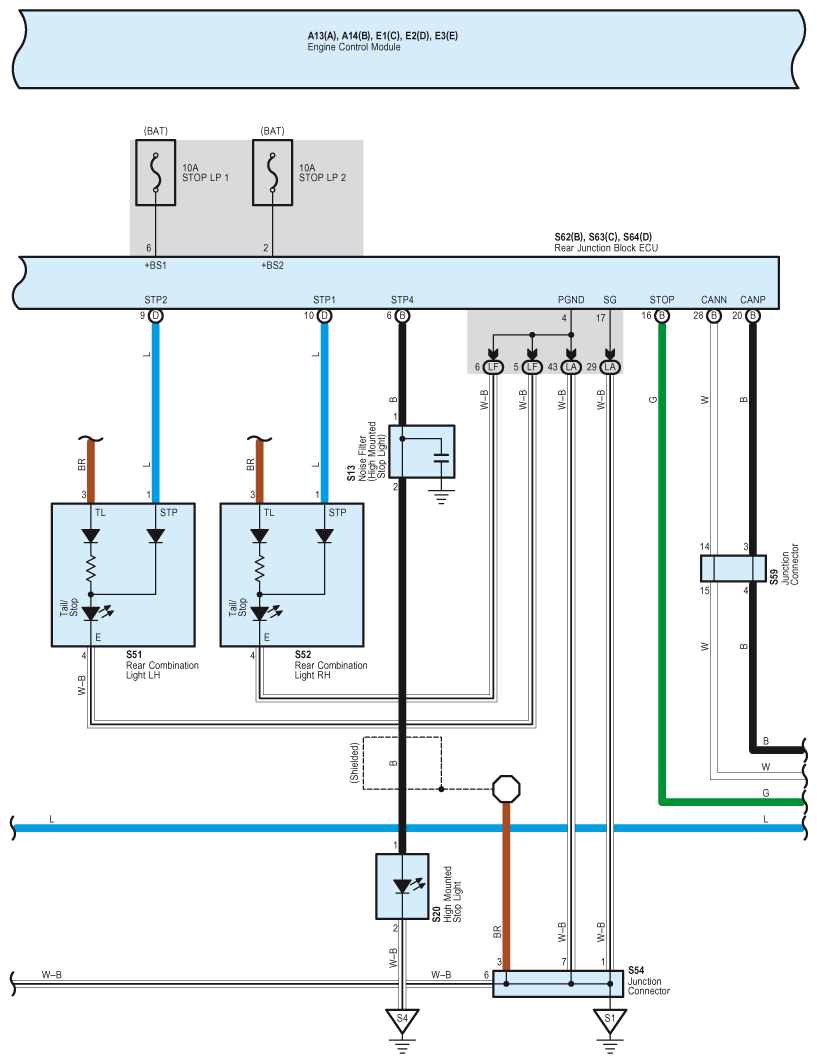

Fig 6: Dynamic Radar Cruise Control - Circuit Diagram (6 Of 20)

G07598269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

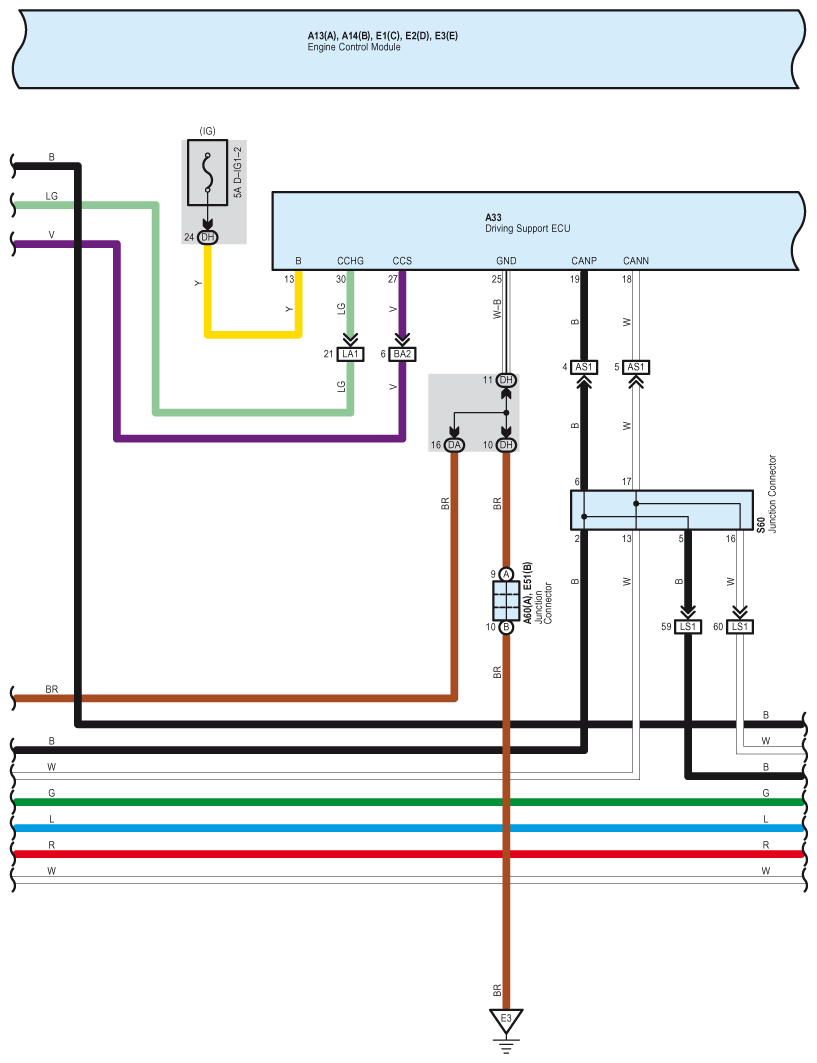

Fig 7: Dynamic Radar Cruise Control - Circuit Diagram (7 Of 20)

G07598270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

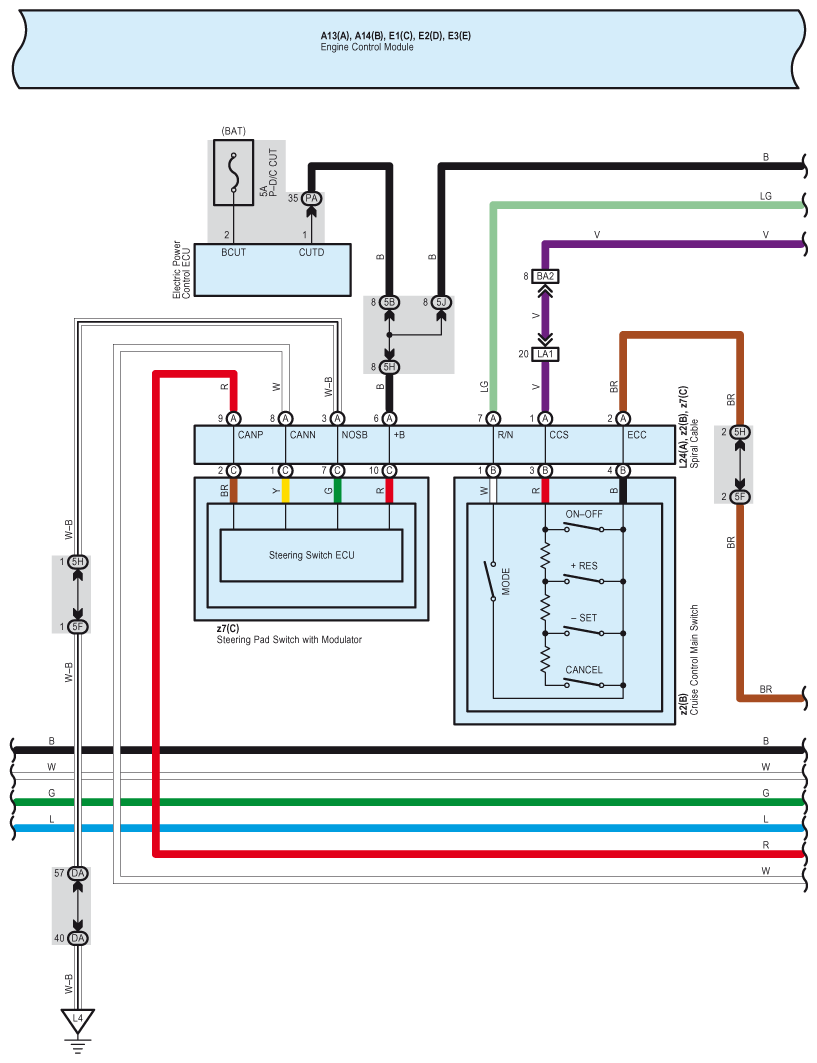

Fig 8: Dynamic Radar Cruise Control - Circuit Diagram (8 Of 20)

G07598271

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

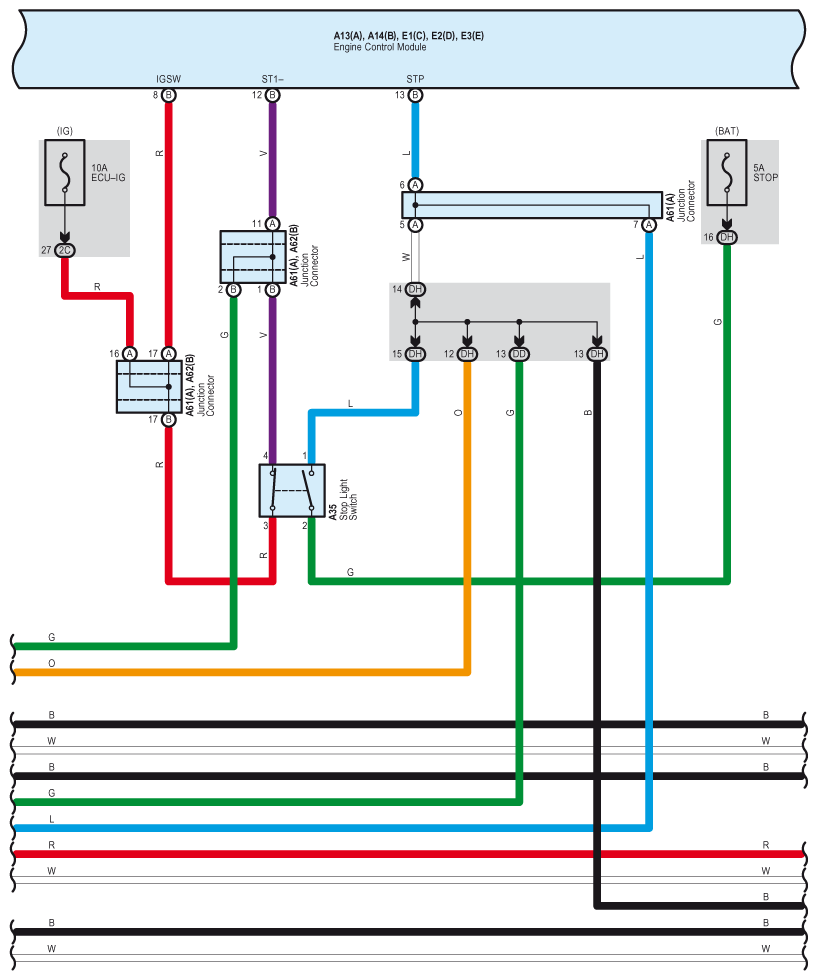

Fig 9: Dynamic Radar Cruise Control - Circuit Diagram (9 Of 20)

G07598272

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

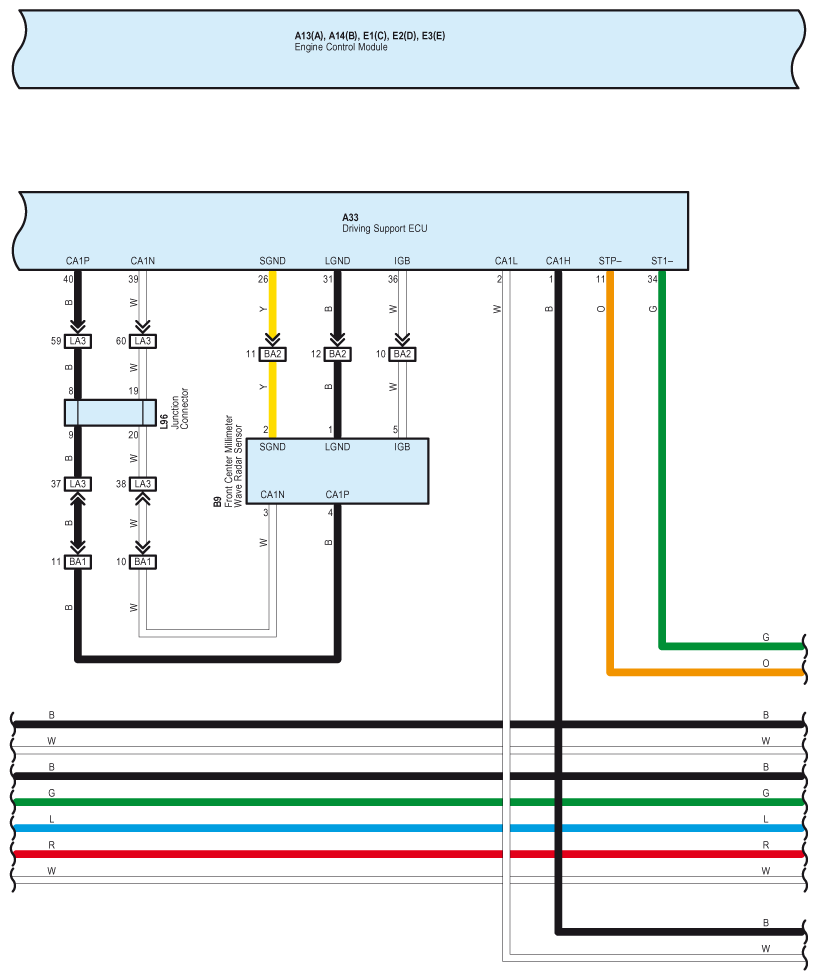

Fig 10: Dynamic Radar Cruise Control - Circuit Diagram (10 Of 20)

G07598273

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

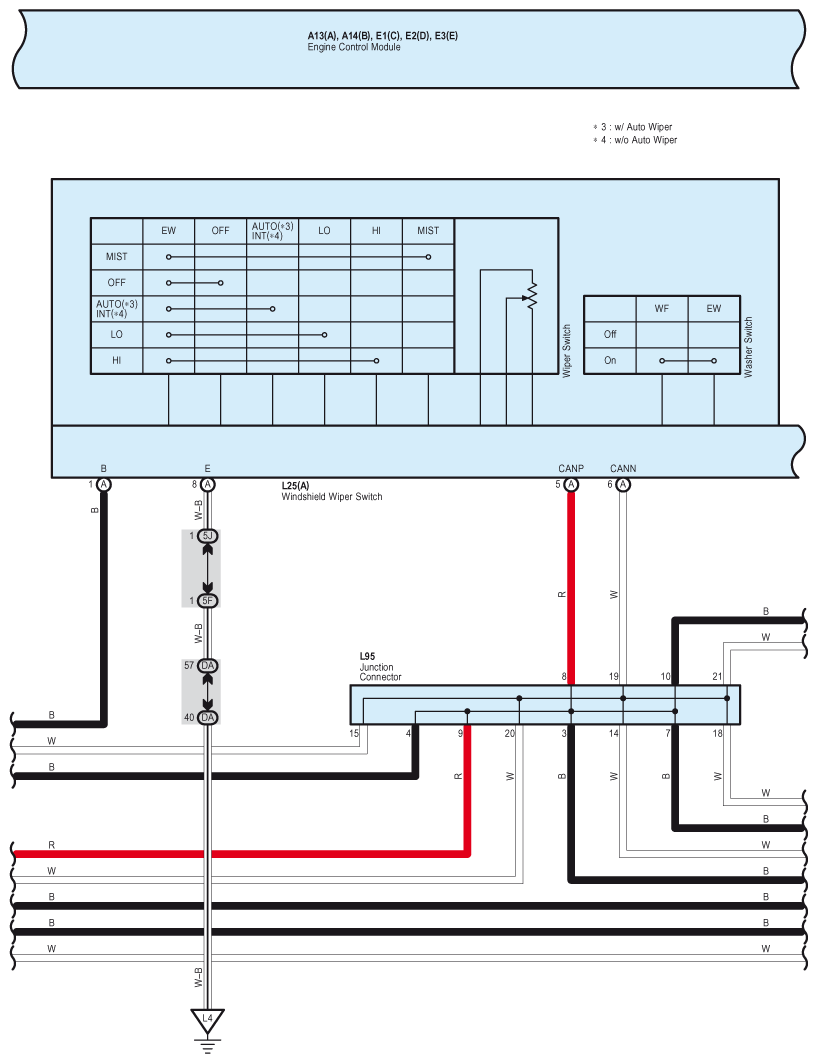

Fig 11: Dynamic Radar Cruise Control - Circuit Diagram (11 Of 20)

G07598274

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

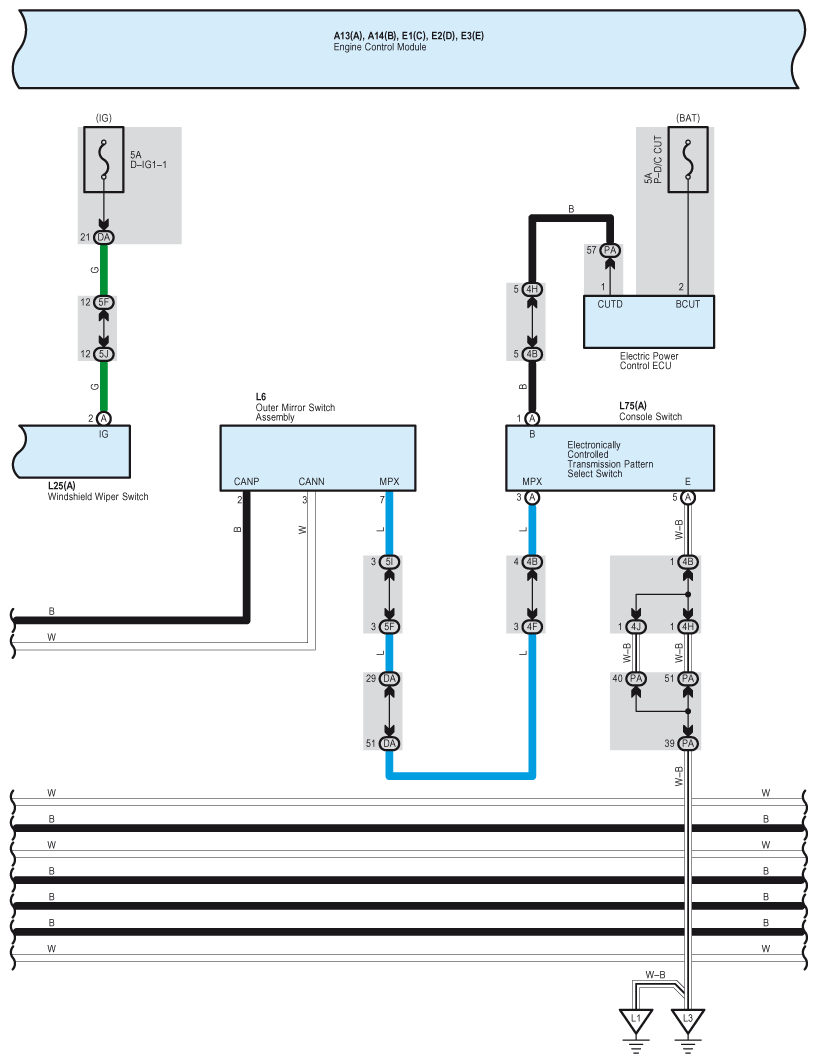

Fig 12: Dynamic Radar Cruise Control - Circuit Diagram (12 Of 20)

G07598275

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

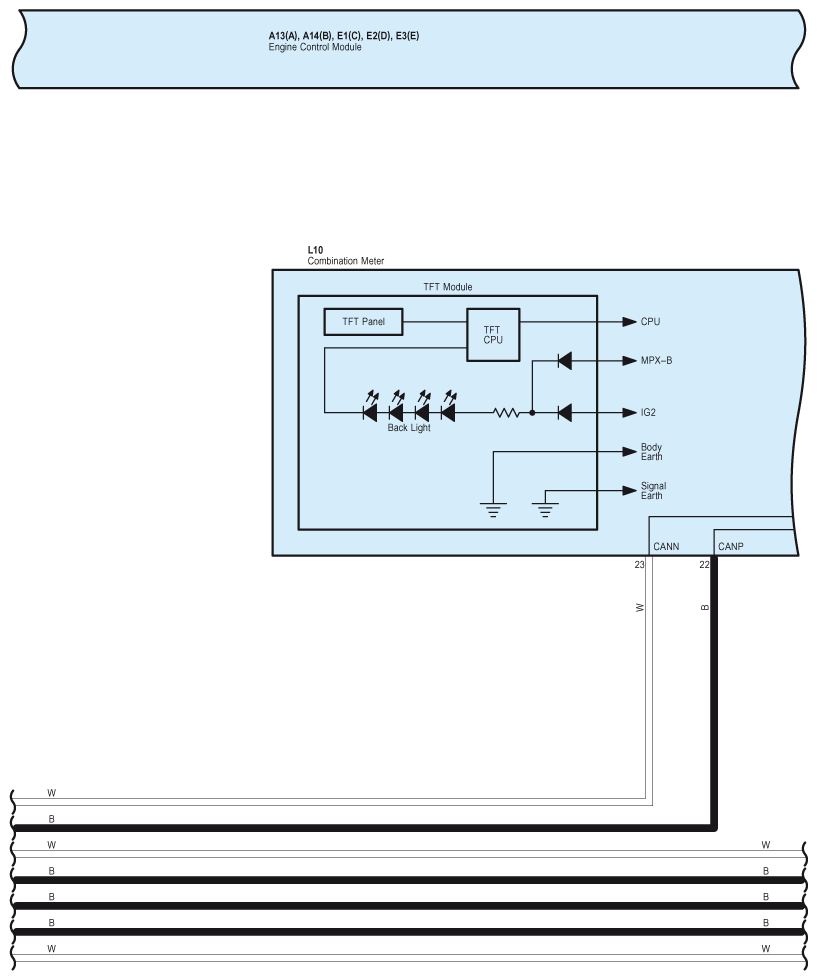

Fig 13: Dynamic Radar Cruise Control - Circuit Diagram (13 Of 20)

G07598276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dynamic Radar Cruise Control - Circuit Diagram (14 Of 20)

G07598277

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

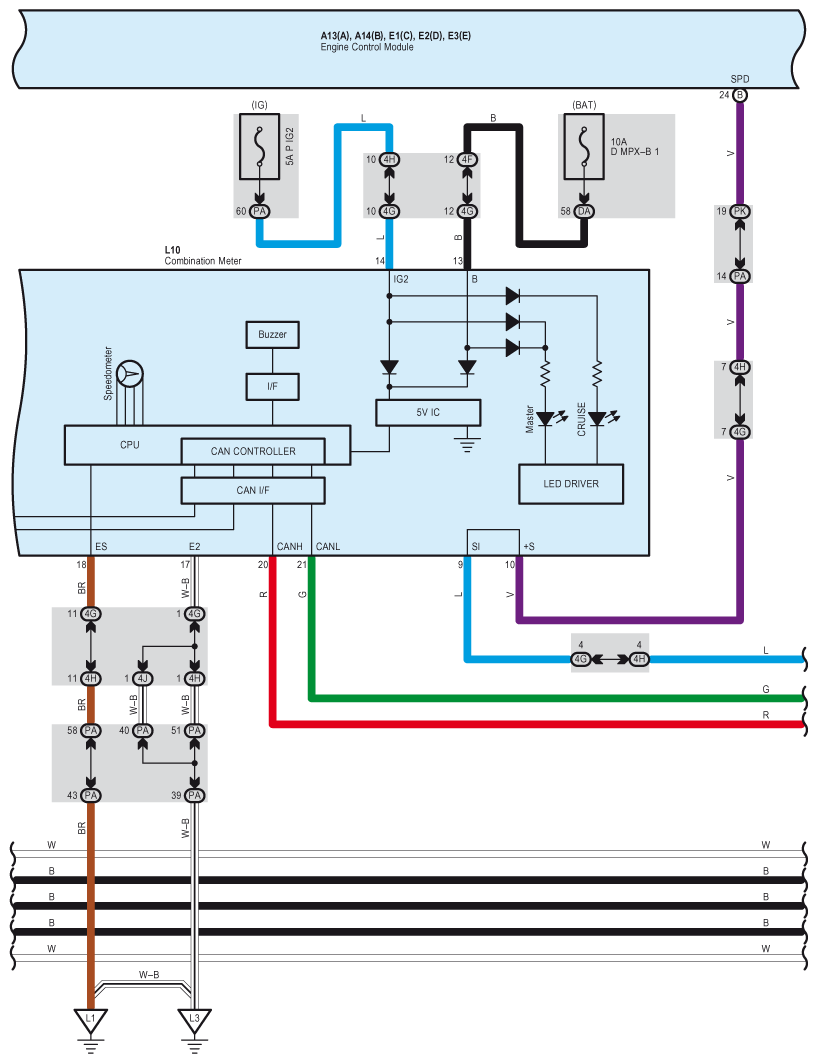

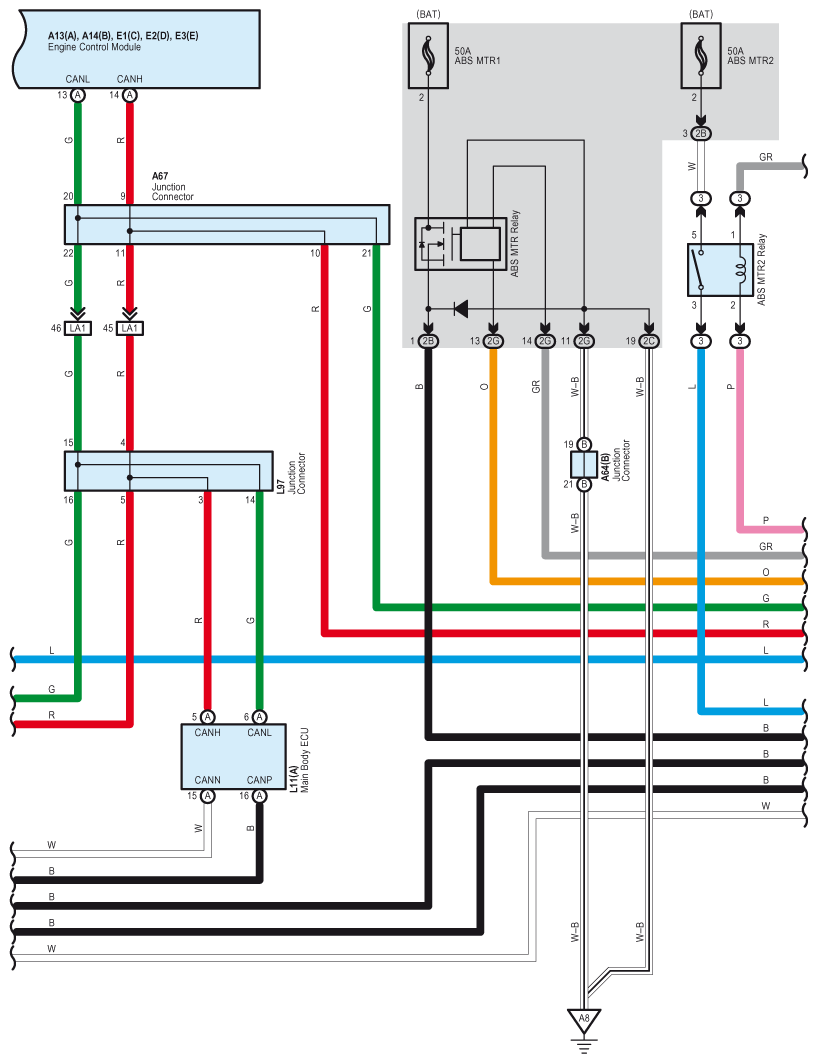

Fig 15: Dynamic Radar Cruise Control - Circuit Diagram (15 Of 20)

G07598278

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

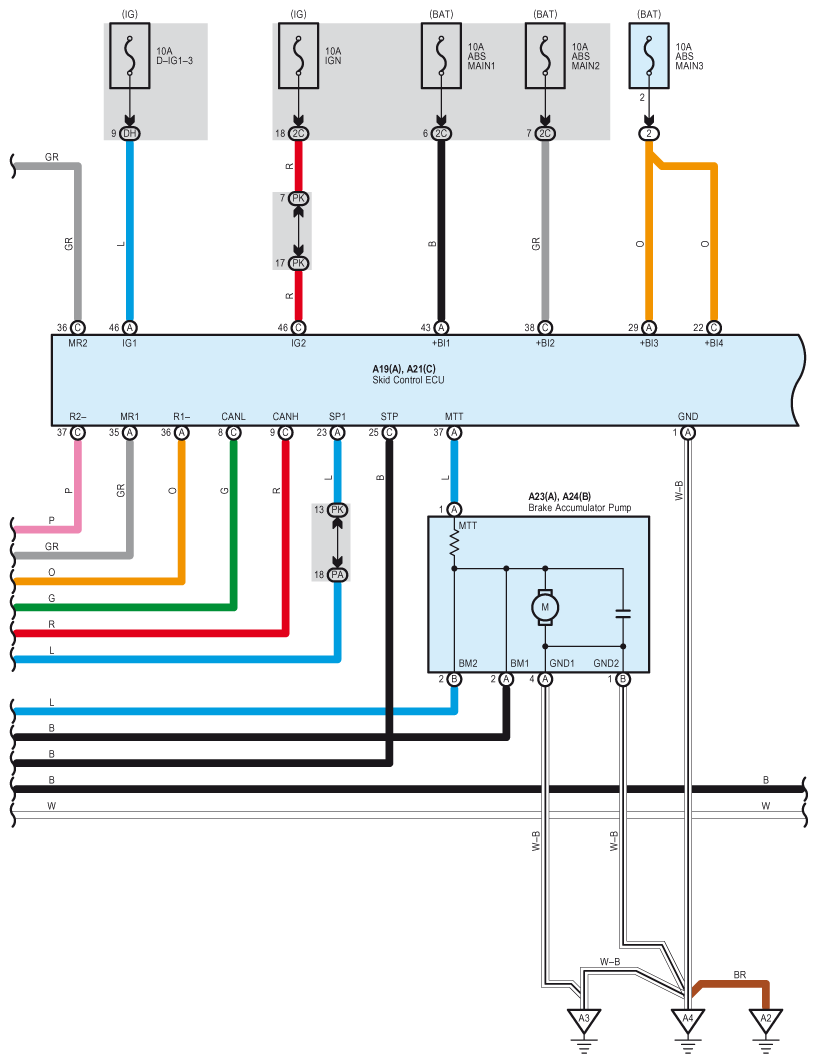

Fig 16: Dynamic Radar Cruise Control - Circuit Diagram (16 Of 20)

G07598279

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

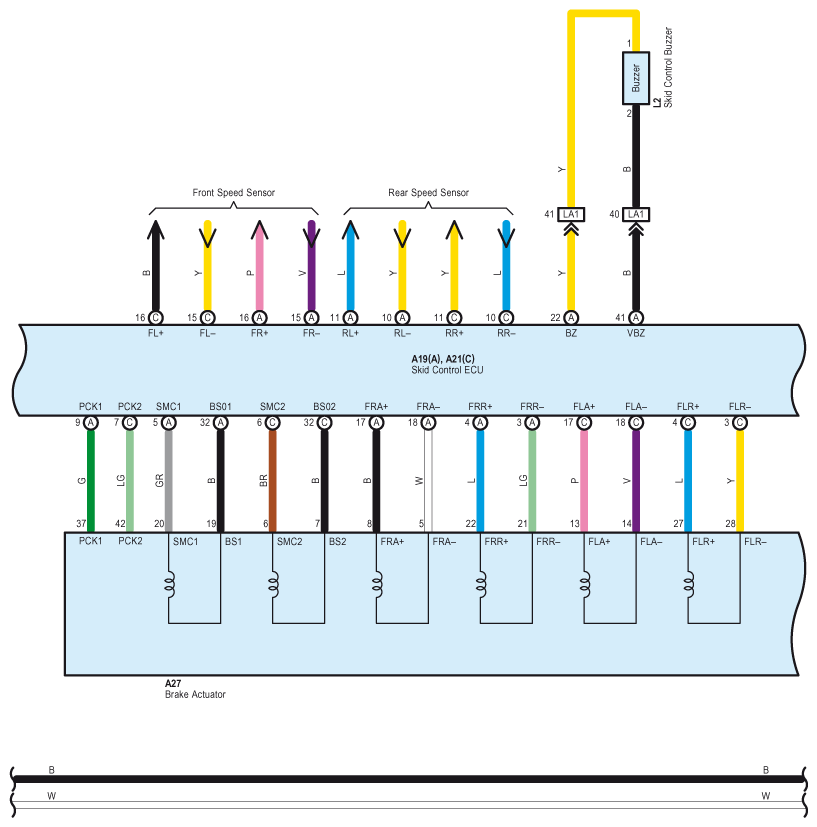

Fig 17: Dynamic Radar Cruise Control - Circuit Diagram (17 Of 20)

G07598280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

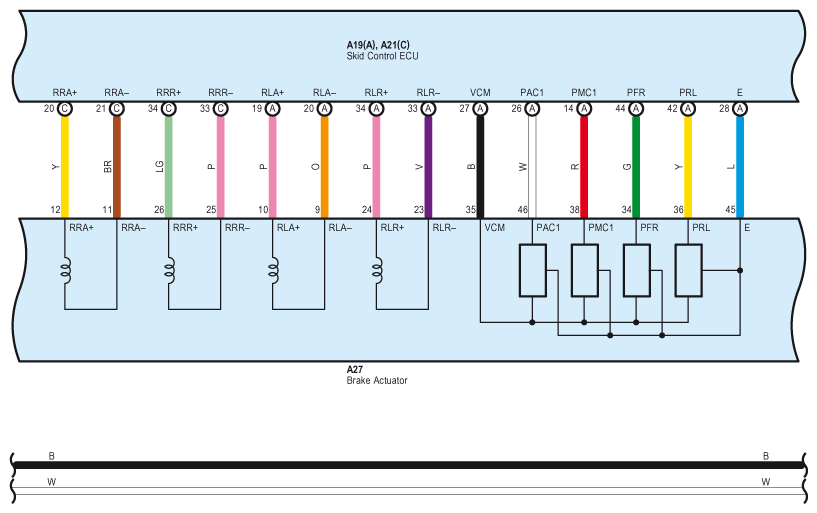

Fig 18: Dynamic Radar Cruise Control - Circuit Diagram (18 Of 20)

G07598281

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

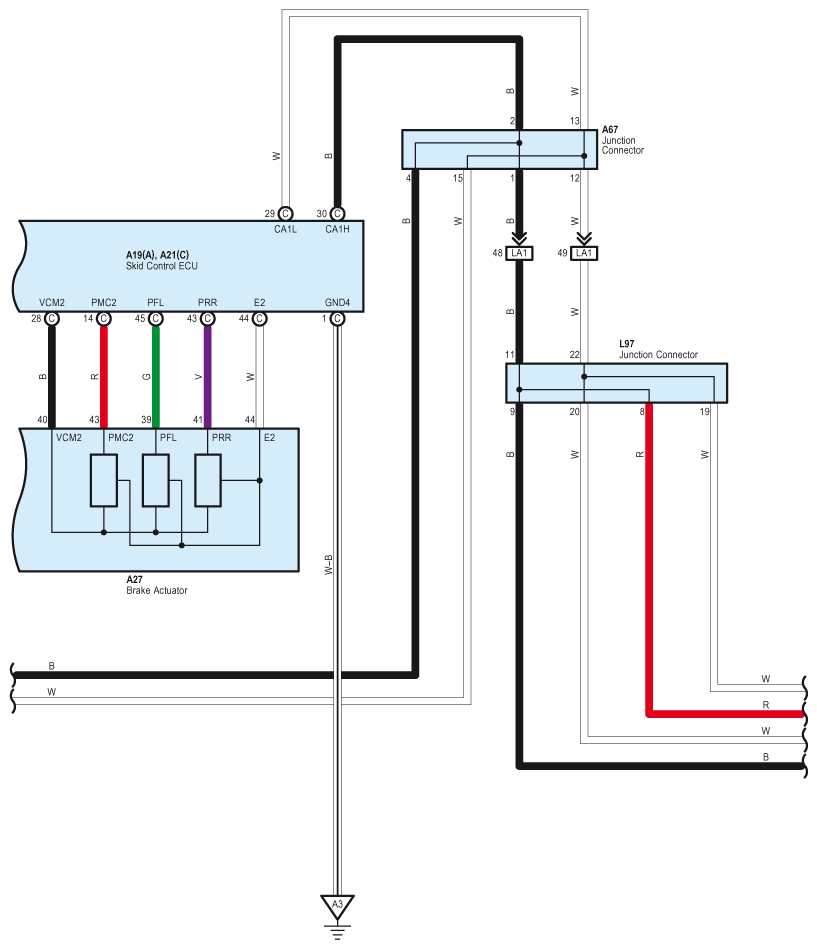

Fig 19: Dynamic Radar Cruise Control - Circuit Diagram (19 Of 20)

G07598282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

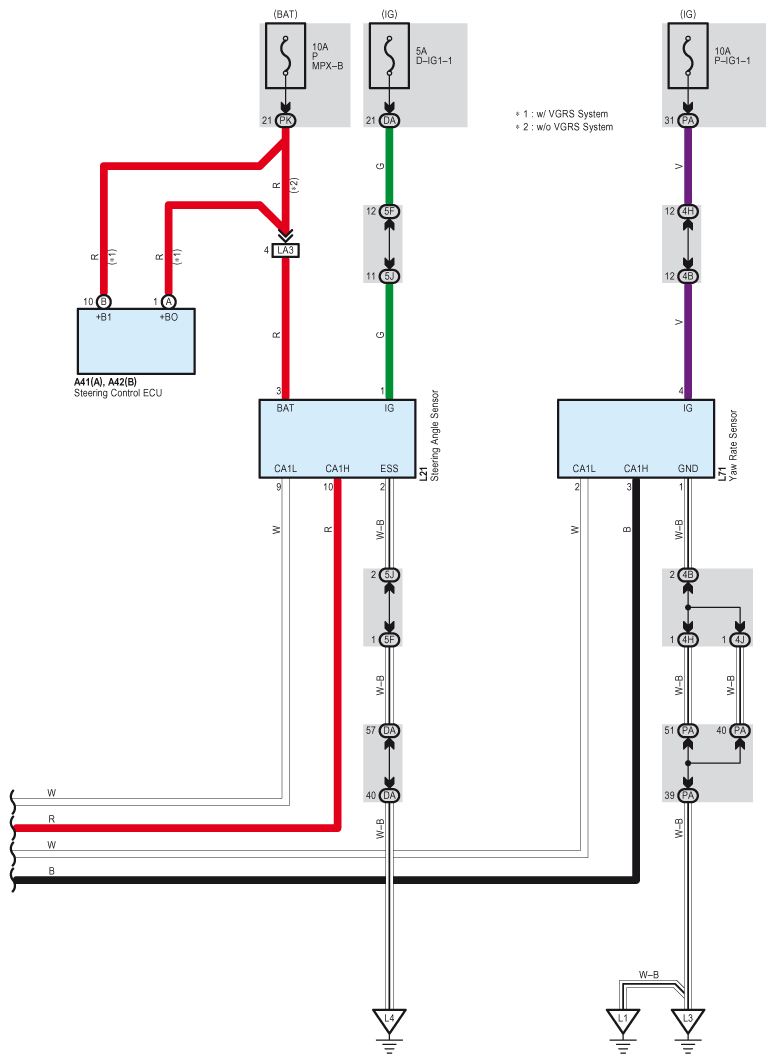

Fig 20: Dynamic Radar Cruise Control - Circuit Diagram (20 Of 20)

G07598283

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
