Electric Power Control System: Notes

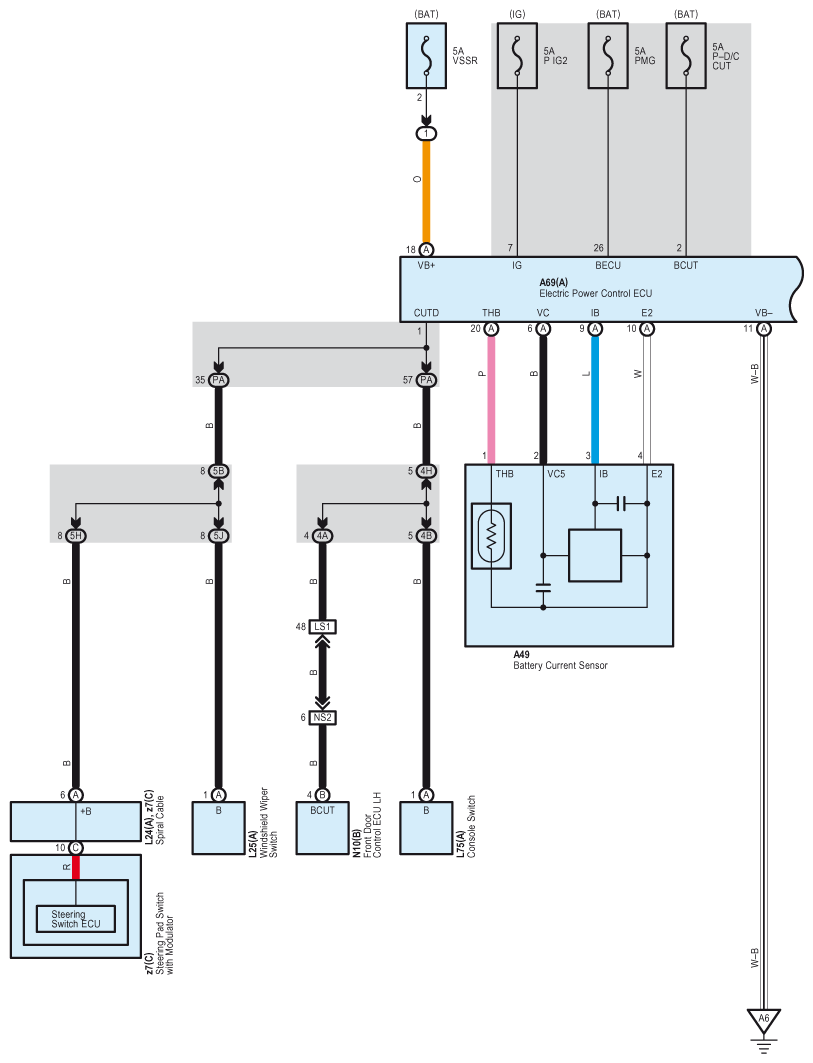

Fig 1: Electric Power Control System - Circuit Diagram (1 Of 2)
G07598157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

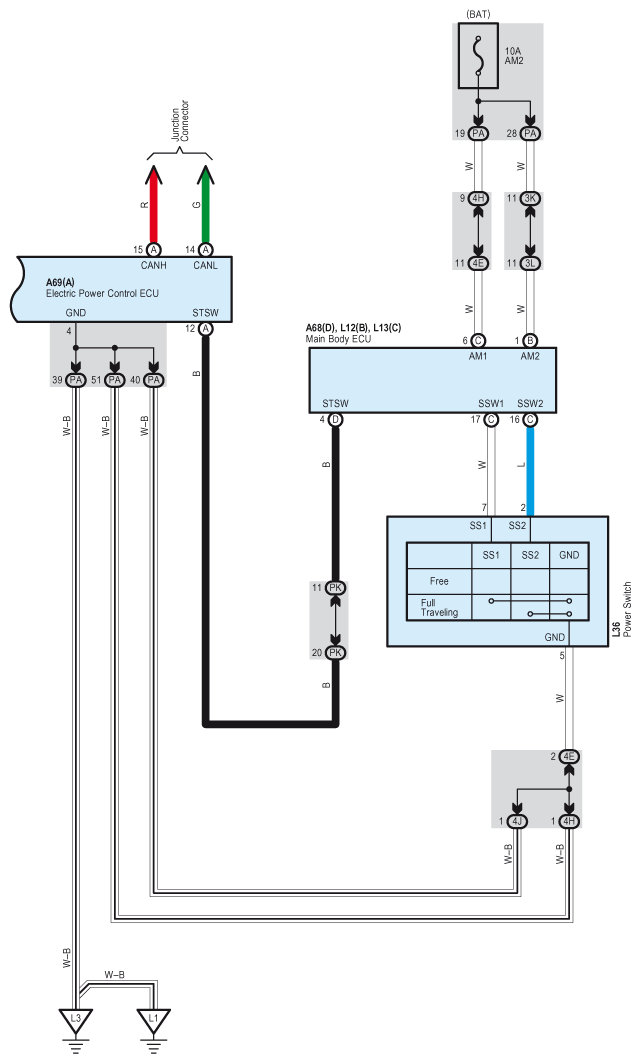

Fig 2: Electric Power Control System - Circuit Diagram (2 Of 2)
G07598158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
