Pre-Collision System: Notes

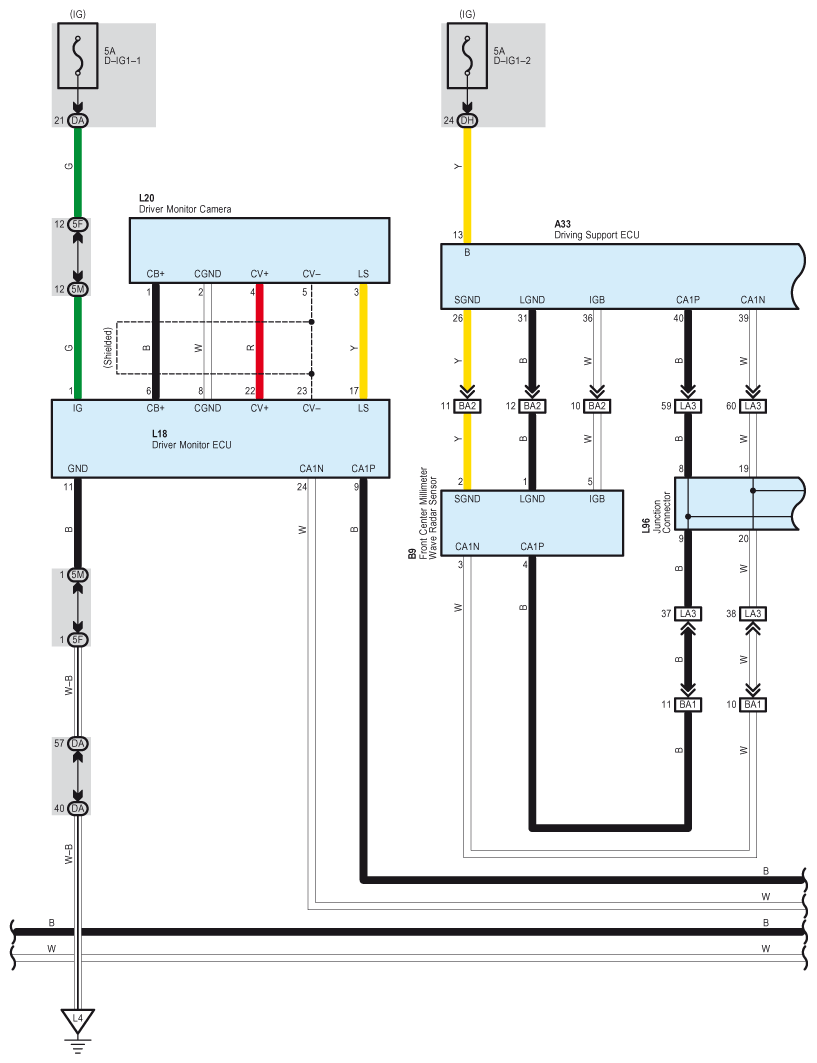

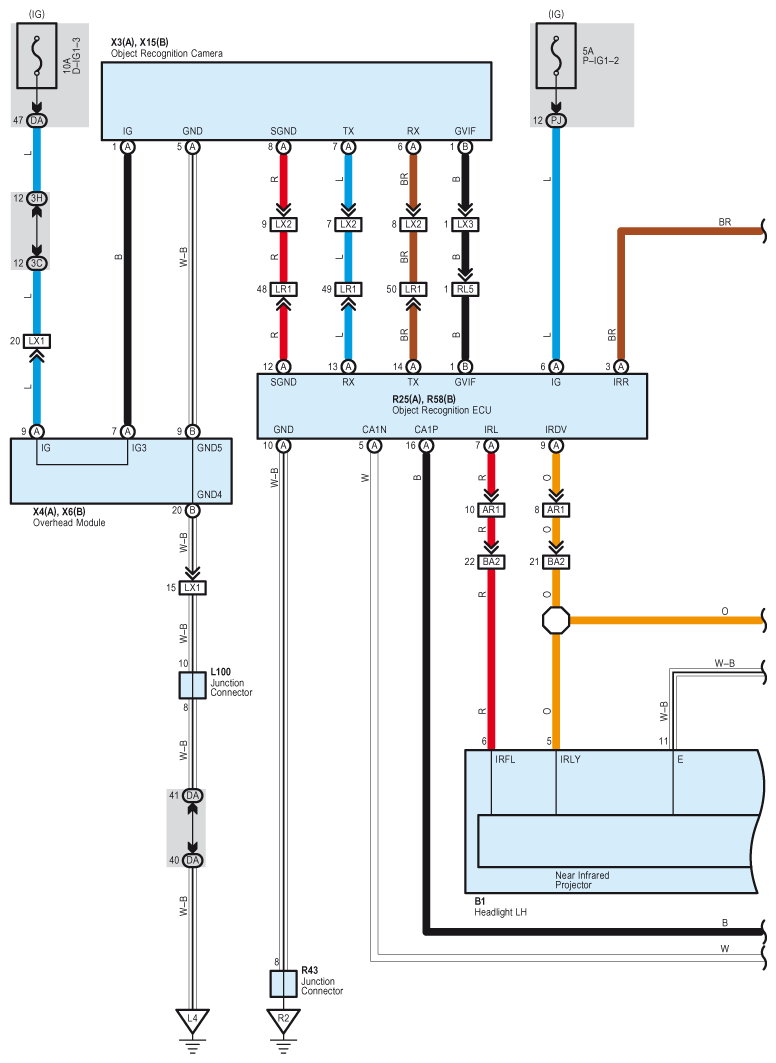

Fig 1: Pre-Collision System - Circuit Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

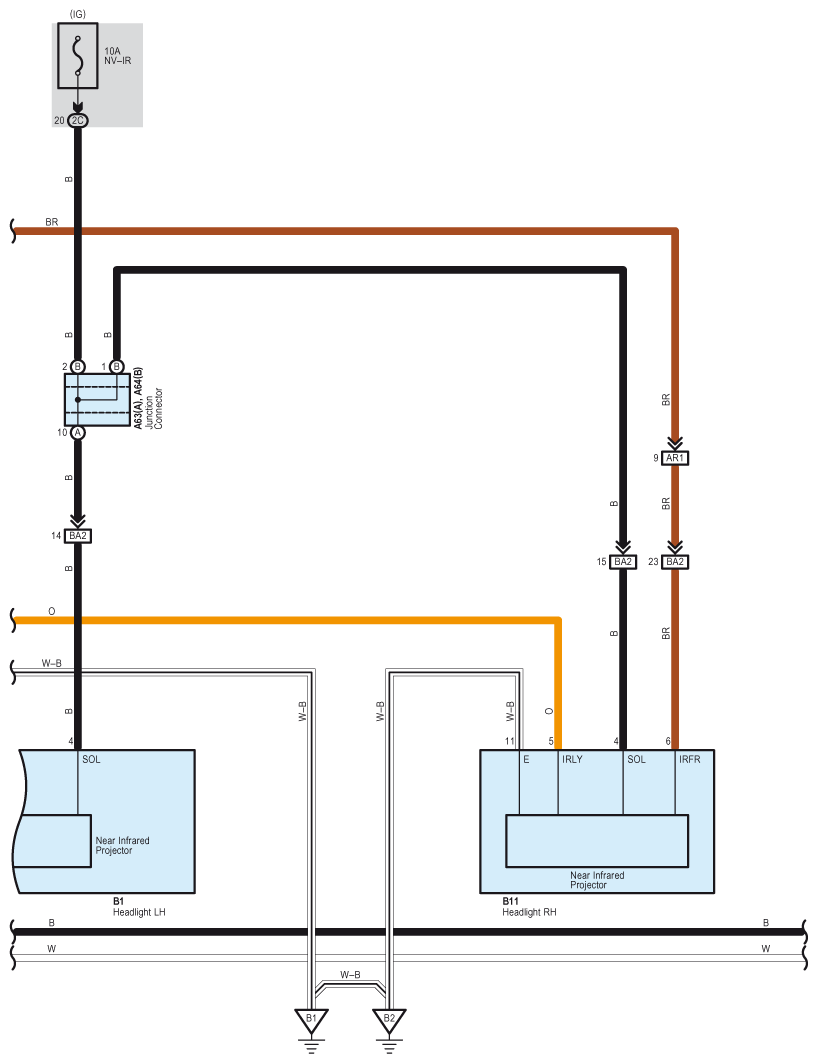

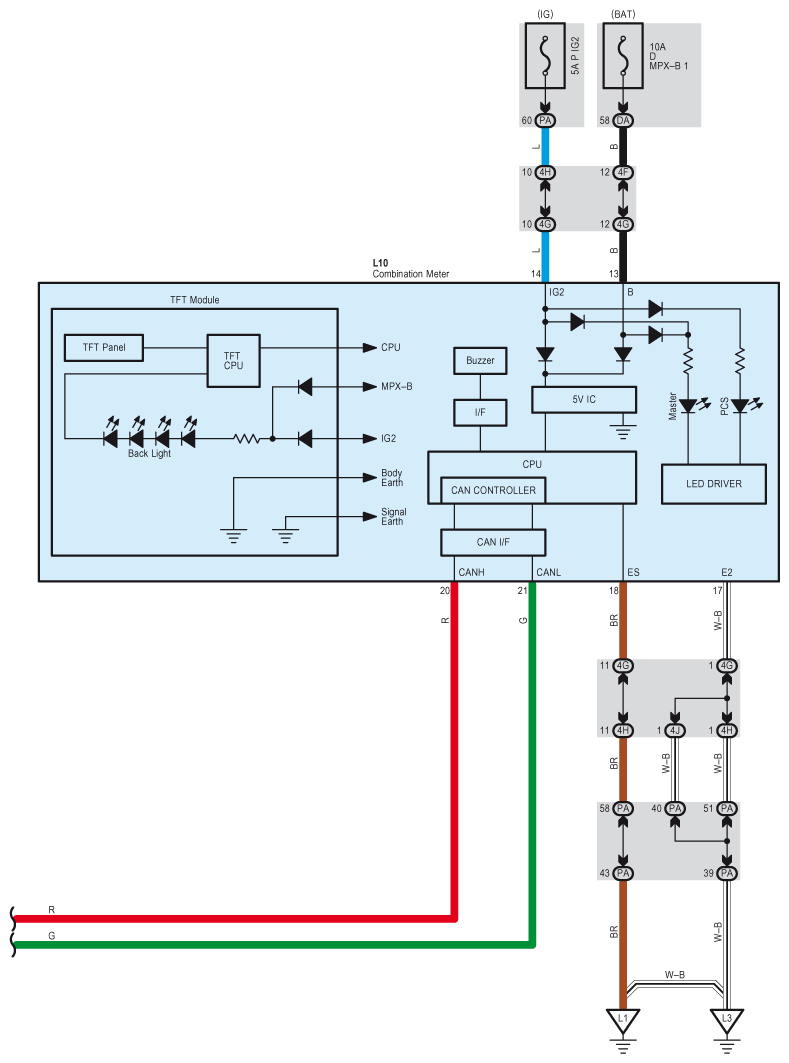

Fig 2: Pre-Collision System - Circuit Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

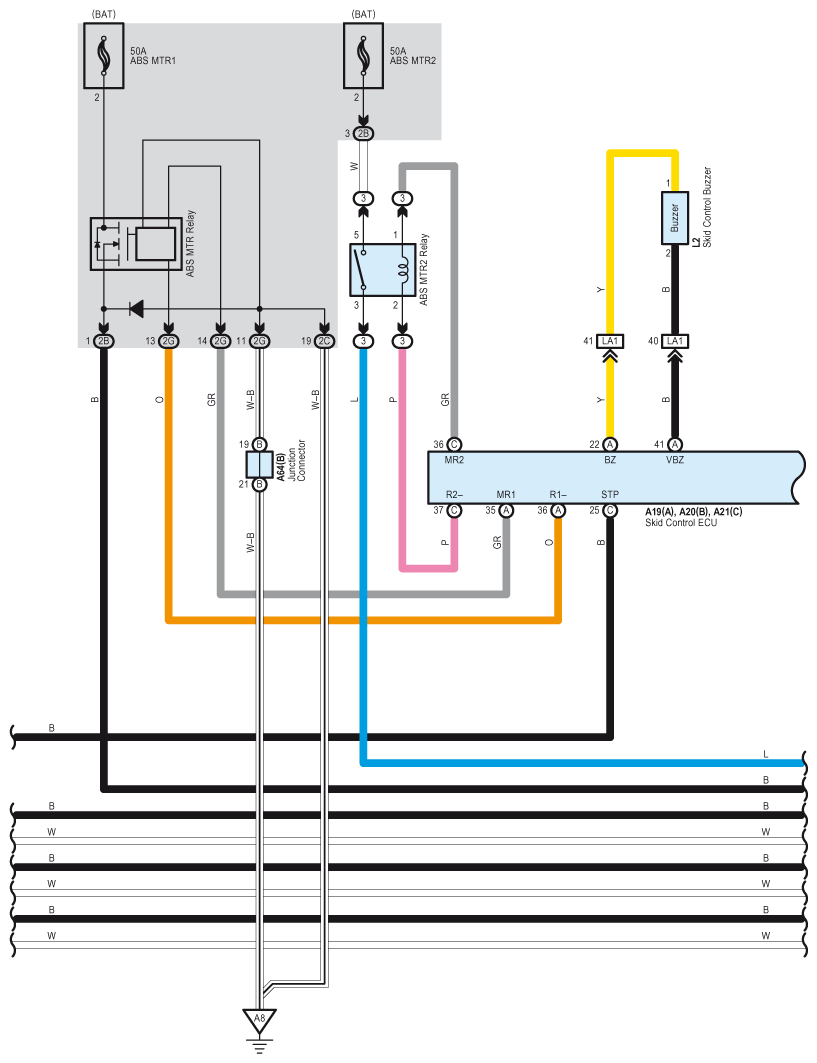

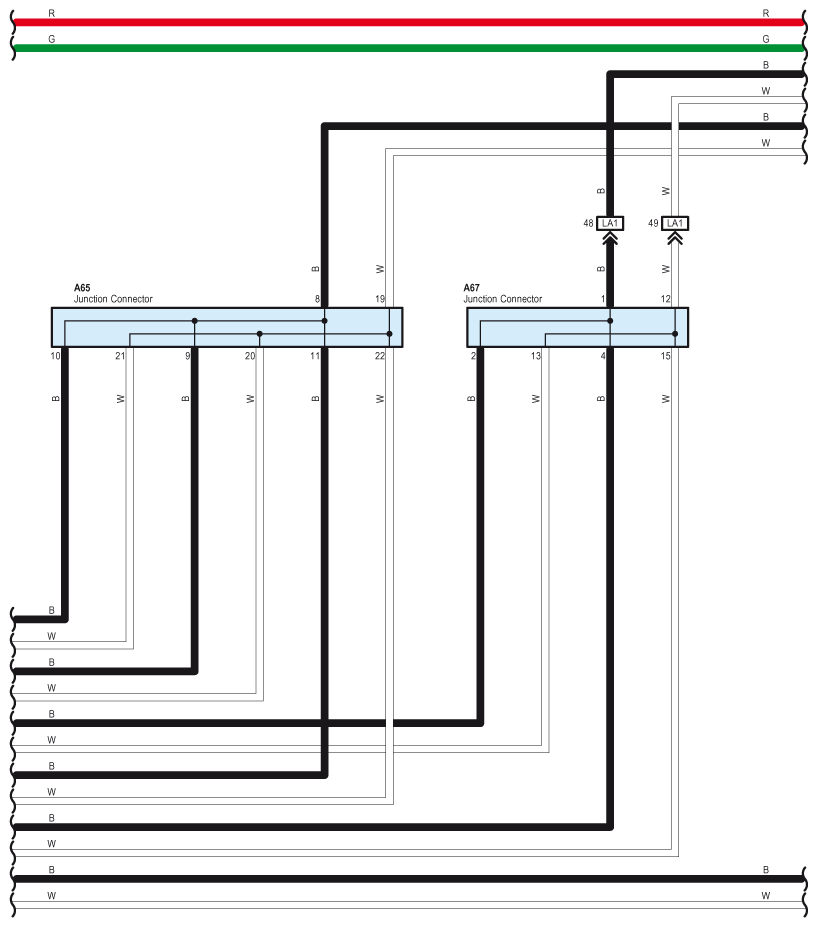

Fig 3: Pre-Collision System - Circuit Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

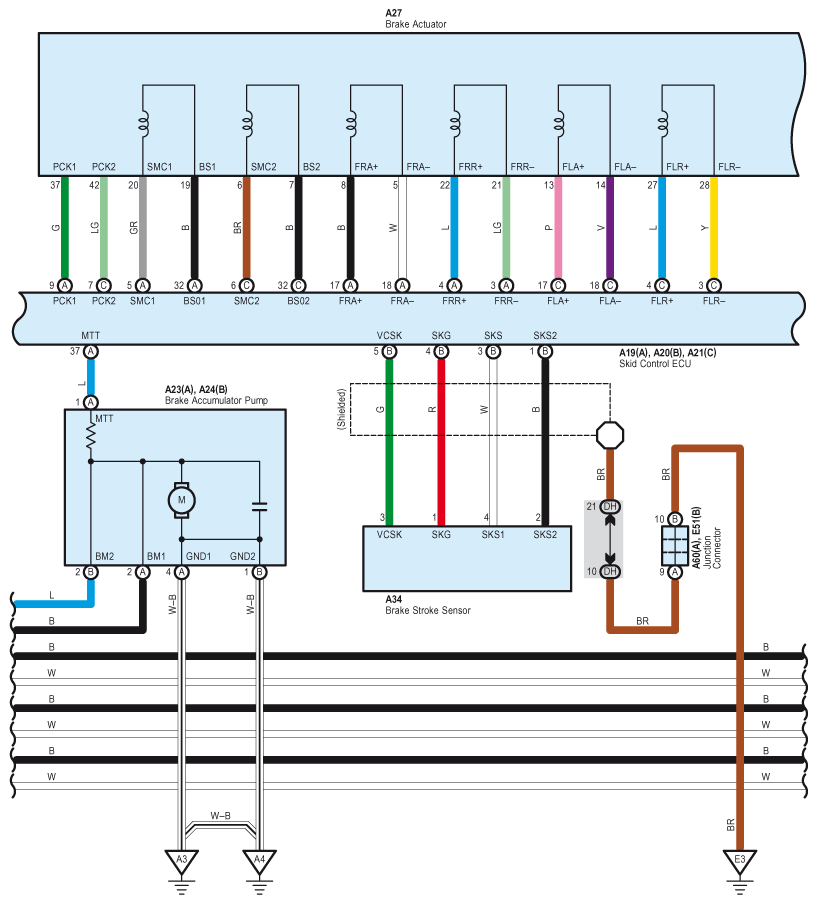

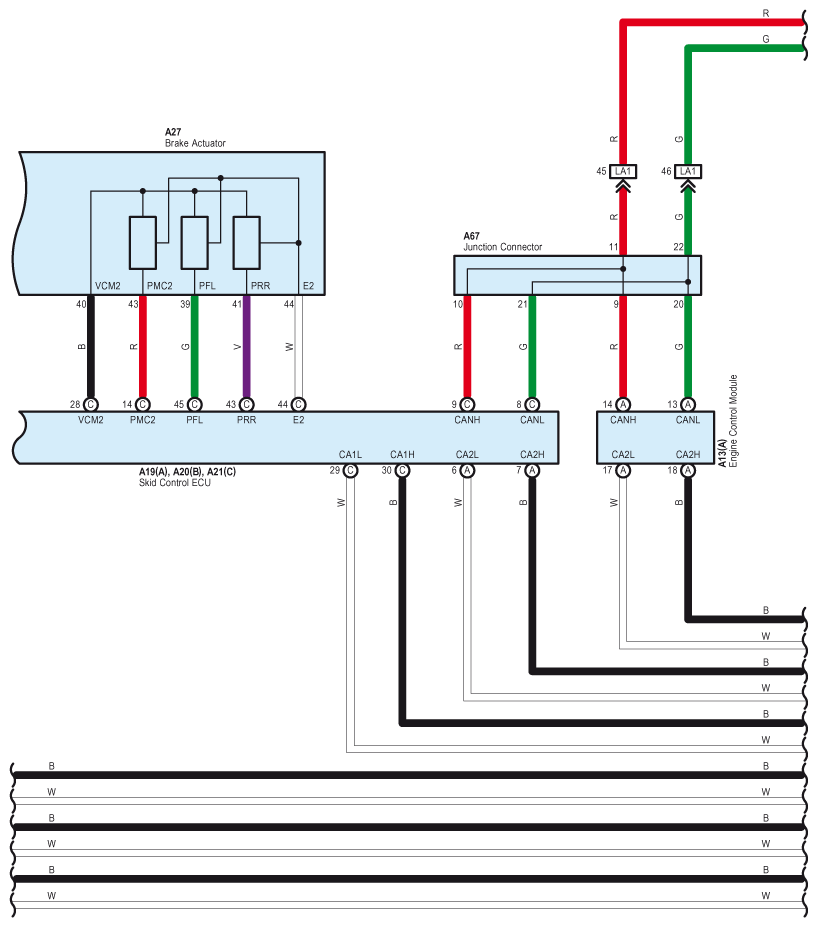

Fig 4: Pre-Collision System - Circuit Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

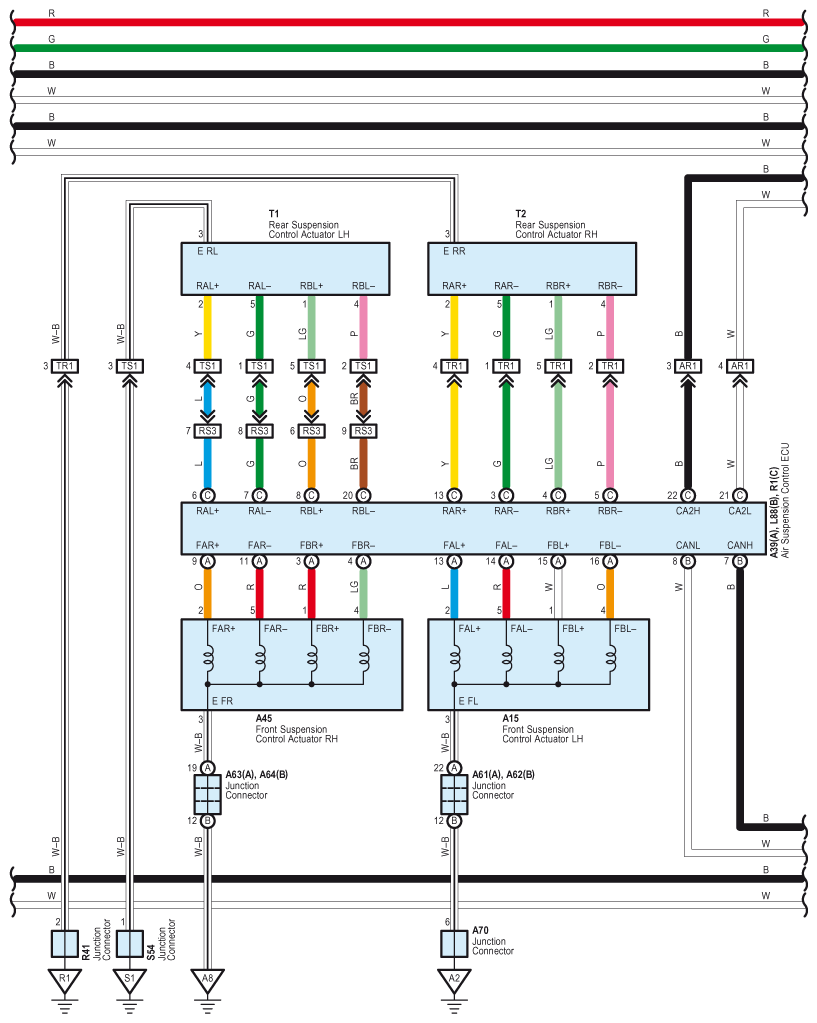

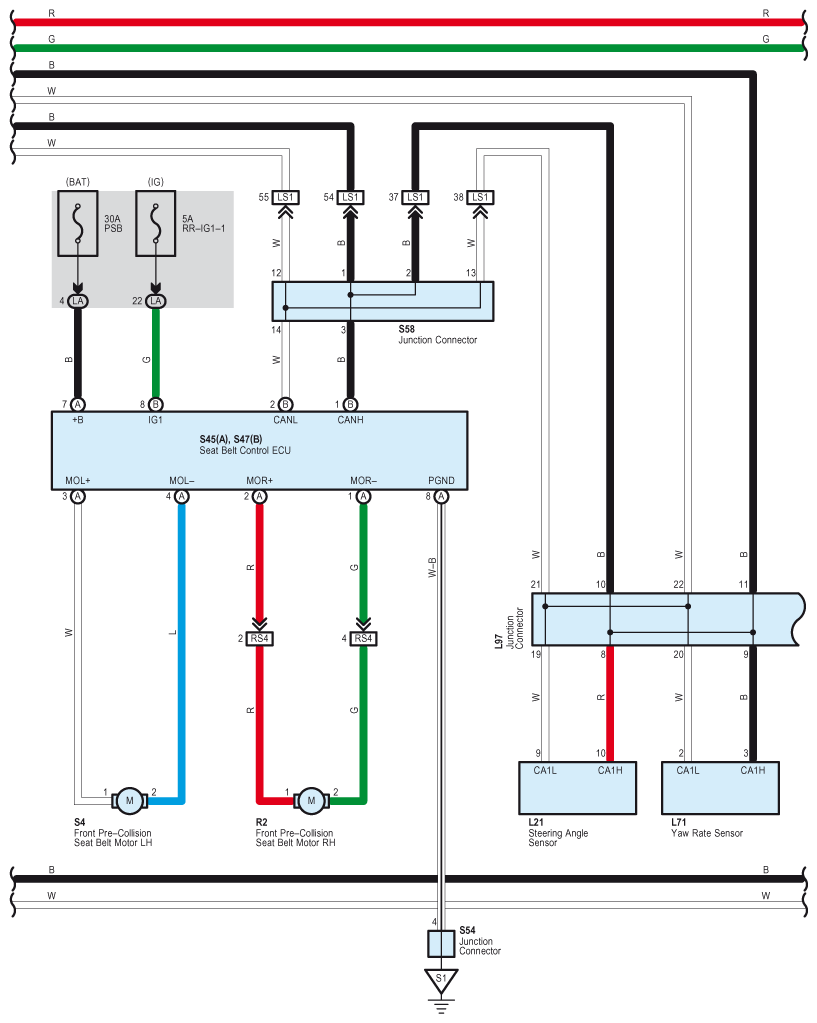

Fig 5: Pre-Collision System - Circuit Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

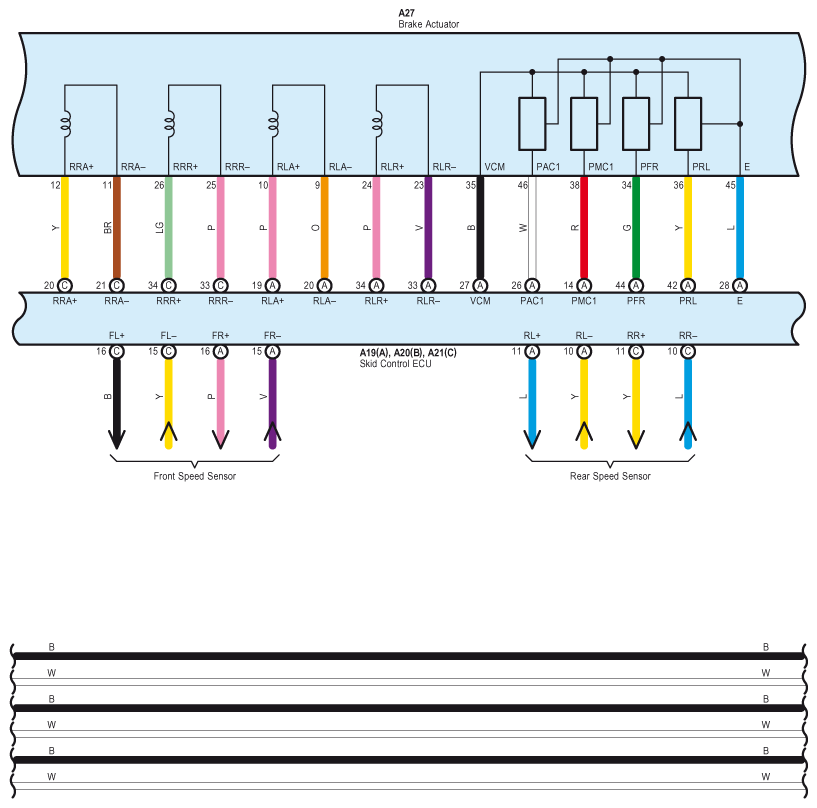

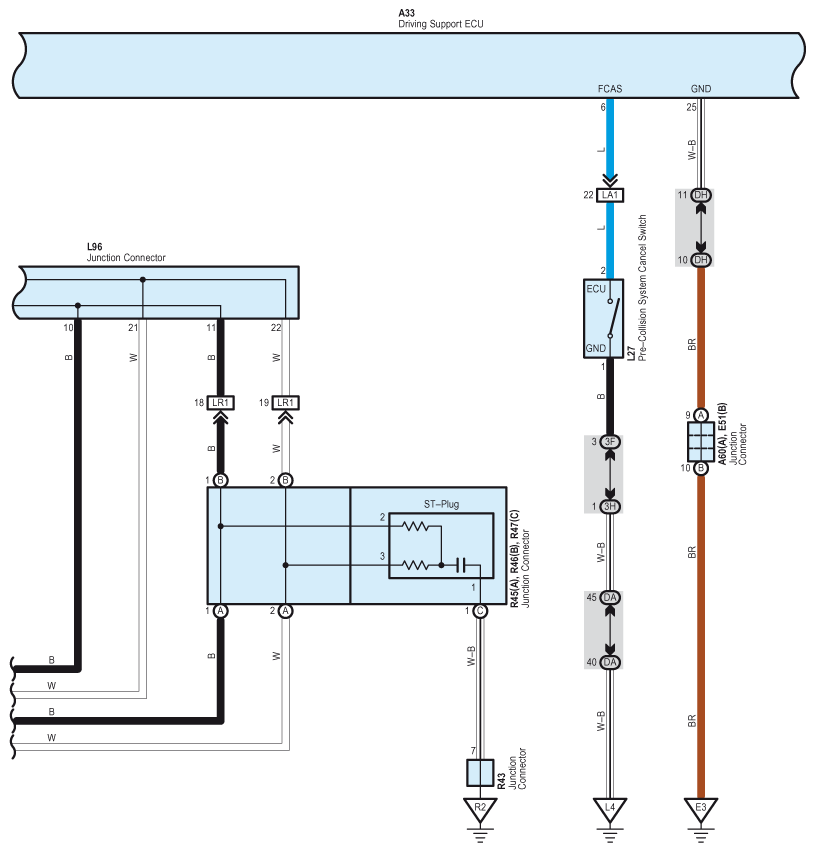

Fig 6: Pre-Collision System - Circuit Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

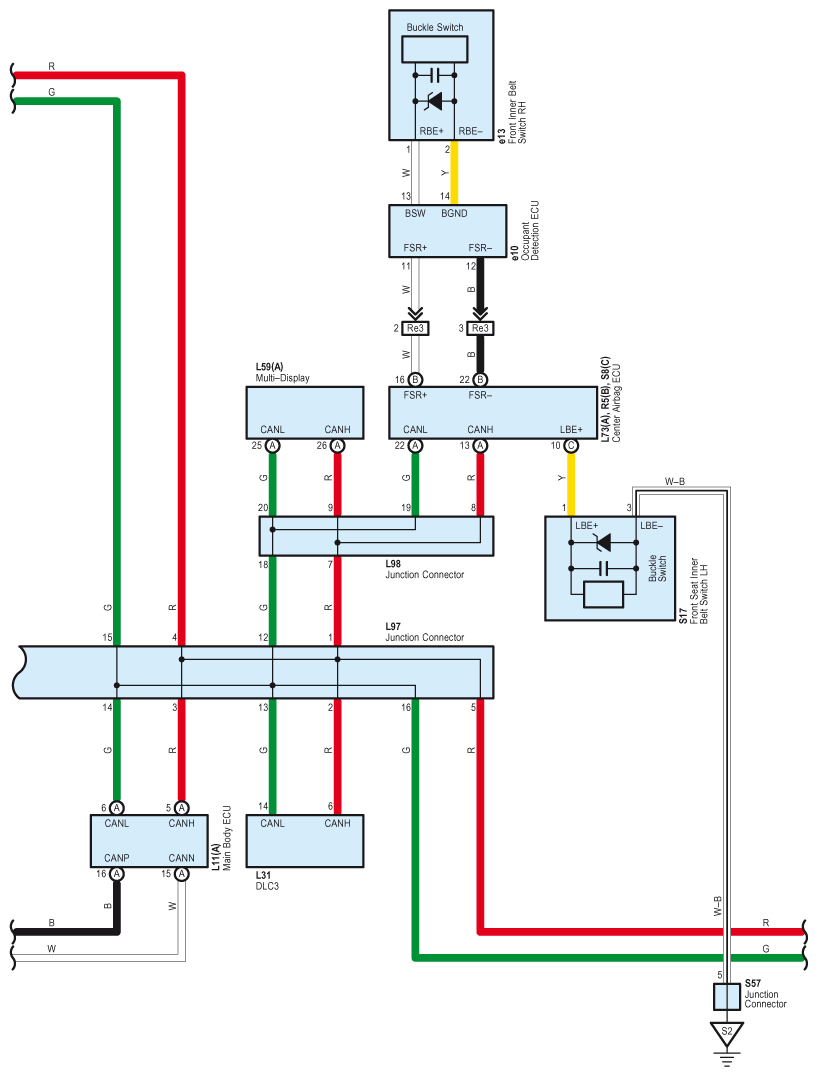

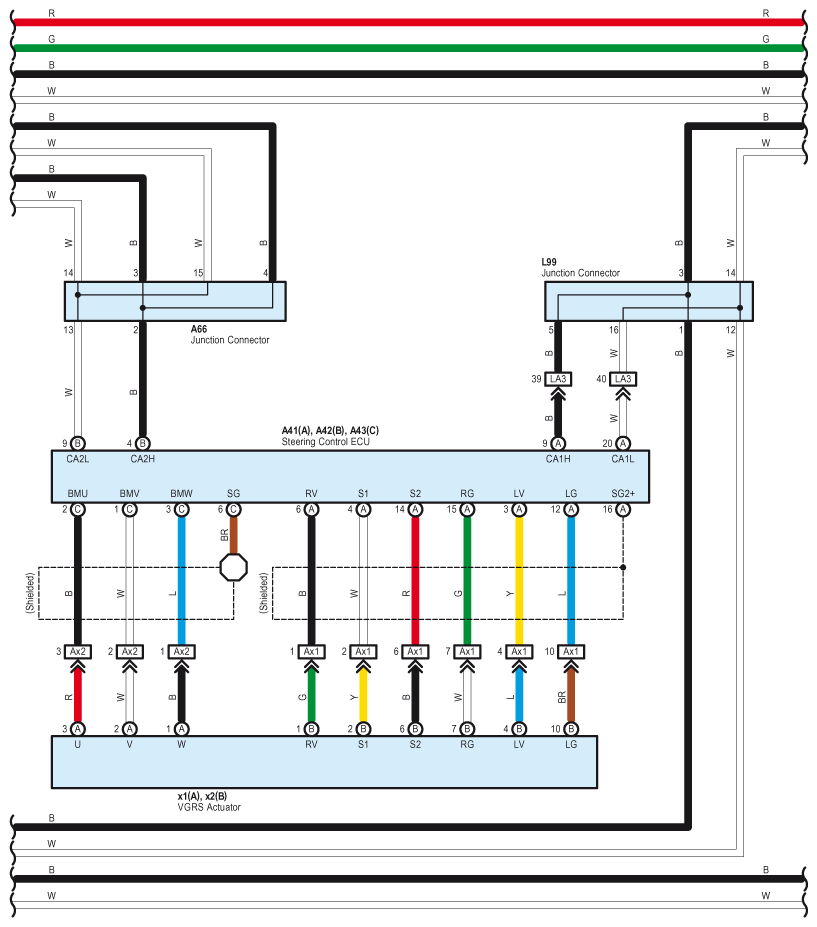

Fig 7: Pre-Collision System - Circuit Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

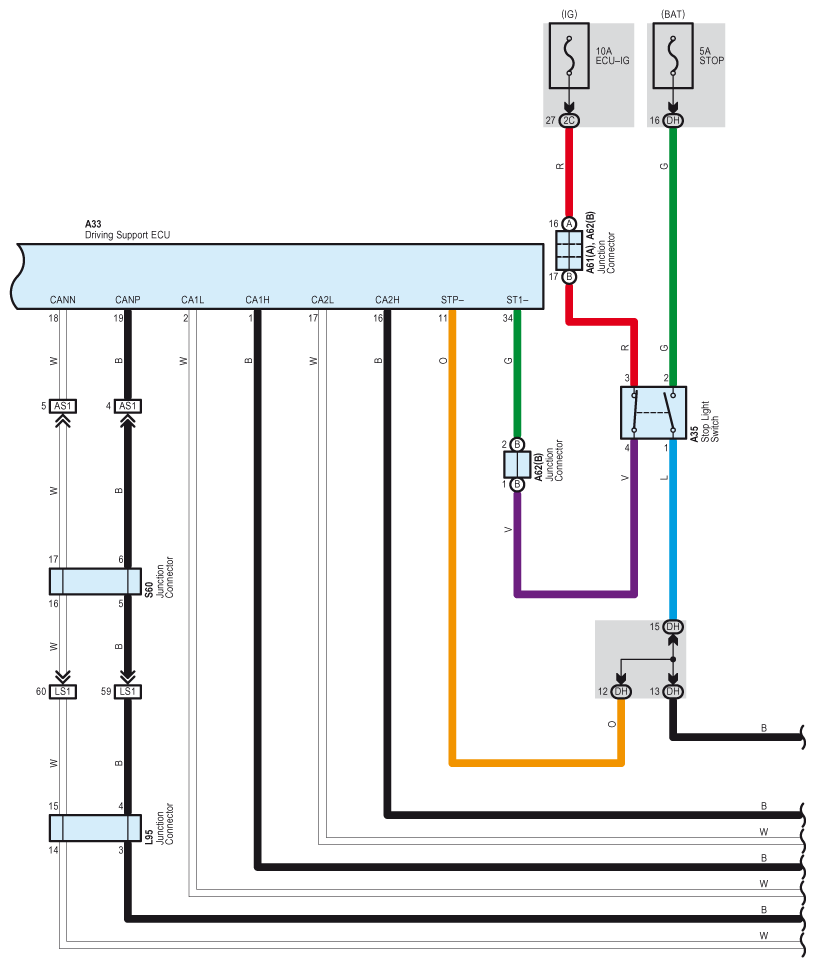

Fig 8: Pre-Collision System - Circuit Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Pre-Collision System - Circuit Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Pre-Collision System - Circuit Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Pre-Collision System - Circuit Diagram (11 Of 15)

Fig 12: Pre-Collision System - Circuit Diagram (12 Of 15)

Fig 13: Pre-Collision System - Circuit Diagram (13 Of 15)

Fig 14: Pre-Collision System - Circuit Diagram (14 Of 15)

Fig 15: Pre-Collision System - Circuit Diagram (15 Of 15)
