Smart Access System with Push-Button Start: Notes

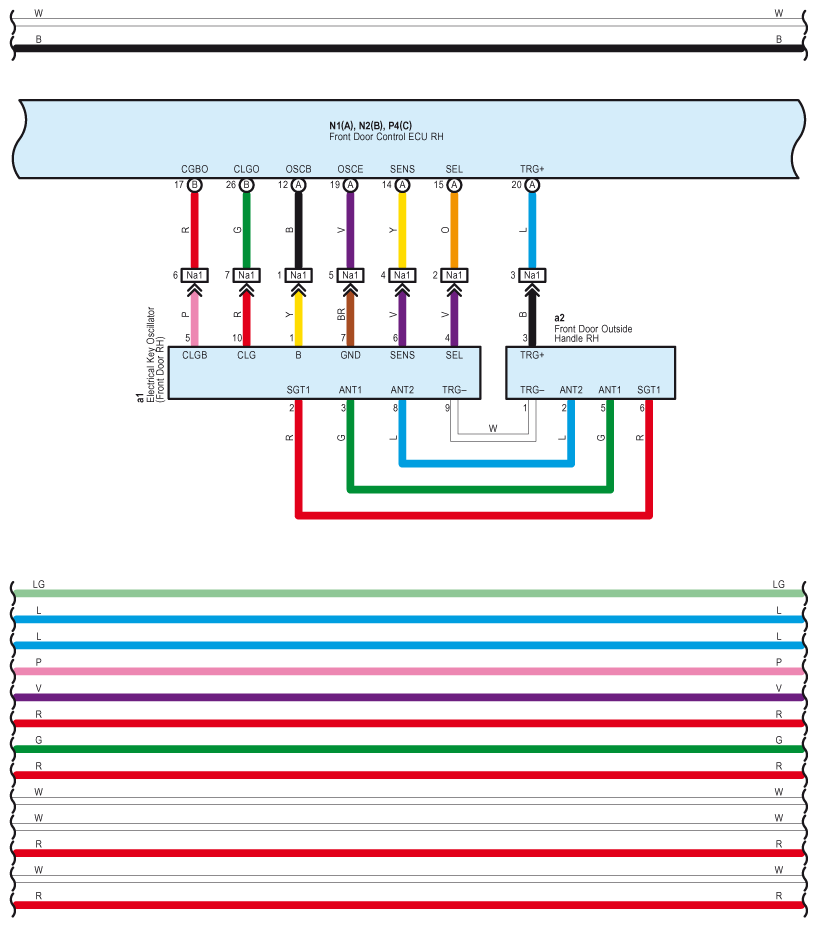

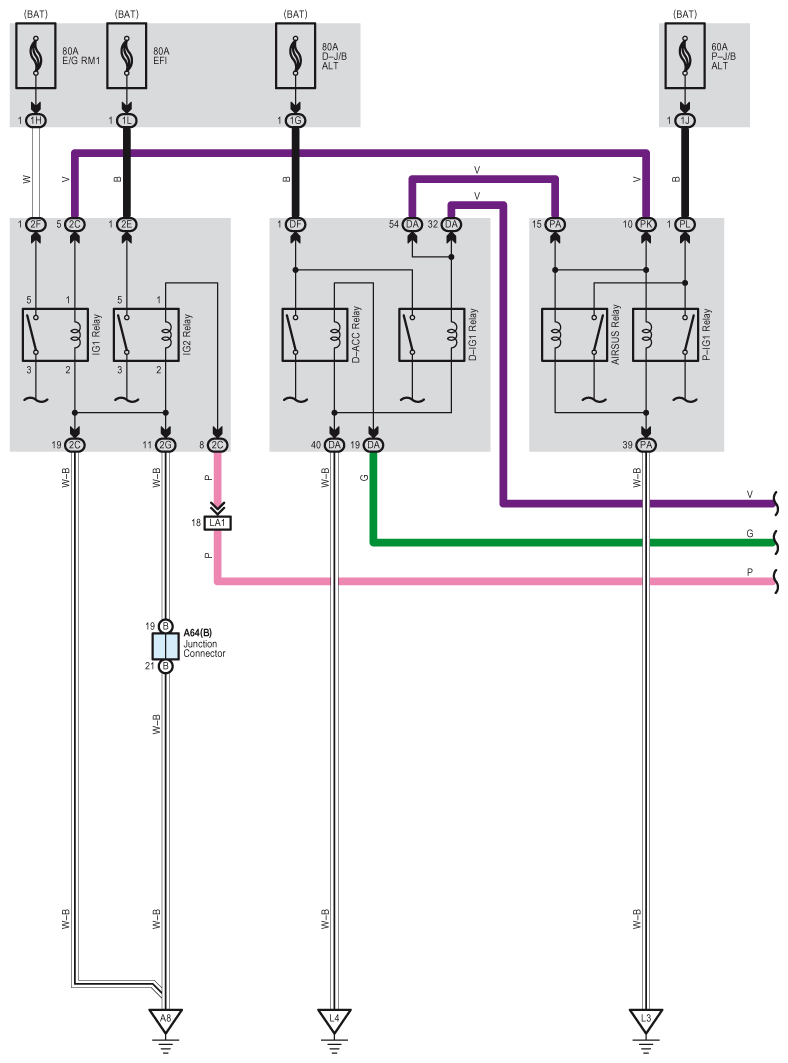

Fig 1: Smart Access System With Push-Button Start - Circuit Diagram (1 Of 25)

G07598089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

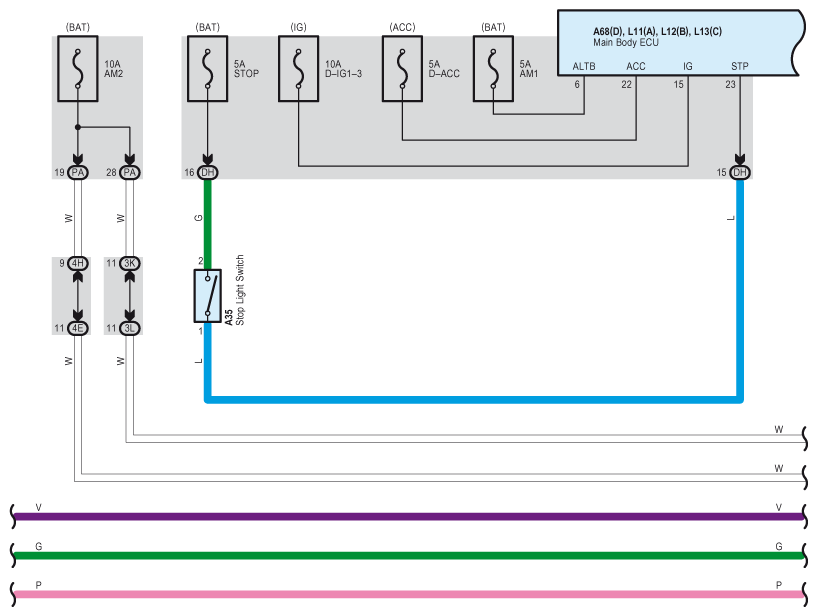

Fig 2: Smart Access System With Push-Button Start - Circuit Diagram (2 Of 25)

G07598090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

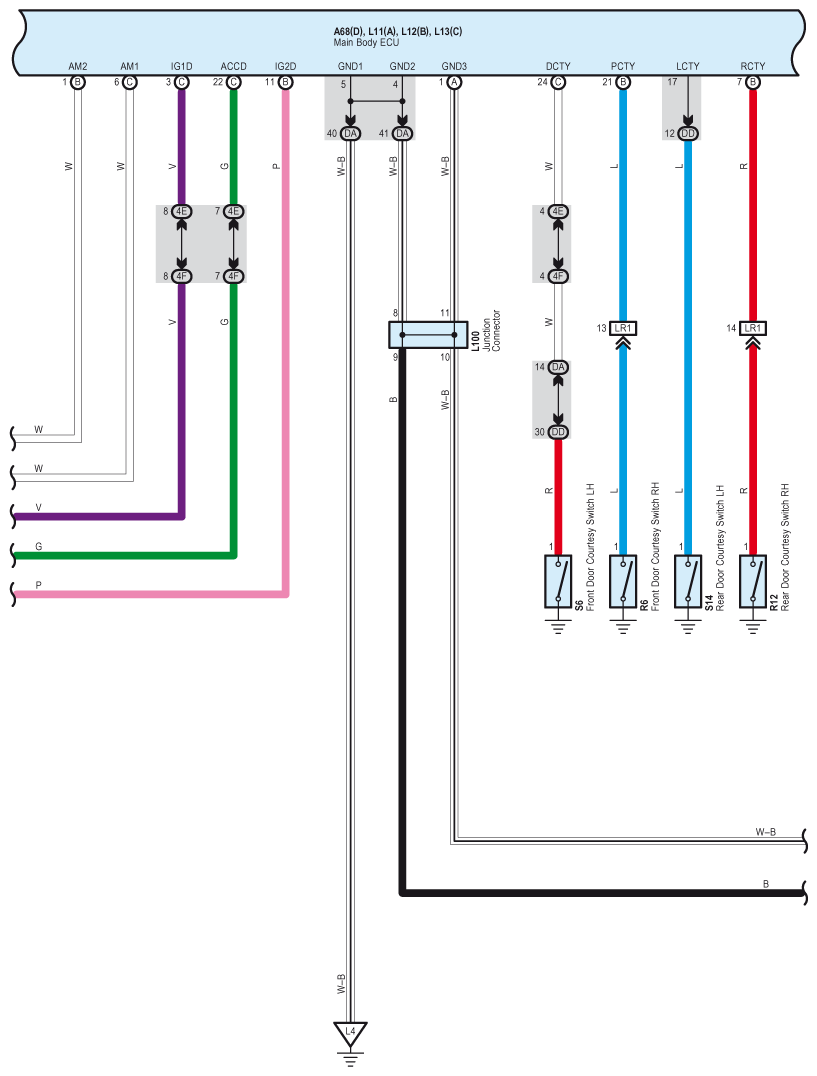

Fig 3: Smart Access System With Push-Button Start - Circuit Diagram (3 Of 25)

G07598091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

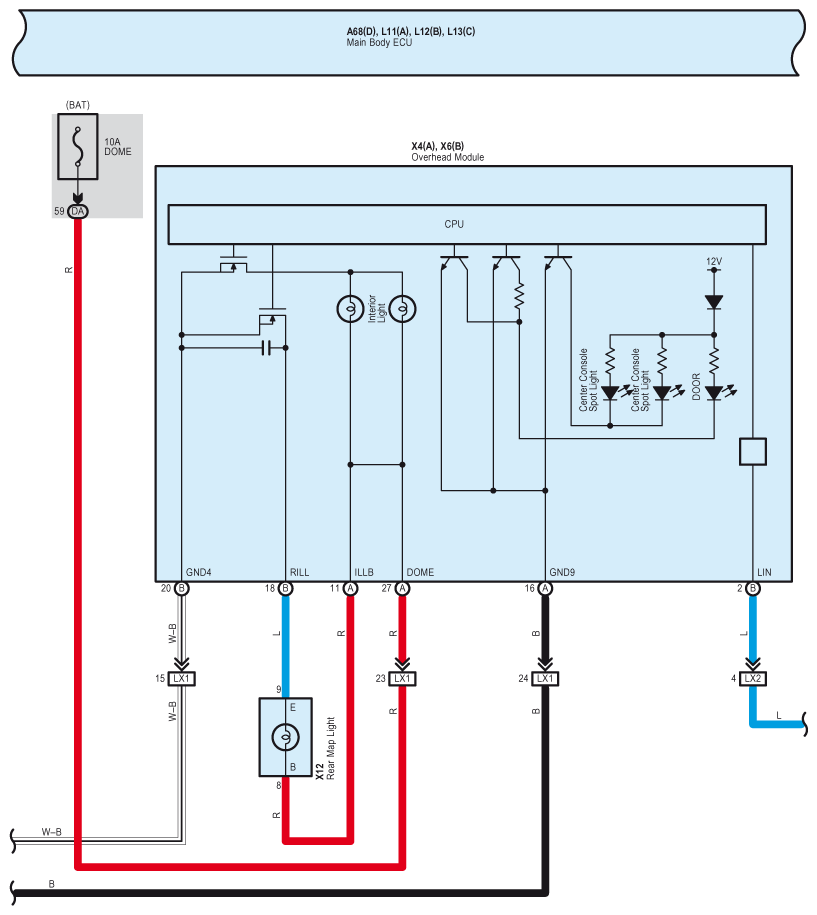

Fig 4: Smart Access System With Push-Button Start - Circuit Diagram (4 Of 25)

G07598092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

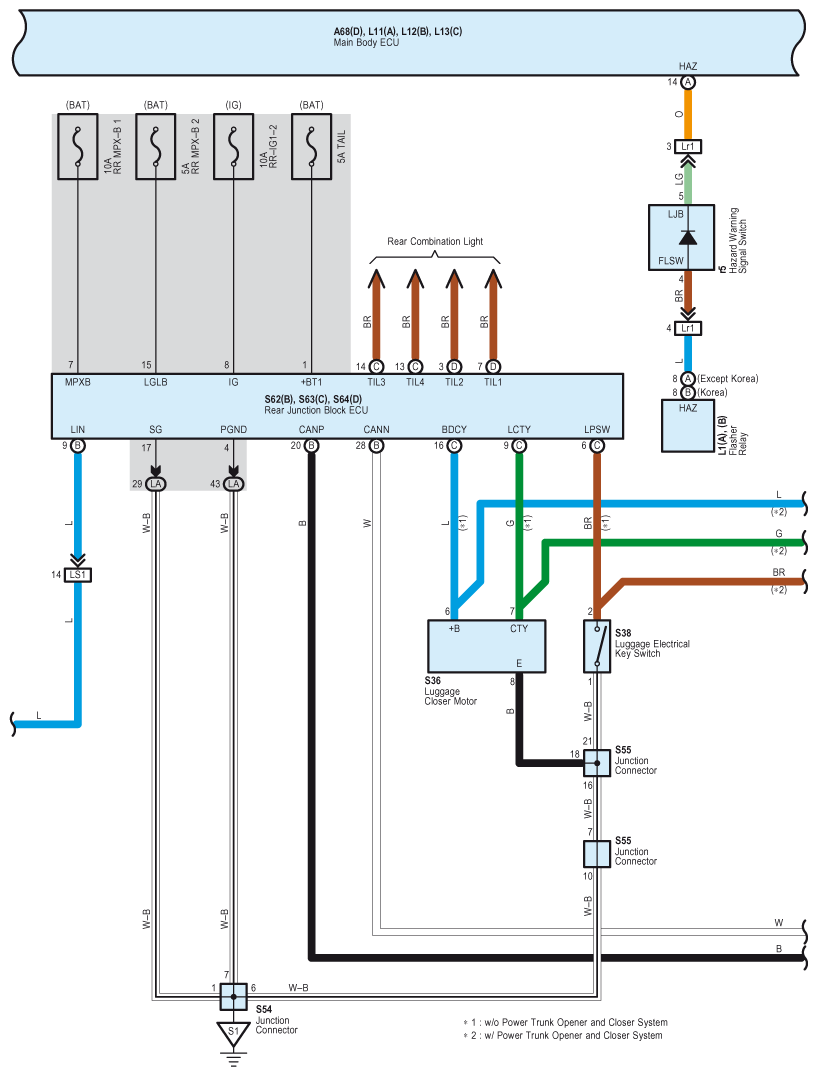

Fig 5: Smart Access System With Push-Button Start - Circuit Diagram (5 Of 25)

G07598093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

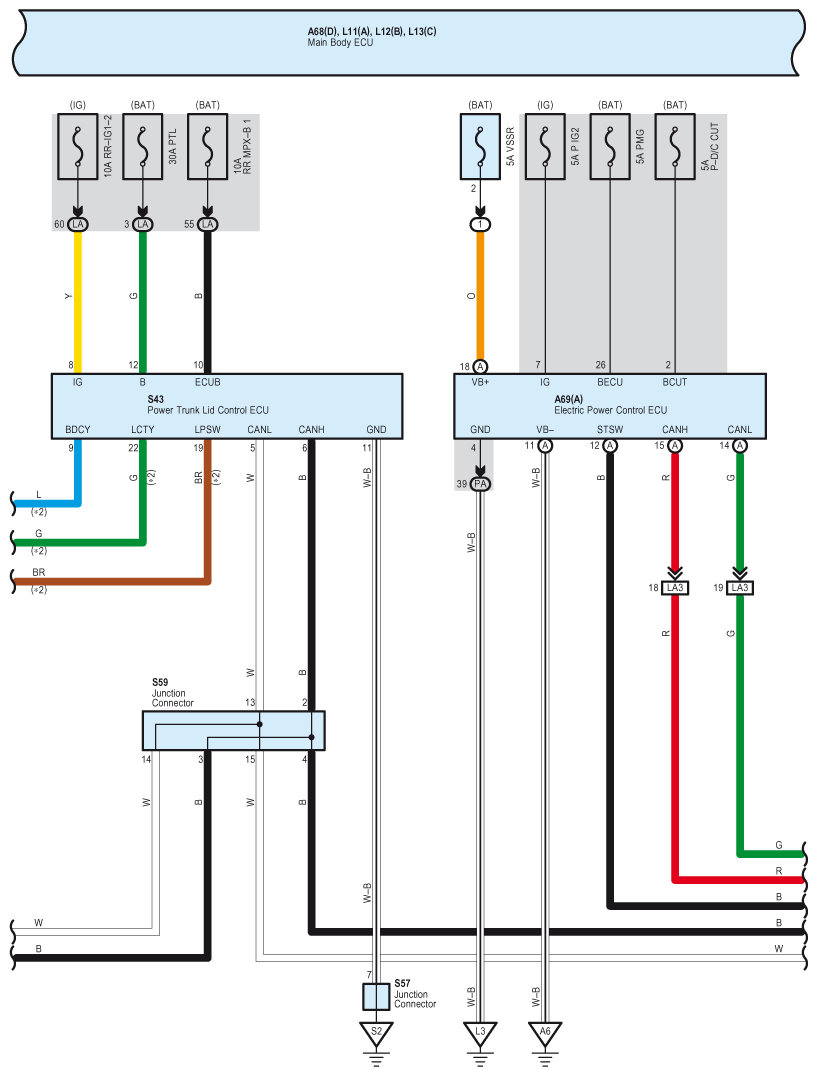

Fig 6: Smart Access System With Push-Button Start - Circuit Diagram (6 Of 25)

G07598094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

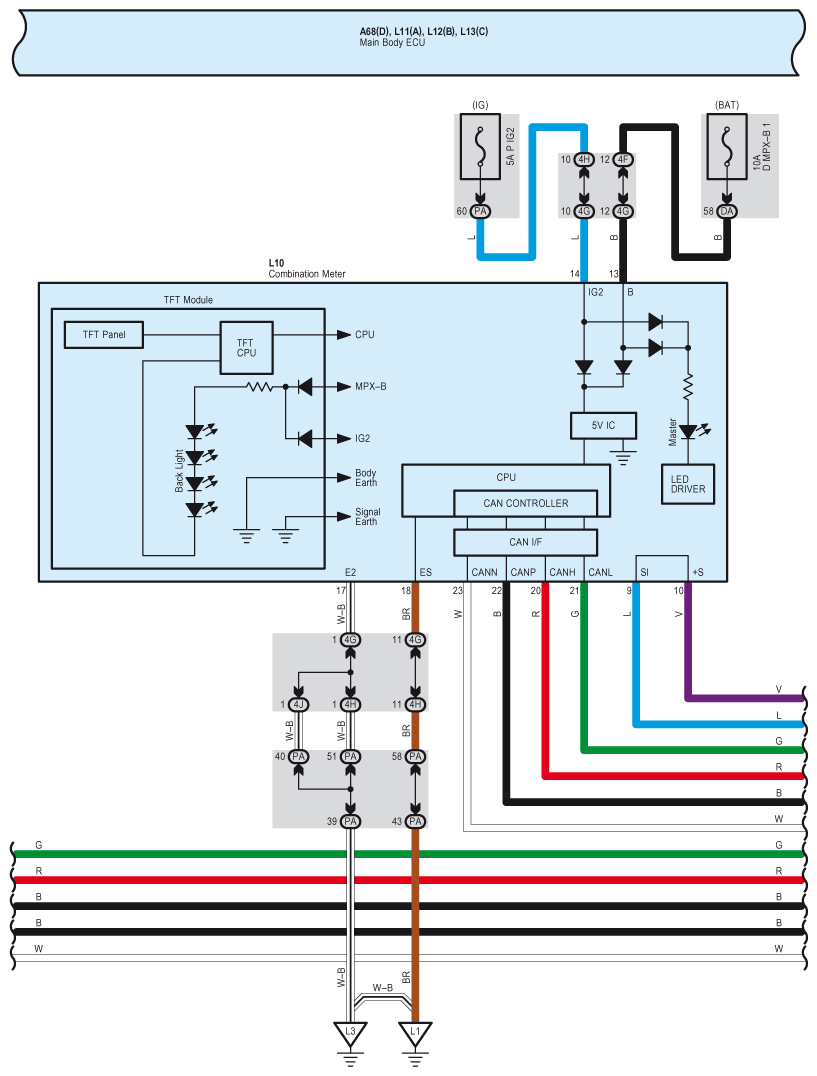

Fig 7: Smart Access System With Push-Button Start - Circuit Diagram (7 Of 25)

G07598095

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

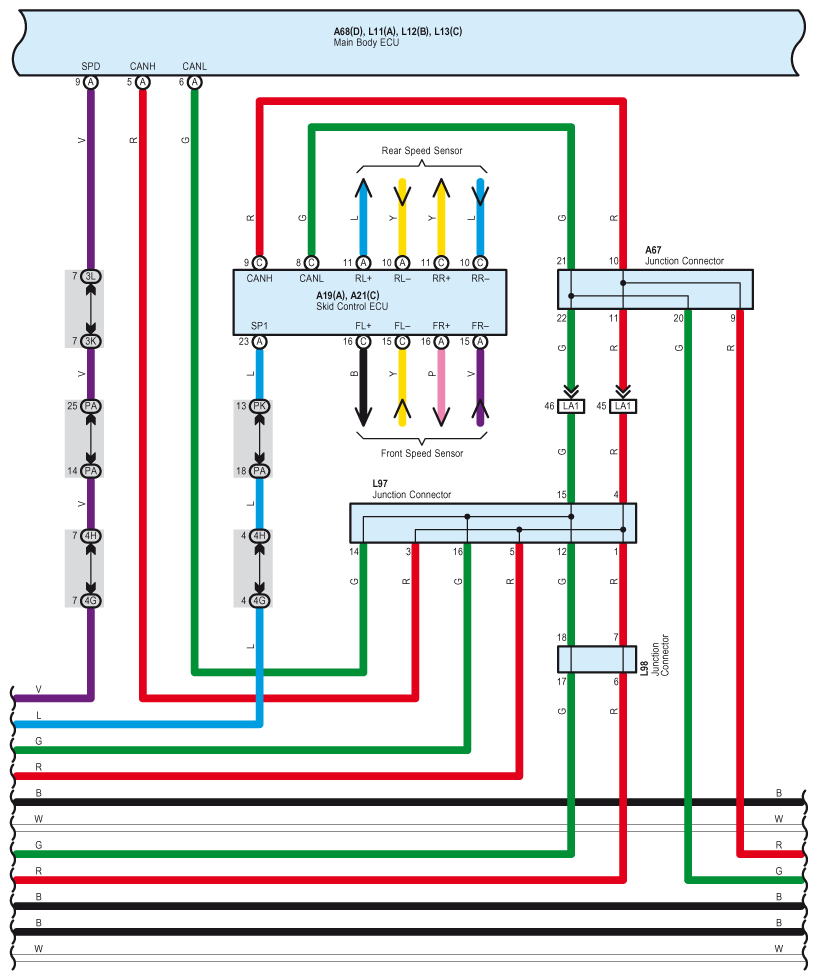

Fig 8: Smart Access System With Push-Button Start - Circuit Diagram (8 Of 25)

G07598096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

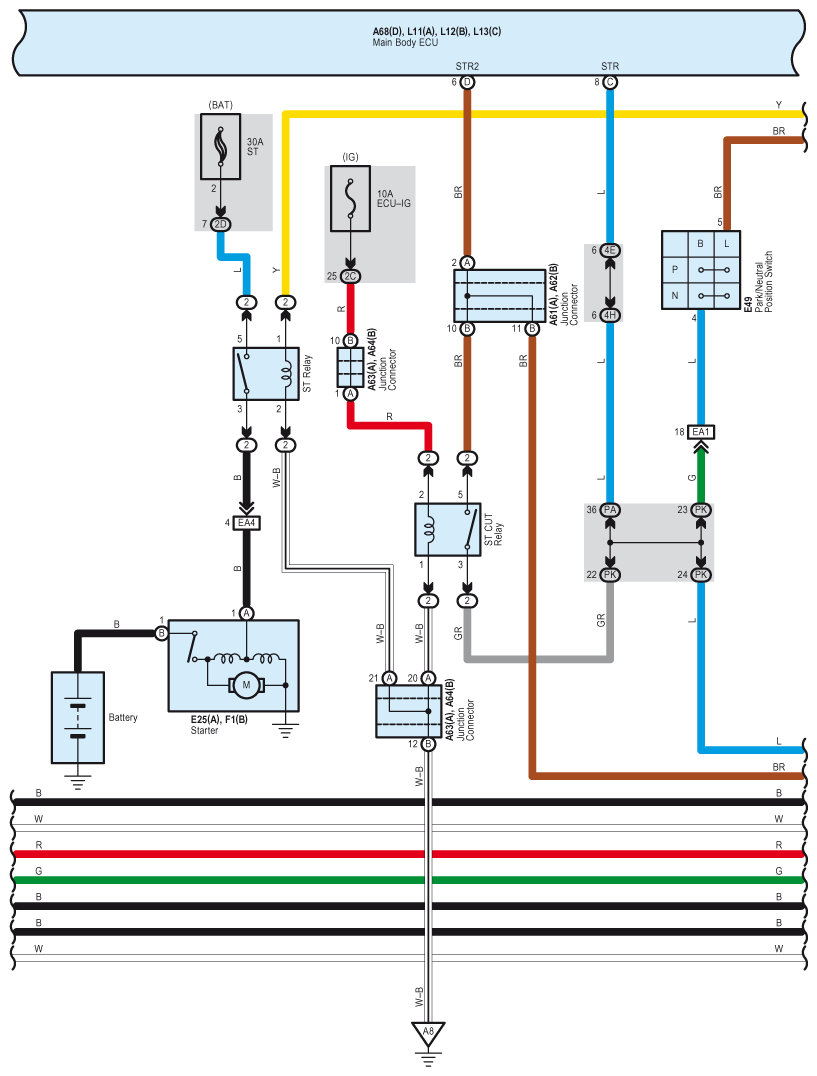

Fig 9: Smart Access System With Push-Button Start - Circuit Diagram (9 Of 25)

G07598097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

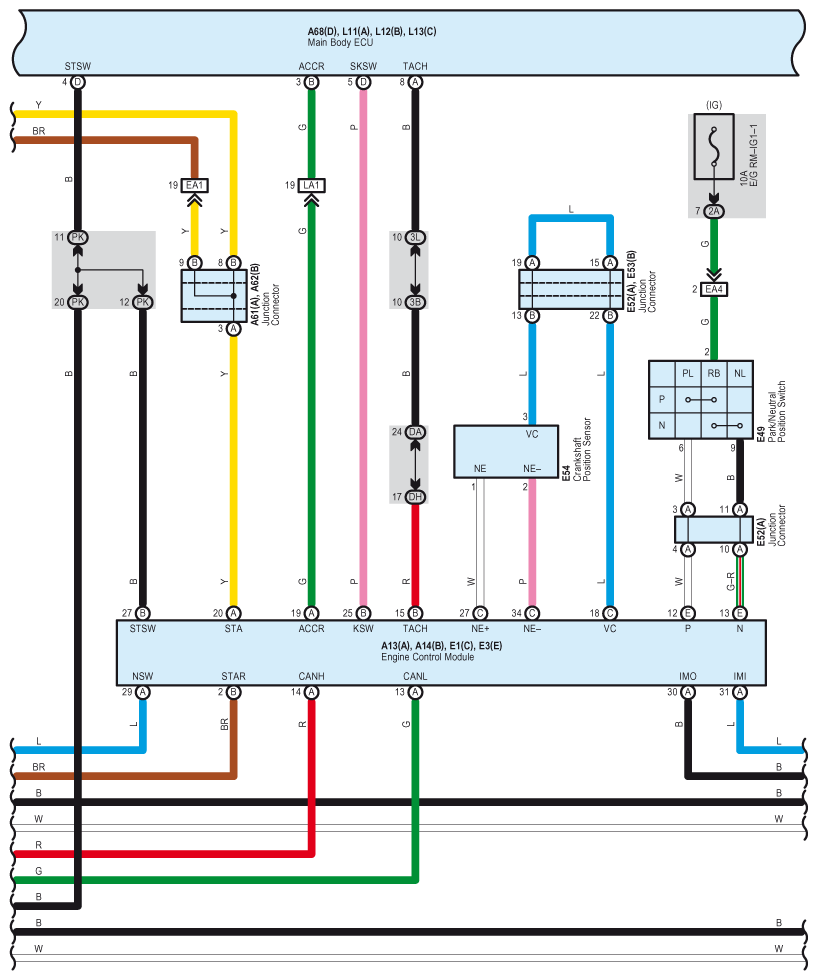

Fig 10: Smart Access System With Push-Button Start - Circuit Diagram (10 Of 25)

G07598098

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

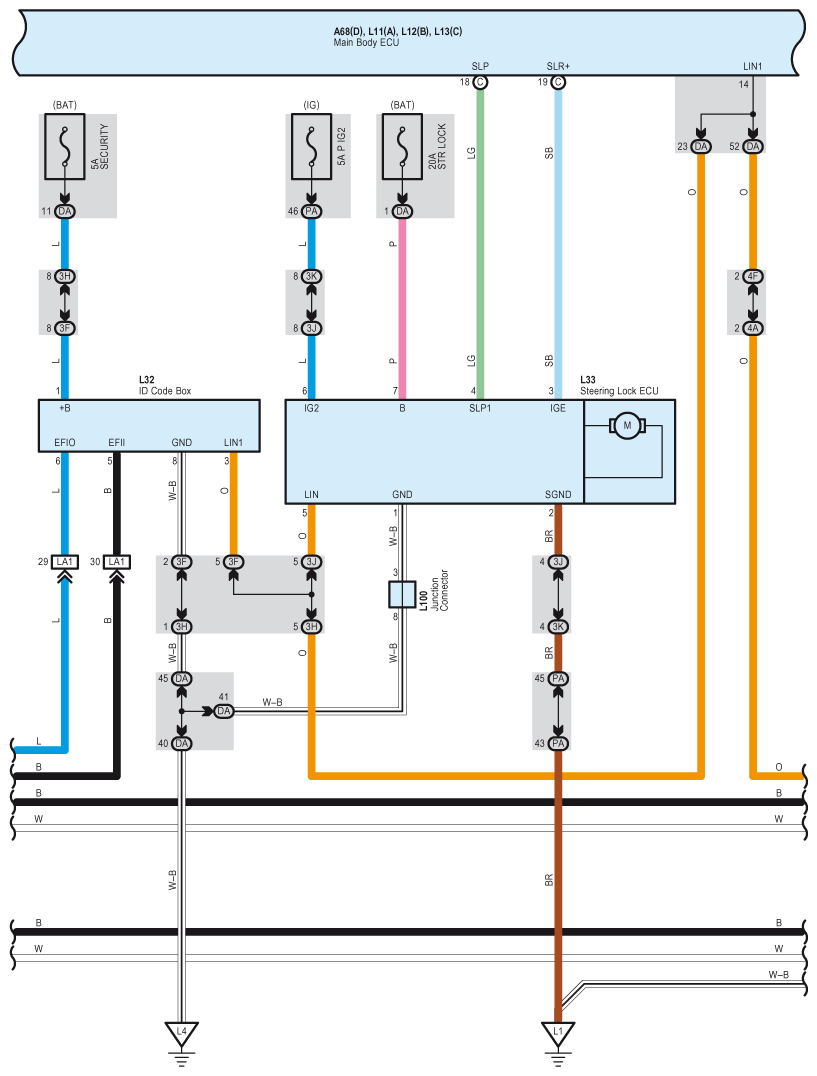

Fig 11: Smart Access System With Push-Button Start - Circuit Diagram (11 Of 25)

G07598099

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

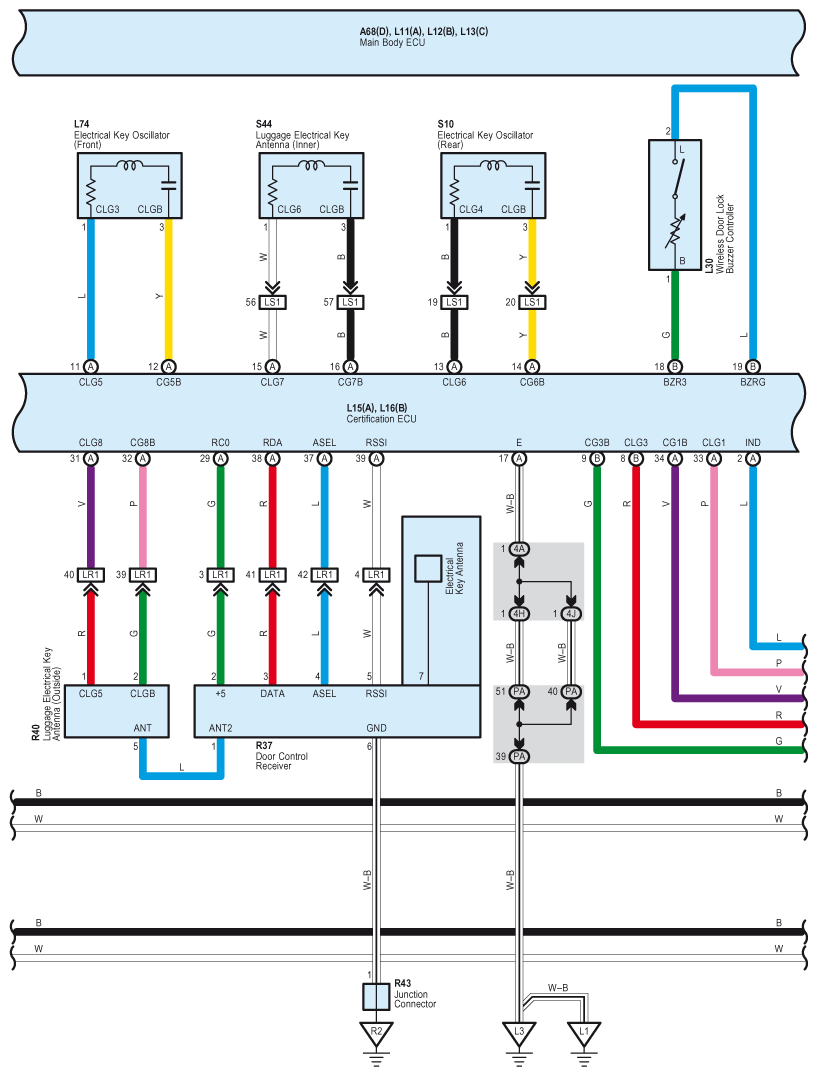

Fig 12: Smart Access System With Push-Button Start - Circuit Diagram (12 Of 25)

G07598100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

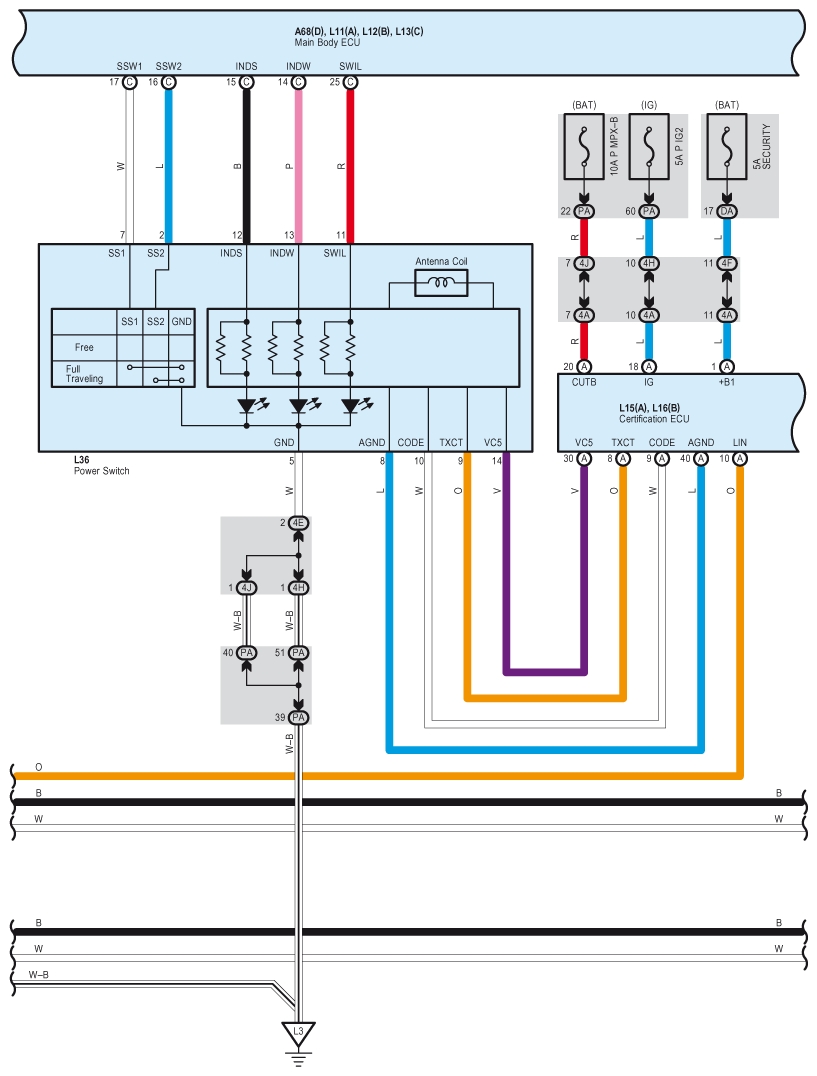

Fig 13: Smart Access System With Push-Button Start - Circuit Diagram (13 Of 25)

G07598101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

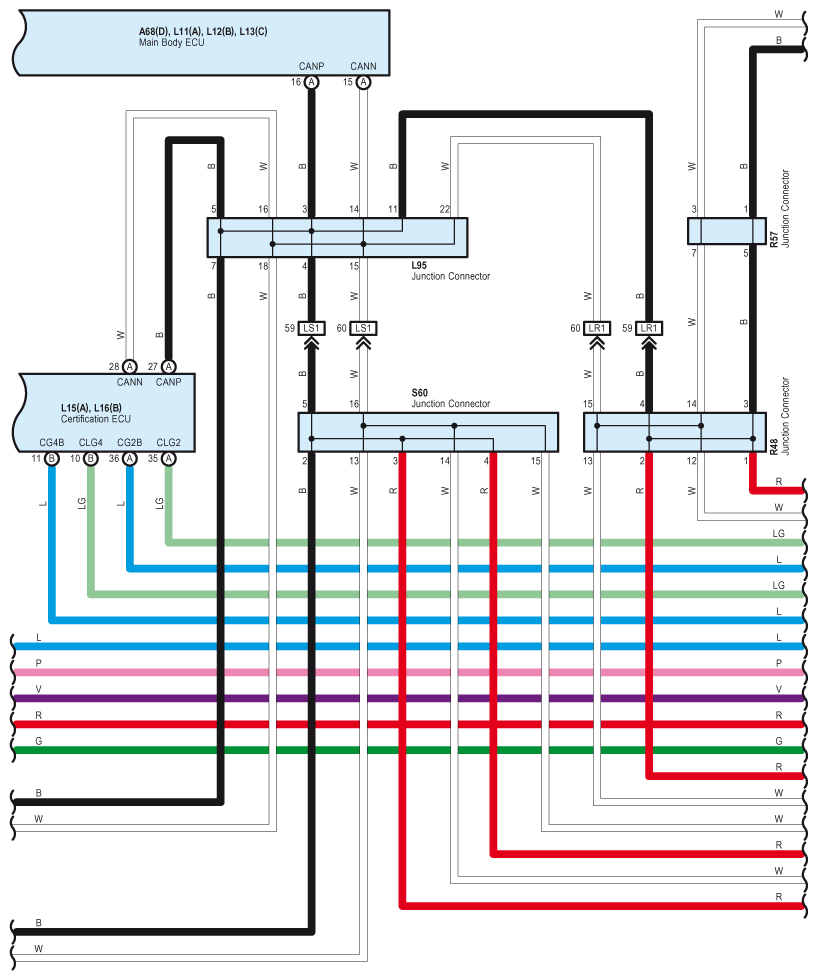

Fig 14: Smart Access System With Push-Button Start - Circuit Diagram (14 Of 25)

G07598102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

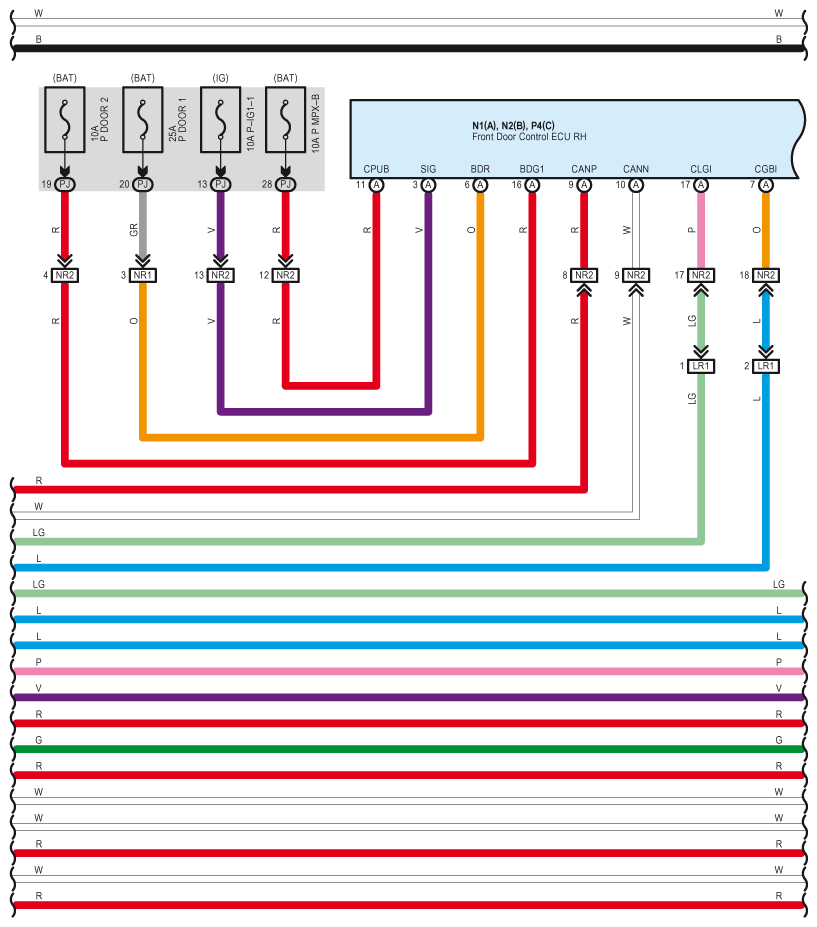

Fig 15: Smart Access System With Push-Button Start - Circuit Diagram (15 Of 25)

G07598103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Smart Access System With Push-Button Start - Circuit Diagram (16 Of 25)

G07598104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

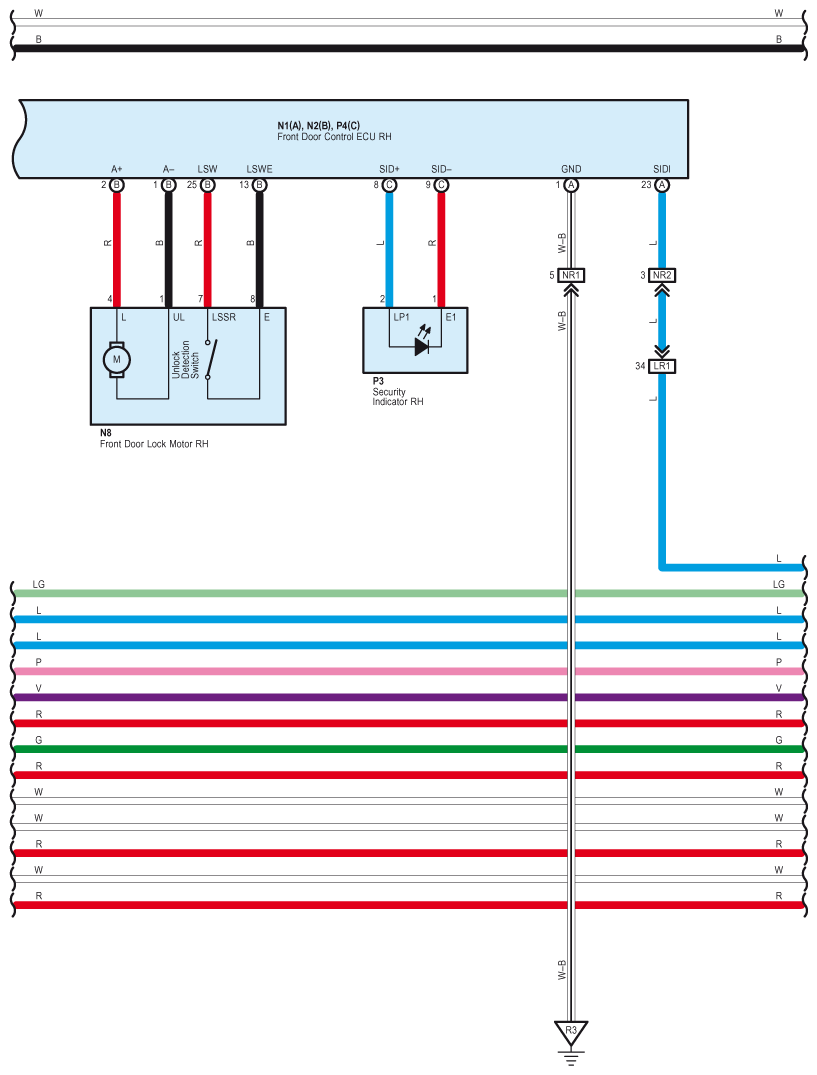

Fig 17: Smart Access System With Push-Button Start - Circuit Diagram (17 Of 25)

G07598105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

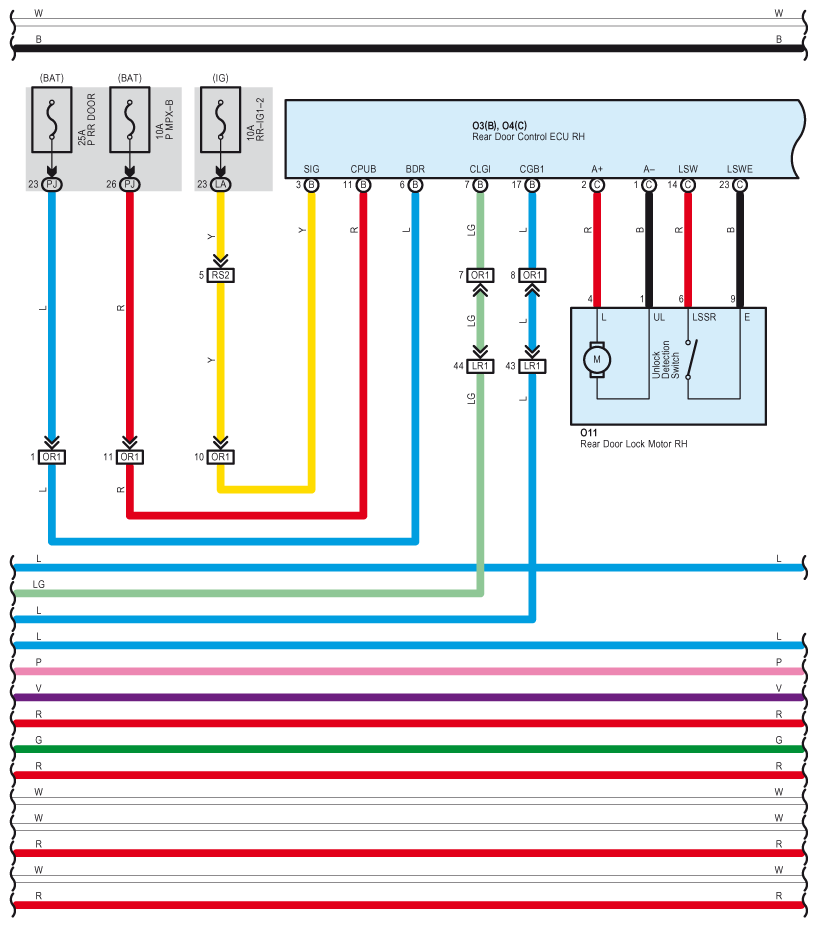

Fig 18: Smart Access System With Push-Button Start - Circuit Diagram (18 Of 25)

G07598106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

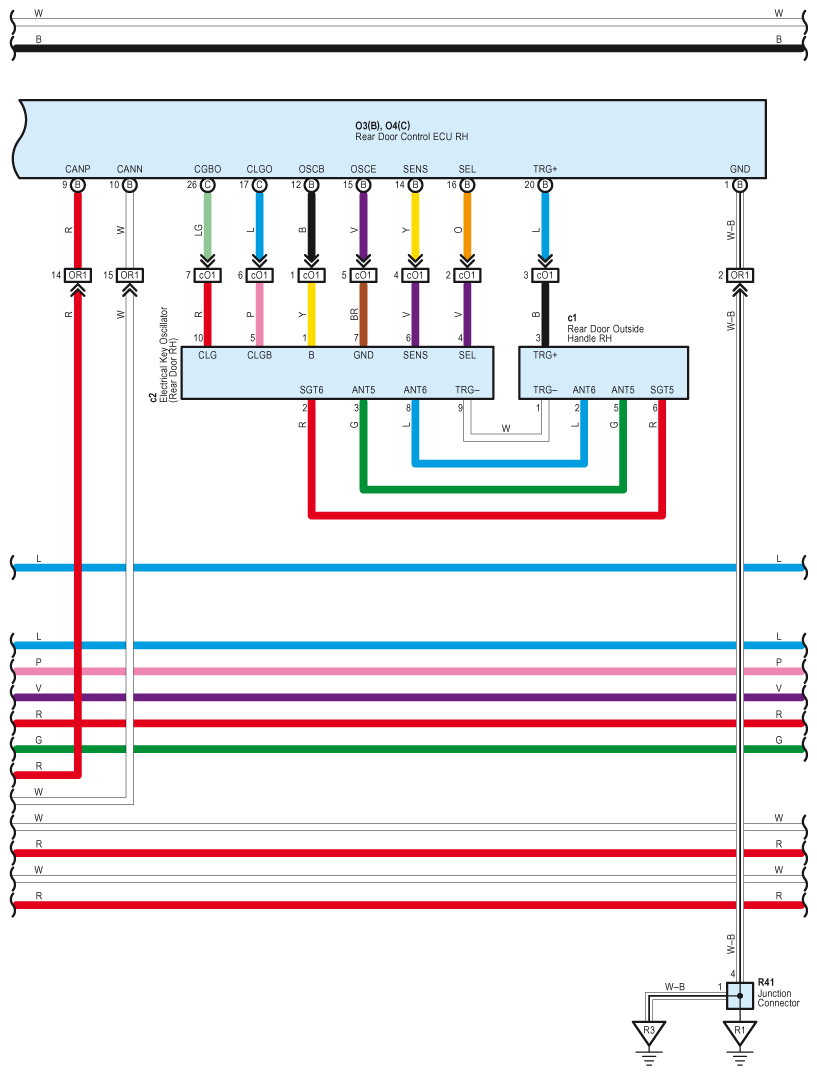

Fig 19: Smart Access System With Push-Button Start - Circuit Diagram (19 Of 25)

G07598107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

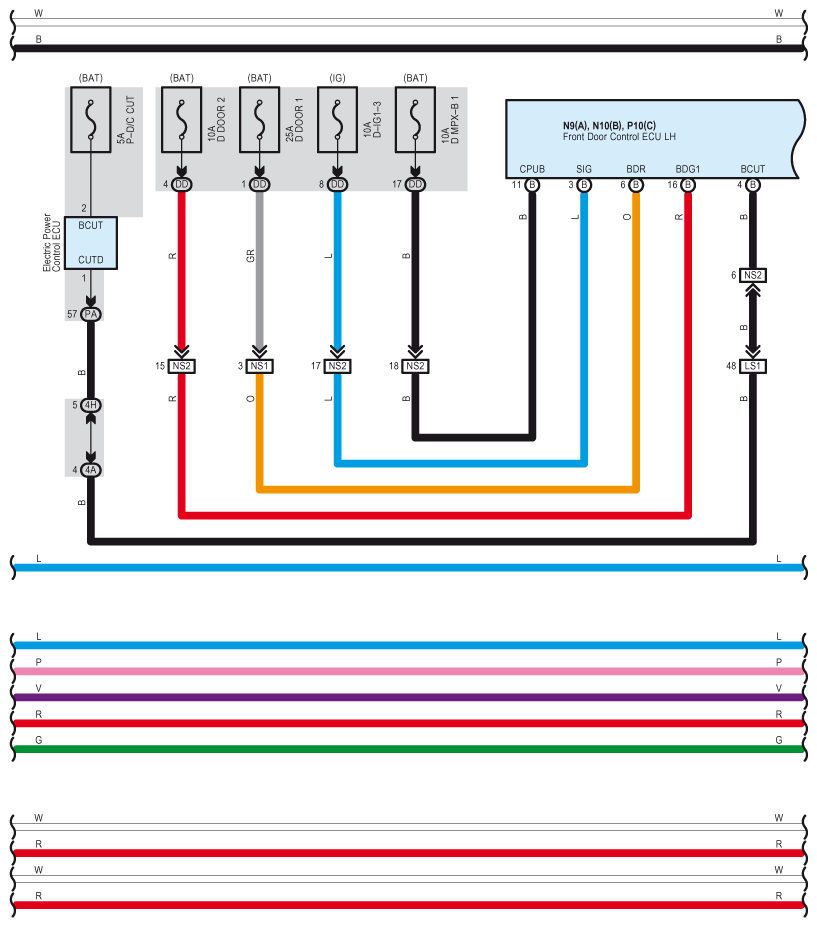

Fig 20: Smart Access System With Push-Button Start - Circuit Diagram (20 Of 25)

G07598108

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

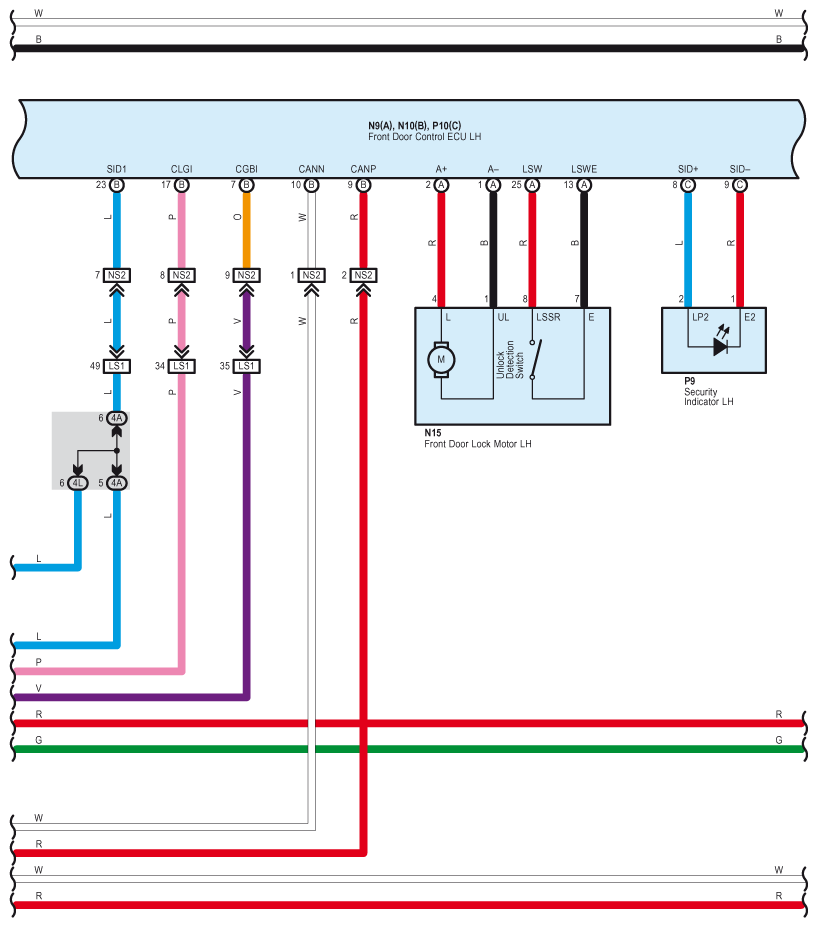

Fig 21: Smart Access System With Push-Button Start - Circuit Diagram (21 Of 25)

G07598109

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

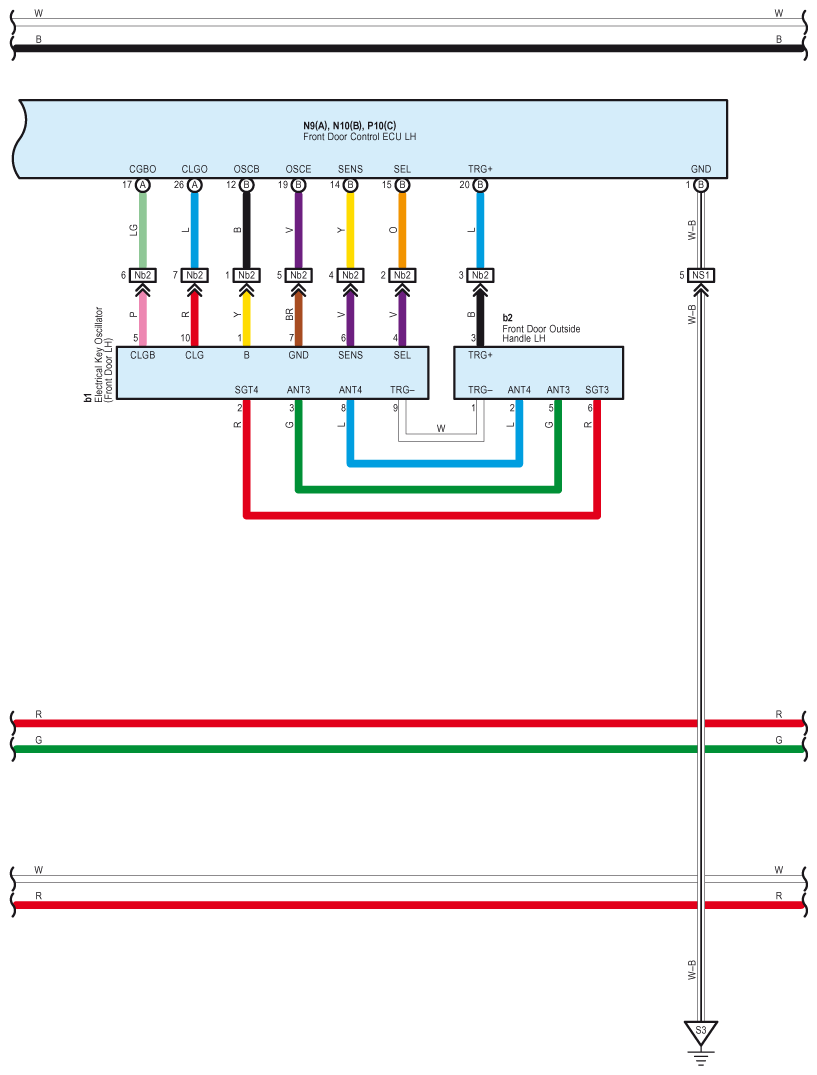

Fig 22: Smart Access System With Push-Button Start - Circuit Diagram (22 Of 25)

G07598110

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

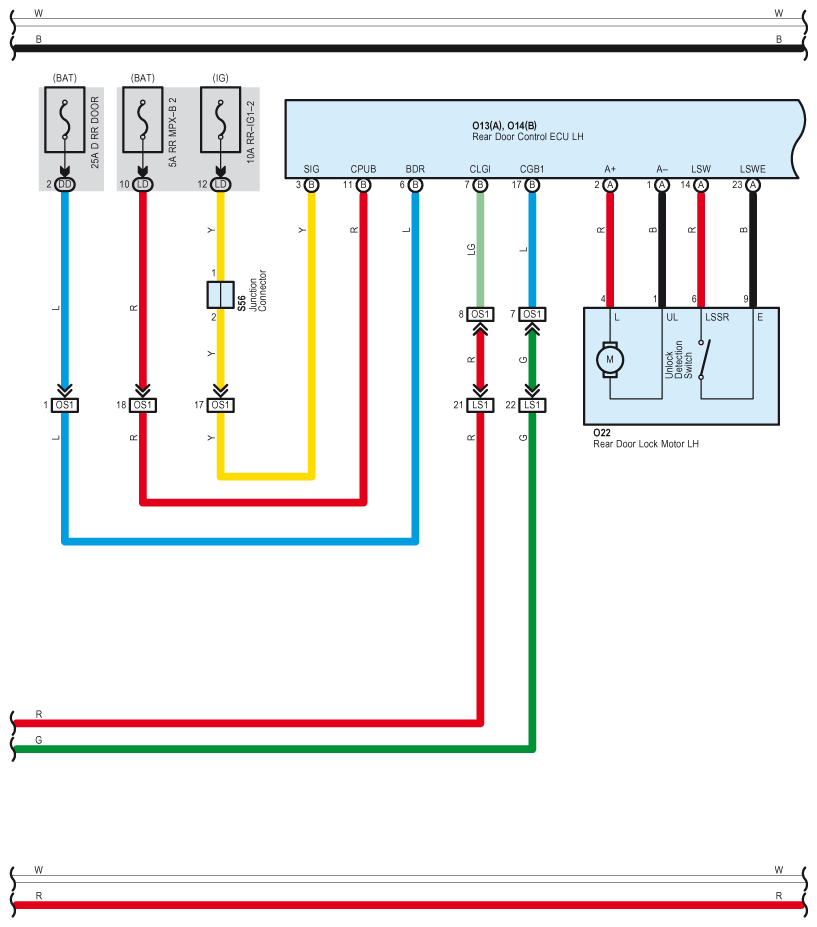

Fig 23: Smart Access System With Push-Button Start - Circuit Diagram (23 Of 25)

G07598111

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

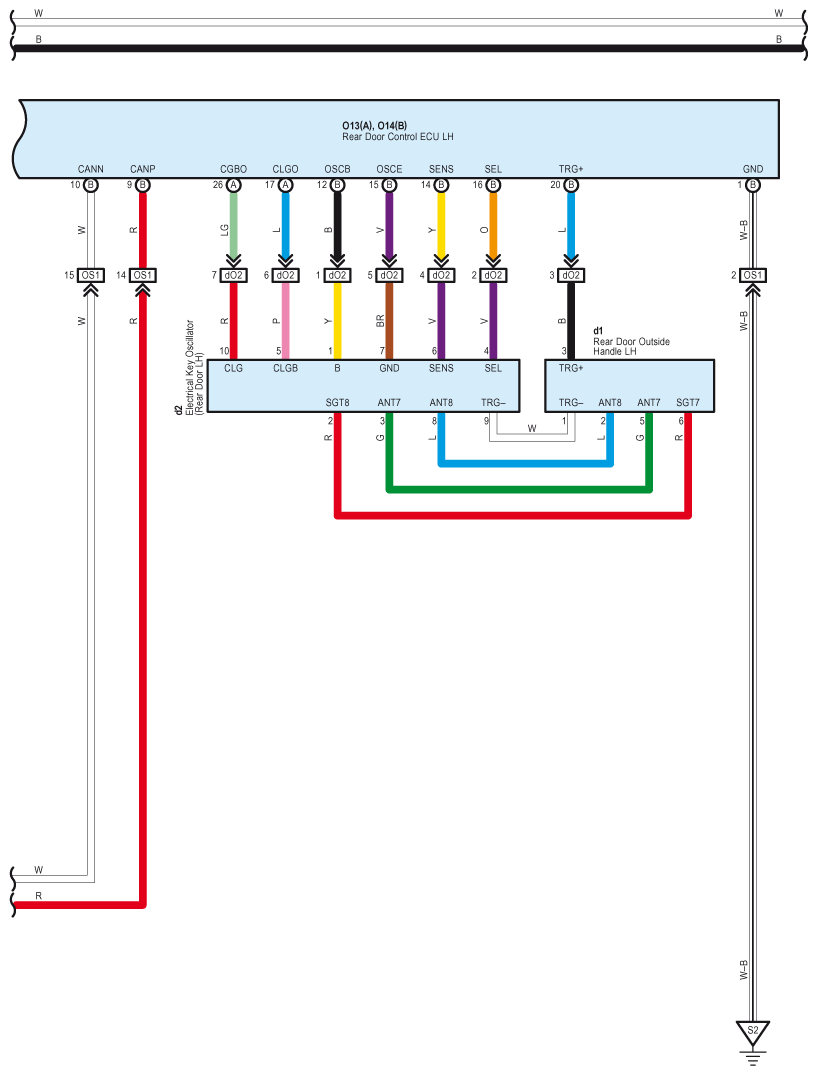

Fig 24: Smart Access System With Push-Button Start - Circuit Diagram (24 Of 25)

G07598112

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

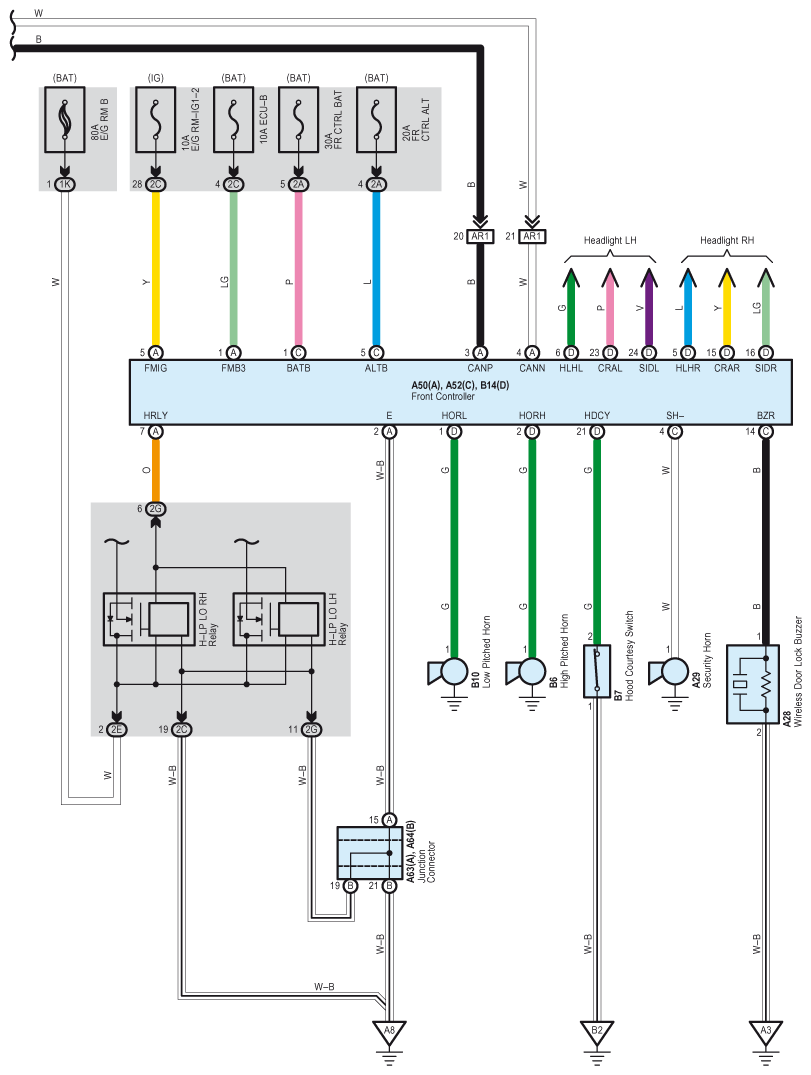

Fig 25: Smart Access System With Push-Button Start - Circuit Diagram (25 Of 25)

G07598113

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
