Stop Light: Notes

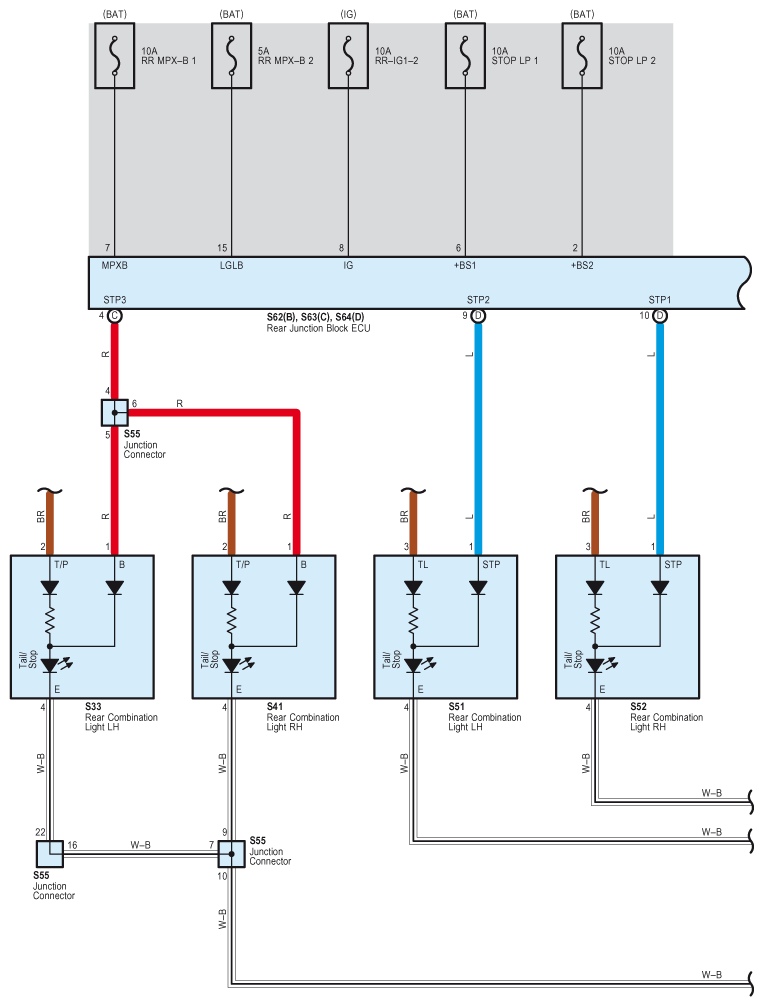

Fig 1: Stop Light - Circuit Diagram (1 Of 3)
G07598197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

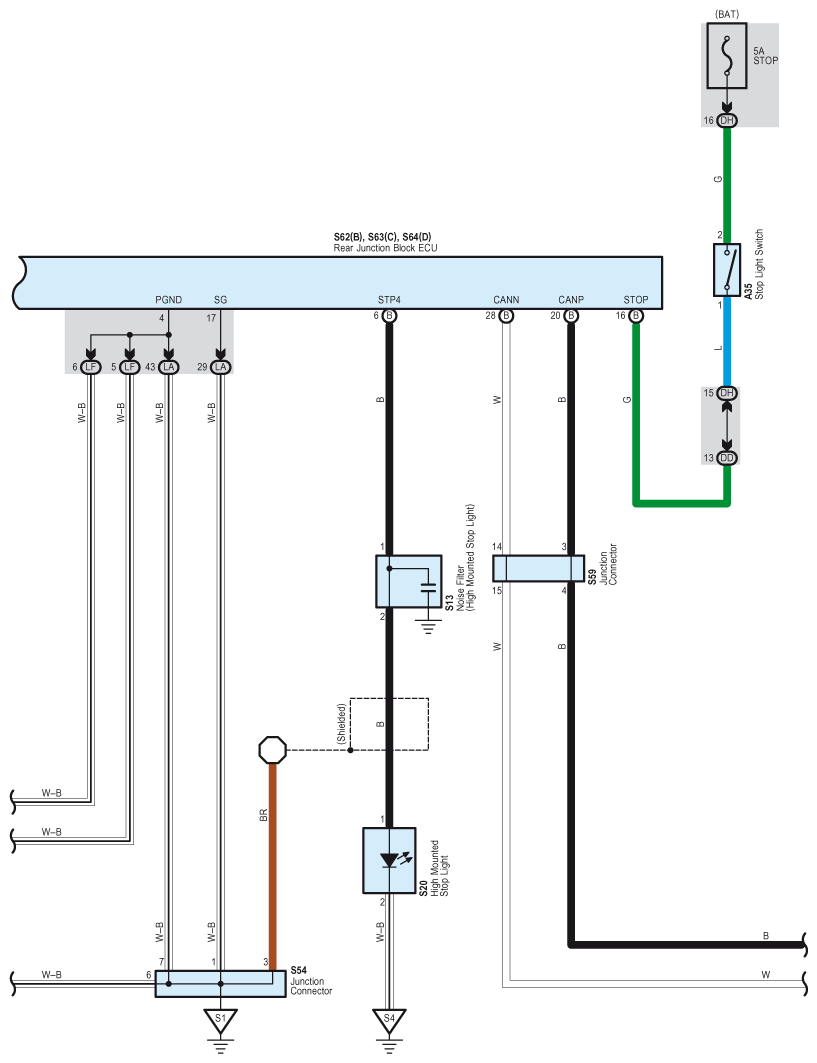

Fig 2: Stop Light - Circuit Diagram (2 Of 3)
G07598198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

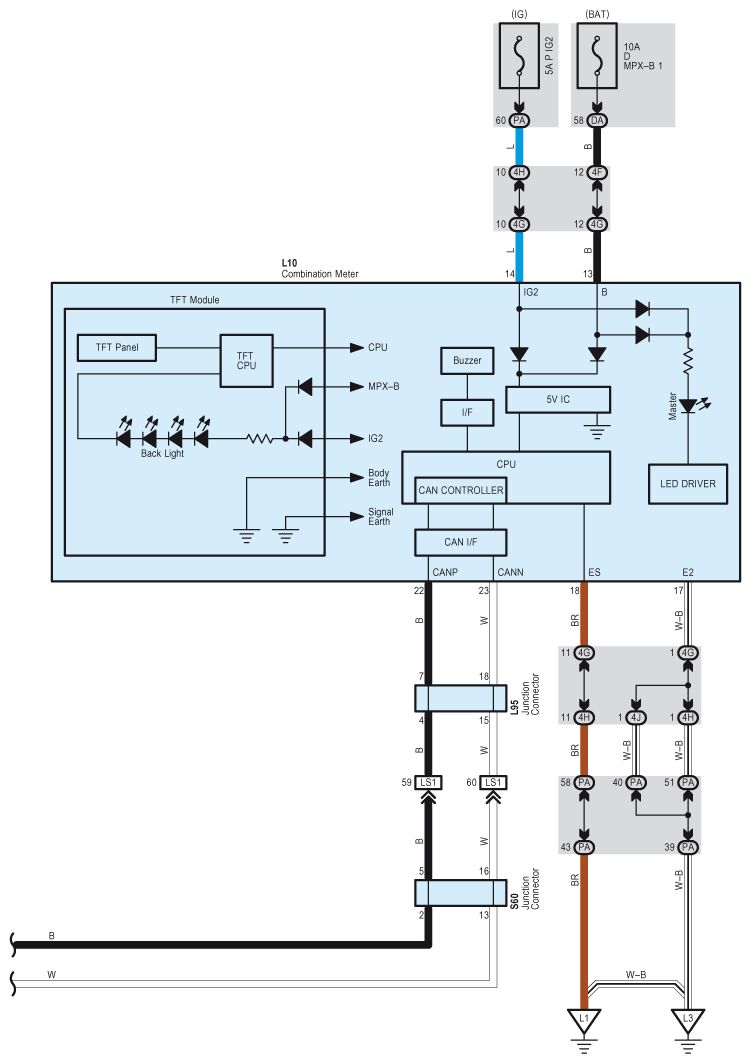

Fig 3: Stop Light - Circuit Diagram (3 Of 3)
G07598199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
