Control Units

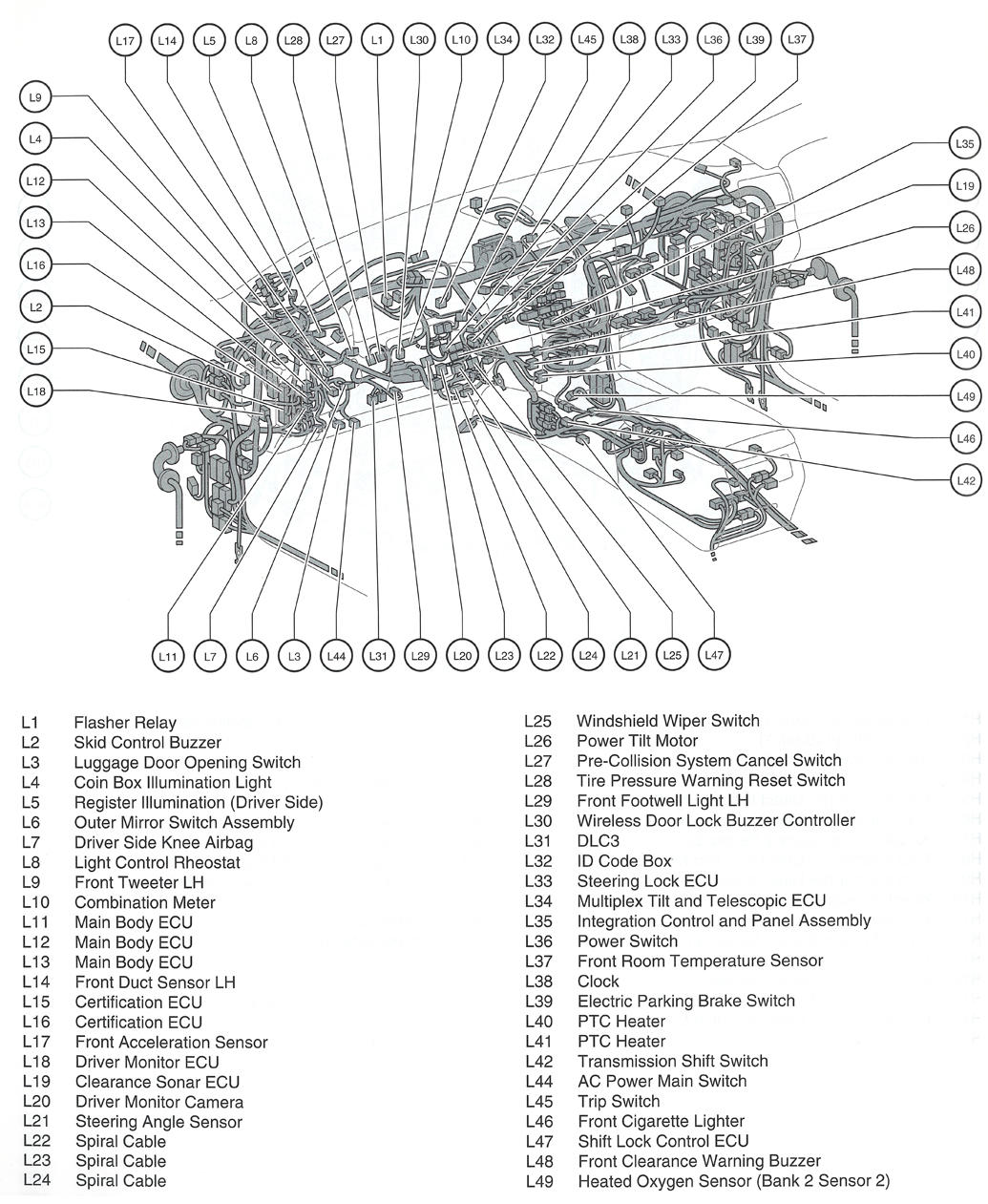

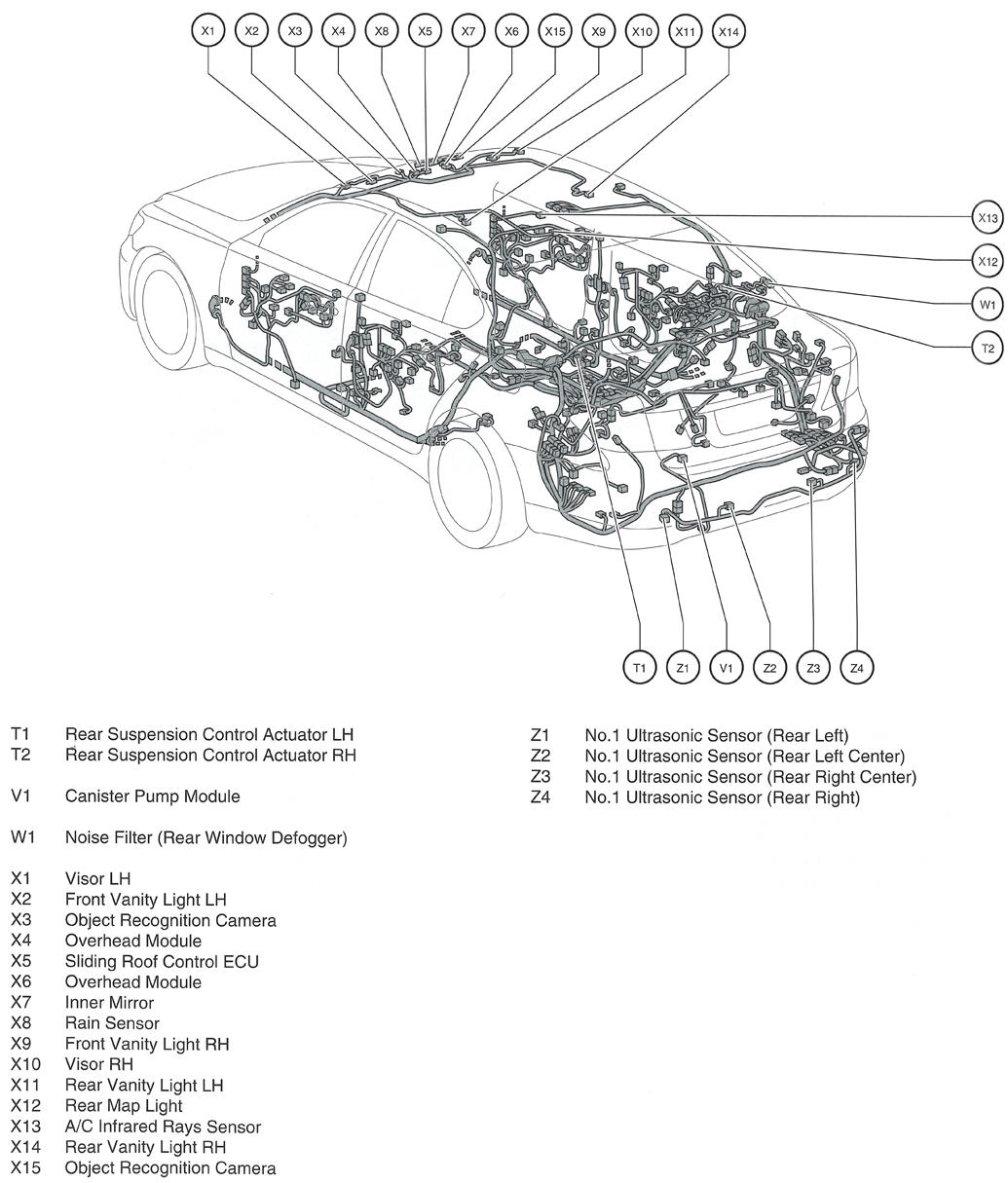

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| AFS ECU | Behind right kick panel. See Figure. |
| Air Suspension Control ECU | Behind right end of dash. See Figure. |
| Bus Buffer ECU | Behind right end of dash. See Figure. |
| Canister Pump Module | Under left rear of vehicle. See Figure. |
| Center Airbag ECU | Under rear of center floor console. See Figure. |
| Certification ECU | Behind left end of dash. See Figure. |
| Clearance Sonar ECU | Behind right end of dash. See Figure. |
| Door Control Receiver | Right rear corner of luggage compartment. See Figure. |
| Driver Monitor ECU | Behind left end of dash. See Figure. |
| Driving Support ECU | Behind left kick panel. See Figure. |
| Electric Power Control ECU | Behind right end of dash. See Figure. |
| Engine Control Module | Left front of engine compartment. See Figure. |
| Fan Control ECU | Center front of engine compartment. See Figure. |
| Front Controller | Right front of engine compartment. See Figure. |
| Front Door Control ECU LH | Inside left front door. See Figure. |
| Front Door Control ECU RH | Inside right front door. See Figure. |
| Front Power Seat Control ECU & Switch LH | Under left side of driver's seat. See Figure. |
| Front Power Seat Control ECU & Switch RH | Under right side of front passenger's seat. See Figure. |
| Front Seat Climate Control ECU LH | Under front of driver's seat. See Figure. |
| Front Seat Climate Control ECU RH | Under front passenger's seat. See Figure. |
| Front Seat Climate Controller LH (Seat Back) | In left front seat back. See Figure. |
| Front Seat Climate Controller RH (Seat Back) | In right front seat back. See Figure. |
| Injector Driver (Bank 1) | Center rear of engine compartment. See Figure. |
| Injector Driver (Bank 2) | Center rear of engine compartment. See Figure. |
| Main Body ECU | Behind left end of dash. See Figure. |
| Mayday ECU | Right front of luggage compartment. See Figure. |
| Multiplex Tilt & Telescopic ECU | On steering column. See Figure. |
| Navigation ECU | Behind right end of dash. See Figure. |
| Object Recognition ECU | Right side of luggage compartment. See Figure. |
| Occupant Detection ECU | Under front passenger's seat. See Figure. |
| Overhead Module | In roof console. See Figure. |
| Parking Assist ECU | Behind right end of dash. See Figure. |
| Parking Brake ECU | Left side of luggage compartment. See Figure. |
| Power Steering ECU | Right side of engine compartment. See Figure. |
| Power Trunk Lid Control ECU | Left side of luggage compartment. See Figure. |
| Rear Door Control ECU LH | Inside left rear door. See Figure. |
| Rear Door Control ECU RH | Inside right rear door. See Figure. |
| Rear Junction Block ECU | Left side of luggage compartment. See Figure. |
| Rear Power Seat Control ECU LH | In left rear seat back. See Figure. |
| Rear Power Seat Control ECU RH | In right rear seat back. See Figure. |
| Rear Seat Climate Control ECU LH | In left rear seat back. See Figure. |
| Rear Seat Climate Control ECU RH | In right rear seat back. See Figure. |
| Rear Seat Climate Controller LH (Seat Back) | In left rear seat back. See Figure. |
| Rear Seat Climate Controller LH (Seat Cushion) | In left rear seat cushion. See Figure. |
| Rear Seat Climate Controller RH (Seat Back) | In right rear seat back. See Figure. |
| Rear Seat Climate Controller RH (Seat Cushion) | In right rear seat cushion. See Figure. |
| Rear Seat Entertainment ECU | Right rear corner of luggage compartment. See Figure. |
| Seat Belt Control ECU | Left side of luggage compartment. See Figure. |
| Seat Vibration ECU | Left side of luggage compartment. See Figure. |
| Shift Lock Control ECU | Below shift lever, in center console. See Figure. |
| Skid Control ECU | Left rear of engine compartment. See Figure. |
| Sliding Roof ECU | In roof console. See Figure. |
| Steering Control ECU | Behind right side of dash. See Figure. |
| Steering Lock ECU | On steering column. See Figure. |
| Tire Pressure Warning ECU | Behind right end of dash. See Figure. |
| Transmission Control Module | Left side of engine compartment. See Figure. |
| Wireless Door Lock Buzzer Controller | Behind left side of dash. See Figure. |
