Fuel Pump: Components

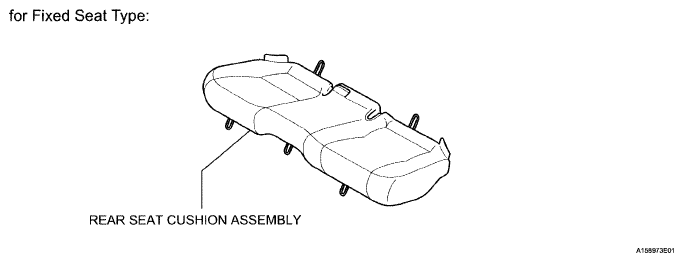

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 5)
G04947937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

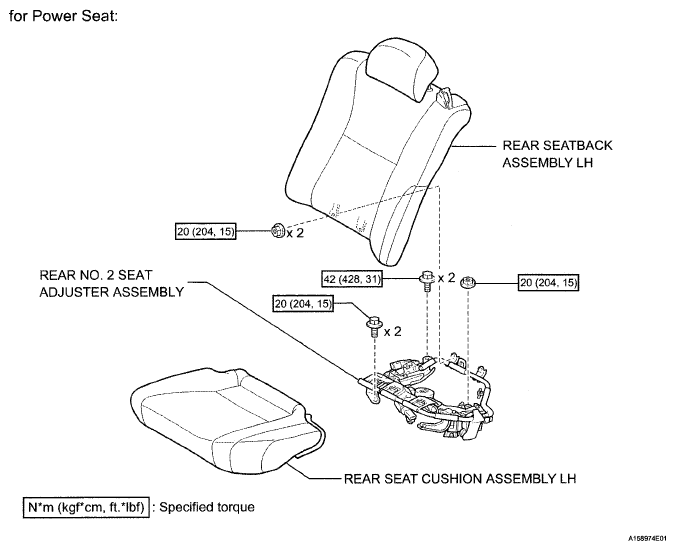

Fig 2: Identifying Fuel Pump Replacement Components With Torque Specifications (2 Of 5)
G04947938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Fuel Pump Replacement Components With Torque Specifications (3 Of 5)
G04947939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

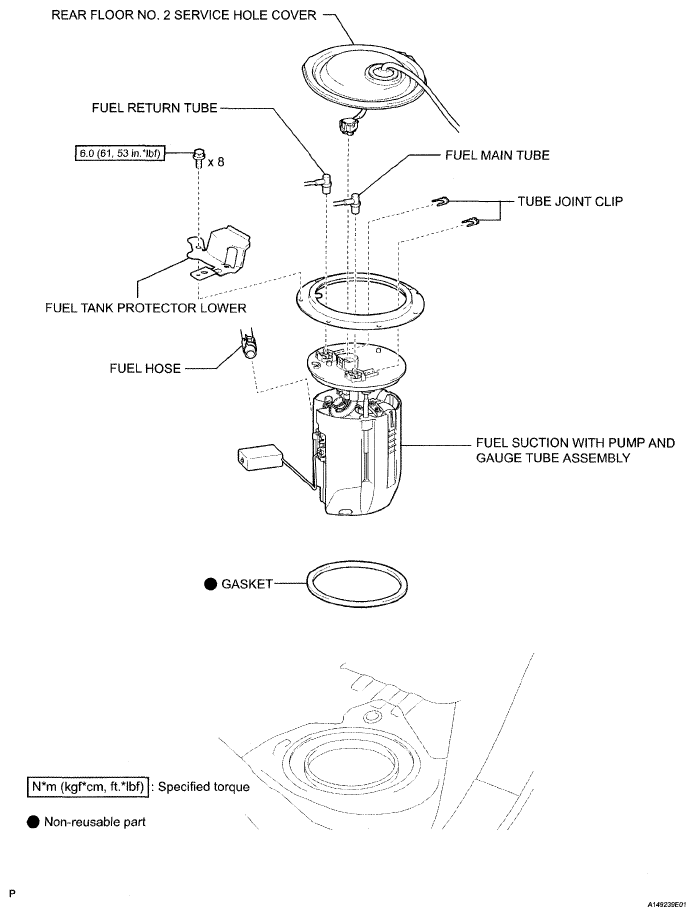

Fig 4: Identifying Fuel Pump Replacement Components With Torque Specification (4 Of 5)
G04947940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

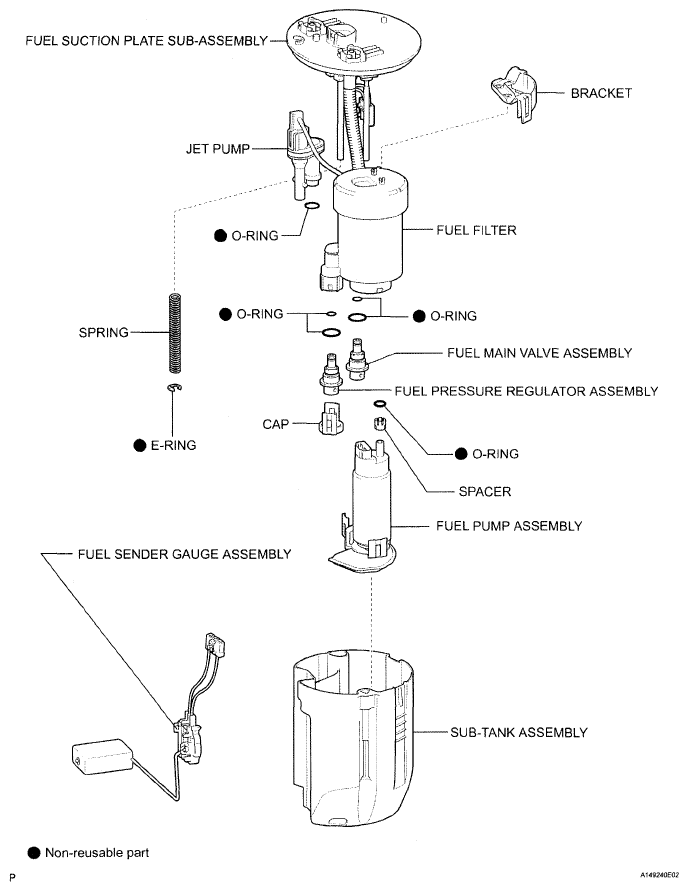

Fig 5: Identifying Fuel Pump (5 Of 5)
G05854143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
