Fuel Tank: Components

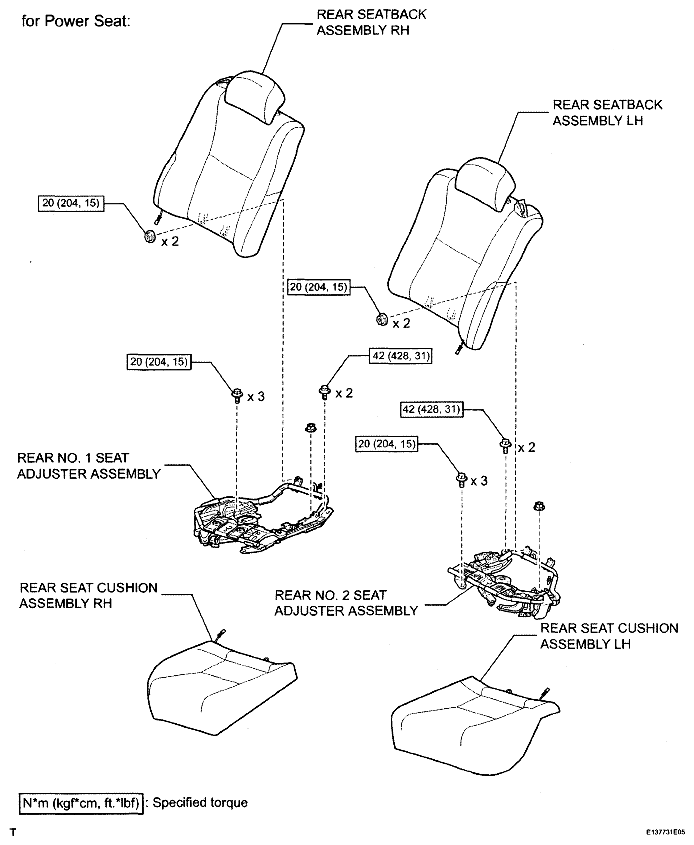

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 7)
G04948081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

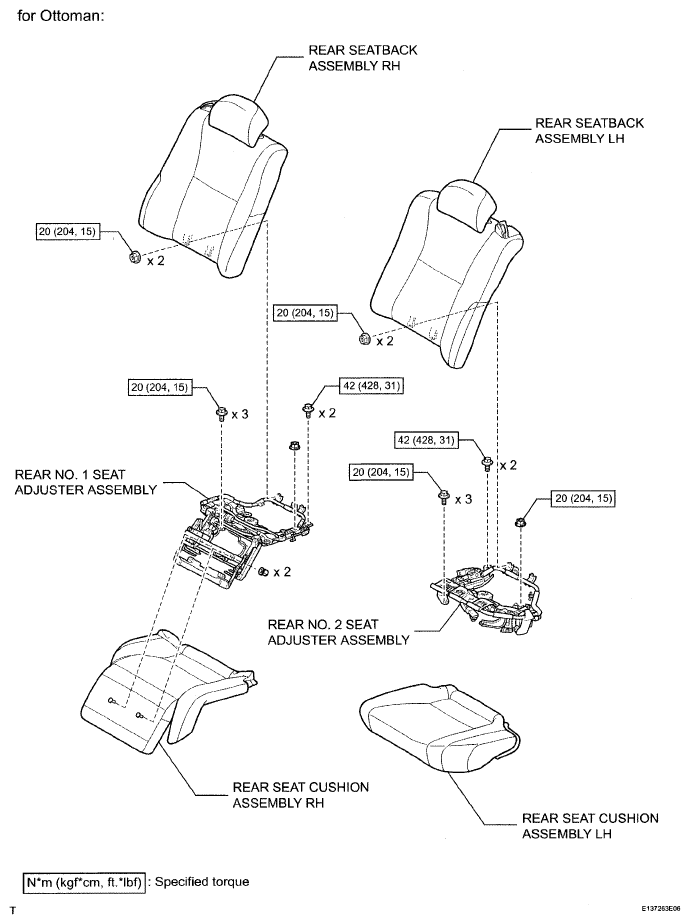

Fig 2: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 7)
G04948082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

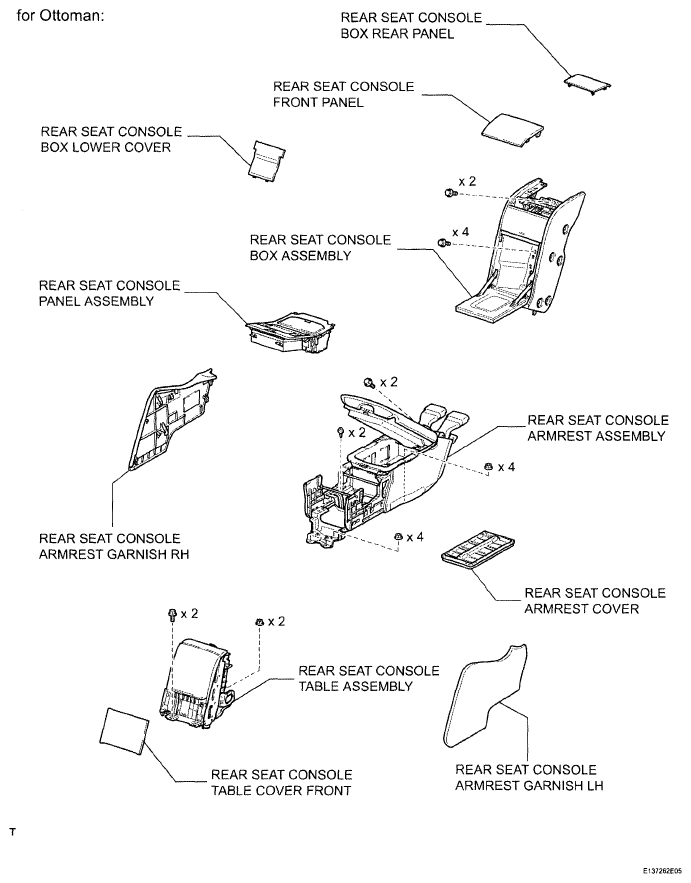

Fig 3: Identifying Fuel Tank Replacement Components (3 Of 7)
G05854204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Fuel Tank Replacement Components (4 Of 7)
G04947937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

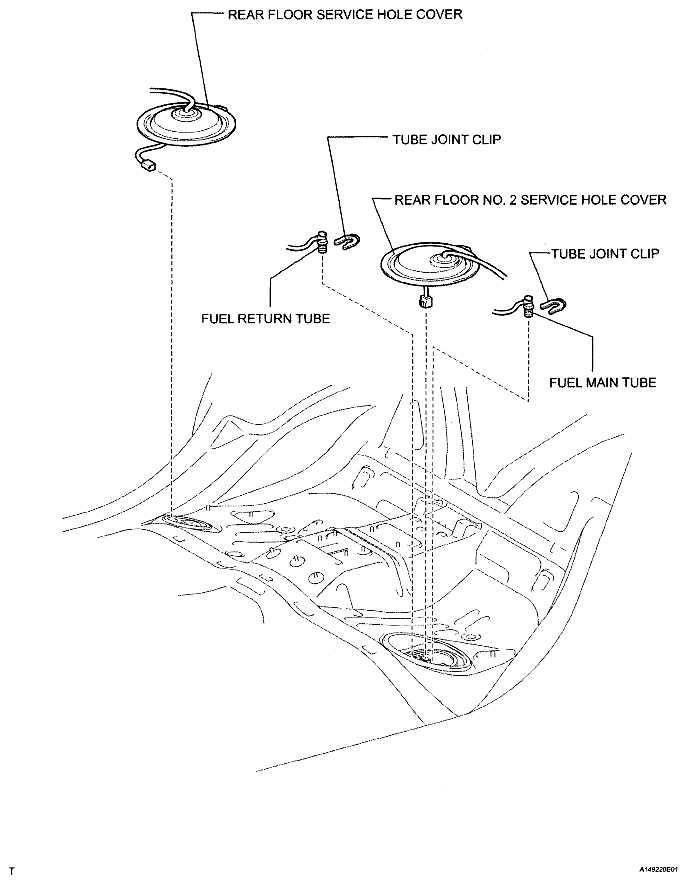

Fig 5: Identifying Fuel Tank Replacement Components (5 Of 7)
G04948085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

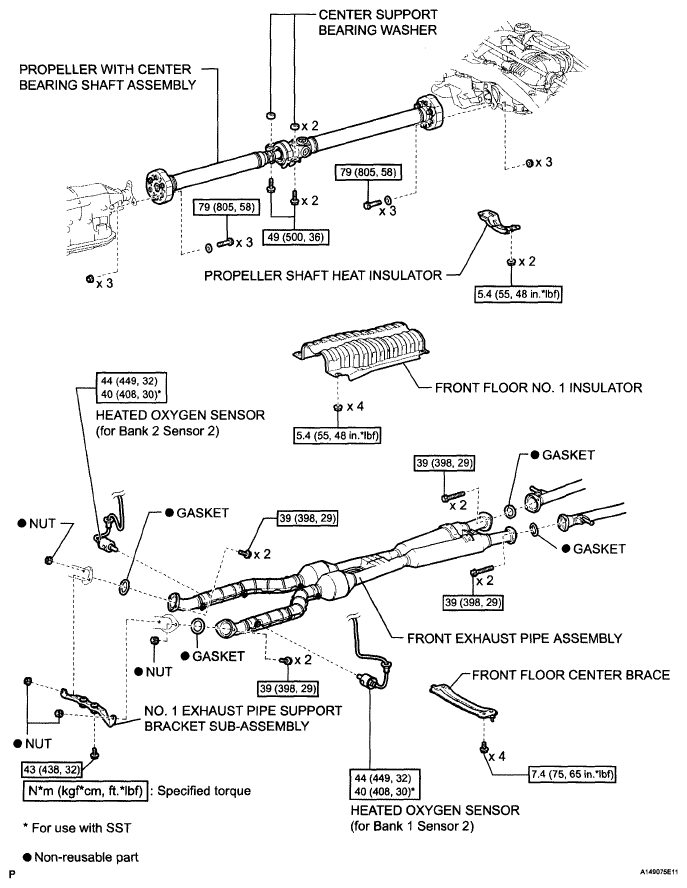

Fig 6: Identifying Fuel Tank Replacement Components With Torque Specifications (6 Of 7)
G05854207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

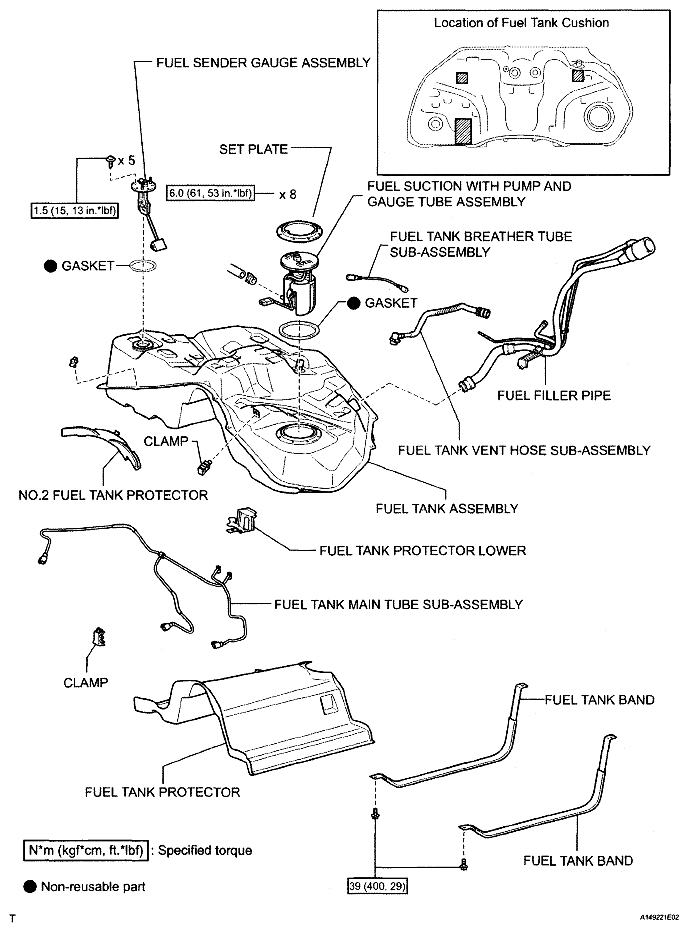

Fig 7: Identifying Fuel Tank Replacement Components With Torque Specifications (7 Of 7)
G04948087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
