Injector Driver: Components

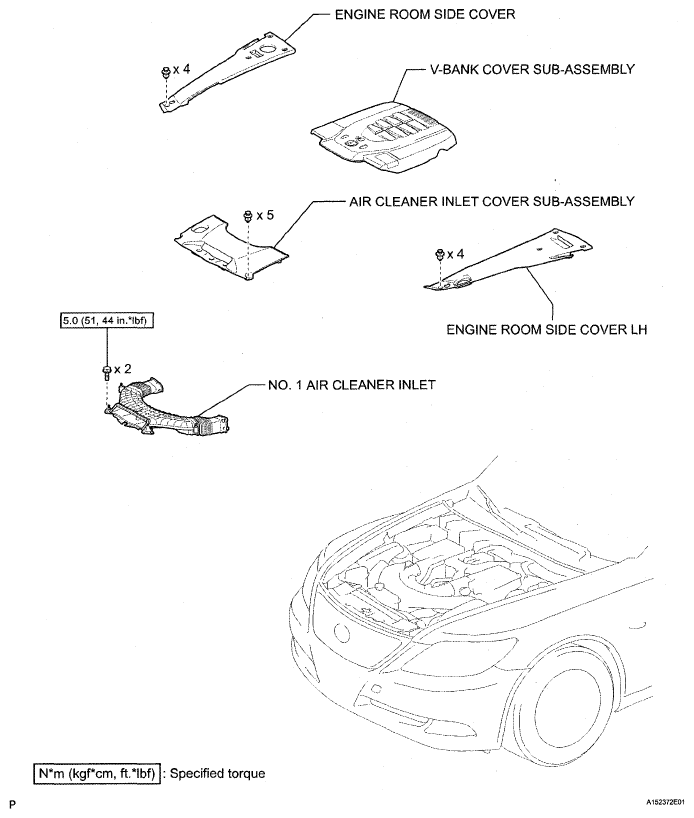

Fig 1: Identifying Injector Driver Replacement Components With Torque Specification (1 Of 4)
G04943727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

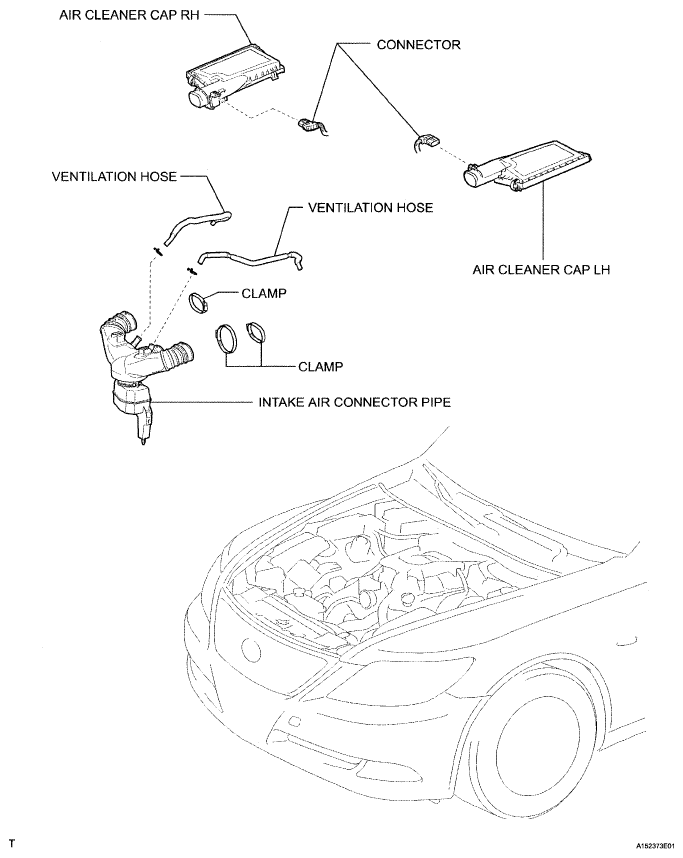

Fig 2: Identifying Injector Driver Replacement Components (2 Of 4)
G04943728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

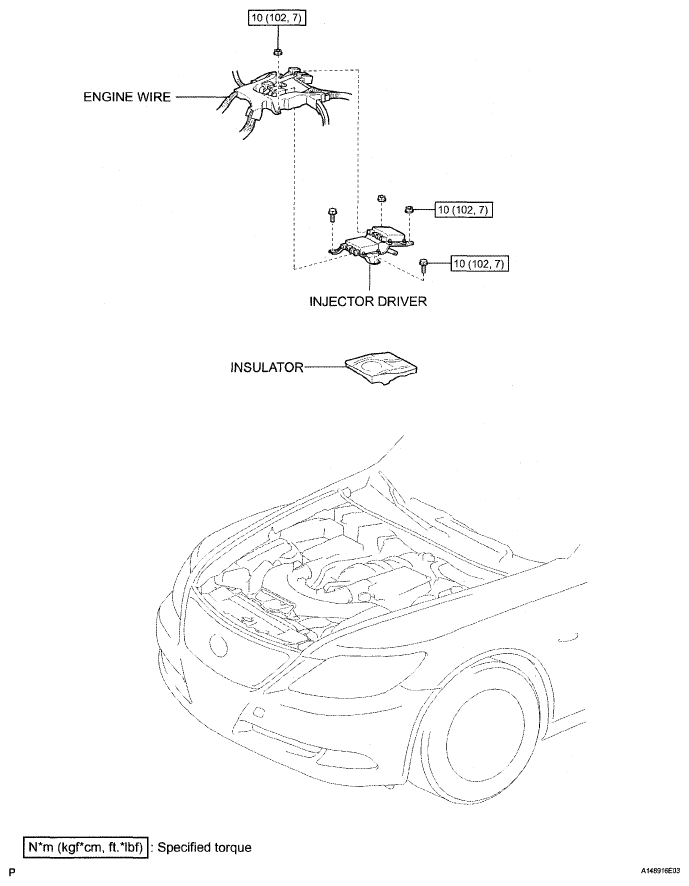

Fig 3: Injector Driver With Torque Specifications (3 Of 4)
G04948012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

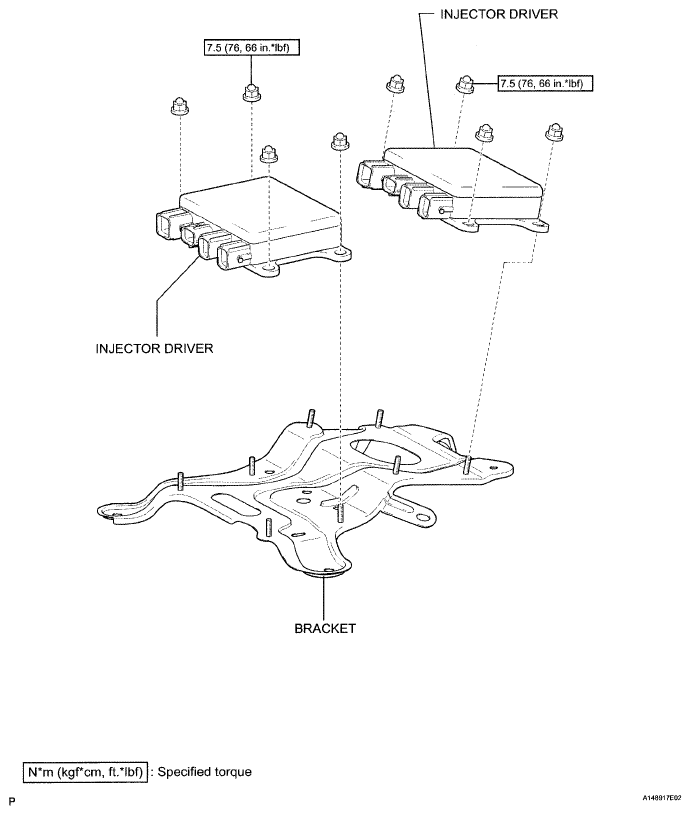

Fig 4: Injector Driver With Torque Specifications (4 Of 4)
G04948013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
