Oil Level Sensor: Installation

INSTALL ENGINE OIL LEVEL SENSOR
1. Install a new gasket to the engine oil level sensor.
2. Insert the engine oil level sensor into the oil pan and rotate it 180°.

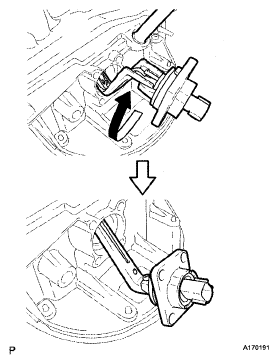

  Fig 1: Installing Engine Oil Level Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the engine oil level sensor with the 4 bolts.
  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  Fig 2: Locating Engine Oil Level Sensor With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the engine oil level sensor connector.
INSTALL CRANK POSITION SENSOR BRACKET
1. Install the crank position sensor bracket with the bolt.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Fig 3: Locating Crank Position Sensor Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the harness clamp.
CONNECT OIL COOLER TUBE
1. Connect the No. 1 oil cooler inlet tube and No. 1 oil cooler outlet tube by installing the 2 clamps with the 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Fig 4: Locating No. 1 Oil Cooler Outlet Tube Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD ENGINE OIL (See REPLACEMENT )
INSPECT FOR ENGINE OIL LEAK (See INSTALLATION )
CHECK ENGINE OIL LEVEL (See ON-VEHICLE INSPECTION )
INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER (See INSTALLATION )
INSTALL NO. 2 ENGINE UNDER COVER (See INSTALLATION )
INSTALL NO. 1 ENGINE UNDER COVER (See REPLACEMENT )
