FUEL PUMP (for High Pressure): Components

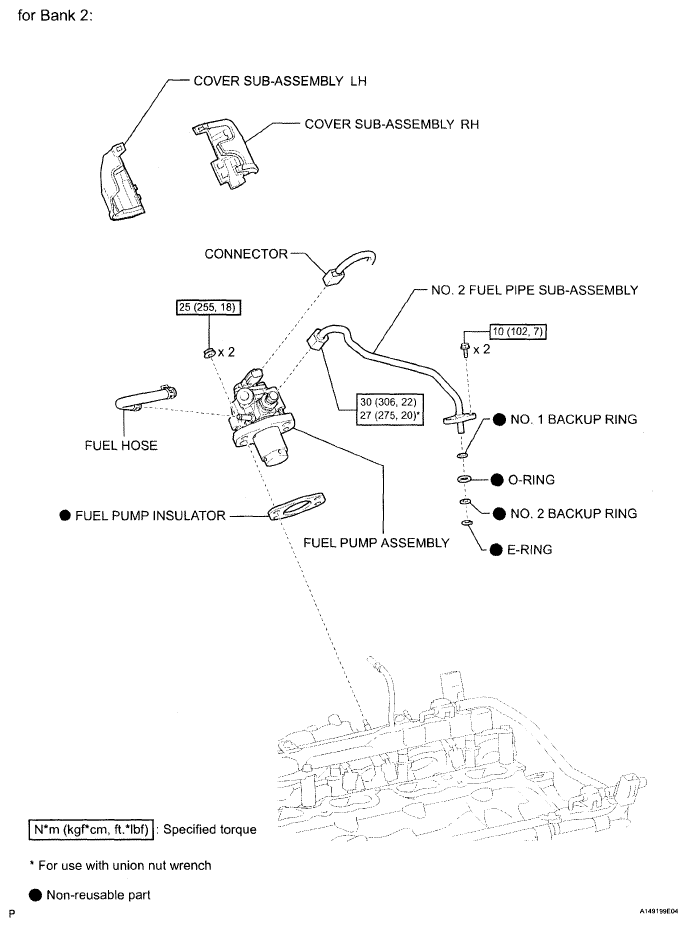

Fig 1: Identifying Fuel Pump (High Pressure) Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

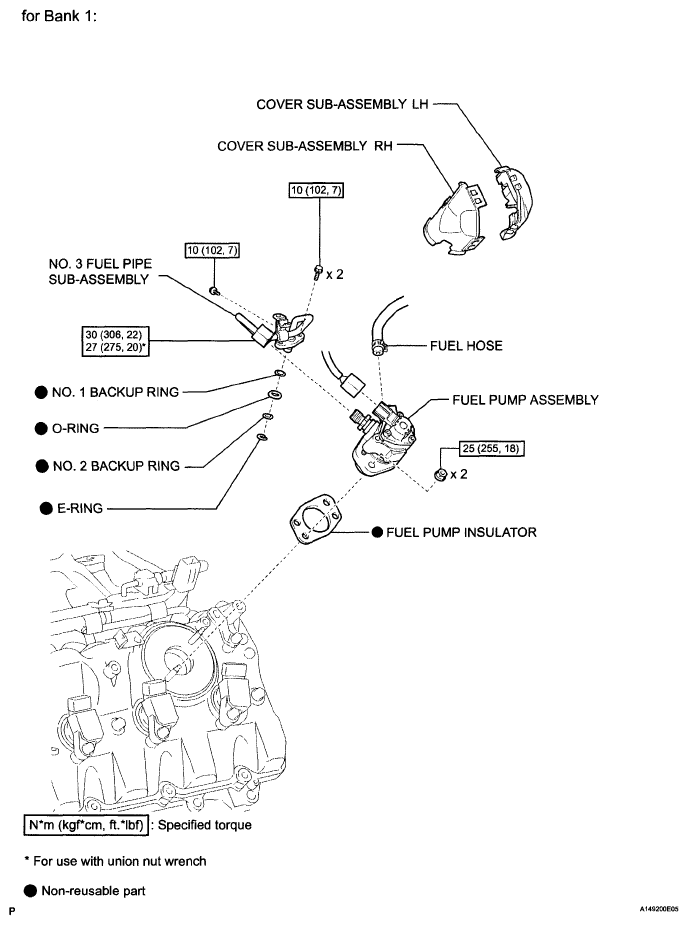

Fig 2: Identifying Fuel Pump (High Pressure) Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Fuel Pump (High Pressure) Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Fuel Pressure Pulsation Damper With Torque Specifications (4 Of 4)

Fig 5: Fuel Pump (High Pressure) Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Fuel Pump (High Pressure) Replacement Components With Torque Specifications (6 Of 6)
