Lexus
>>
2008
>>
LS 460L
>>
Repair and Diagnosis
>>
Engine Performance
>>
Tune-Up
>>
Ignition
>>
Ignition System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

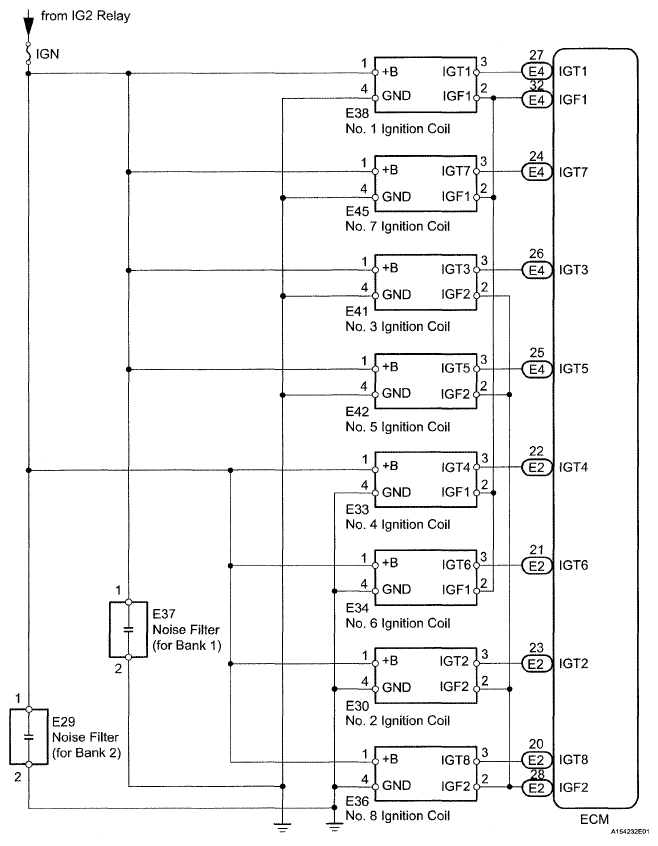

Fig 1: Ignition System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
