Automatic Transmission Assembly: Components

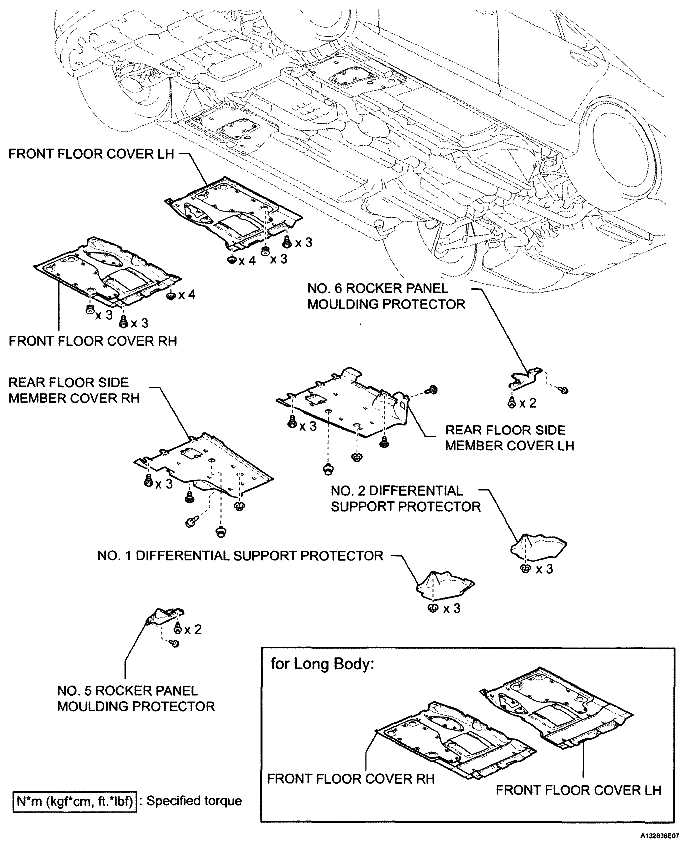

Fig 1: Automatic Transmission Replacement Components With Torque Specifications (1 Of 6)
G04948394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

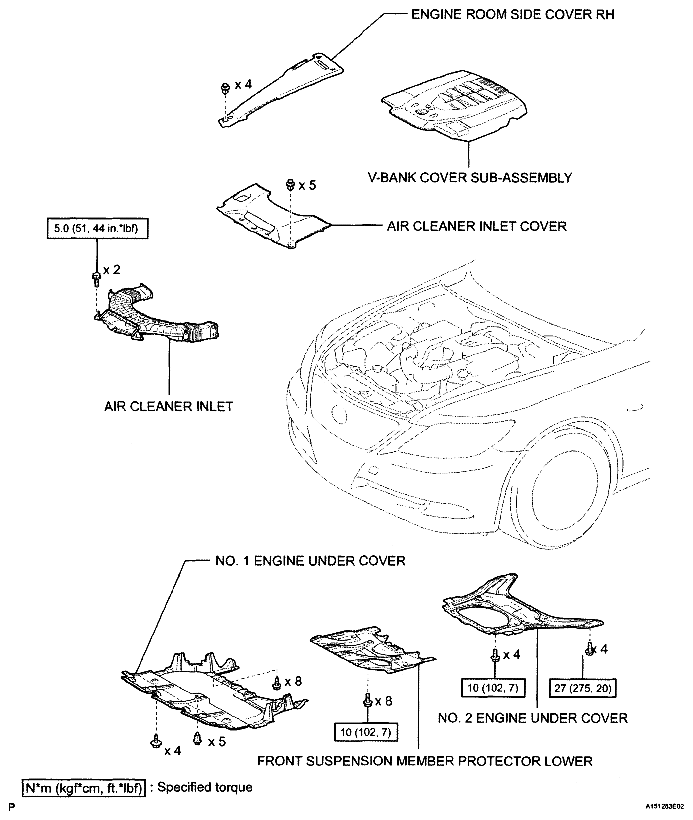

Fig 2: Automatic Transmission Replacement Components With Torque Specifications (2 Of 6)
G04948548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

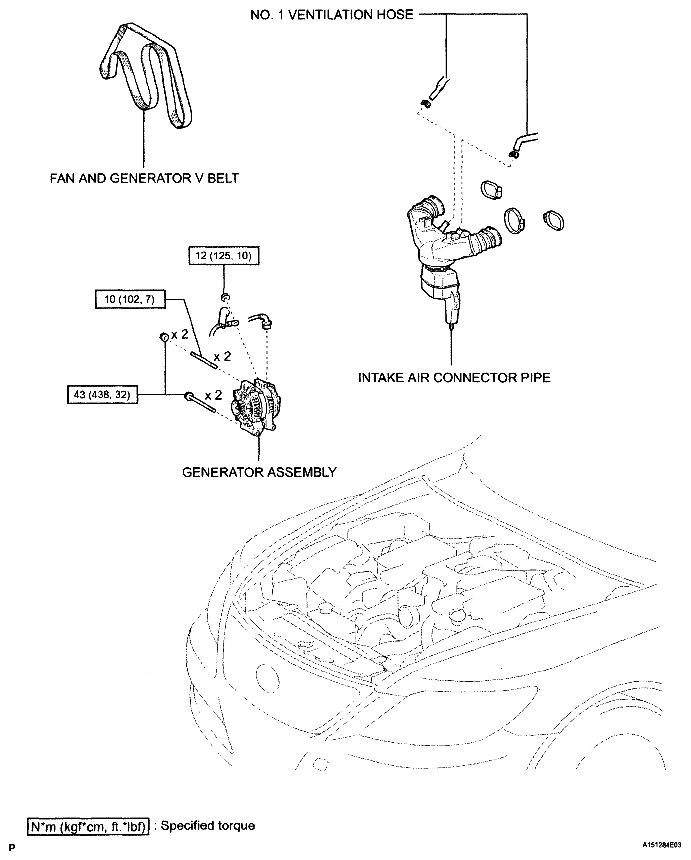

Fig 3: Automatic Transmission Replacement Components With Torque Specifications (3 Of 6)
G04948549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

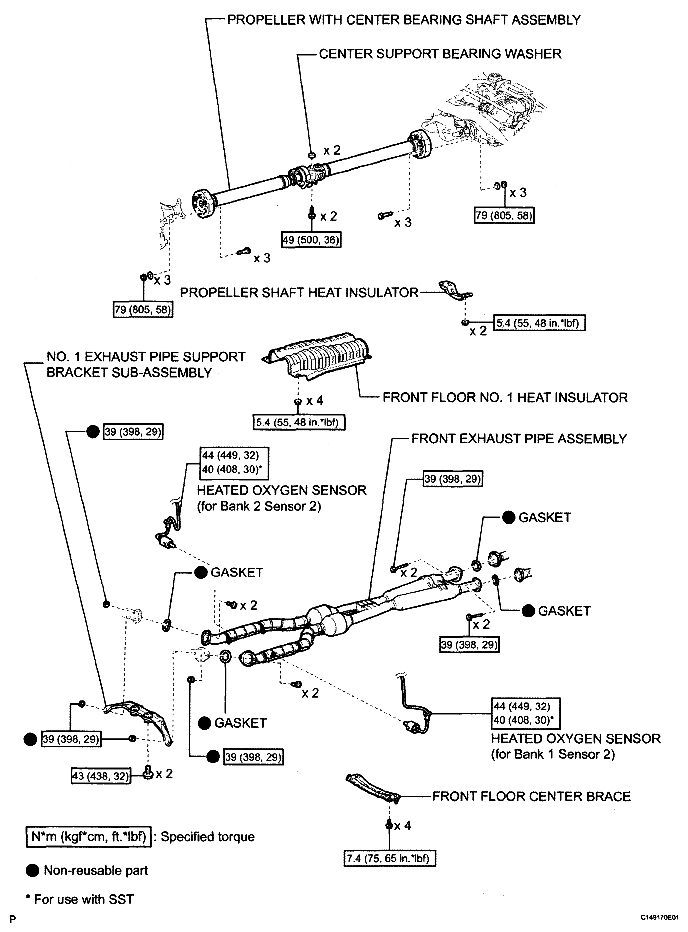

Fig 4: Automatic Transmission Replacement Components With Torque Specifications (4 Of 6)
G04948550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Automatic Transmission Replacement Components With Torque Specifications (5 Of 6)
G04948551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

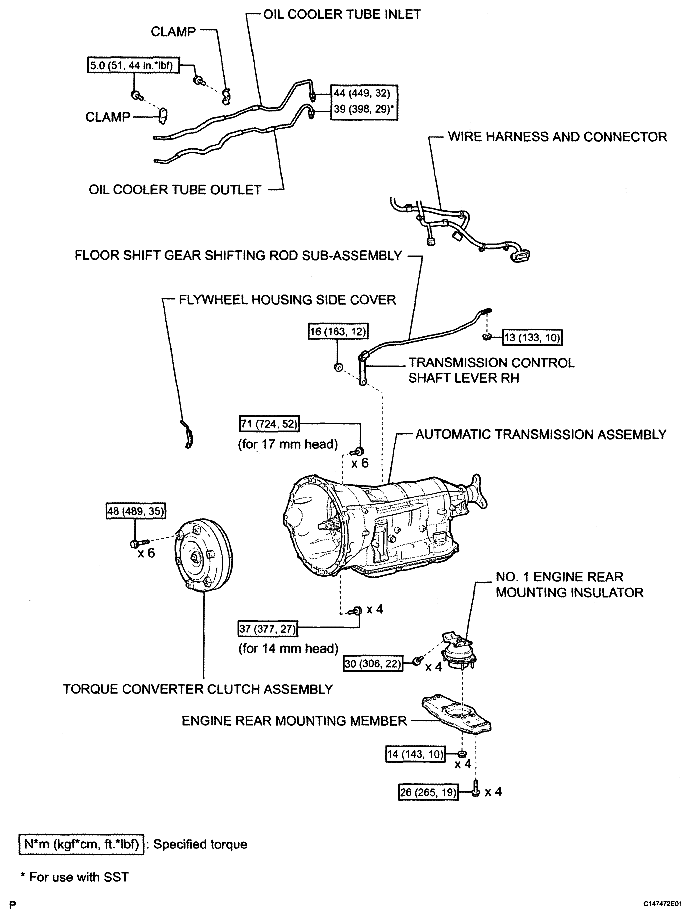

Fig 6: Automatic Transmission Replacement Components With Torque Specifications (6 Of 6)
G04948552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
