Floor Shift Assembly: Components

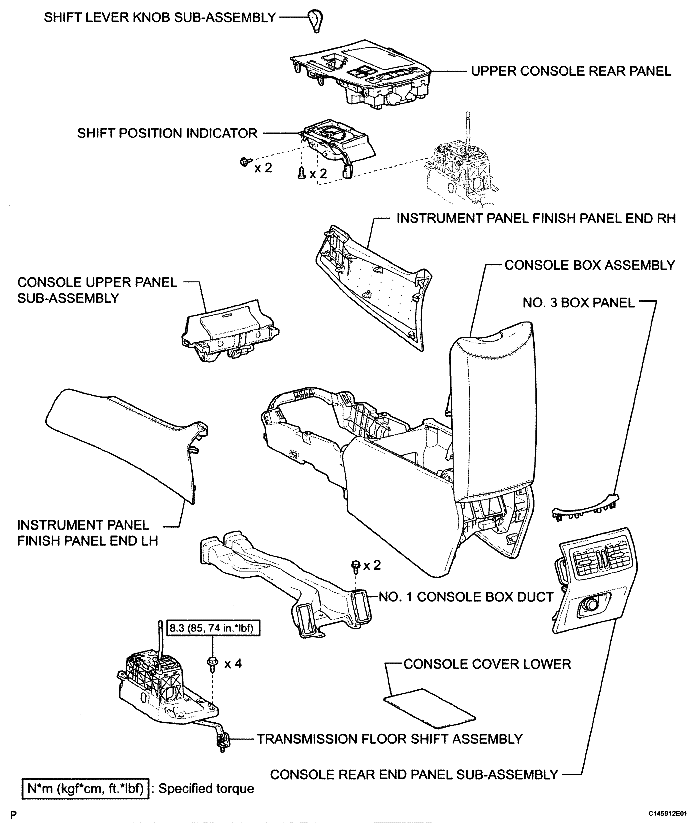

Fig 1: Floor Shift Replacement Components With Torque Specifications (1 Of 2)
G04948526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

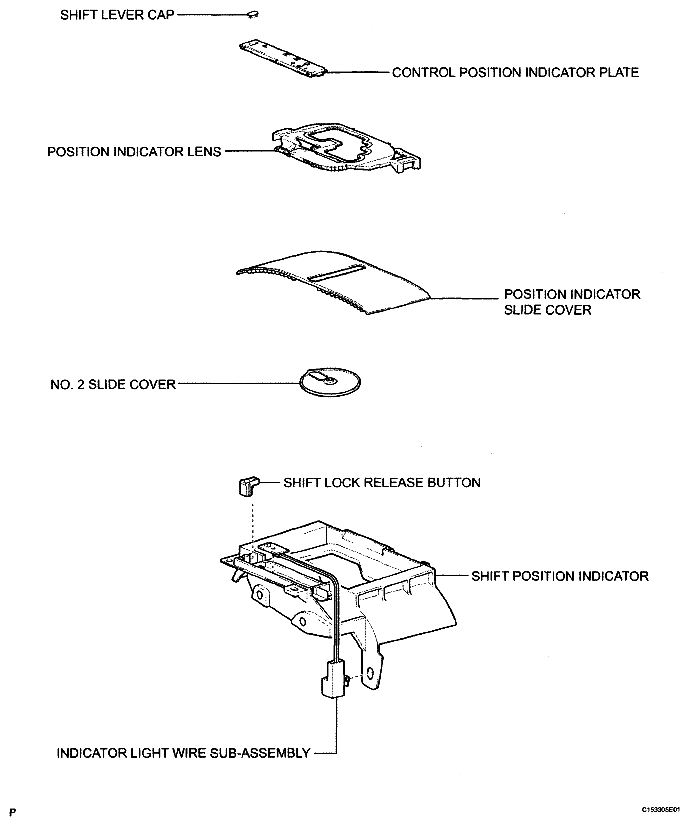

Fig 2: Identifying Floor Shift Components (2 Of 2)
G04948527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
