Valve Body Assembly: Components

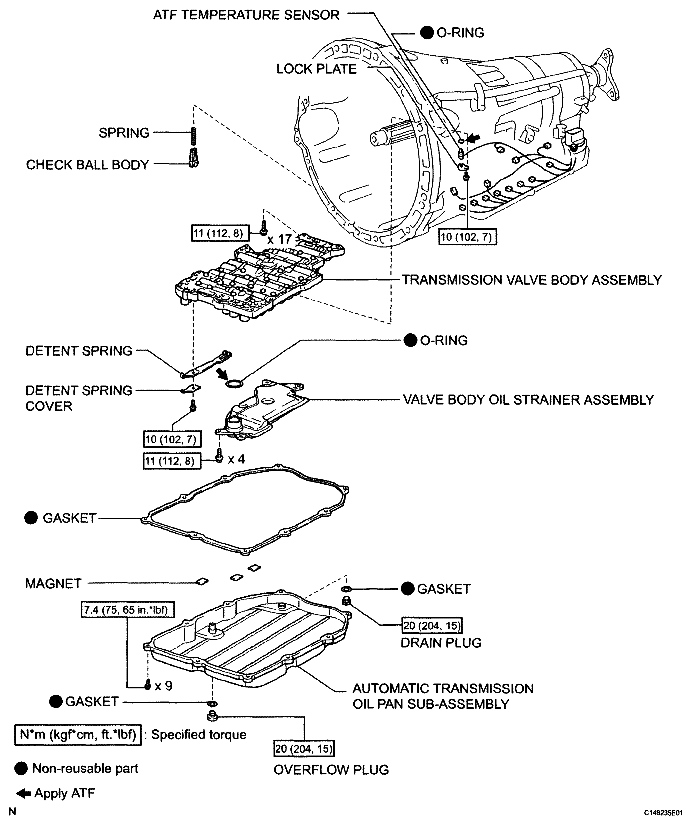

Fig 1: Valve Body And Replacement Components With Torque Specifications (1 Of 2)
G04948471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

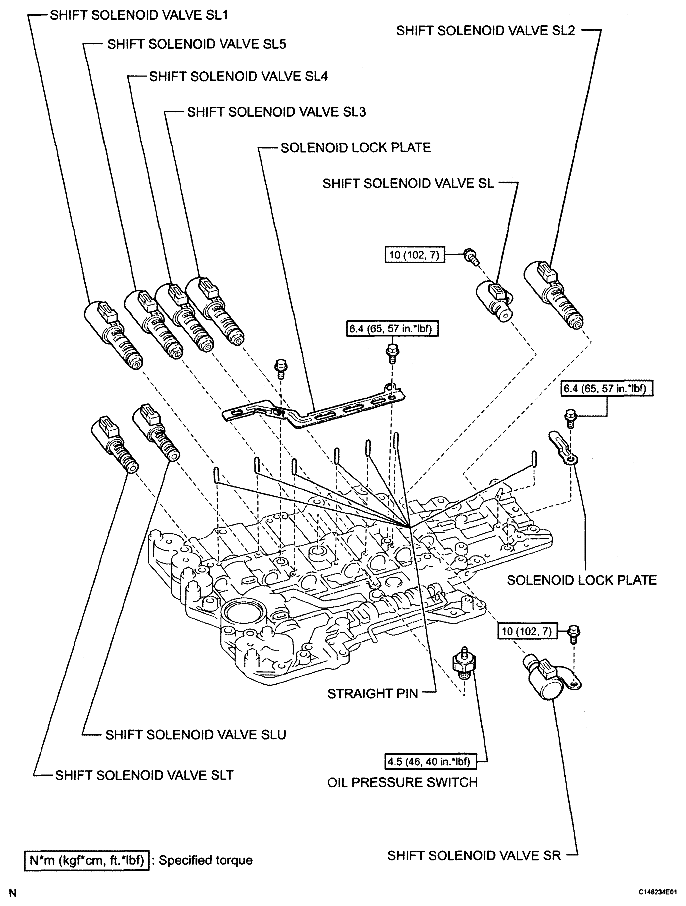

Fig 2: Valve Body And Replacement Components With Torque Specifications (2 Of 2)
G04948472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
