Back Window Glass: Components

Fig 1: Identifying Back Window Glass Components (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

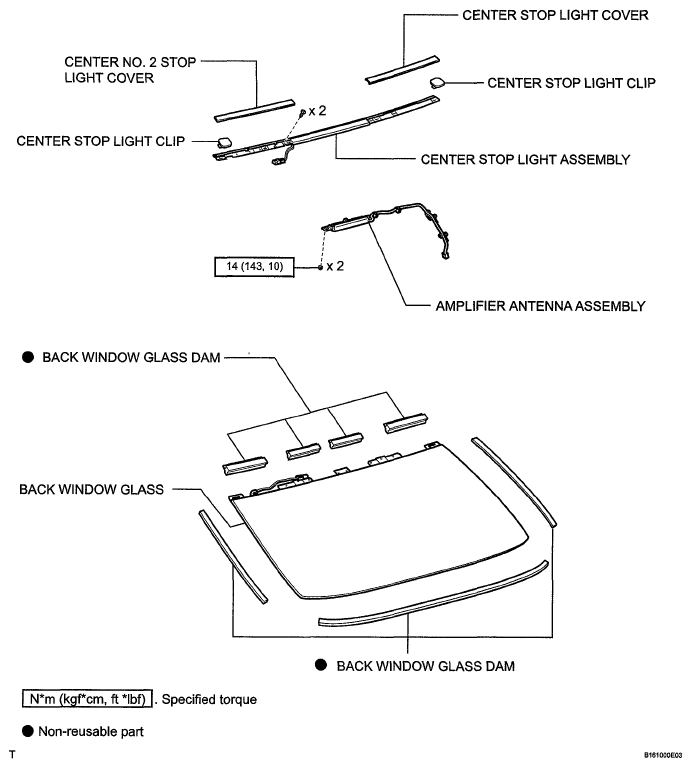

Fig 2: Back Window Glass Replacement Components With Torque Specifications (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Back Window Glass Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Back Window Glass Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Back Window Glass Replacement Components With Torque Specifications (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Back Window Glass Components (6 Of 9)

Fig 7: Identifying Back Window Glass Components (7 Of 9)

Fig 8: Identifying Back Window Glass Components (8 Of 9)

Fig 9: Identifying Back Window Glass Components (9 Of 9)
