Part Location

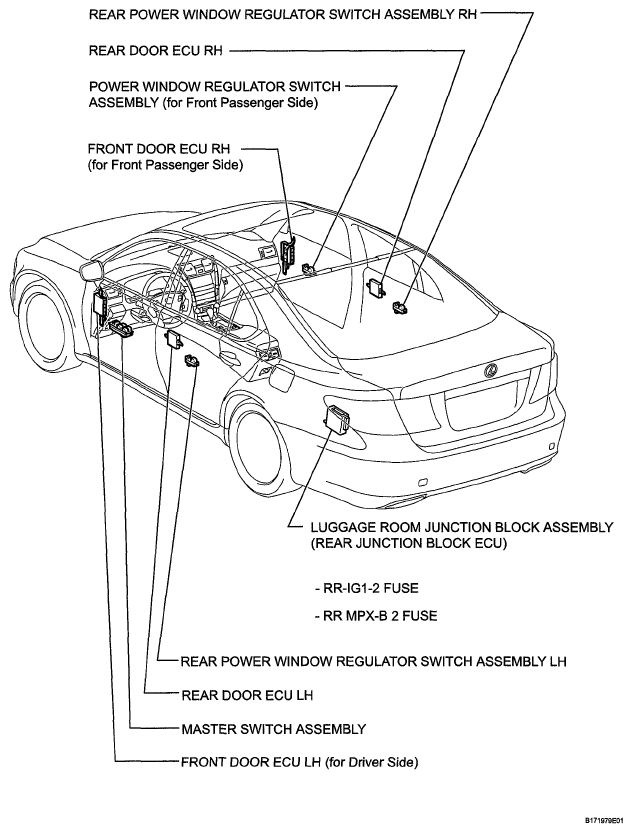

Fig 1: Identifying Power Window Control System Part Location (1 Of 4)
G05776601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

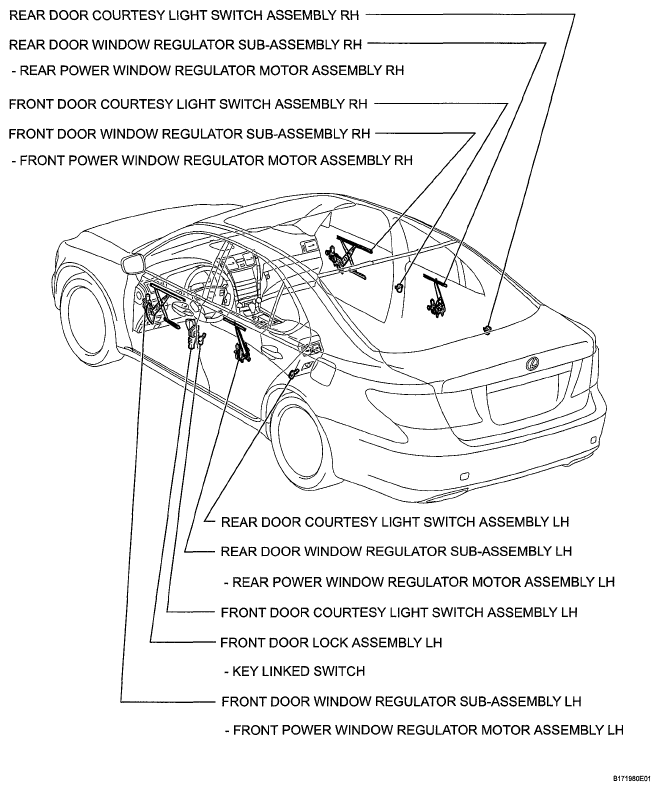

Fig 2: Identifying Power Window Control System Part Location (2 Of 4)
G05776602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

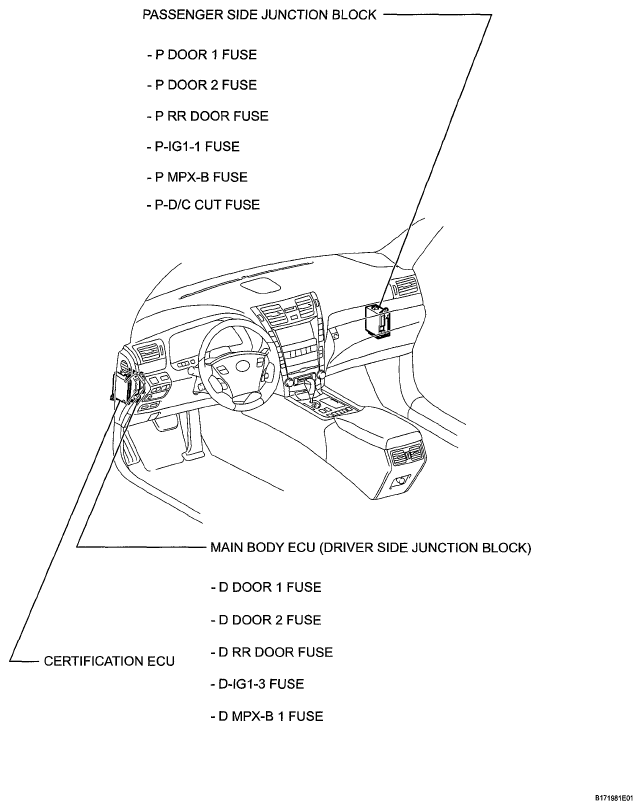

Fig 3: Identifying Power Window Control System Part Location (3 Of 4)
G05776603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

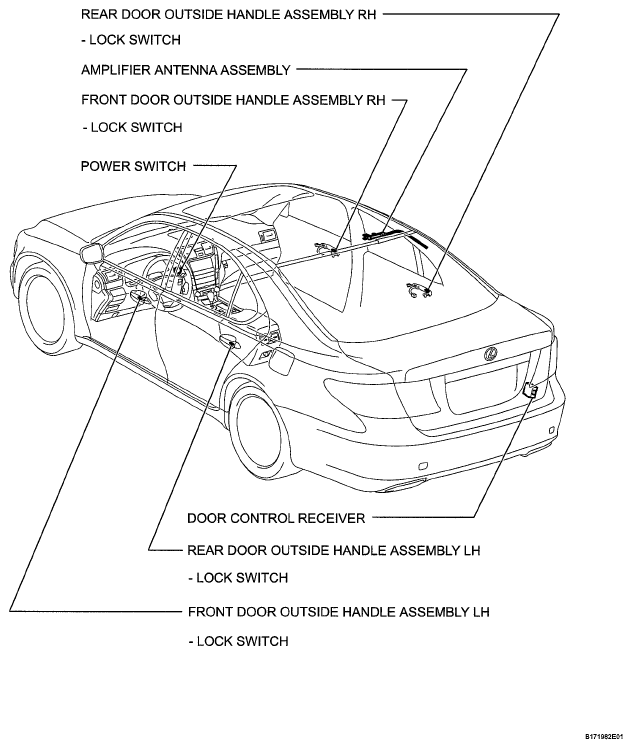

Fig 4: Identifying Power Window Control System Part Location (4 Of 4)
G05776604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
