Windshield Glass: Components

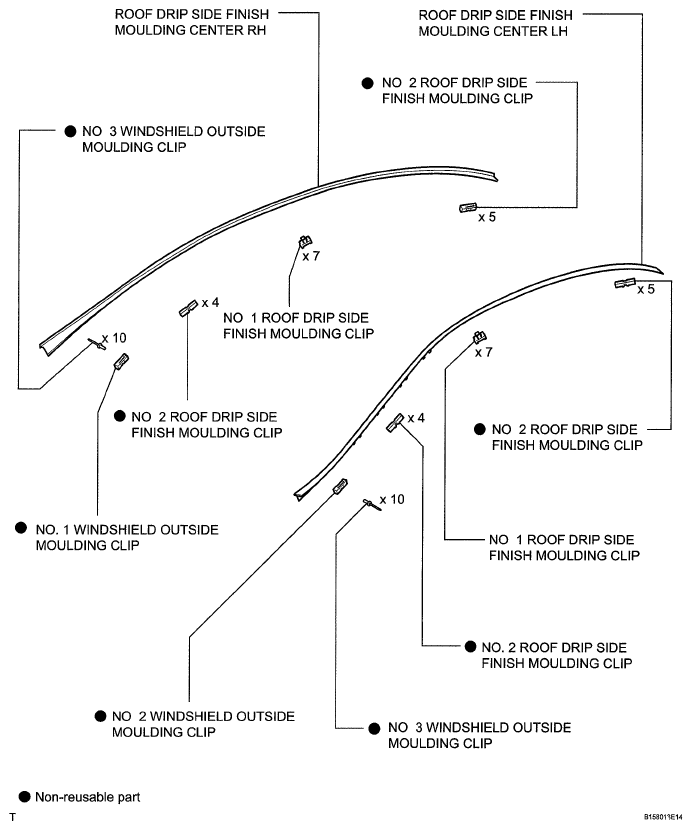

Fig 1: Identifying Windshield Glass Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

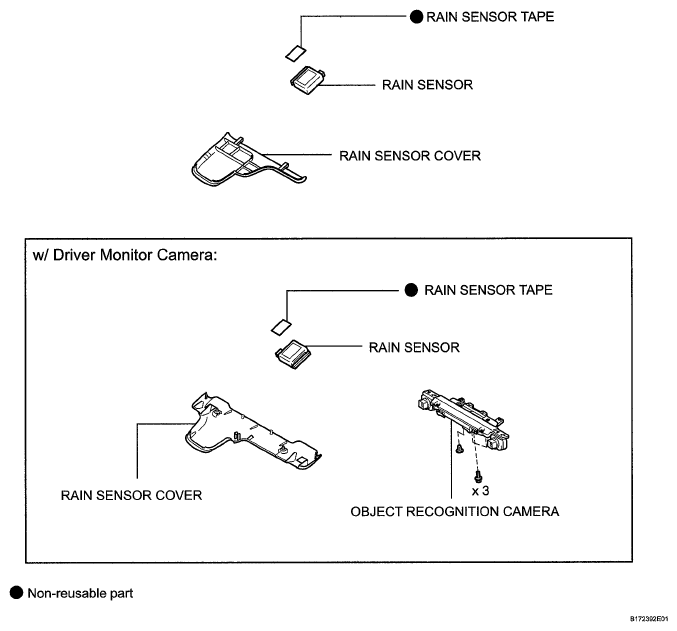

Fig 2: Identifying Windshield Glass Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Windshield Glass Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Windshield Glass Replacement Components With Torque Specifications (4 Of 6)

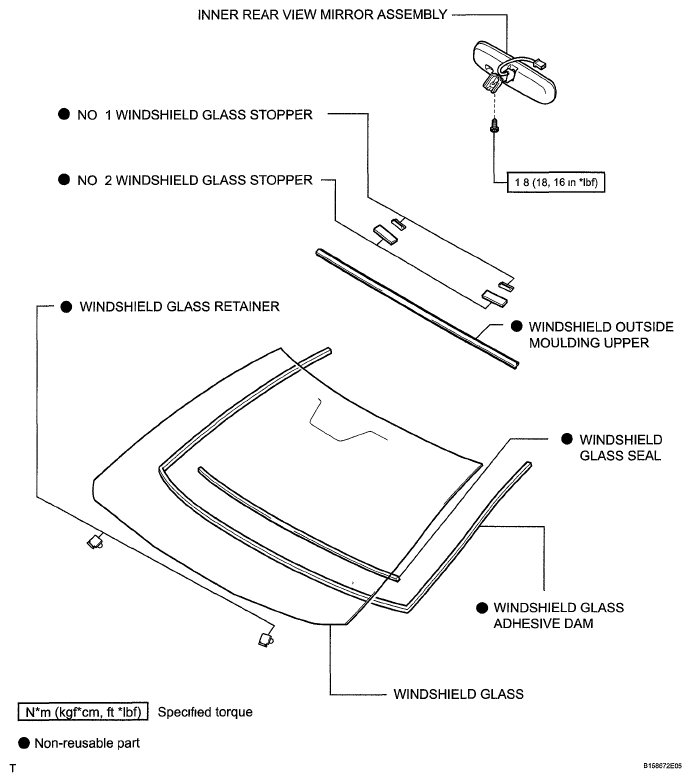

Fig 5: Windshield Glass Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Identifying Windshield Glass Components (6 Of 6)
