Brake Actuator: Components

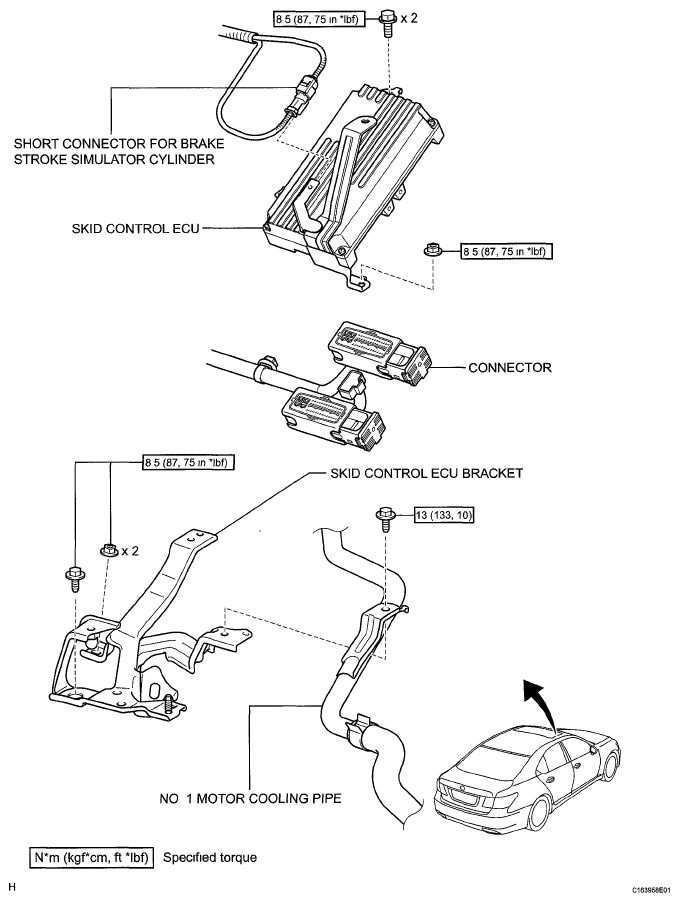

Fig 1: Identifying Brake Actuator Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

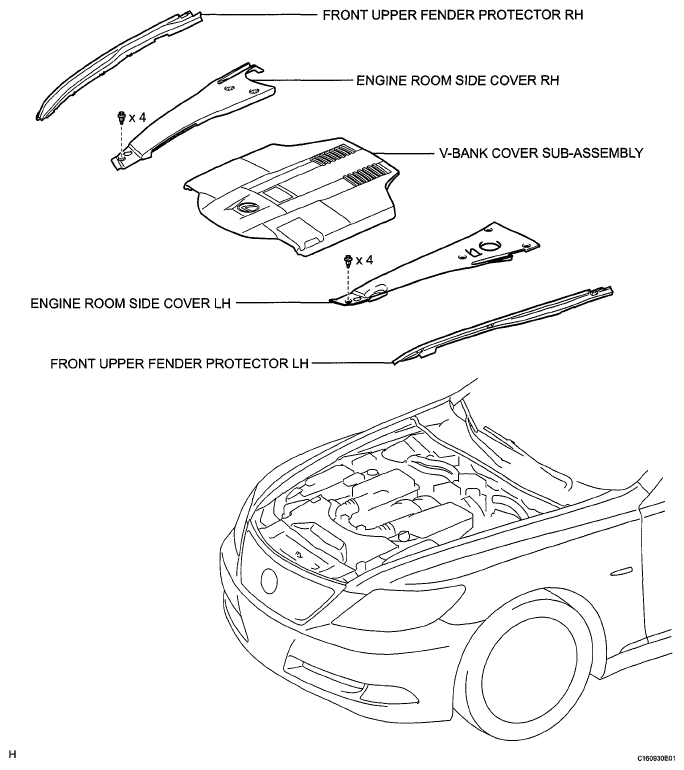

Fig 2: Identifying Brake Actuator Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

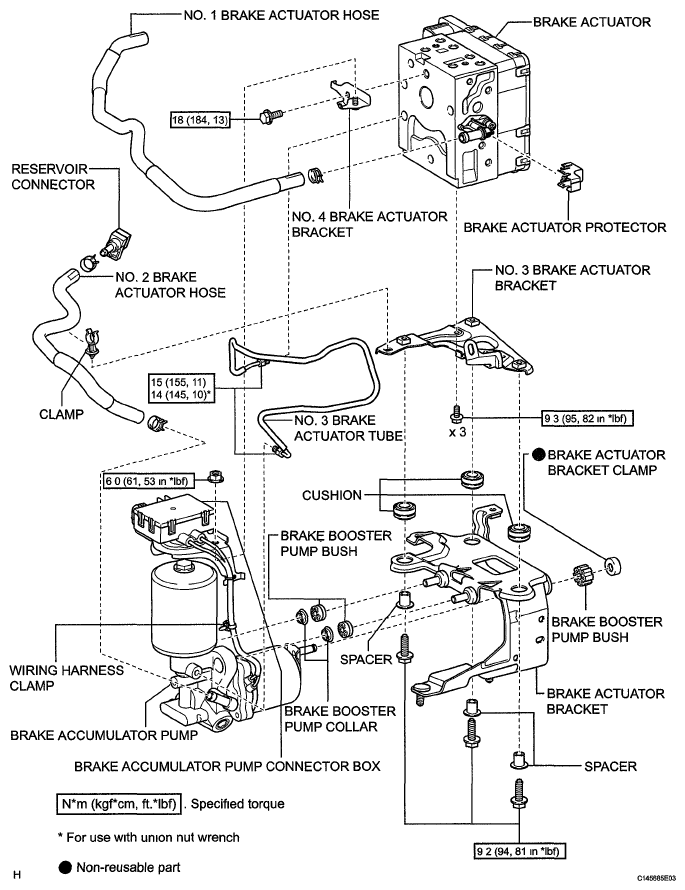

Fig 3: Brake Actuator Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

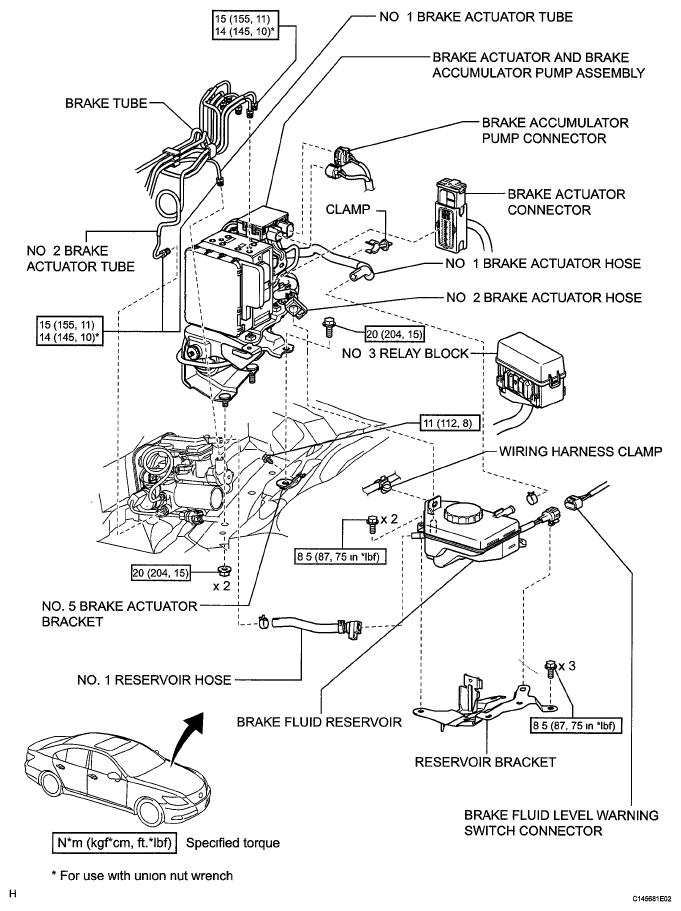

Fig 4: Brake Actuator Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Brake Actuator Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Brake Actuator Replacement Components With Torque Specifications (6 Of 6)
