Test Mode Procedure

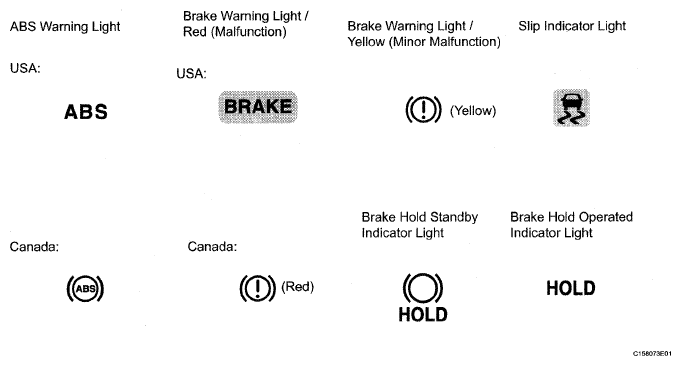

- WARNING LIGHT AND INDICATOR LIGHT BULB CHECK
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Release the parking brakeCAUTION: When releasing the parking brake, set chocks to hold the vehicle for safety.
- When the power switch is ON (IG), check that the ABS warning light, brake warning light / red (malfunction), brake warning light / yellow (minor malfunction), slip, brake hold standby and brake hold operated indicator lights illuminate and then turn off after the engine starts.
If a light remains on, proceed to troubleshooting for the light circuit below.
TROUBLE AREA REFERENCETrouble Area See procedure ABS warning light circuit (light remains on) ABS WARNING LIGHT REMAINS ON ABS warning light circuit (light does not come on) ABS WARNING LIGHT DOES NOT COME ON Brake warning light / red (malfunction) circuit (light remains on) BRAKE WARNING LIGHT REMAINS ON Brake warning light / red (malfunction) circuit (light does not come on) BRAKE WARNING LIGHT DOES NOT COME ON Brake warning light / yellow (minor malfunction) circuit (light remains on) BRAKE CONTROL WARNING LIGHT REMAINS ON Brake warning light / yellow (minor malfunction) circuit (light does not come on) BRAKE CONTROL WARNING LIGHT DOES NOT COME ON Slip indicator light circuit SLIP INDICATOR LIGHT CIRCUIT Brake hold standby indicator light circuit BRAKE HOLD STANDBY INDICATOR LIGHT CIRCUIT Brake hold operated indicator light circuit BRAKE HOLD OPERATED INDICATOR LIGHT CIRCUIT
- Release the parking brake
- SENSOR SIGNAL CHECK BY TEST MODE (SIGNAL CHECK) (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)
HINT:
- When having replaced the skid control ECU and/or yaw rate and acceleration sensor, perform zero point calibration of the yaw rate and acceleration sensor.
- If the power switch is turned from ON (IG) to ON (ACC) or OFF during Test Mode (signal check), DTCs of the signal check function will be erased.
- During Test Mode (signal check), the skid control ECU records all DTCs of the signal check function. By performing the Test Mode (signal check), the codes are erased if normality is confirmed The remaining codes are the codes where an abnormality was found.
- Procedure for Test Mode.
- Turn the power switch OFF.
- Connect the Intelligent tester or Techstream to the DLC3.
- Check that the steering wheel is centered and move the shift lever to the P position.
- Turn the power switch ON (IG).
- Set the Intelligent tester or Techstream to Test Mode (select "Signal Check").
HINT:
Refer to the Intelligent tester or Techstream operator's manual for further details.

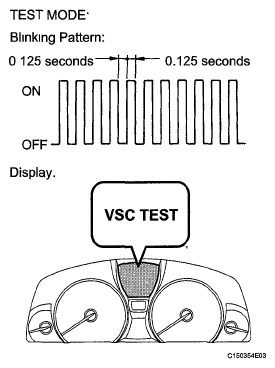

- Check that the ABS warning light and brake warning light / yellow (minor malfunction) blink and "VSC TEST" is indicated on the multi-information display (Test Mode).
HINT:
If the ABS warning light and brake warning light / yellow (minor malfunction) do not blink, inspect the TS and CG terminal circuit, ABS warning light circuit and/or brake warning light / yellow (minor malfunction) (multi-information display) circuit.
- Check the following sensors as described below.
- Acceleration sensor
- Master cylinder pressure sensor
- Speed sensor
- Yaw rate sensor
HINT:
Make sure that the ABS warning light is blinking in Test Mode before performing the check.
- ACCELERATION SENSOR CHECK (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)
- Keep the vehicle stationary on a level surface for 1 second or longer.
HINT:
The acceleration sensor check can be performed with the following master cylinder pressure sensor check.
- Keep the vehicle stationary on a level surface for 1 second or longer.
- MASTER CYLINDER PRESSURE SENSOR CHECK (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)
- Leave the vehicle in a stationary condition and release the brake pedal for 1 second or more, and quickly depress the brake pedal continuously with a force of 98 N (10 kgf, 22.0 lbf) or more for 1 second.
- Check that the ABS warning light stays on for 3 seconds.
HINT:
- Ensure that the ABS warning light comes on.
- While the ABS warning light stays on, continue to depress the brake pedal with a force of 98 N (10 kgf, 22.0 lbf) or more.
- The ABS warning light comes on for 3 seconds every time brake pedal operation above is performed.
- SPEED SENSOR CHECK (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)
- Check the forward signal.
- Drive the vehicle straight ahead.
Drive the vehicle at a speed of 45 km/h (28 mph) or higher for several seconds.
HINT:
The signal check may not be completed if the vehicle has its wheels spun.
- Drive the vehicle straight ahead.
- Check the backward signal.
- Drive the vehicle in reverse for more than 1 second at a speed of 3 km/h (2 mph) or higher and check that the ABS warning light goes off.
HINT:
Drive the vehicle in reverse and check the speed sensor signal. The signal check cannot be completed if the vehicle speed is 45 km/h (28 mph) or higher.
- Drive the vehicle in reverse for more than 1 second at a speed of 3 km/h (2 mph) or higher and check that the ABS warning light goes off.
- Stop the vehicle.NOTE:
- Before performing the speed sensor signal check, complete the acceleration sensor and master cylinder pressure sensor checks.
- The speed sensor signal check may not be completed if the speed sensor signal check is started while turning the steering wheel or spinning the wheels.
- If the signal check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.
HINT:
When the signal check has been completed, the ABS warning light goes off while driving, and blinks in the Test Mode pattern while the vehicle is stationary.
- Check the forward signal.
- YAW RATE SENSOR CHECK (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)
- Perform the check after checking that the brake warning light / yellow (minor malfunction) blinks and that "VSC TEST" is indicated on the multi-information display
- Check the zero point voltage of the yaw rate sensor
- Keep the vehicle stationary on a level surface for 1 second or longer
HINT:
When changing to test mode, if a part or wire harness is malfunctioning, the ABS warning light and brake warning light / yellow (minor malfunction) remain illuminated
- Keep the vehicle stationary on a level surface for 1 second or longer
- Check the output of the yaw rate sensor and the direction of the steering angle sensor
- Move the shift lever from the P to the D position, drive the vehicle at a-speed of approximately 5 km/h (3 mph), and turn the steering wheel either to the left or right 90° or more until the vehicle makes a 180° turn
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
- At the end of the 180° turn, the direction of the vehicle should be within 175 to 185° of its start position
- Do not spin the wheels
- Do not turn the power switch OFF while turning
- Do not move the shift lever to the P position while turning, but changing the vehicle speed, stopping, or driving in reverse is possible.
- Complete the turn within 20 seconds
- Stop the vehicle and move the shift lever to the P position Check that the skid control buzzer sounds for 3 seconds
If the skid control buzzer sounds, the signal check is completed normally
If the skid control buzzer does not sound, check the skid control buzzer circuit, then perform the signal check again. If the skid control buzzer still does not sound, there may be a malfunction in the yaw rate sensor, so check the DTC
- Move the shift lever from the P to the D position, drive the vehicle at a-speed of approximately 5 km/h (3 mph), and turn the steering wheel either to the left or right 90° or more until the vehicle makes a 180° turn
- YAW RATE SENSOR DISCRIMINATION
- Enter test mode and wait for 1 second or more.
HINT:
- This check cannot be performed when the yaw rate sensor has a communication malfunction.
- The yaw rate sensor must be normal and must not have a communication malfunction If so, and if the procedure above is performed, the check is complete.NOTE: If the yaw rate sensor has a discrimination malfunction, perform the yaw rate sensor and G sensor zero point calibration.
- Enter test mode and wait for 1 second or more.
- END OF SENSOR CHECK (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)

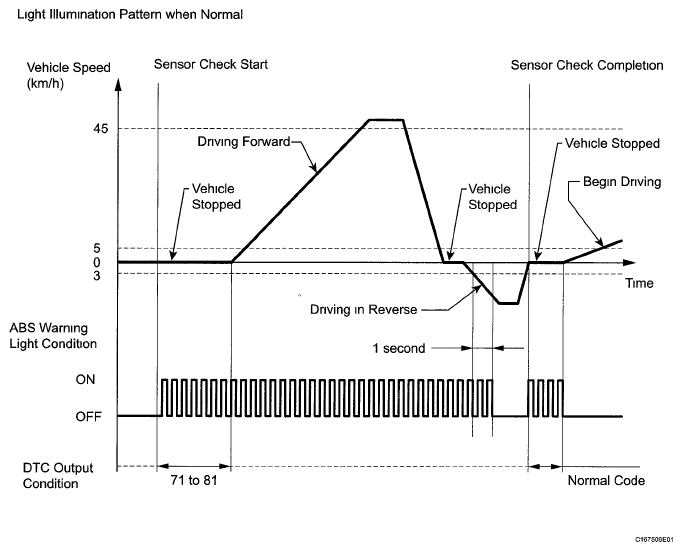

- If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops, and the ABS warning light goes off when the vehicle is driving
NOTE:
- When the yaw rate sensor, acceleration sensor, speed sensor and master cylinder pressure sensor checks are finished, all the sensor checks are completed.
- If all sensor checks are not completed, the ABS warning light blinks even while the vehicle is driving and the ABS does not operate.
- If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops, and the ABS warning light goes off when the vehicle is driving
- READ DTC OF SIGNAL CHECK FUNCTION (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)
- Read the DTC(s) by following the tester prompt.NOTE:
- If only the DTCs are displayed, repair the malfunction area and clear the DTCs.
- If the DTCs or Test Mode codes (DTC of signal check function) are displayed, repair the malfunction area, clear the DTCs and perform the Test Mode inspection.
HINT:
- If more than 1 malfunction is detected at the same time, the lowest numbered code will be displayed first
- See the list of DTCs (see DIAGNOSTIC TROUBLE CODE CHART ).
- Read the DTC(s) by following the tester prompt.
- DTC OF TEST MODE FUNCTION (SIGNAL CHECK) (WHEN USING INTELLIGENT TESTER OR TECHSTREAM)
ABS sensor:
ABS SENSOR AND TROUBLE AREA REFERENCECode No. Diagnosis Trouble Area C1271/71 Low output signal of front speed sensor RH - Front speed sensor RH
- Sensor installation
- Speed sensor rotor
C1272/72 Low output signal of front speed sensor LH - Front speed sensor LH
- Sensor installation
- Speed sensor rotor
C1273/73 Low output signal of rear speed sensor RH - Rear speed sensor RH
- Sensor installation
- Speed sensor rotor
C1274/74 Low output signal of rear speed sensor LH - Rear speed sensor LH
- Sensor installation
- Speed sensor rotor
C1275/75 Abnormal change in output signal of front speed sensor RH Front speed sensor rotor RH C1276/76 Abnormal change in output signal of front speed sensor LH Front speed sensor rotor LH C1277/77 Abnormal change in output signal of rear speed sensor RH Rear speed sensor rotor RH C1278/78 Abnormal change in output signal of rear speed sensor LH Rear speed sensor rotor LH C1279/79 Deceleration sensor output voltage malfunction - Yaw rate and acceleration sensor
- Sensor installation
C1281/81 Master cylinder pressure sensor output malfunction - Master cylinder pressure sensor
- Stop light switch circuit
VSC sensor:
VSC SENSOR AND TROUBLE AREA REFERENCECode No. Diagnosis Trouble Area C0371/71 Yaw rate sensor output malfunction Yaw rate and acceleration sensor C1240/75 Yaw rate sensor discrimination malfunction Yaw rate and acceleration sensor Electronically controlled brake system sensor:
ELECTRONICALLY CONTROLLED BRAKE SYSTEM SENSOR AND TROUBLE AREA REFERENCECode No. Diagnosis Trouble Area C1346/71 Stroke sensor zero point learning malfunction Brake pedal stroke sensor HINT:
The codes in this table are output only in Test Mode (signal check).
- SENSOR SIGNAL CHECK BY TEST MODE (SIGNAL CHECK) (WHEN USING SST CHECK WIRE)
HINT:
- When having replaced the skid control ECU and/or yaw rate and acceleration sensor, perform zero point calibration of the yaw rate and acceleration sensor.
- If the power switch is turned from ON (IG) to ON (ACC) or OFF during Test Mode (signal check), DTCs of the signal check function will be erased.
- During Test Mode (signal check), the skid control ECU records all DTCs of the signal check function. By performing the Test Mode (signal check), the codes are erased if normality is confirmed. The remaining codes are the codes where an abnormality was found.
- Procedure for Test Mode.
- Turn the power switch OFF.
- Check that the steering wheel is in the centered position and move the shift lever to the P position.
- Using SST, connect terminals 12 (TS) and 4 (CG) of the DLC3.
SST 09843-18040
- Turn the power switch ON (IG)
- Check that the ABS warning light and brake warning light / yellow (minor malfunction) blink and "VSC TEST" is displayed on the multi-information display (Test Mode).
HINT:
If the ABS warning light and brake warning light / yellow (minor malfunction) do not blink, inspect the TS and CG terminal circuit, ABS warning light circuit and/or brake warning light / yellow (minor malfunction) (multi-information display) circuit
- Check the following sensors as described below.
- Acceleration sensor
- Master cylinder pressure sensor
- Speed sensor
- Yaw rate sensor
HINT:
Make sure that the ABS warning light is blinking in Test Mode before performing the check.
- ACCELERATION SENSOR CHECK (WHEN USING SST CHECK WIRE)
- Keep the vehicle stationary on a level surface for 1 second or longer.
HINT:
The acceleration sensor check can be performed with the following master cylinder pressure sensor check.
- Keep the vehicle stationary on a level surface for 1 second or longer.
- MASTER CYLINDER PRESSURE SENSOR CHECK (WHEN USING SST CHECK WIRE)
- Leave the vehicle m a stationary condition and release the brake pedal for 1 second or more, and quickly depress the brake pedal continuously with a force of 98 N (10 kgf, 22 0 lbf) or more for 1 second.
- Check that the ABS warning light stays on for 3 seconds.
HINT:
- Ensure that the ABS warning light comes on.
- While the ABS warning light stays on, continue to depress the brake pedal with a force of 98 N (10 kgf, 22 0 lbf) or more.
- The ABS warning light comes on for 3 seconds every time the brake pedal operation above is performed.
- SPEED SENSOR CHECK (WHEN USING SST CHECK WIRE)
- Check the forward signal.
- Drive the vehicle straight ahead.
Drive the vehicle at a speed of 45 km/h (28 mph) or higher for several seconds
HINT:
The signal check may not be completed if the vehicle has its wheels spun.
- Drive the vehicle straight ahead.
- Check the backward signal.
- Drive the vehicle in reverse for more than 1 second at a speed of 3 km/h (2 mph) or higher and check that the ABS warning light goes off.
HINT:
Drive the vehicle in reverse and check the speed sensor signal The signal check cannot be completed if the vehicle speed is 45 km/h (28 mph) or higher.
- Drive the vehicle in reverse for more than 1 second at a speed of 3 km/h (2 mph) or higher and check that the ABS warning light goes off.
- Stop the vehicleNOTE:
- Before performing the speed sensor signal check, complete the acceleration sensor and master cylinder pressure sensor checks.
- The speed sensor signal check may not be completed if the speed sensor signal check is started while turning the steering wheel or spinning the wheels.
- If the signal check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.
HINT:
When the signal check has been completed, the ABS warning light goes off while driving, and blinks in the Test Mode pattern while the vehicle is stationary.
- Check the forward signal.
- YAW RATE SENSOR CHECK (WHEN USING SST CHECK WIRE)
- Perform the check after checking that the brake warning light / yellow (minor malfunction) blinks and that "VSC TEST" is indicated on the multi-information display
- Check the zero point voltage of the yaw rate sensor.
- Keep the vehicle stationary on a level surface for 1 second or longer.
HINT:
When changing to test mode, if a part or wire harness is malfunctioning, the ABS warning light and brake warning light / yellow (minor malfunction) remain illuminated.
- Keep the vehicle stationary on a level surface for 1 second or longer.
- Check the output of the yaw rate sensor and the direction of the steering angle sensor.
- Move the shift lever from the P to the D position, drive the vehicle at a speed of approximately 5 km/h (3 mph), and turn the steering wheel either to the left or right 90° or more until the vehicle makes a 180° turn.
HINT:
- At the end of the 180° turn, the direction of the vehicle should be within 175 to 185° of its start position
- Do not spin the wheels
- Do not turn the power switch OFF while turning
- Do not move the shift lever to the P position while turning, but changing the vehicle speed, stopping, or driving in reverse is possible.
- Complete the turn within 20 seconds.
- Stop the vehicle and move the shift lever to the P position. Check that the skid control buzzer sounds for 3 seconds
If the skid control buzzer sounds, the signal check is completed normally. If the skid control buzzer does not sound, check the skid control buzzer circuit, then perform the signal check again If the skid control buzzer still does not sound, there way be a malfunction in the yaw rate sensor, so check the DTC.
- Move the shift lever from the P to the D position, drive the vehicle at a speed of approximately 5 km/h (3 mph), and turn the steering wheel either to the left or right 90° or more until the vehicle makes a 180° turn.
- END OF SENSOR CHECK (WHEN USING SST CHECK WIRE)
- If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops and the ABS warning light goes off when the vehicle is driving.NOTE:
- When the yaw rate sensor, acceleration sensor, speed sensor and master cylinder pressure sensor checks are completed, the sensor checks are completed.
- If all sensor checks are not completed, the ABS warning light blinks even while the vehicle is driving and the ABS does not operate.
- If the sensor check is completed, the ABS warning light blinks (Test Mode) when the vehicle stops and the ABS warning light goes off when the vehicle is driving.
- READ DTC OF SIGNAL CHECK FUNCTION (WHEN USING SST CHECK WIRE)
- Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
SST 09843-18040

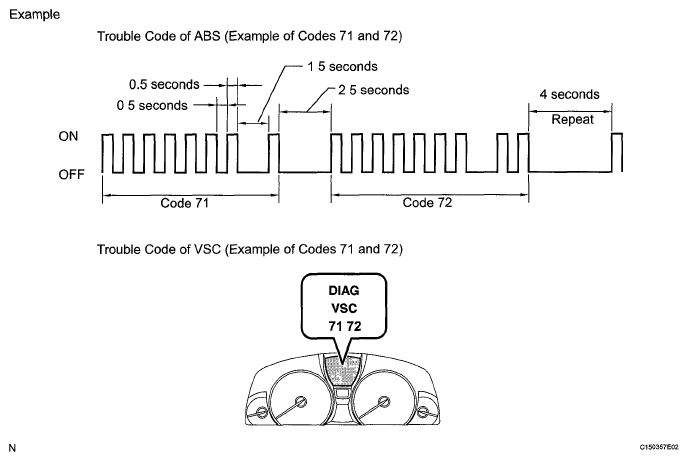

- Count the number of blinks of the ABS warning light, and read the "DIAG VSC" or "DIAG Electronically Controlled Brake system" indication on the multi-information display
NOTE:
- If only the DTCs are displayed, repair the malfunction area and clear the DTCs.
- If the DTCs or Test Mode codes (DTC of signal check function) are displayed, repair the malfunction area, clear the DTCs and perform the Test Mode inspection.
HINT:
- If more than 1 malfunction is detected at the same time, the lowest numbered code will be displayed first
- See the list of DTCs (see DIAGNOSTIC TROUBLE CODE CHART )
- After performing the check, disconnect SST from terminals 12 (TS) and 4 (CG), and 13 (TC) and 4 (CG) of the DLC3 Then turn the power switch OFF
- Turn the power switch ON (IG)
HINT:
If the power switch is not turned ON (IG) after SST is removed from the DLC3, the previous Test Mode will continue
- Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
- DTC OF TEST MODE FUNCTION (SIGNAL CHECK) (WHEN USING SST CHECK WIRE)
ABS sensor:
ABS SENSOR AND TROUBLE AREA REFERENCECode No Diagnosis Trouble Area C1271/71 Low output signal of front speed sensor RH - Front speed sensor RH
- Sensor installation
- Speed sensor rotor
C1272/72 Low output signal of front speed sensor LH - Front speed sensor LH
- Sensor installation
- Speed sensor rotor
C1273/73 Low output signal of rear speed sensor RH - Rear speed sensor RH
- Sensor installation
- Speed sensor rotor
C1274/74 Low output signal of rear speed sensor LH - Rear speed sensor LH
- Sensor installation
- Speed sensor rotor
C1275/75 Abnormal change in output signal of front speed sensor RH Front speed sensor rotor RH C1276/76 Abnormal change in output signal of front speed sensor LH Front speed sensor rotor LH C1277/77 Abnormal change in output signal of rear speed sensor RH Rear speed sensor rotor RH C1278/78 Abnormal change in output signal of rear speed sensor LH Rear speed sensor rotor LH C1279/79 Deceleration sensor output voltage malfunction - Yaw rate and acceleration sensor
- Sensor installation
C1281/81 Master cylinder pressure sensor output malfunction - Master cylinder pressure sensor
- Stop light switch circuit
VSC sensor:
VSC SENSOR AND TROUBLE AREA REFERENCECode No. Diagnosis Trouble Area C0371/71 Yaw rate sensor output malfunction Yaw rate and acceleration sensor C1240/75 Yaw rate sensor discrimination malfunction Yaw rate and acceleration sensor Electronically controlled brake system sensor:
ELECTRONICALLY CONTROLLED BRAKE SYSTEM SENSOR AND TROUBLE AREA REFERENCECode No Diagnosis Trouble Area C1346/71 Stroke sensor zero point learning malfunction Brake pedal stroke sensor HINT:
The codes in this table are output only in Test Mode (signal check)
