Steering Angle Sensor: Components

Fig 1: Identifying Steering Angle Sensor Components (1 Of 2)
G05774065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

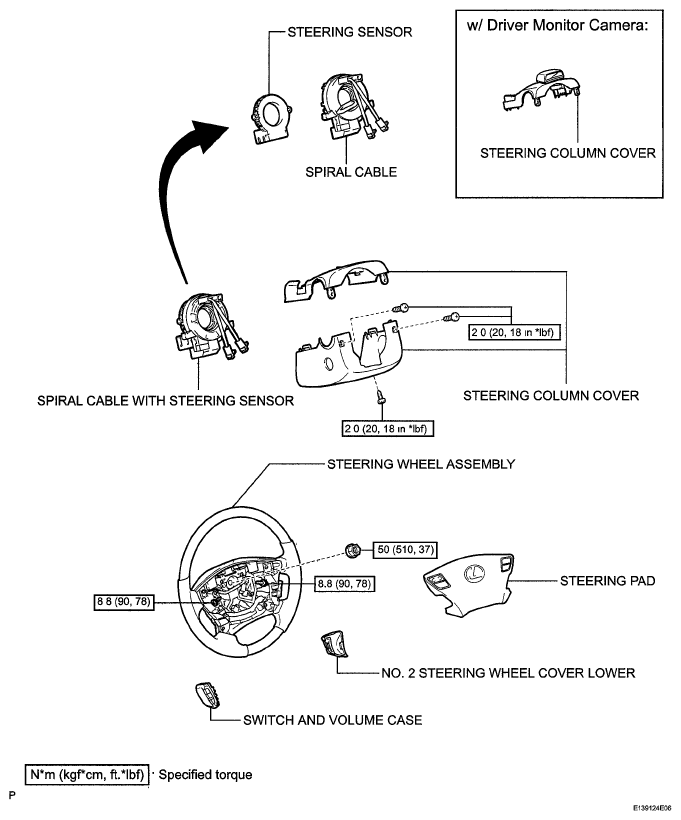

Fig 2: Steering Angle Sensor Replacement Components With Torque Specifications (2 Of 2)
G05774150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
