Yaw Rate And Acceleration Sensor: Components

Fig 1: Identifying Yaw Rate And Acceleration Sensor Components (1 Of 3)
G05774065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Yaw Rate And Acceleration Sensor Components (2 Of 3)
G05774143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

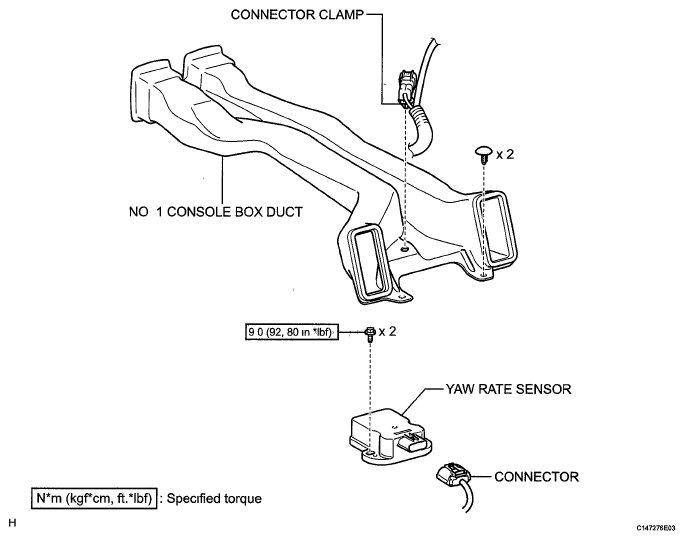

Fig 3: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (3 Of 3)
G05774144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
