Charging Systems: Charging: Battery: Components

Fig 1: Identifying Battery Components (1 Of 2)
G05773533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

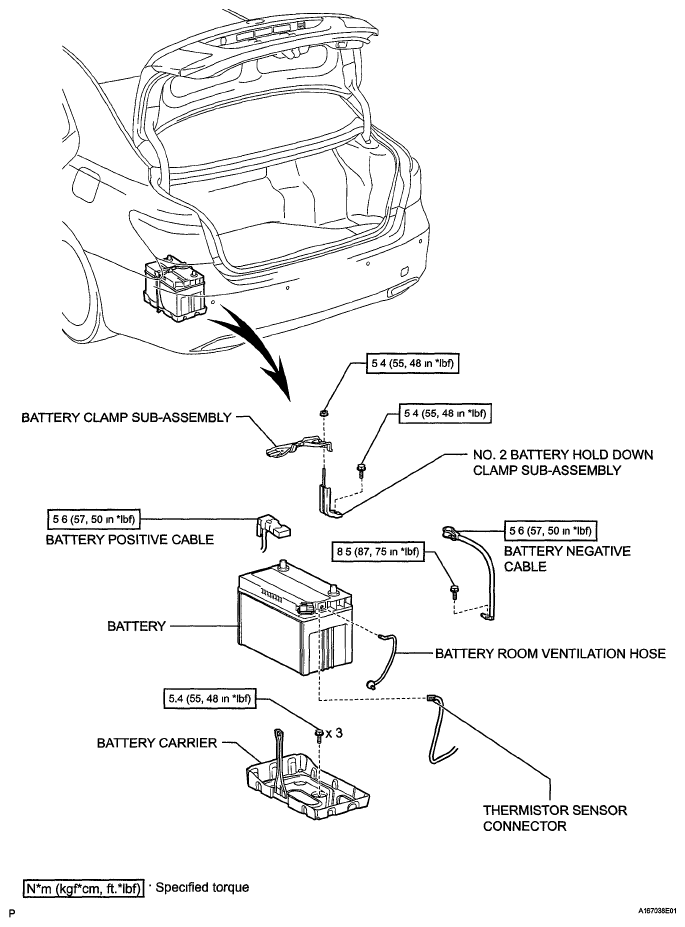

Fig 2: Battery Replacement Components With Torque Specifications (2 Of 2)
G05781709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
