Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

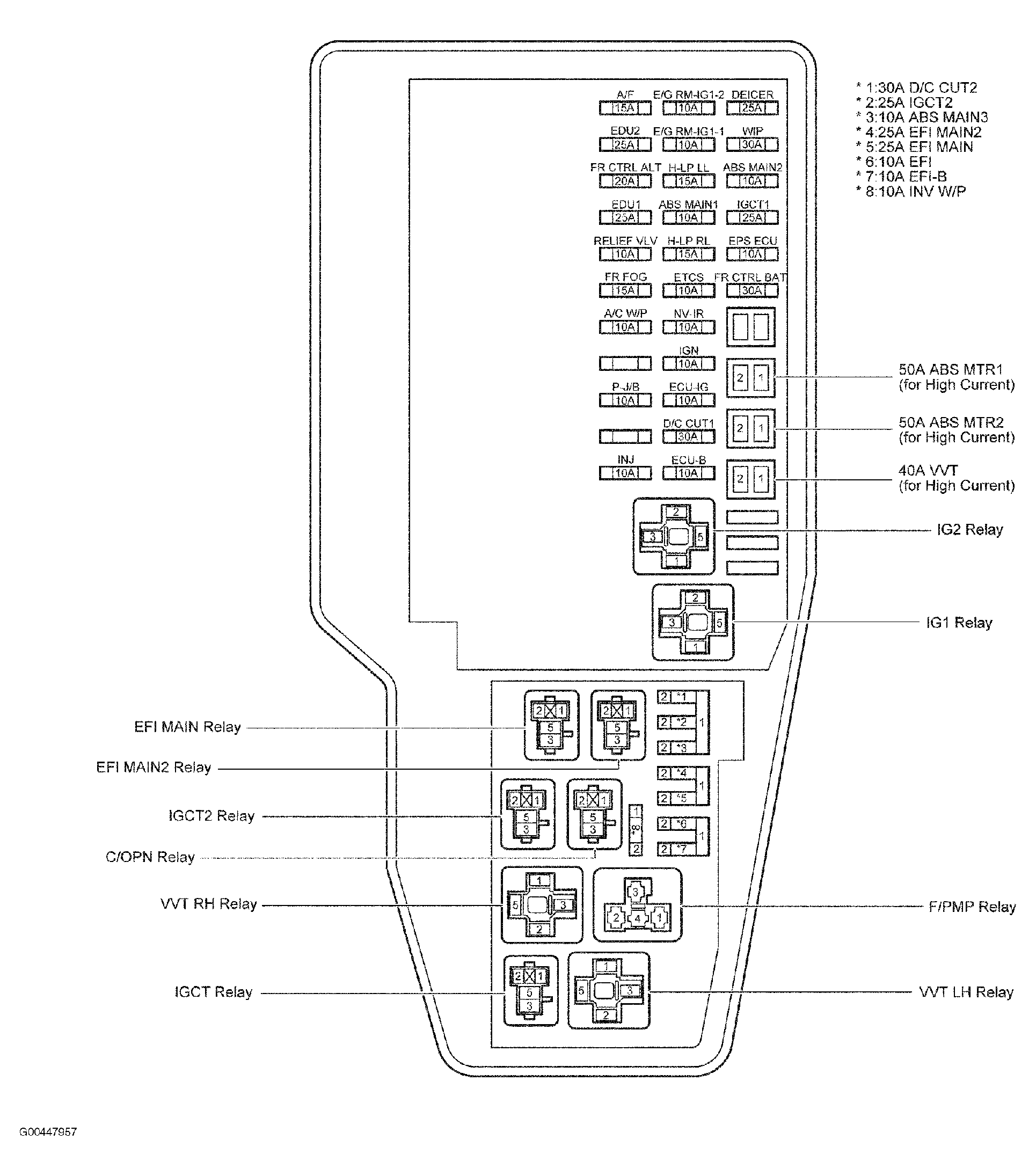

Fig 1: Engine Room R/B No. 2

G00447957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

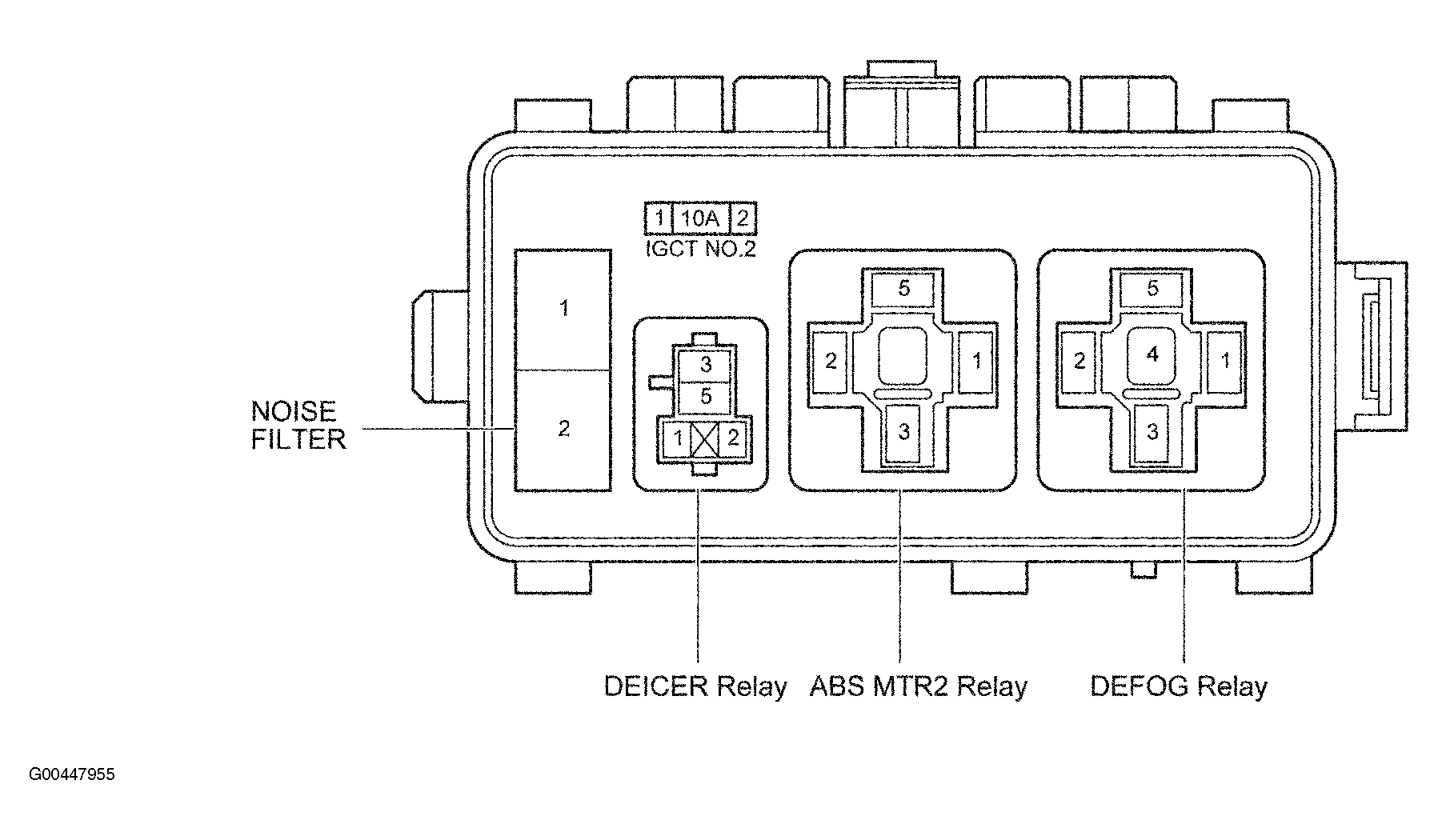

Fig 2: Engine Room R/B No. 3

G00447955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

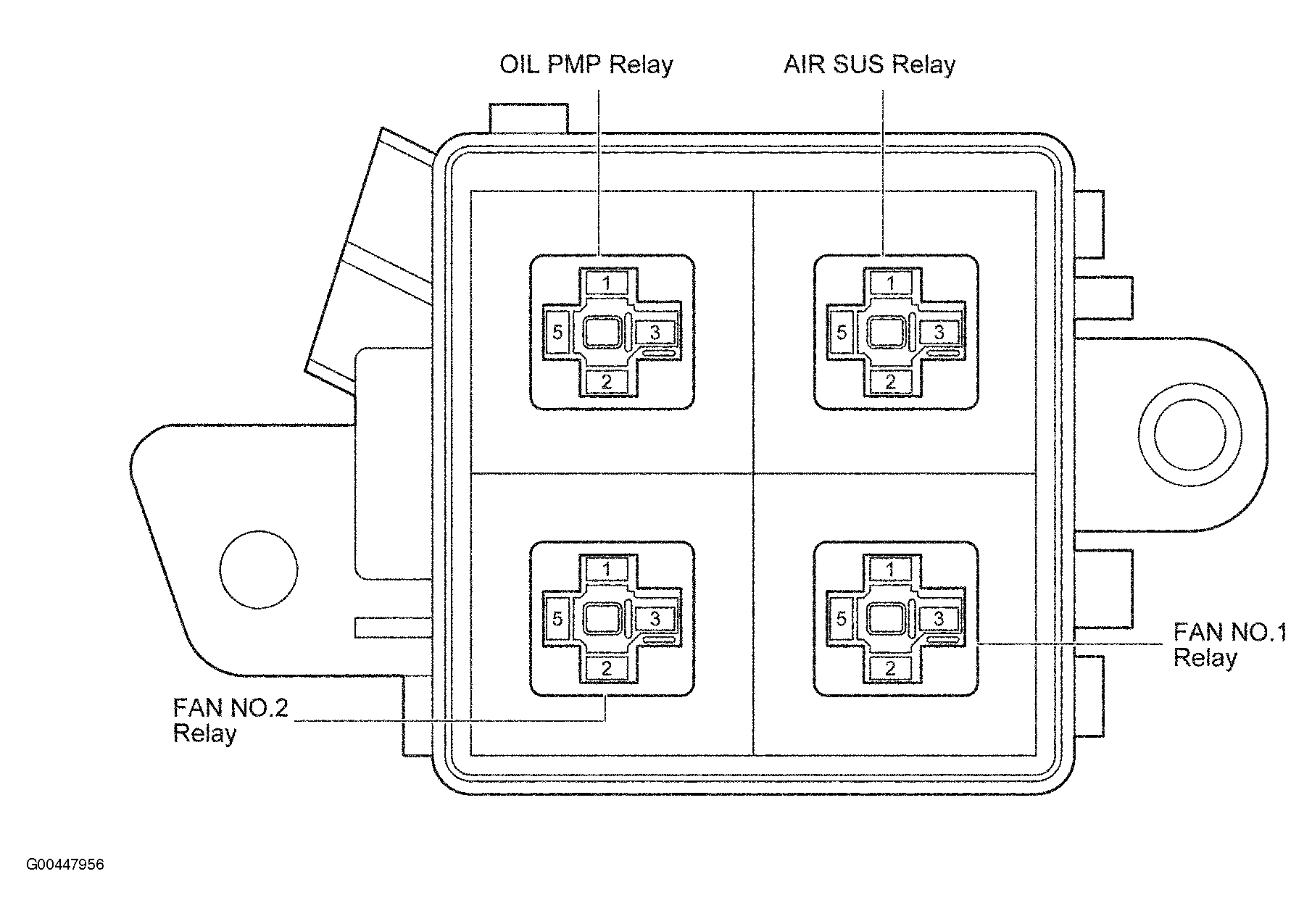

Fig 3: Engine Room R/B No. 5

G00447956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Engine Compartment

G00447951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Dash & Center Floor Console

G00447952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Vehicle Overview

G00447953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Front Seats

G00447915

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Rear Seats

G00447948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Compartment

G00447917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment

G00447918

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

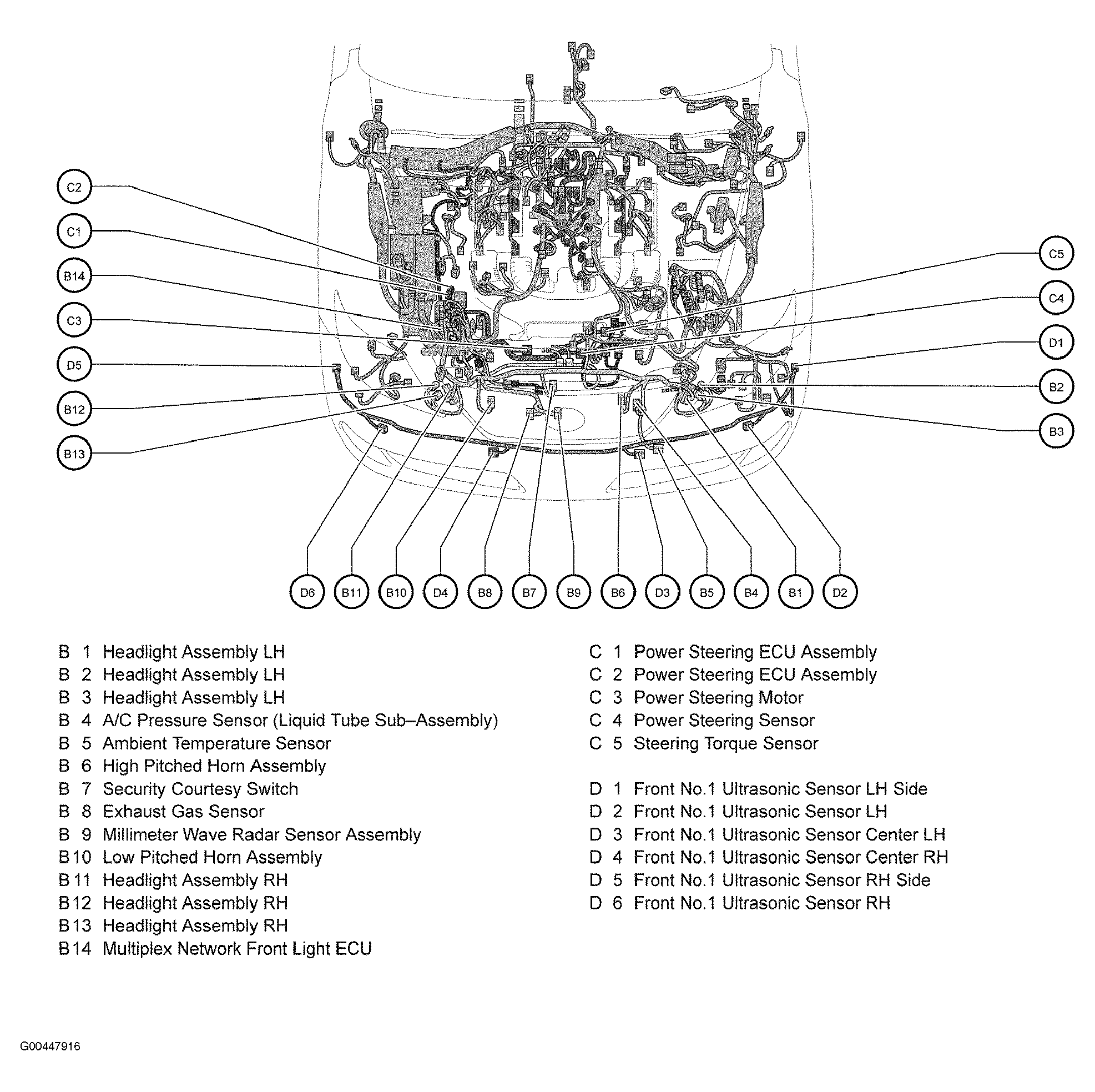

Fig 11: Engine Compartment

G00447916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

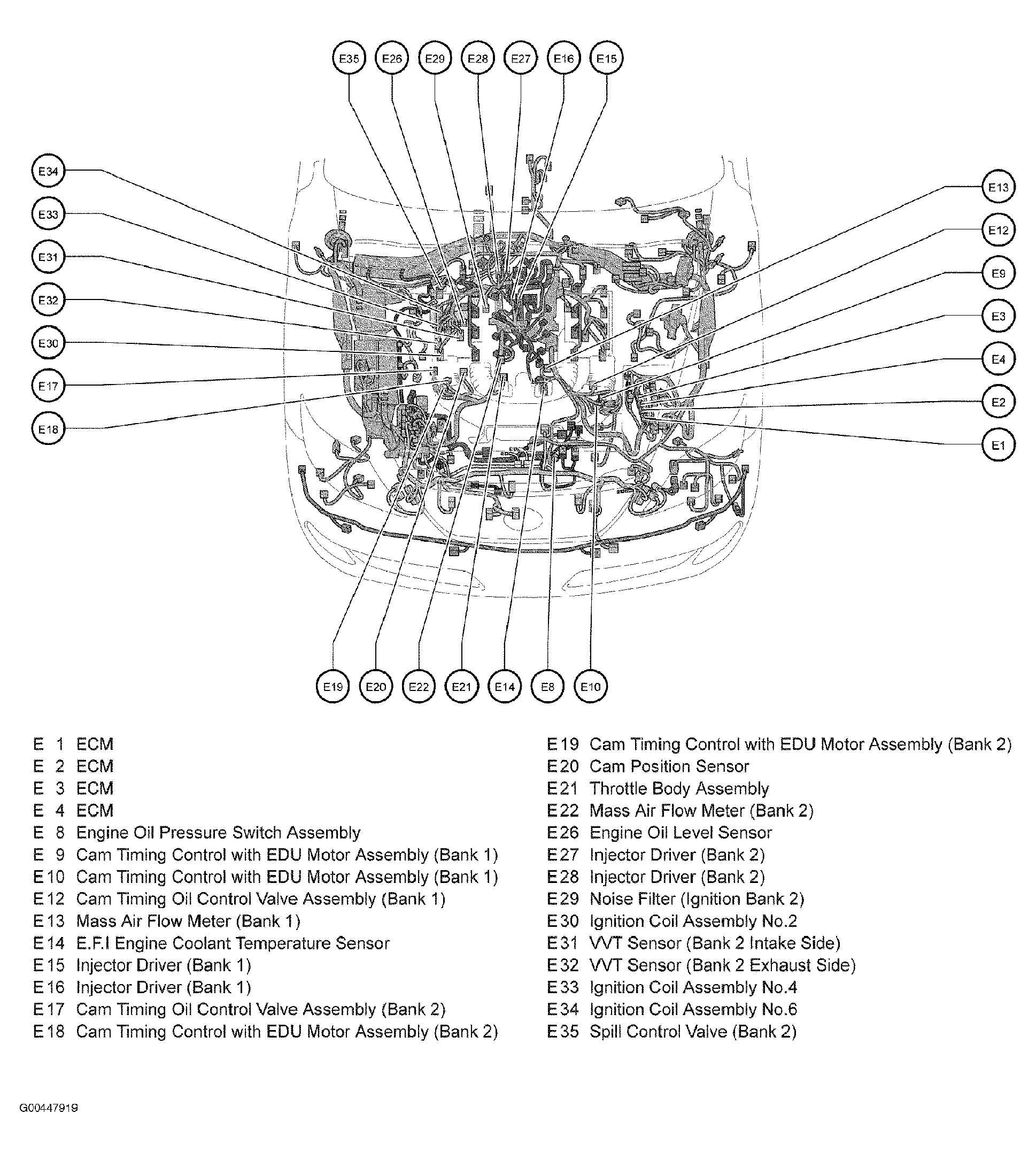

Fig 12: Engine

G00447919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

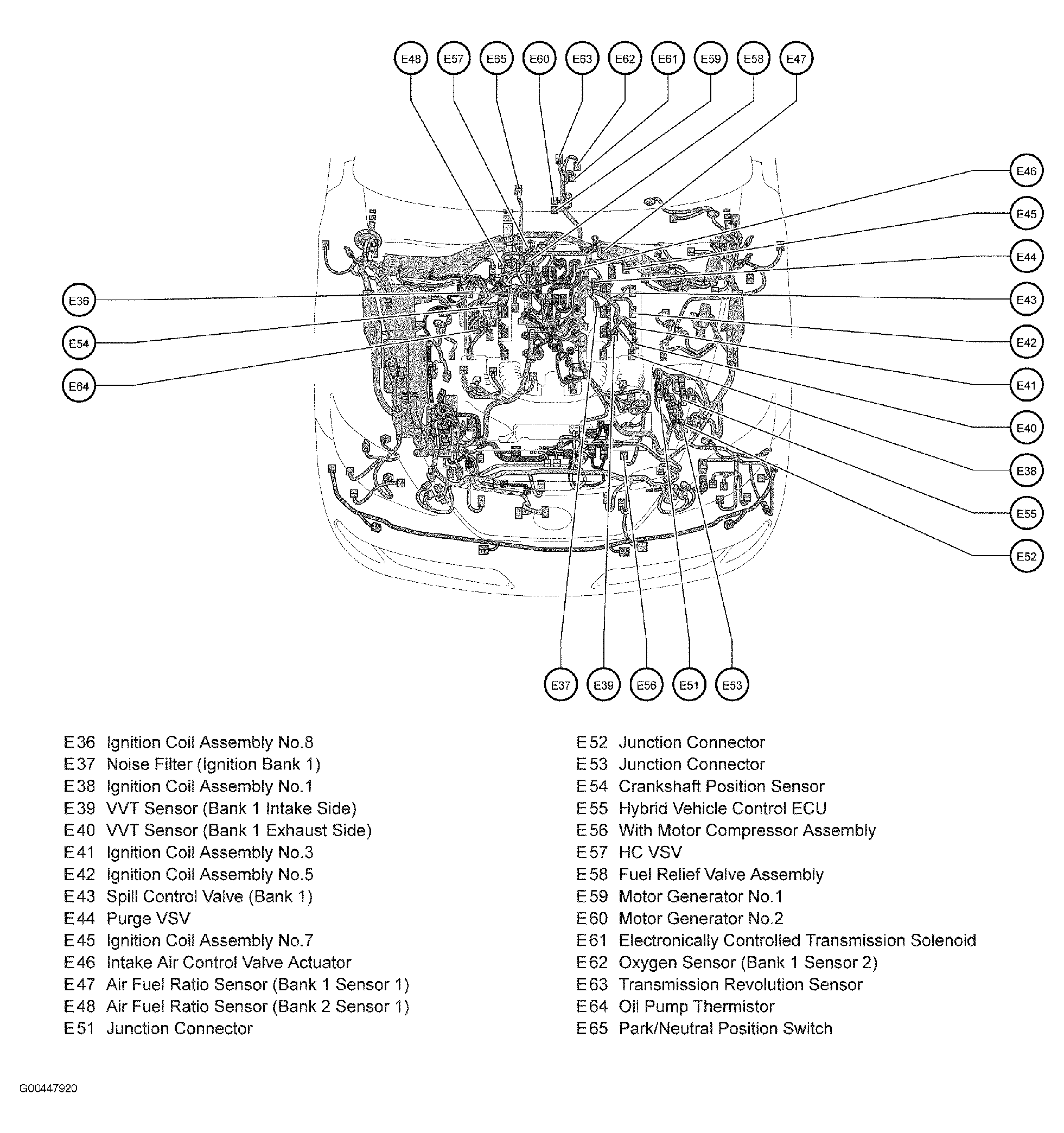

Fig 13: Engine

G00447920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

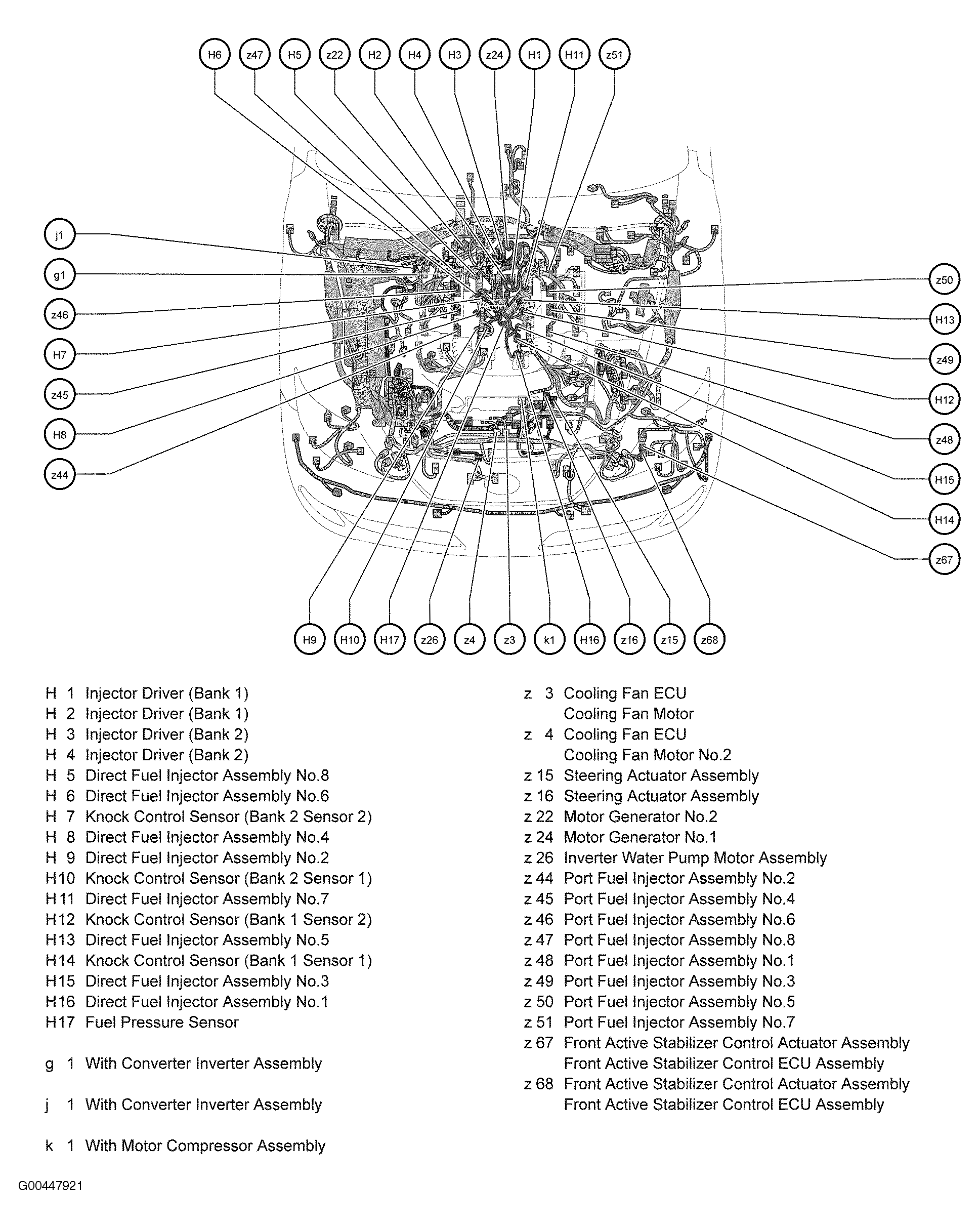

Fig 14: Engine

G00447921

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Dash & Center Floor Console

G00447922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Dash & Center Floor Console

G00447924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

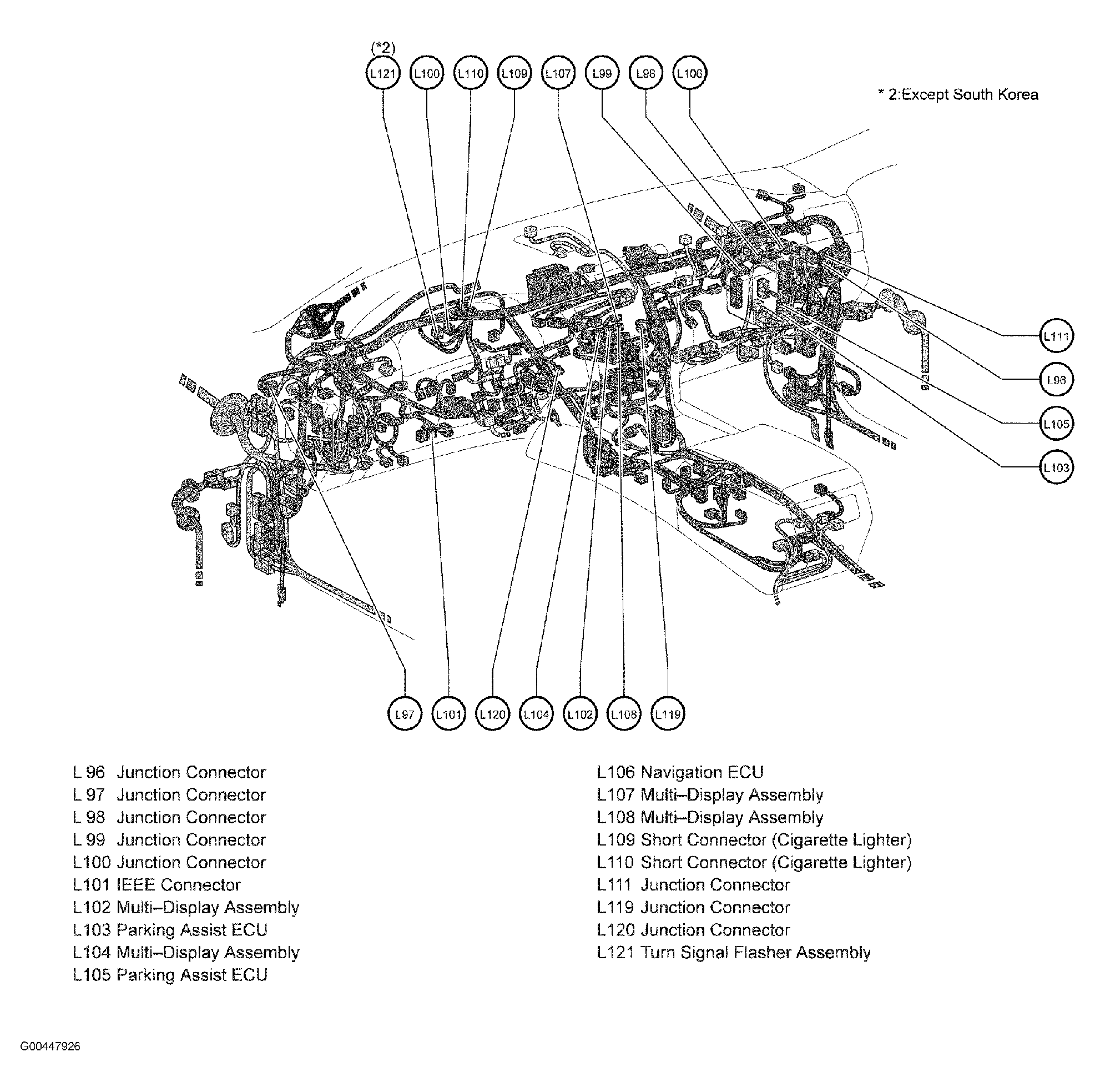

Fig 17: Dash

G00447926

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

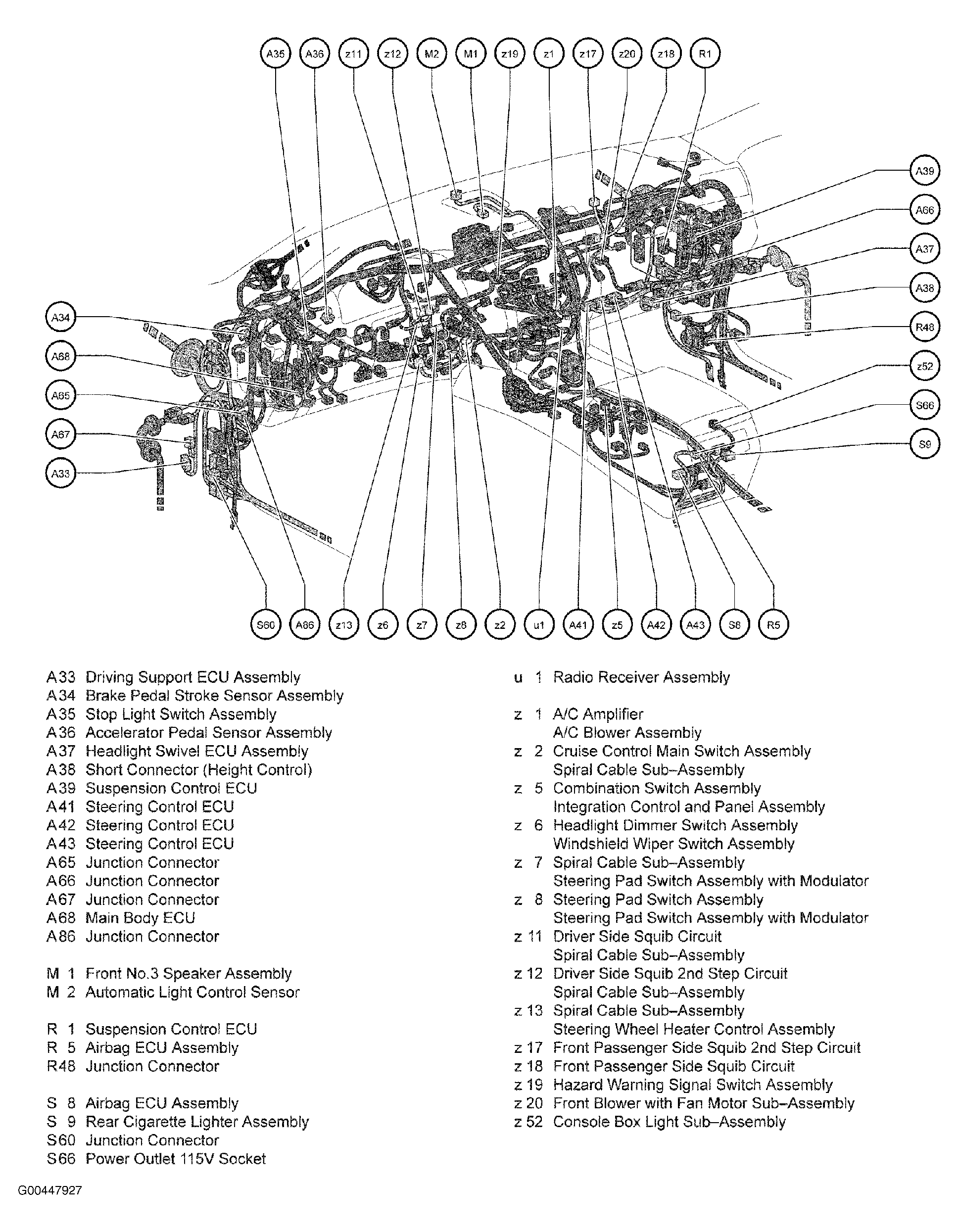

Fig 18: Dash & Center Floor Console

G00447927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

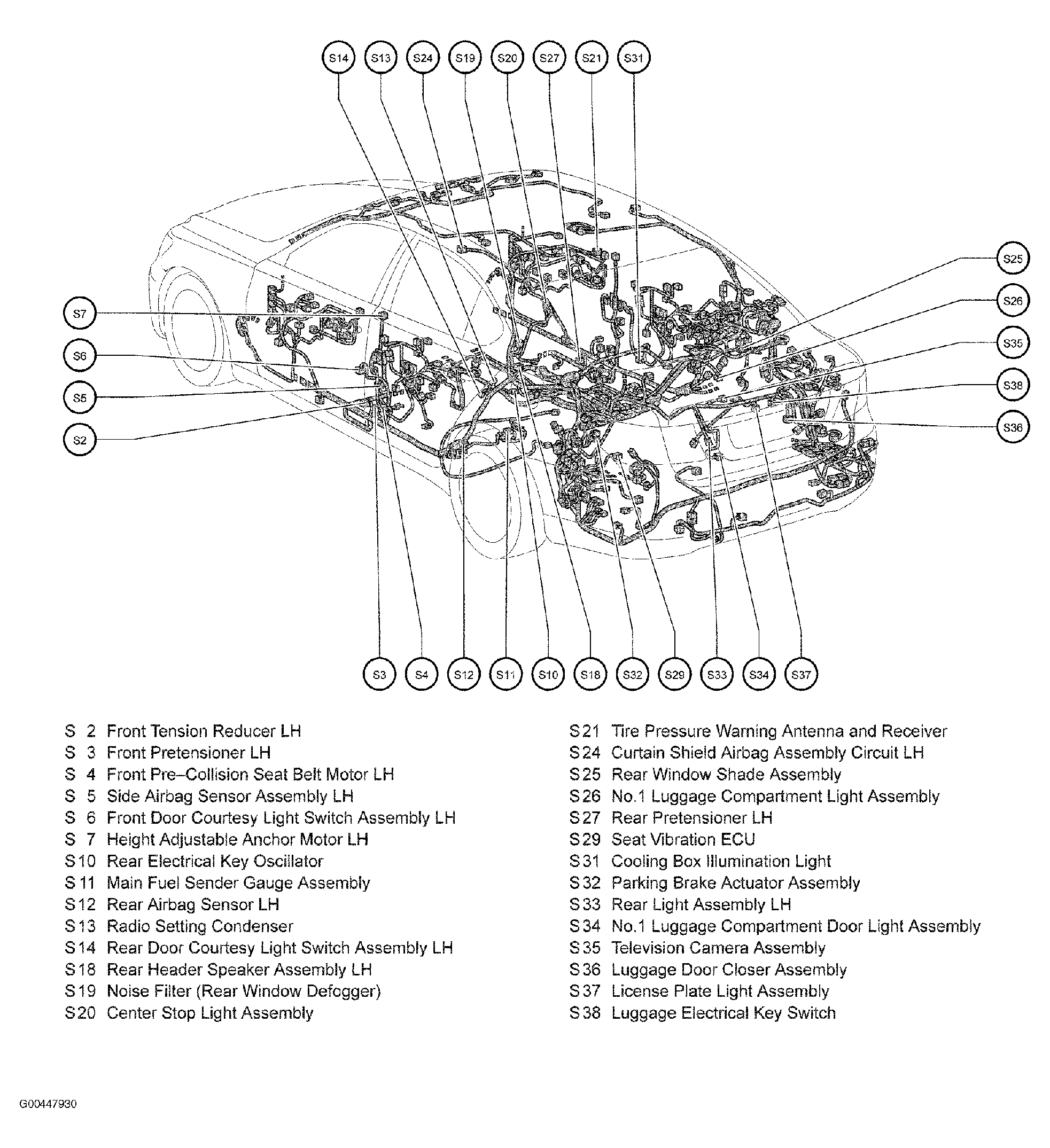

Fig 19: Left Side Of Vehicle

G00447930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

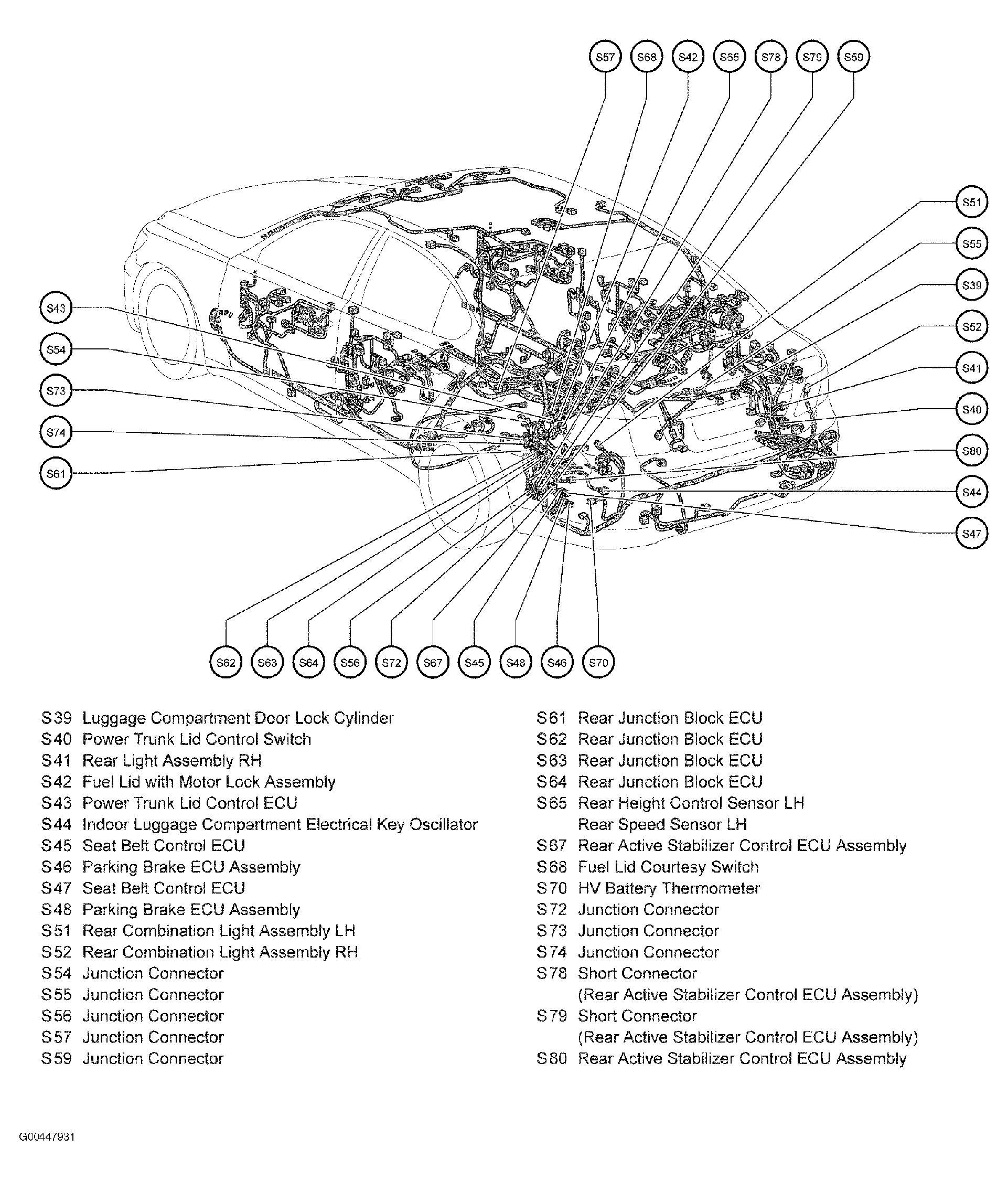

Fig 20: Left Rear Of Vehicle

G00447931

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Vehicle Overview

G00447932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

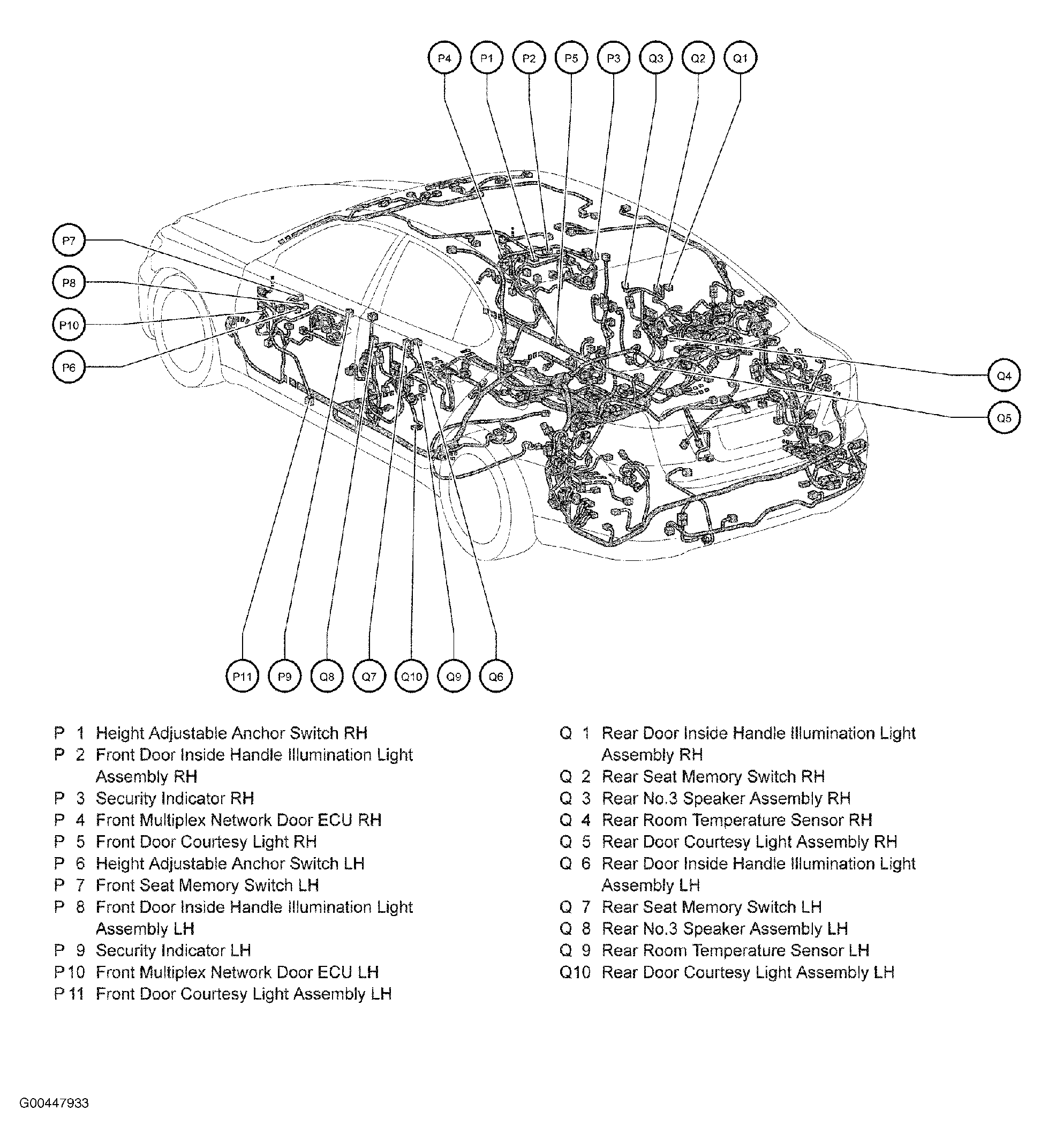

Fig 22: Vehicle Overview

G00447933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Vehicle Overview

G00447934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

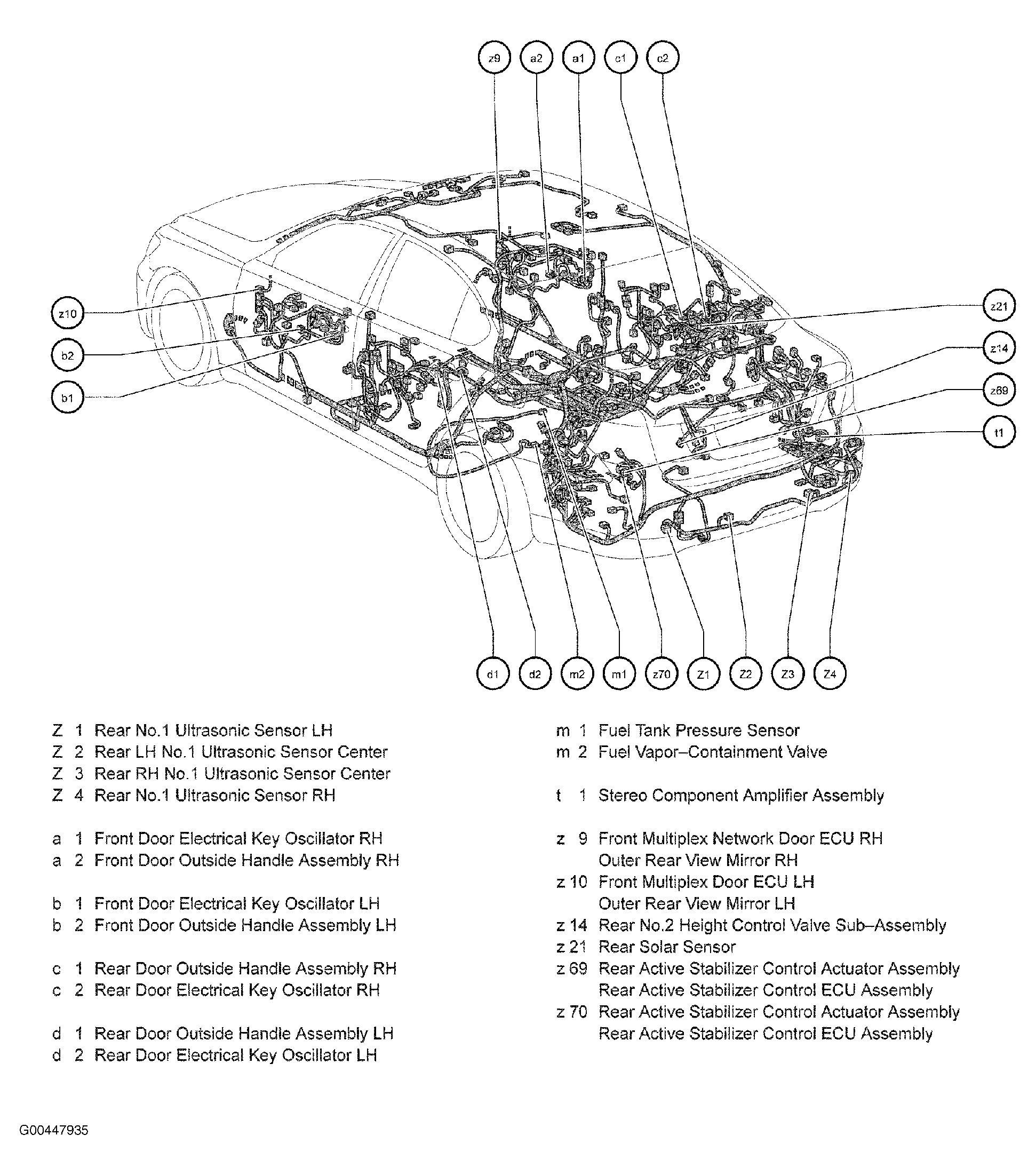

Fig 24: Vehicle Overview

G00447935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

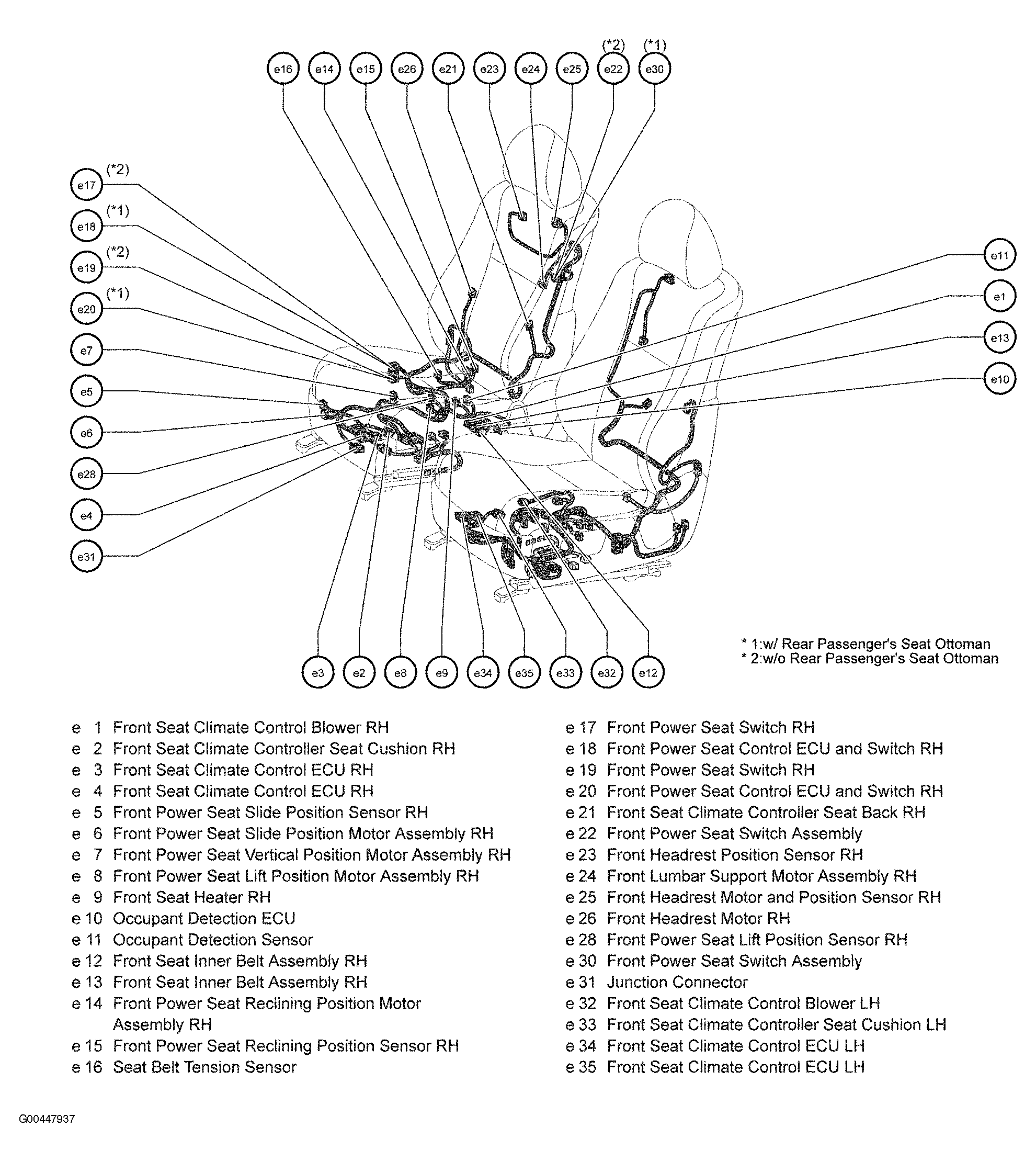

Fig 25: Front Seats

G00447937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Rear Seats (Power)

G00447960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

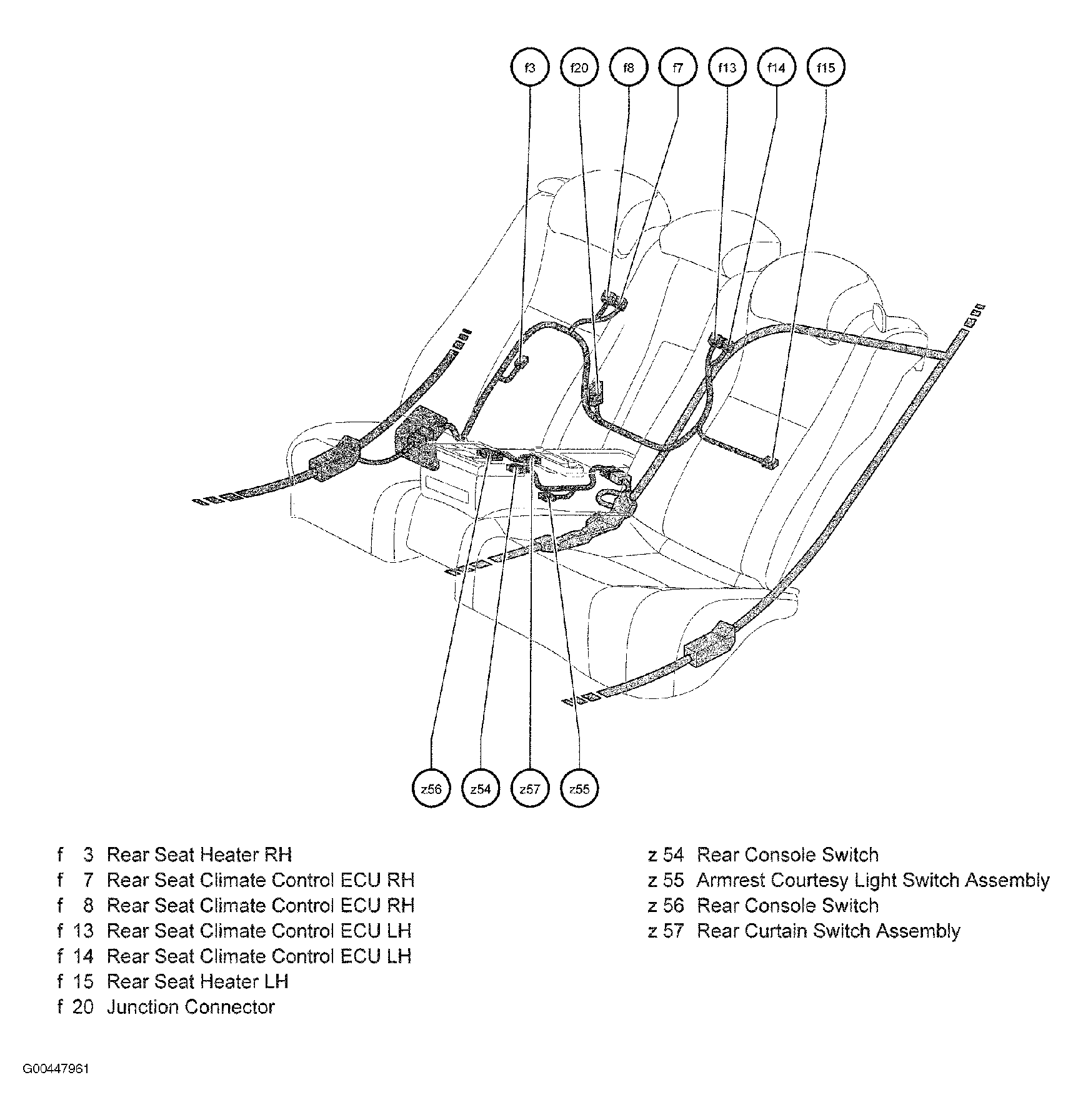

Fig 27: Rear Seats (Except Power)

G00447961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

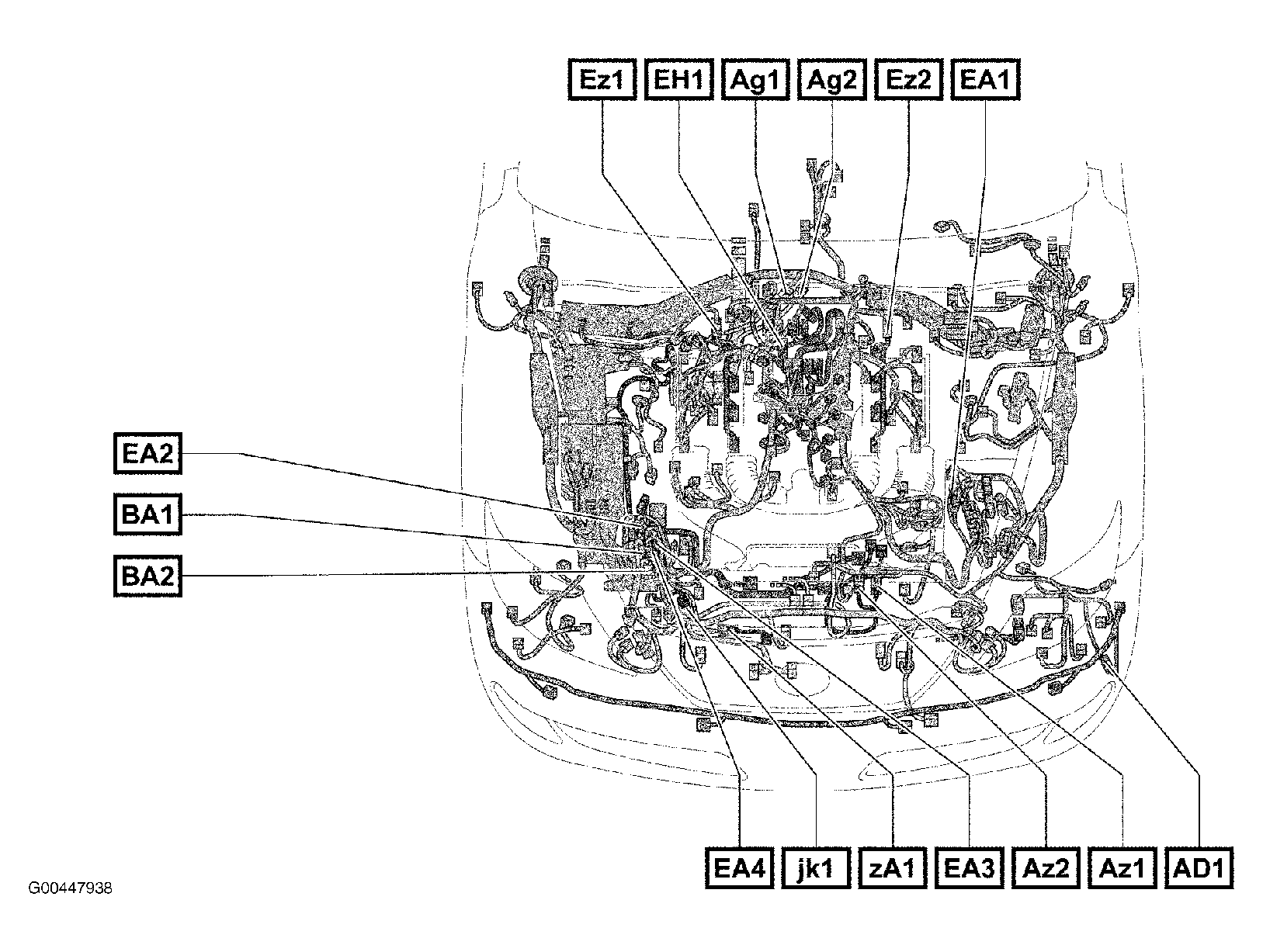

Fig 28: Engine Compartment

G00447938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Engine Compartment

G00447939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

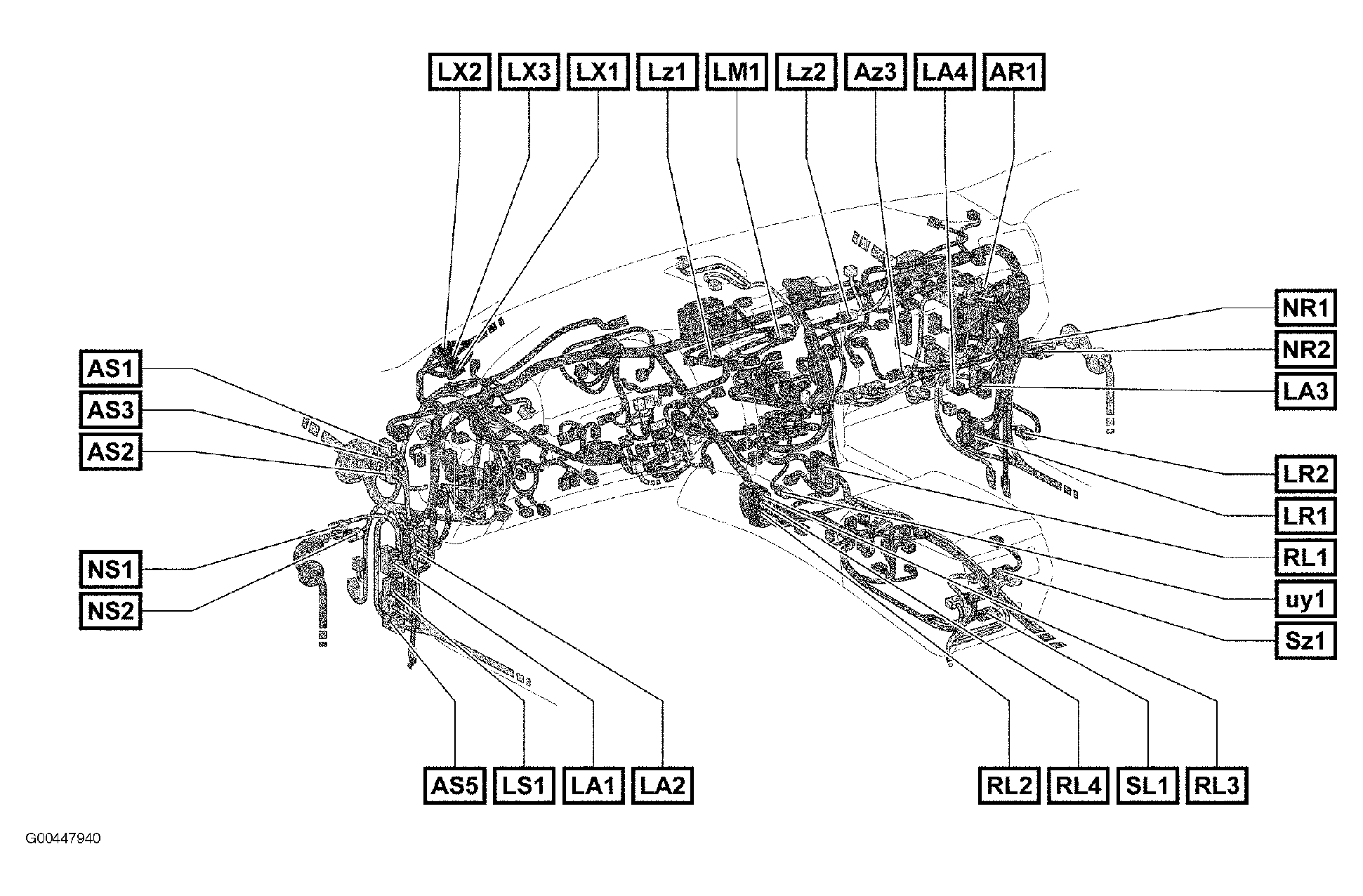

Fig 30: Dash & Center Floor Console

G00447940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

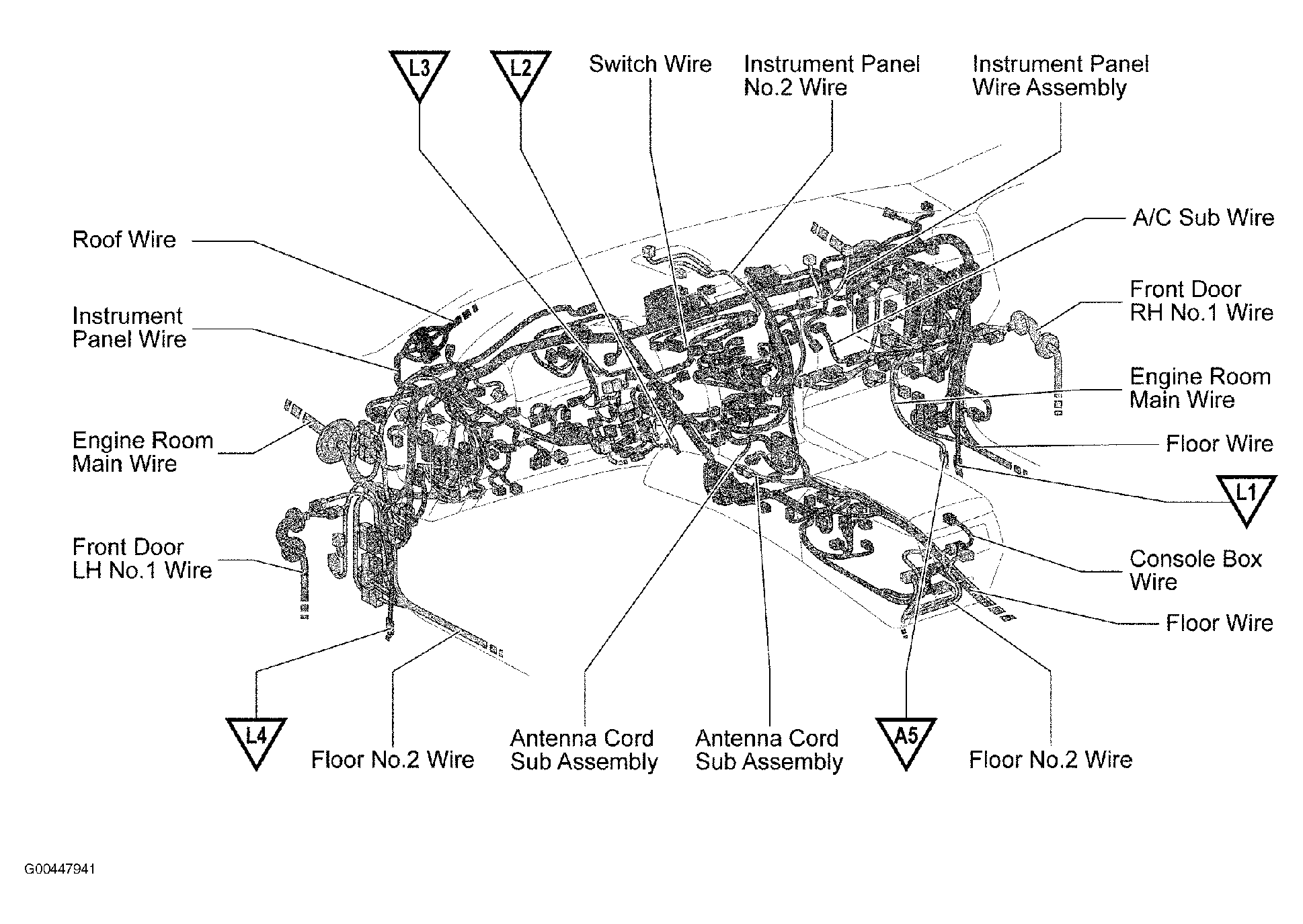

Fig 31: Dash & Center Floor Console

G00447941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

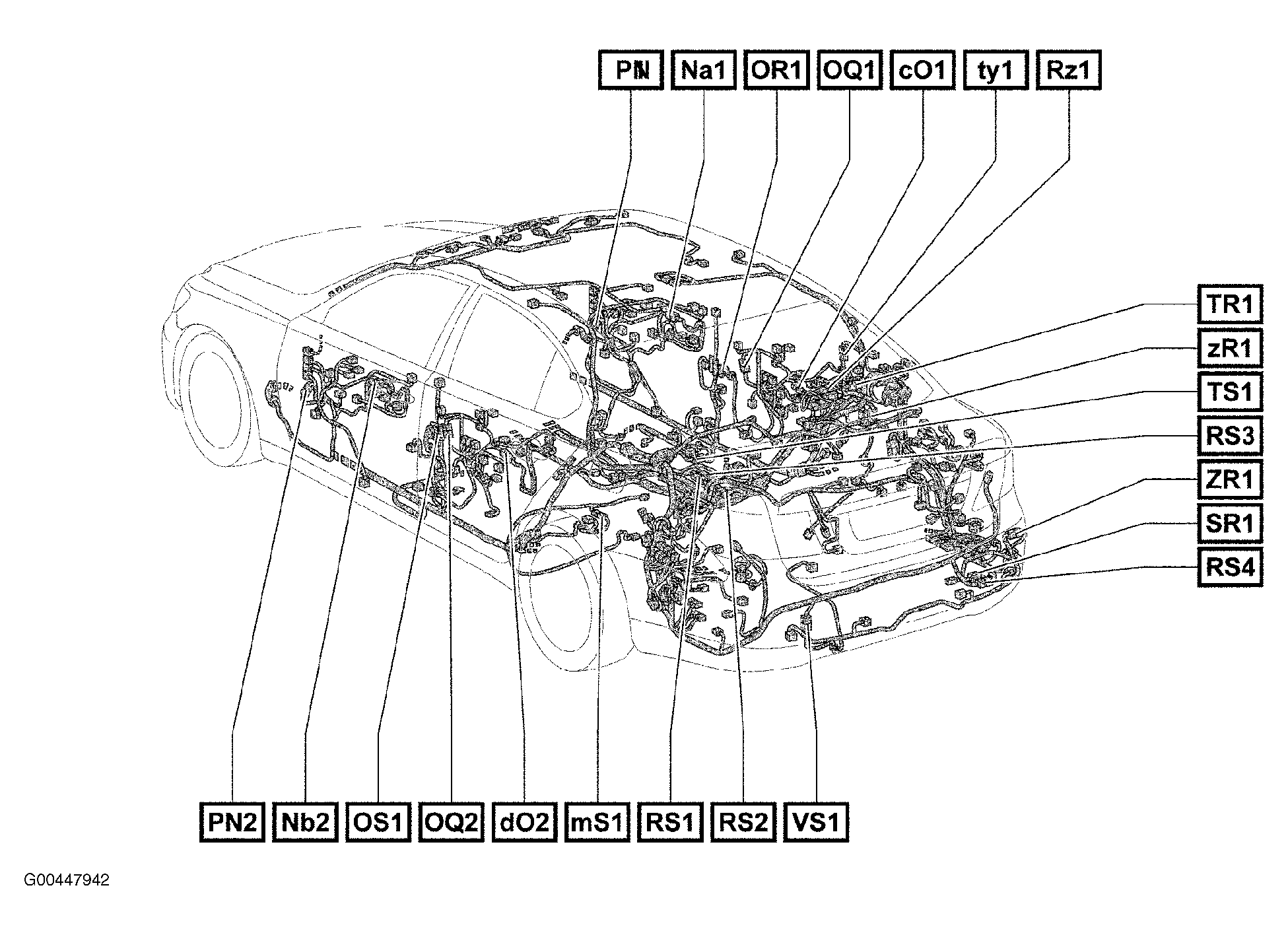

Fig 32: Vehicle Overview

G00447942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 33: Vehicle Overview

G00447943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

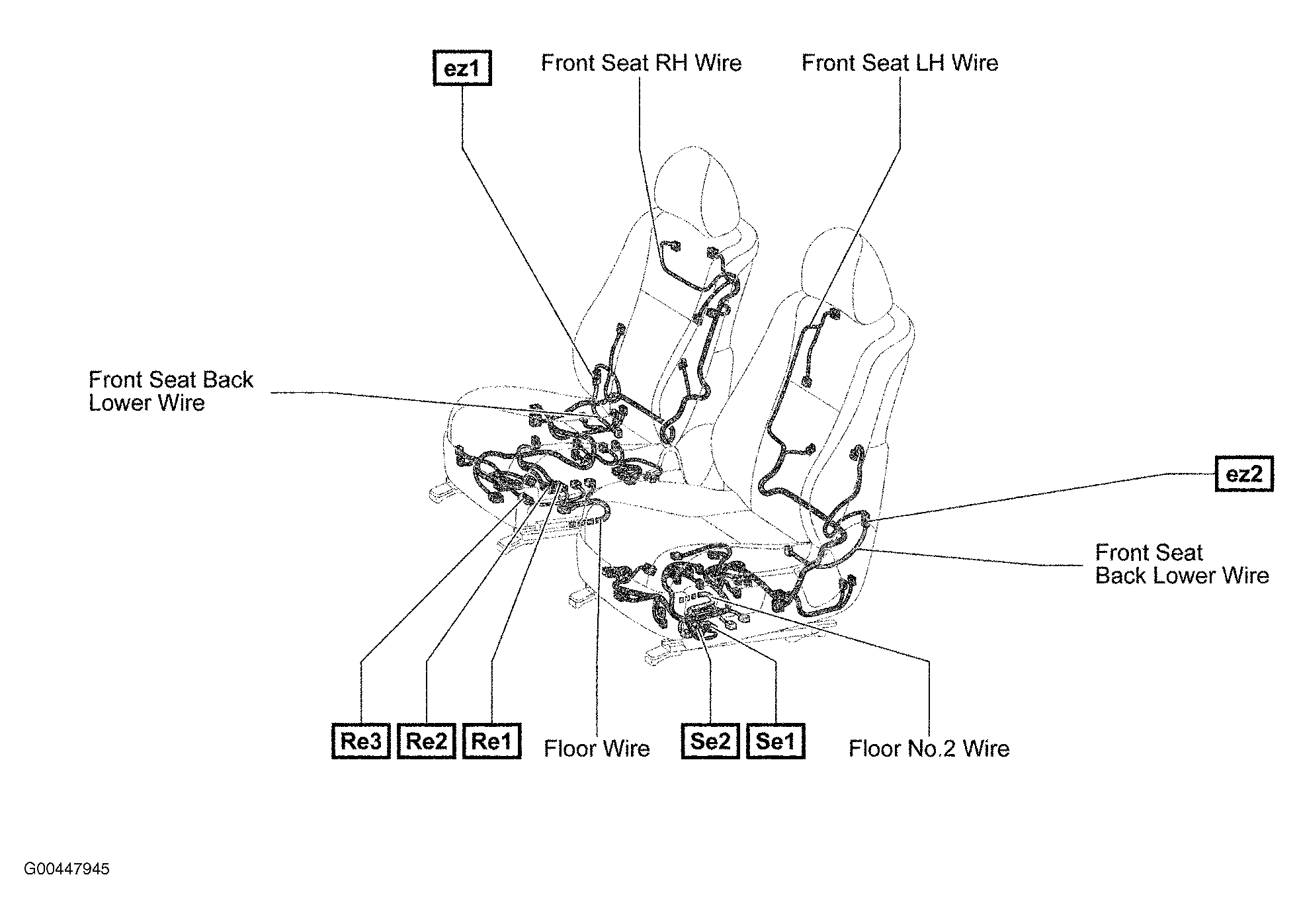

Fig 34: Front Seats

G00447945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

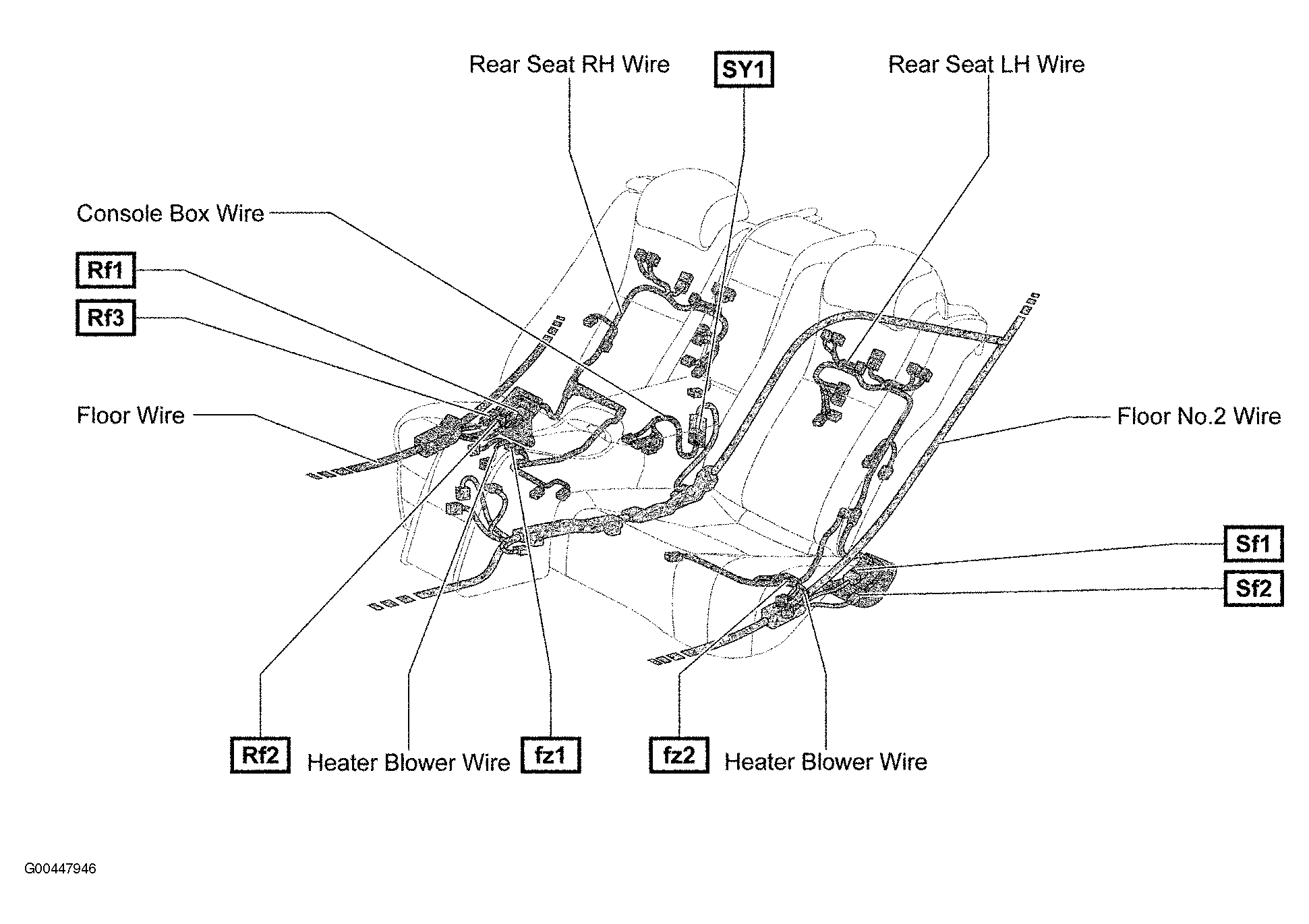

Fig 35: Power Rear Seats (W/Ottoman)

G00447946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

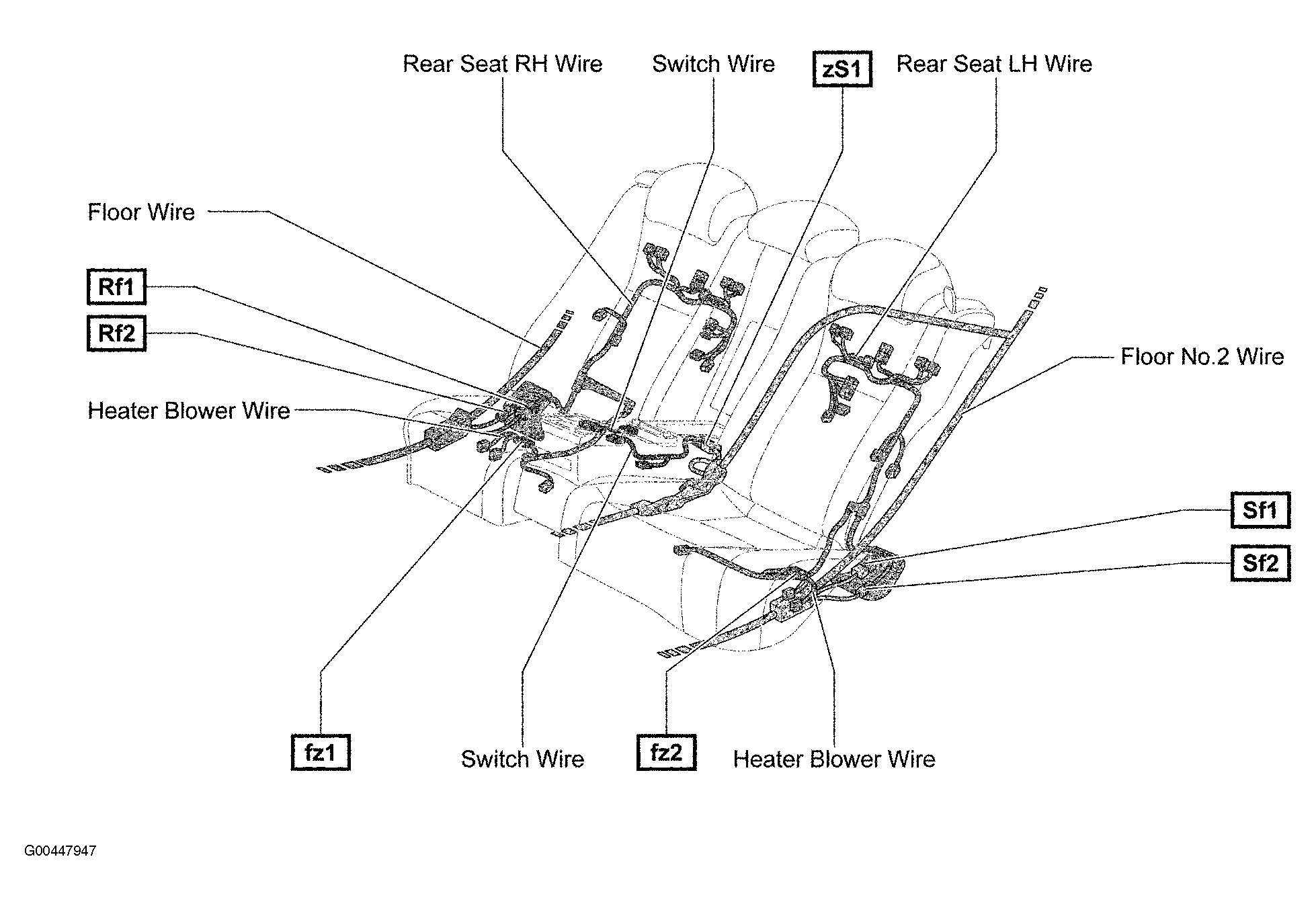

Fig 36: Power Rear Seats (W/O Ottoman)

G00447947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

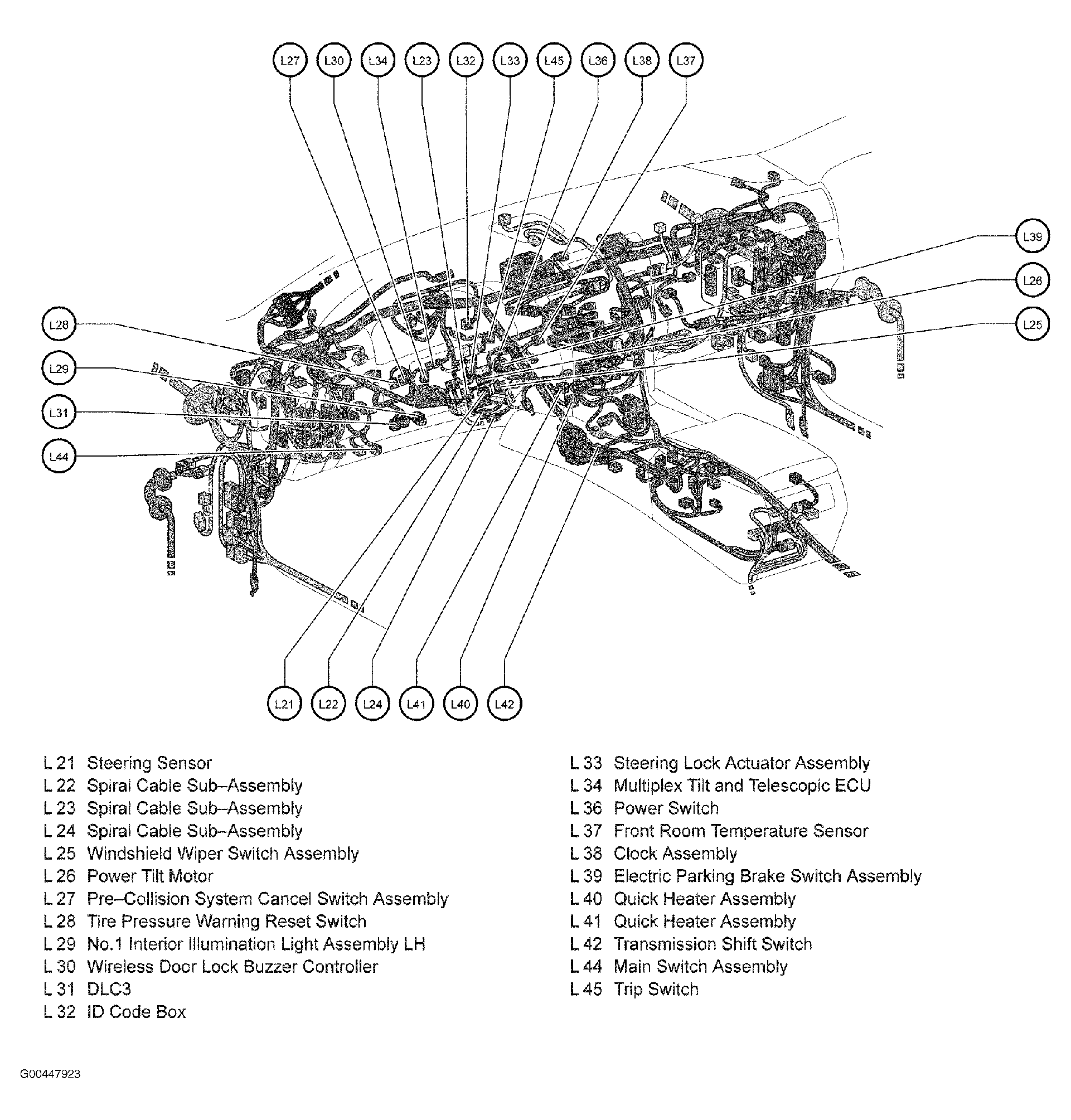

Fig 37: Dash

G00447923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 38: Dash

G00447925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 39: Hybrid System

G00447936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

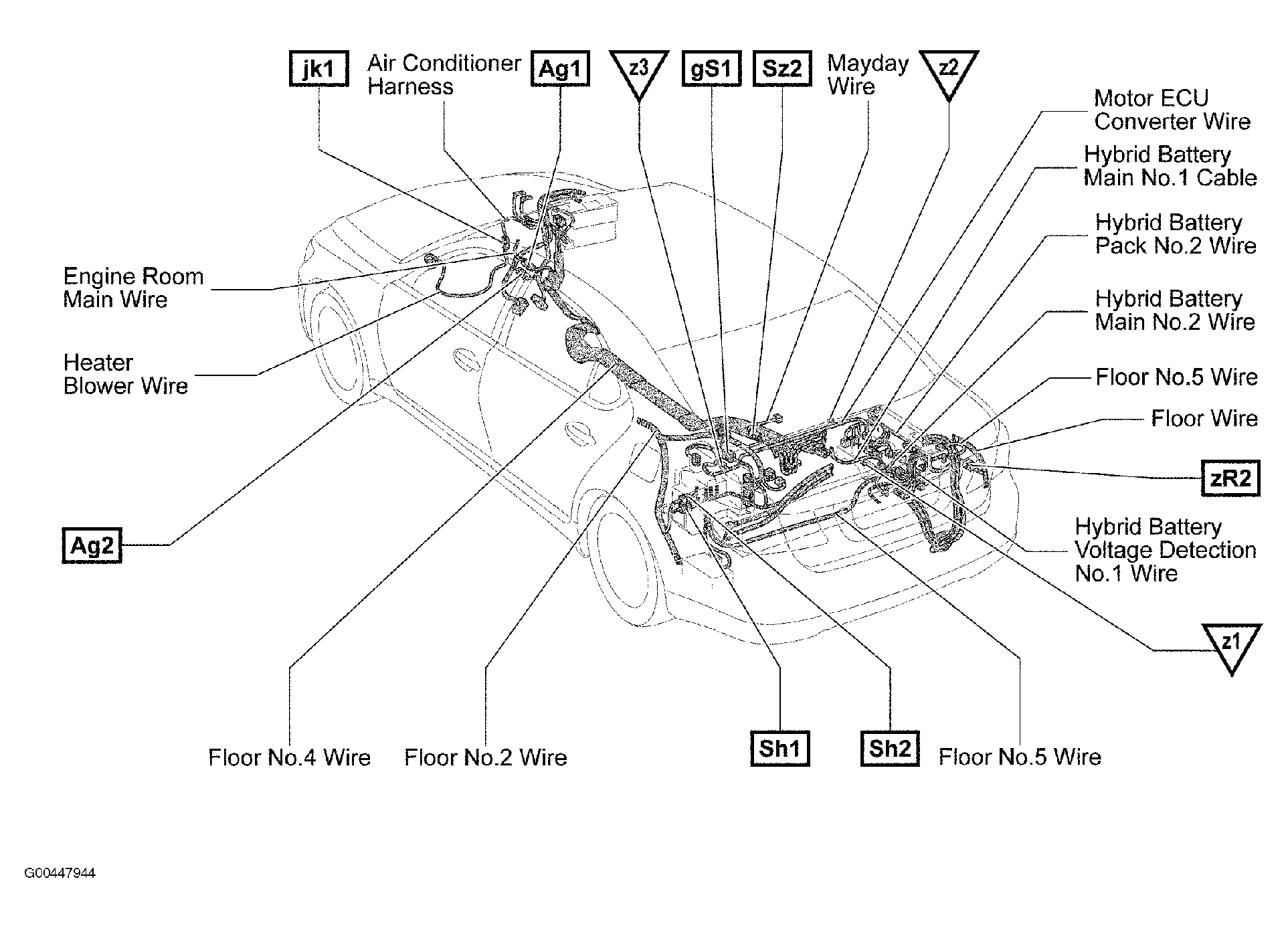

Fig 40: Vehicle Overview

G00447944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

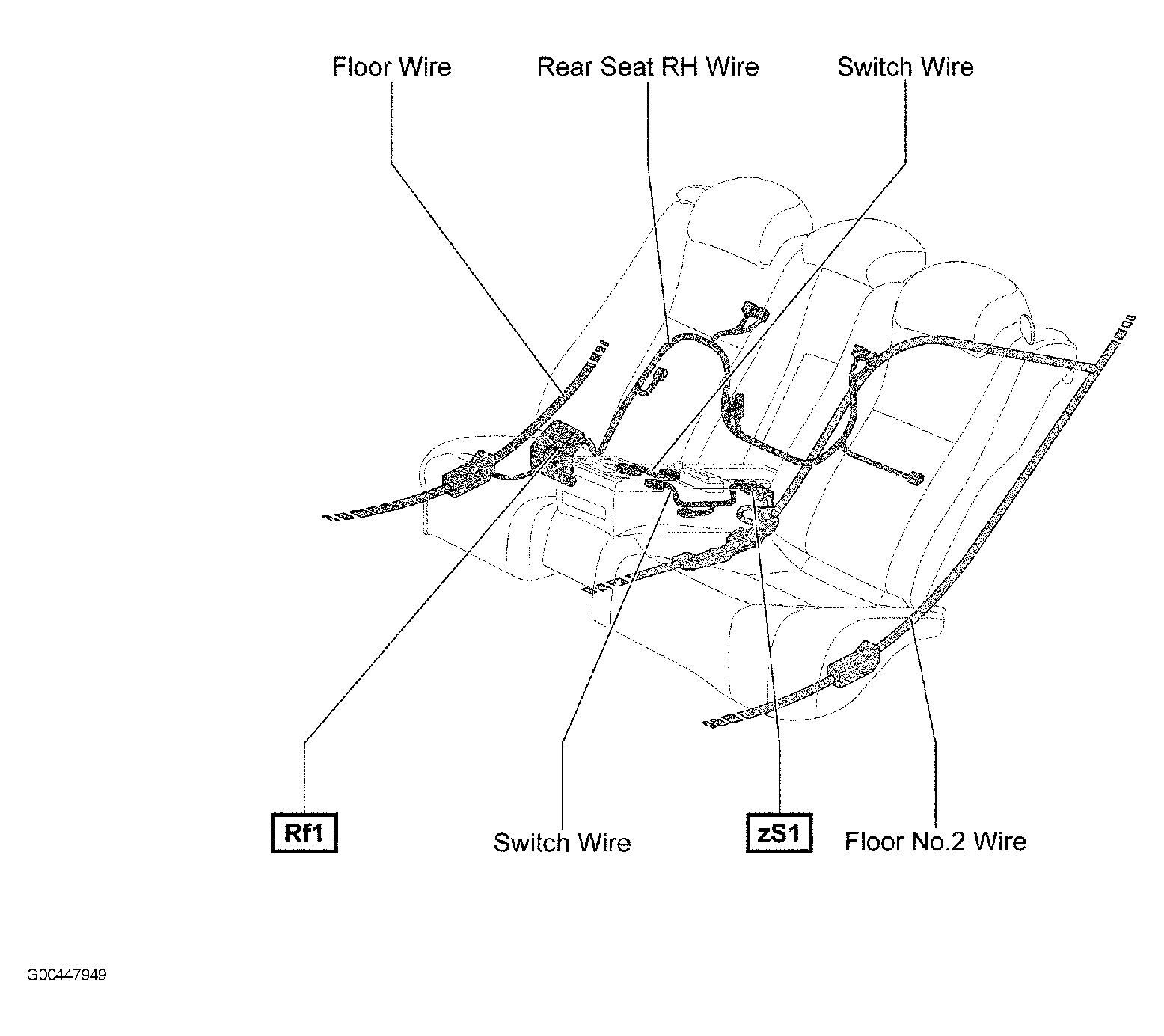

Fig 41: Rear Seat Assembly (W/O Ottoman, W/O Power Seat)

G00447949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

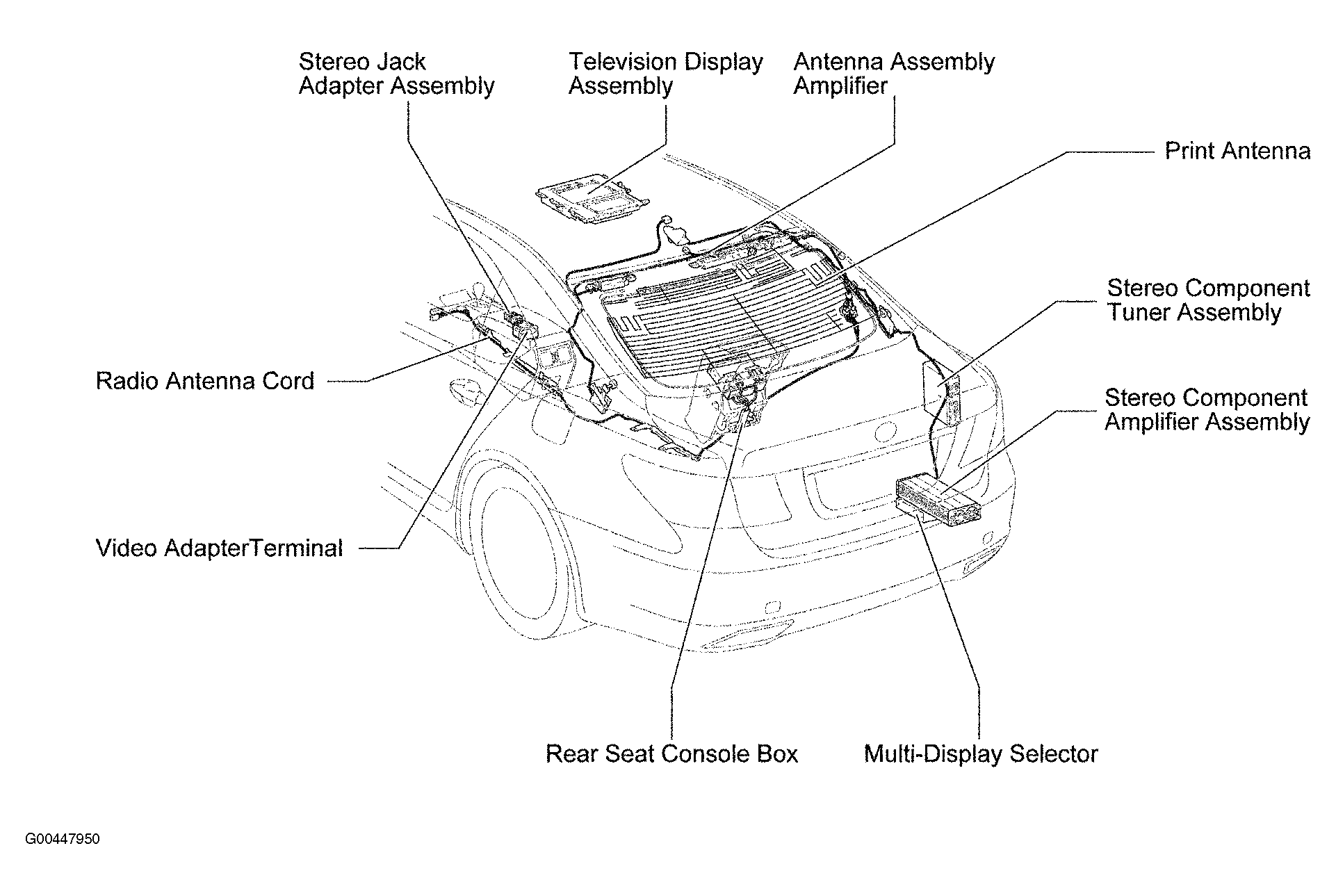

Fig 42: Rear Of Vehicle

G00447950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

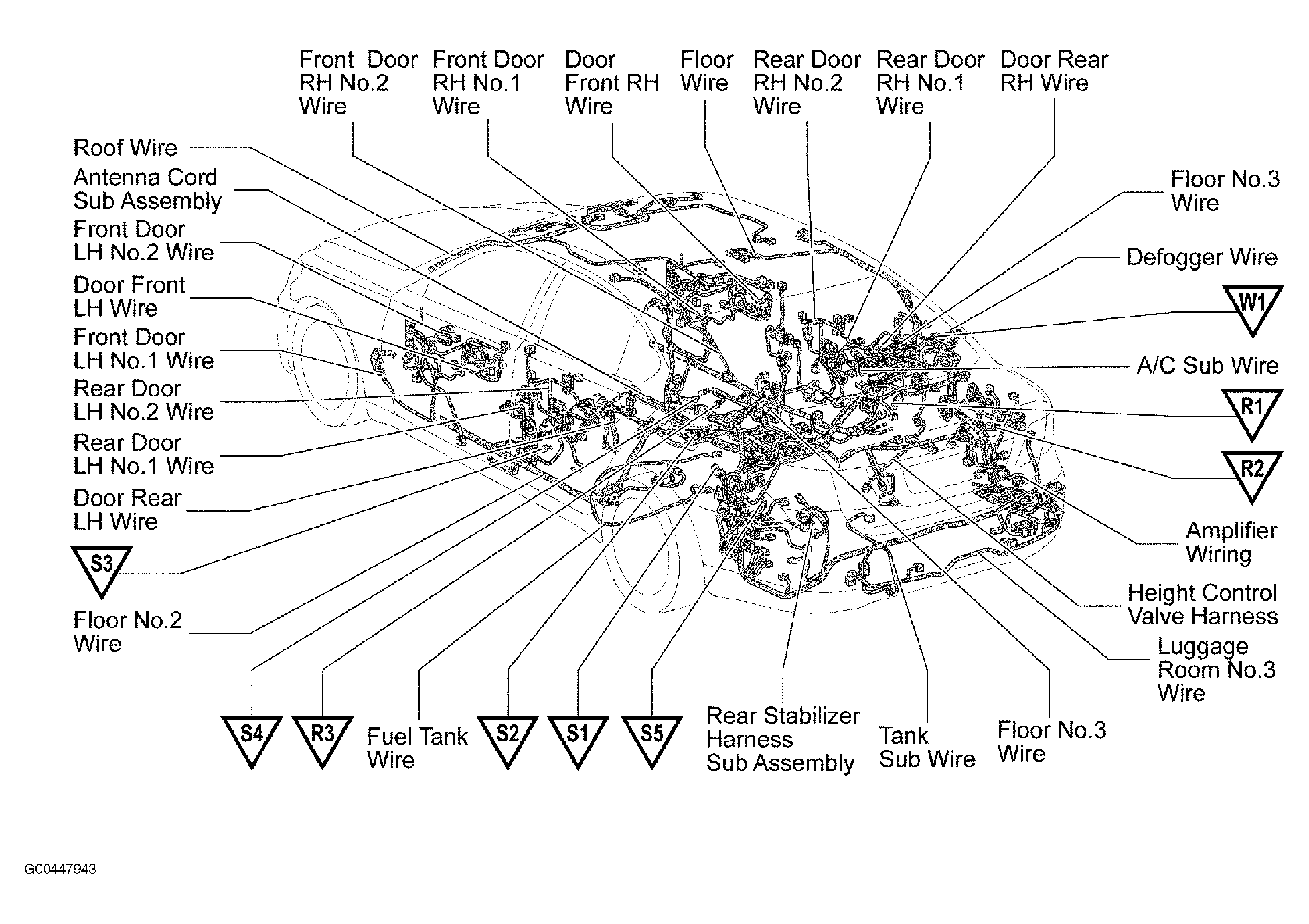

Fig 43: Vehicle Overview

G00447954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 44: Engine Room R/B No. 4

G00447958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 45: Front Seats

G00447959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 46: Right Rear Of Vehicle

G00467262

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

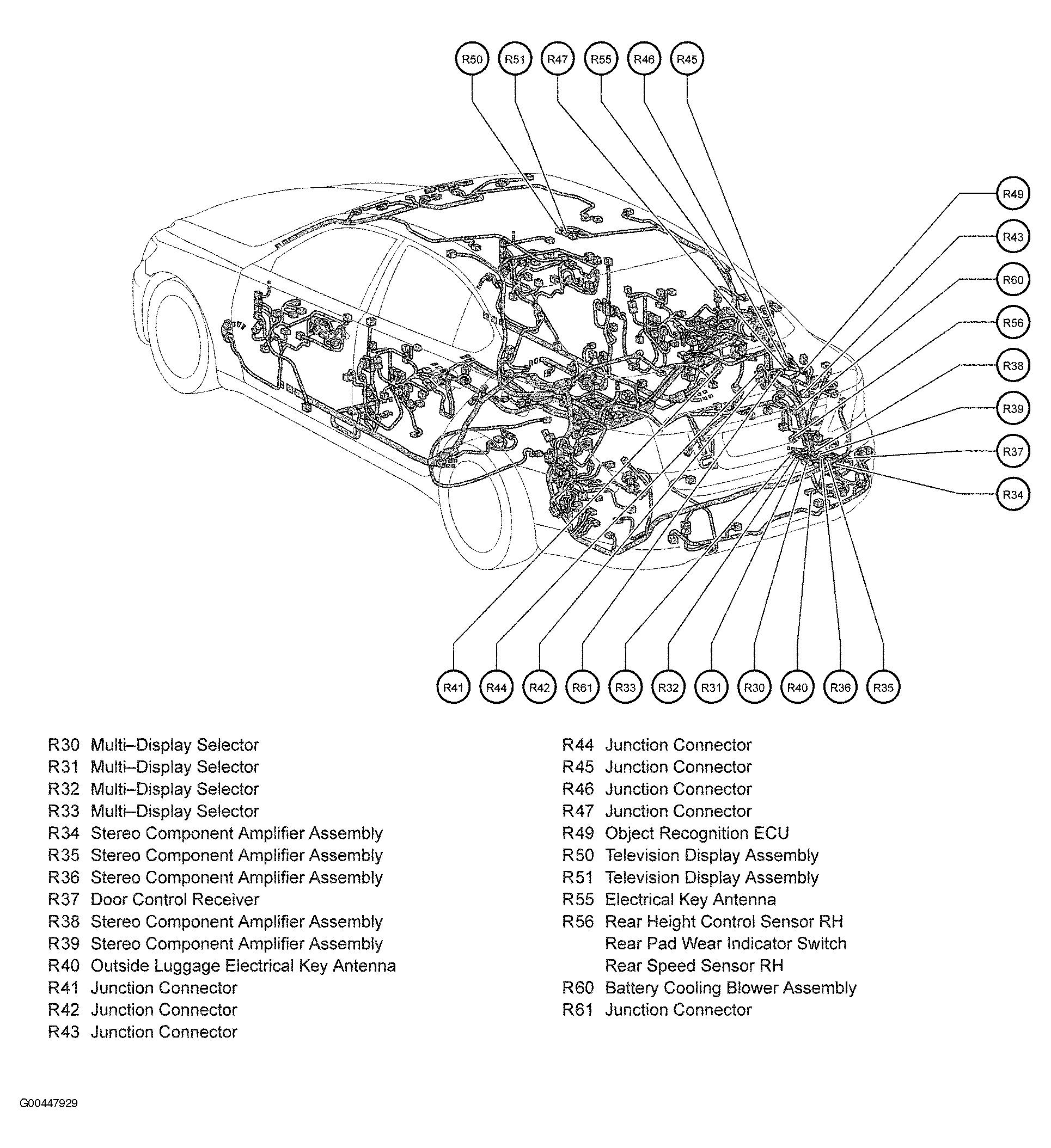

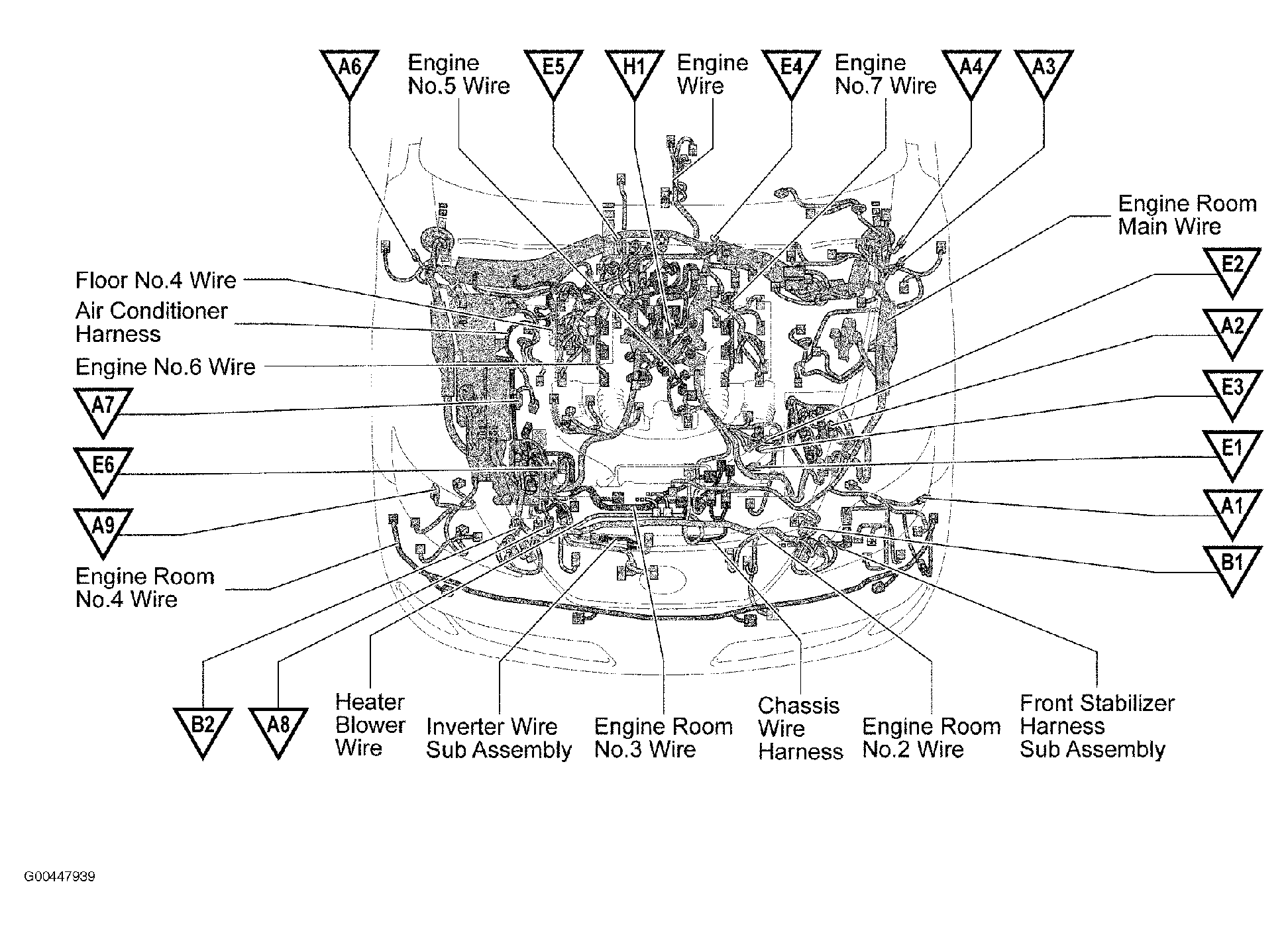

Fig 47: Right Rear Of Vehicle

G00447929

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
