Camshaft Timing Control Motor: Components

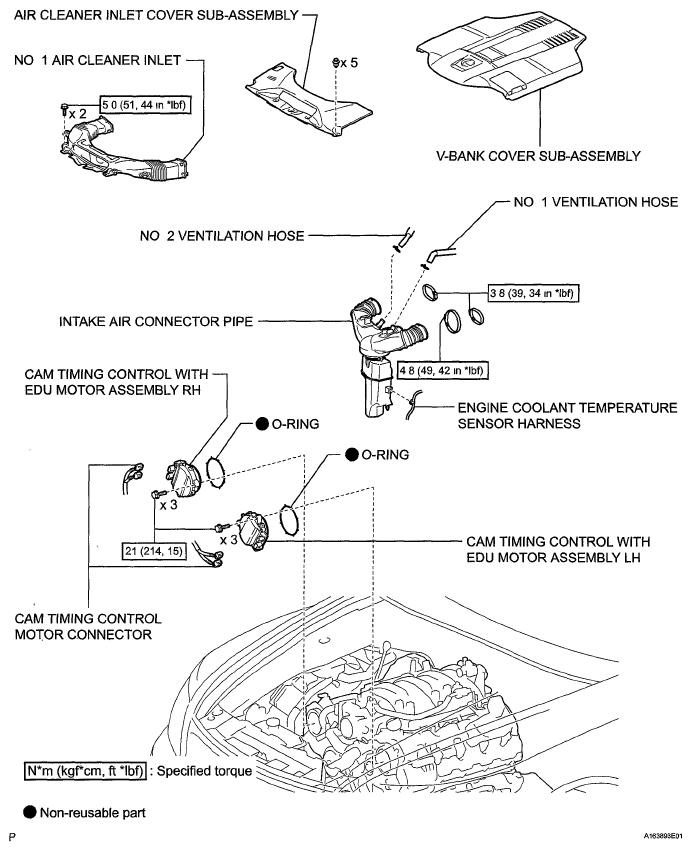

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications
G05771205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
