Engine Control System - Circuit Tests, Component Removal, Inspection & Installation: ECM: Components

Fig 1: Identifying ECM Components (1 Of 2)
G05771228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

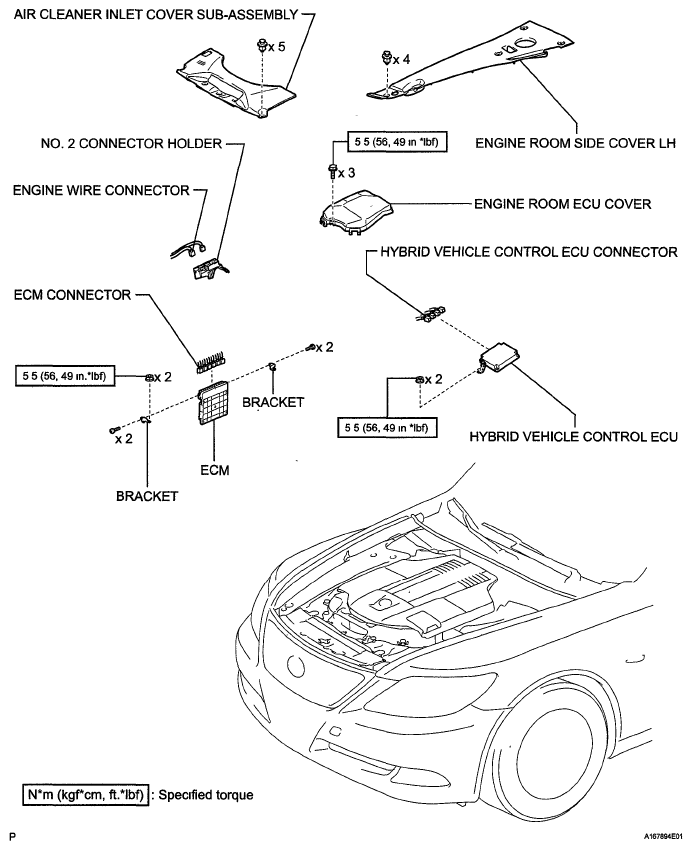

Fig 2: ECM Replacement Components With Torque Specifications (2 Of 2)
G05771229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
